Conductor-rail
Allowable Amper of conductor rail can be up to 5000A (Cooper Conductor) /3000A(Aluminum Conductor). It can be working well under the +115°C. Provide free installation instructions.
- Conductor Material
- Copper(5000A) /Aluminum(3000A).
- Max Allowable Amper
- 5000A/3000A
- Poles
- 3P/4P/Customized
- Bending Radius
- ≥1200mm
- Temperature
- 40℃ To +115℃
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design
Product Overview
<
p
>

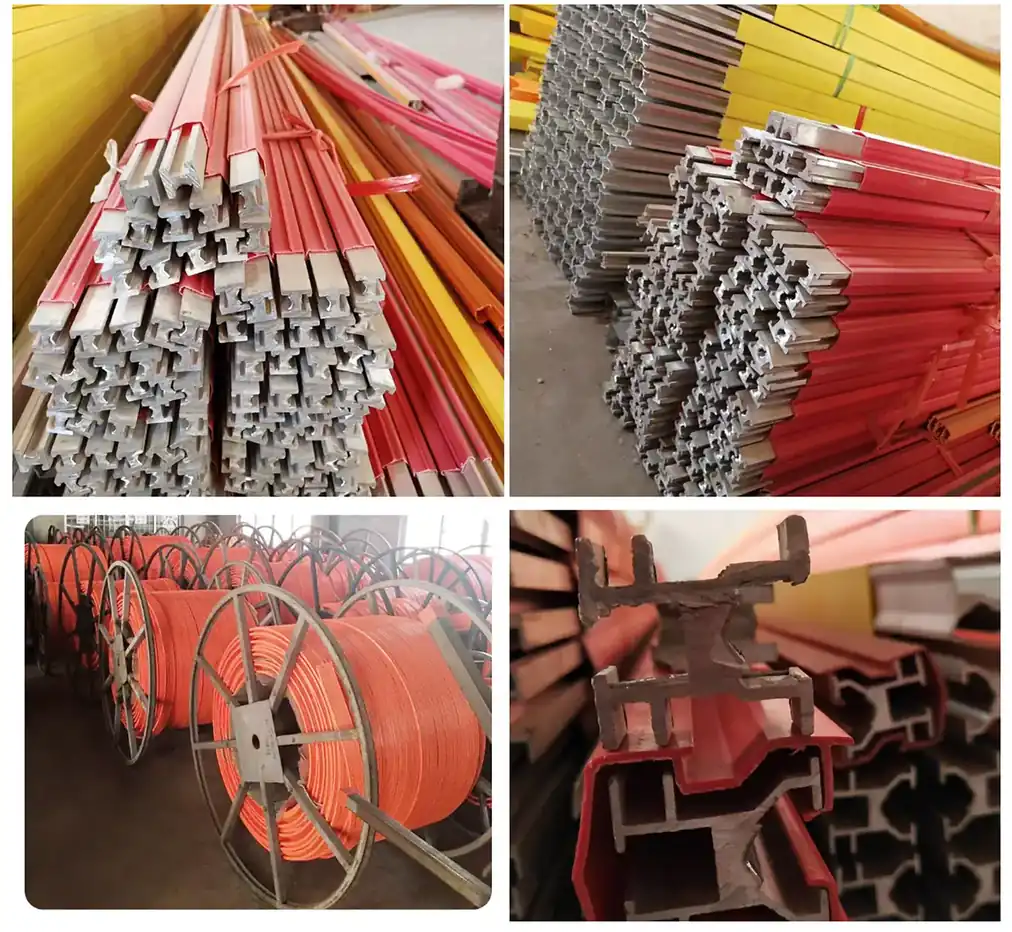

Product Gallery
Technical Features
- It is safe and reliable, even if it is touched by fingers, there is no risk of electric shock, and it meets the IP44 standard.
- Energy saving and consumption reduction, using special formula aluminum alloy profile as conductor; The resistance is small, which can minimize the loss of electric energy.
- Sheath and accessories are common.
- Long service life. The conductor sheath also adopts a unique formula, which greatly prolongs the service life of the unipolar sliding contact wire system.
- The collector can move in three-dimensional space and can meet the uninterrupted power supply of power supply equipment; Double insulation design is adopted for safer and more reliable operation.

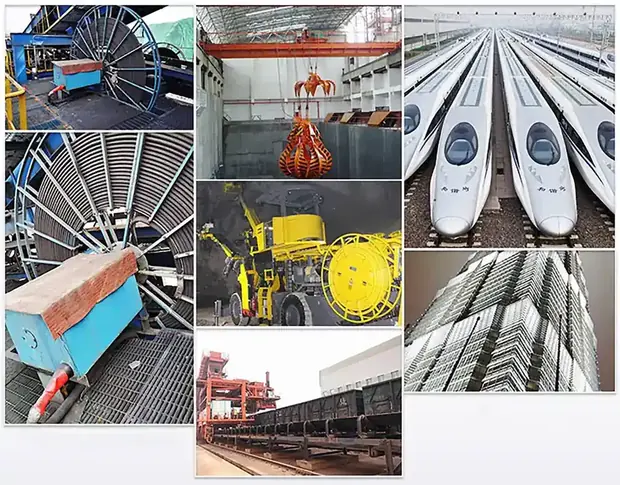

Where It Is Used
- Installation & Application
- Combined design is adopted, which is easy to install and daily maintenance, especially suitable for high-altitude operation.
- Horizontal Installation: Suitable for small tonnage cranes, electric hoists and other equipment, with high safety and good application efficiency.
Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| Conductor Material | Copper(5000A) /Aluminum(3000A). |
|---|---|
| Max Allowable Amper | 5000A/3000A |
| Poles | 3P/4P/Customized |
| Bending Radius | ≥1200mm |
| Temperature | 40℃ To +115℃ |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.

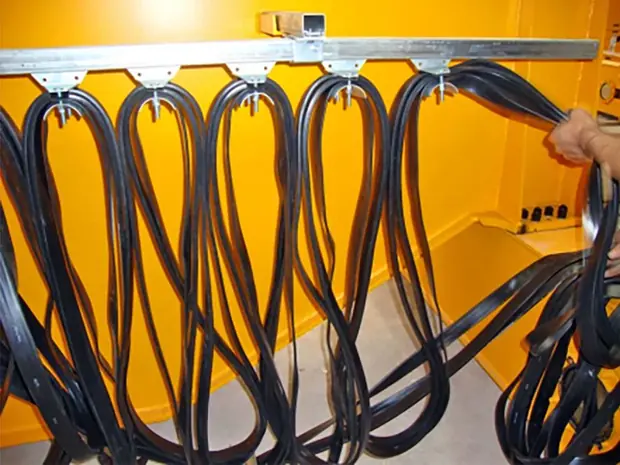

Related Products
Frequently Asked Questions
What information do you need to quote a conductor-rail?
Capacity, span rail centre to rail centre, lifting height, duty or working condition, power supply, travel distance and the service area conditions. A workshop drawing speeds it up considerably.
Is the conductor-rail available as a spare part or kit item?
Yes. Sinomac provides a special products customisation service, and free production drawings for regional partners and clients buying crane kits.
How long does a quotation take?
A quotation is issued within 24 hours and a CAD drawing within 48 hours, both free of charge.
What testing is done before shipment?
Every hoist is pre-commissioned before packing and the crane is pre-assembled for a factory acceptance test. A third party inspection can be arranged at your request.
Are your cranes built to FEM and DIN standards?
Yes. Sinomac designs to FEM, DIN and ISO. Duty group is set from your real lifting cycle, so the classification on the nameplate matches how the crane is actually used.
Can you supply a crane kit instead of a complete crane?
Yes. Sinomac supplies hoist, end carriages, drives, control system and anti-sway as a kit, and provides free production drawings of the girder for regional partners and clients buying kits, which lowers shipping cost.
Request a Quotation for the Conductor-rail
Send capacity, span, lifting height and duty. A quotation follows within 24 hours.
