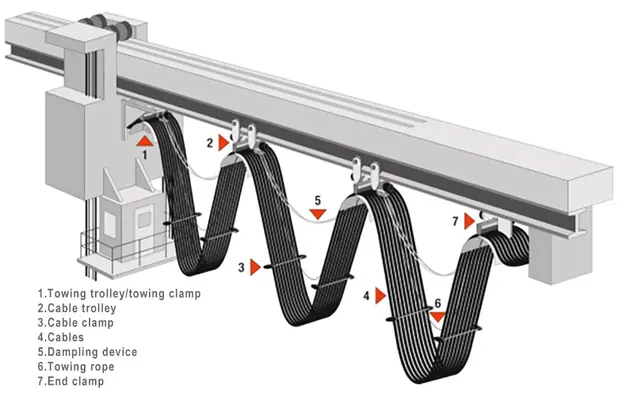

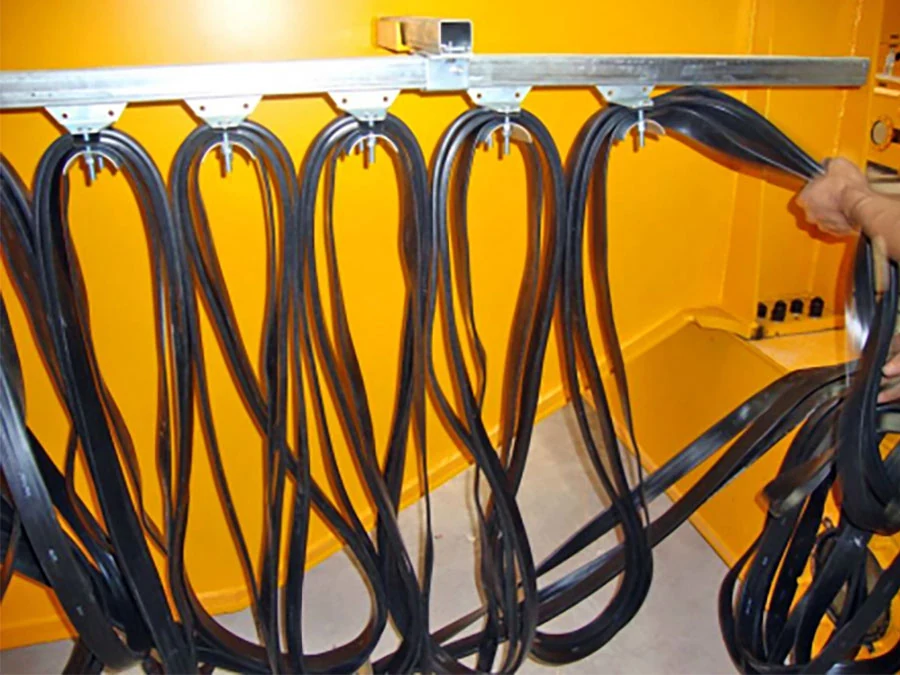

C-track-cable-trolley
Cable Trolley adopted ball type bearing and material can be galvanized steel or stainless steel. Cable trolley is customizable according to clients technical requirement.
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design
Product Overview
C-track-cable-trolley is part of the crane spare parts range built by Henan Sinomac Industrial Co., Ltd to FEM, DIN and ISO standards.
Product Gallery
Technical Features
- Manufactured with CNC production line,high precision
- double 90 degrees channels, to ensure the accuracy of the chute 0.5%
- Smooth and even joints, no need for secondary grinding, which is time- saving and labor-saving
- Easy to install, no need to adjust the camber
Where It Is Used
- general bridge crane, gantry crane, electric hoist trolley, warehouse, shipyard, wharf and other lifting equipment of mobile power supply.
- C Track cable trolley is an ideal logistics power supply system, suitable for indoor and outdoor, dusty and large temperature difference. At present, cable trolley is widely used in all kinds of general bridge crane, gantry crane, electric hoist trolley, warehouse, shipyard, wharf and other lifting equipment of mobile power supply.
Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| Published specification | TBC — request the datasheet |
|---|
| Wheels | Ball Bearing, hardened and galvanized |
|---|---|
| Material | Carrier Body: Galvanized Steel/304 Stailess Steel |
| Support Saddle: Galvanized steel or ABS | |
| Clamp: Neoprene | |
| Dowel: Seamless brass tube or galvanized steel | |
| Other Hardware: Galvanized steel/304 Stainless Steel | |
| Travelling Speed | 120m/min |
| Working Temperature | 40℃~125℃ |
| Cable Load | 120kg |
| Cable Loop Depth | ≥0.3m (when travelling speed is no more than 35m/min) |
| ≤0.8m (when travelling speed is between 35-50m/min) | |
| ≥0.8m (when travelling speed is between 50-80m/min) |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.
Related Products
Conductor-rail
- Conductor Material
- Copper(5000A) /Aluminum(3000A).
- Max Allowable Amper
- 5000A/3000A

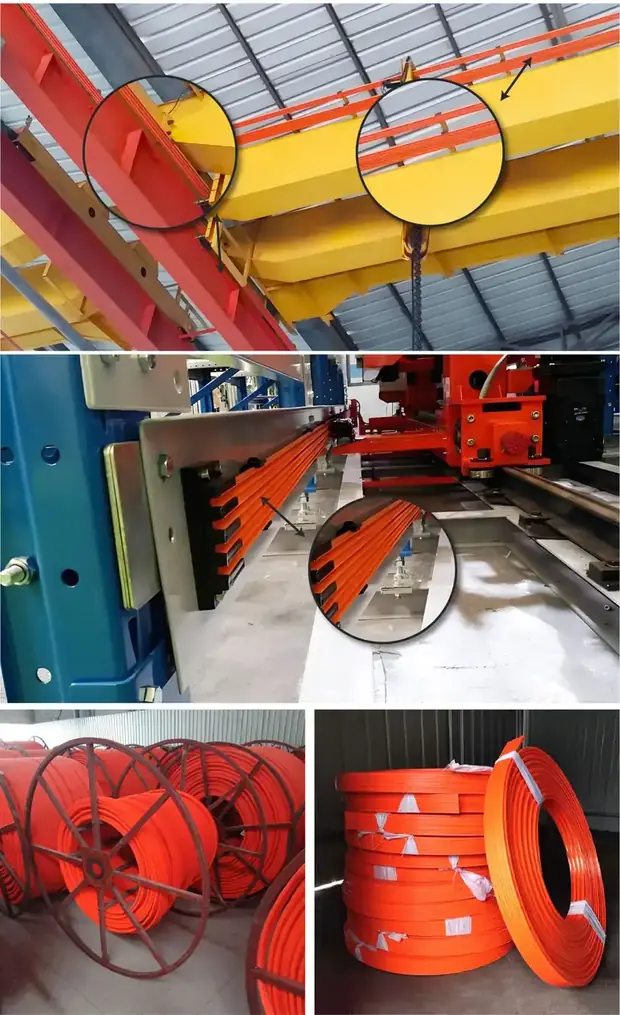

Mobile-conductive-busbar
- Conductor Material
- 99.99% Oxygen Free Copper.
- Max Allowable Amper
- 200A

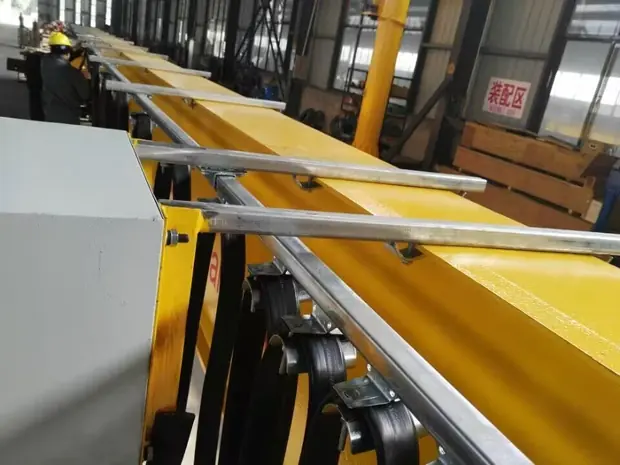

Festoon-system
View specification

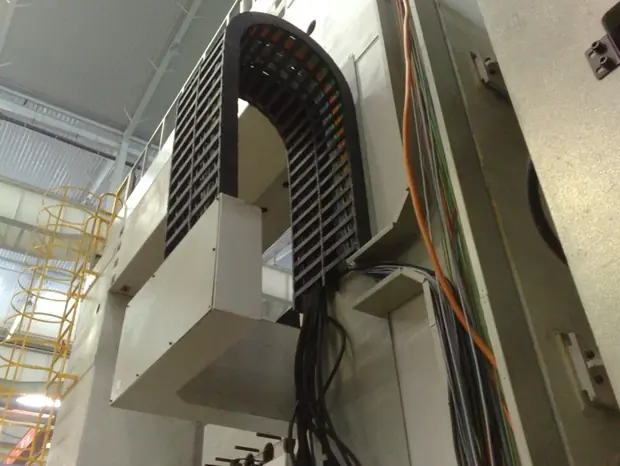

Energy-chain
