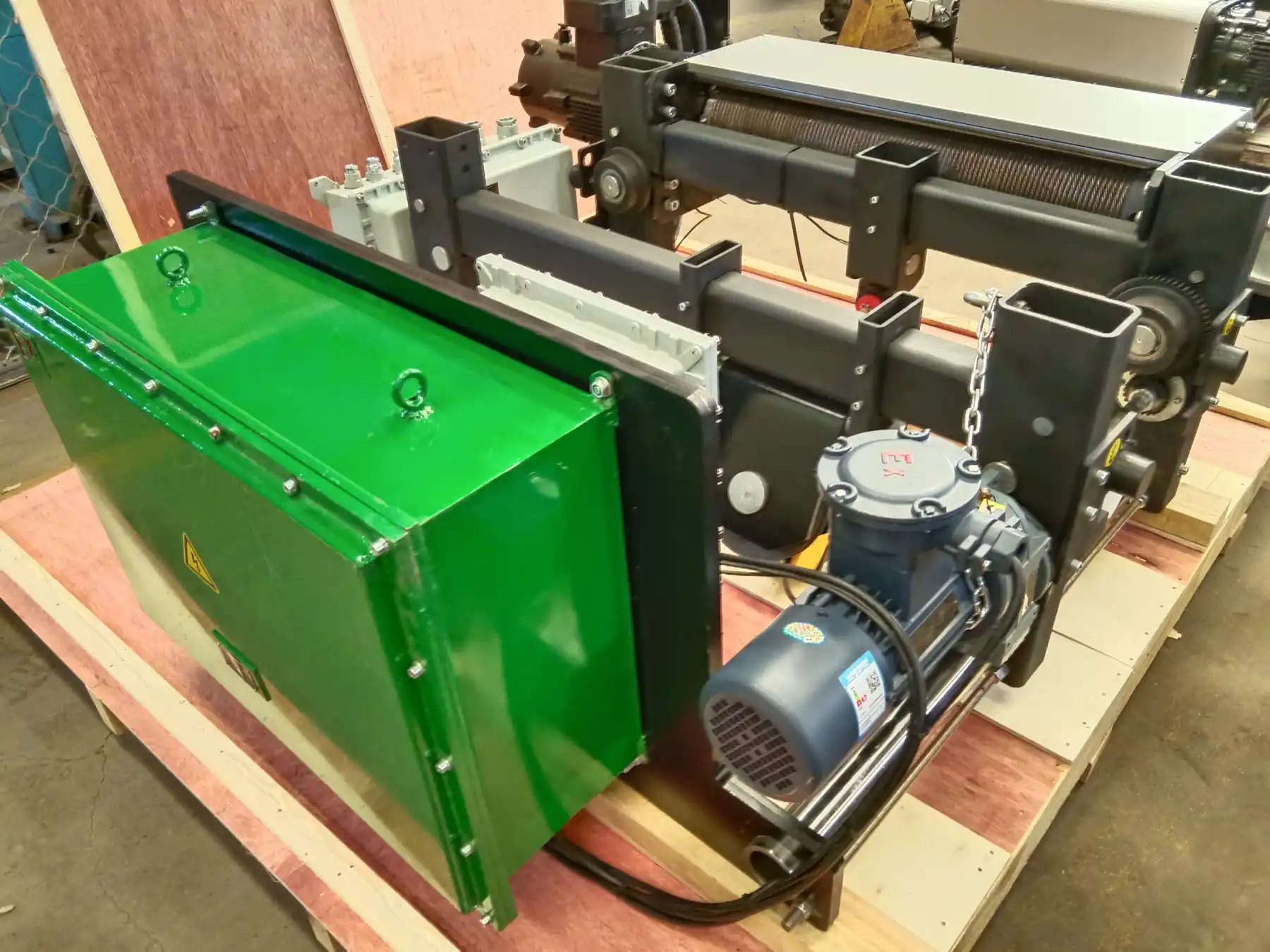

Explosion-proof-rope-hoist
Explosion Proof Rope Hoist is made strictly in accordance with FEM/DIN Standard, which can meet the requirement of gas explosion-proof and dust-proof explosion-proof (ExdIICT4Gb/tD A21 IP65 T130℃), and the calssification is up to M5. The rated capacity can reach 80t.
- Classification/Duty
- M5
- Classification
- M5
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design
Product Overview
<
p
>
Technical Features
- Complied with ATEX standard.
- Optimized design in line with FEM standards.
- The overload protection function is usually set, 100% overload alarm, 110% overload can drop but not rise, 125% overload automatically stops.
- Equipped with an intelligent safe operation monitoring system, which can continuously record the working status and prevent non-professional operation.
- The controller will perform a self-check before starting, including the power supply voltage level, default phase, button zero state and the validity of each safety device.
- The three-point support statically determinate structure reduces internal stress, and the side-mounted reducer and cantilever motor form a flexible drive system to ensure stable operation and low noise.
- Imported motor, aluminum alloy wire drawing, good heat dissipation, overheating protection and alarm function.
- The whole machine is maintenance-free design, with few wearing parts and convenient maintenance.
Where It Is Used
- The explosion proof rope hoist is complied with ATEX Standard. It is widely used in various occasions that require explosion-proof measures, such as petroleum, petrochemical, oil depots, chemicals, coal mines and other environments with potential fire and explosion hazards. It can improve working conditions and increase labor productivity while ensuring.
- Sinomac Industrial(SANOMAC) is a professional crane system and hoist system slolutions provider.
Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| Classification/Duty | M5 |
|---|---|
| Classification | M5 |
| Parameter | Specification |
|---|---|
| Maximum Load Capacity | Up to 80 tons |
| Motor Type | 3-IN-1 Explosion Proof Geared Motor |
| Protection Rating | IP65 |
| Insulation Rating | H |
| Overheating Protection | Yes |
| Overloading Protection | Yes |
| Maintenance Requirement | Maintenance Free |
| Track Type | C-profile Festoon System |
| Cable Type | Complete Rubber and Round Form Cable |
| Trolley Type | Nylon Trolley |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.
Related Products
Electric-wire-rope-hoist
- Product Type
- CD MD
- Lifting Capacity
- 0.5~80t
Electric-chain-hoist
- MAX Capacity
- 100T
- Lifting Height
- 0-120m
Planetary-geared-electric-hoist
- Electric Hoist Type
- Wire Rope Hoist
- Lifting Capacity
- 1~80T
1-20-ton-din-overhead-crane
- Capacity
- 1~32 T
- Span
- ≤50M
Frequently Asked Questions
What information do you need to quote a explosion-proof-rope-hoist?
Capacity, span rail centre to rail centre, lifting height, duty or working condition, power supply, travel distance and the service area conditions. A workshop drawing speeds it up considerably.
Can the explosion-proof-rope-hoist be customised?
Yes. Sinomac provides a special products customisation service, and free production drawings for regional partners and clients buying crane kits.
How long does a quotation take?
A quotation is issued within 24 hours and a CAD drawing within 48 hours, both free of charge.
What testing is done before shipment?
Every hoist is pre-commissioned before packing and the crane is pre-assembled for a factory acceptance test. A third party inspection can be arranged at your request.
Are your cranes built to FEM and DIN standards?
Yes. Sinomac designs to FEM, DIN and ISO. Duty group is set from your real lifting cycle, so the classification on the nameplate matches how the crane is actually used.
Can you supply a crane kit instead of a complete crane?
Yes. Sinomac supplies hoist, end carriages, drives, control system and anti-sway as a kit, and provides free production drawings of the girder for regional partners and clients buying kits, which lowers shipping cost.
Request a Quotation for the Explosion-proof-rope-hoist
Send capacity, span, lifting height and duty. A quotation follows within 24 hours.
