1-20-ton-din-overhead-crane
With More Cost-Effective and Stability Performance, 1-20 ton DIN Overhead Crane is Strictly Accordance with European Standards.
- Capacity
- 1~32 T
- Span
- ≤50M
- Lifting Height
- CUSTOMIZABLE
- Classification/duty
- UP TO A7/FEM 4M
- Control Type
- REMOTE/PENDNT/CABIN
- Design Standard
- FEM/DIN/ISO
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design
Product Overview
<
p
>

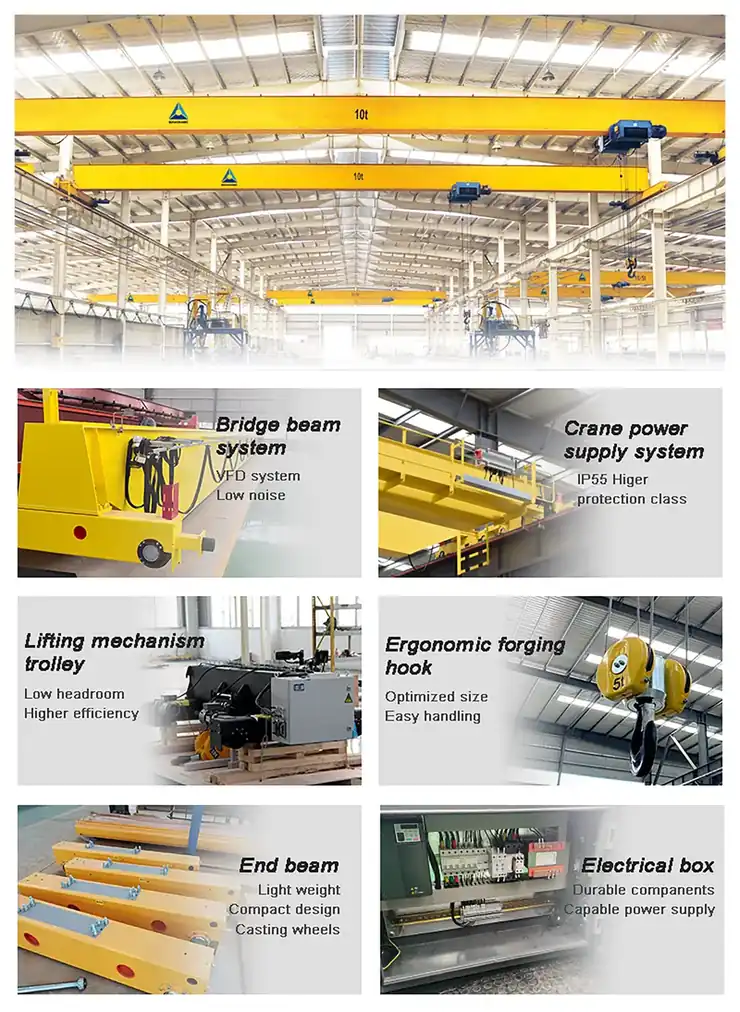

Product Gallery

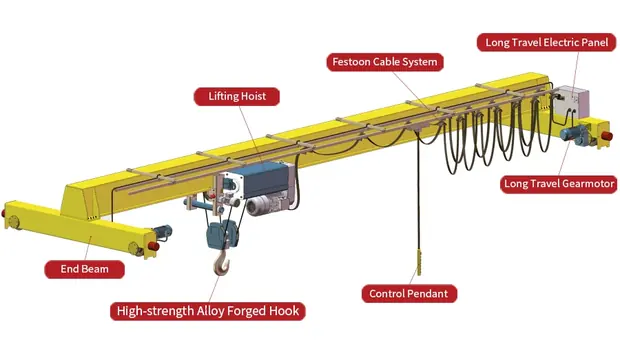

Technical Features
- Hoist update into planetary gearbox from traditional 3-in-1 gearbox.
- All the movement speed control update into inverter control from traditional dual speed motor control.
- Anty Sway Function & Al Function(Internet of Things) (Optional)
- Classification/Duty up to FEM 4M/A7
- Single Welding Box Girder/Beam.
- Full Inverter Speed Control
- 3-IN-1 Gearbox With Frequency Motor
- IP55 Protection, F/H Insulation
- Heavy Duty Motor, 60%ED rating
- Overload Cell with Display

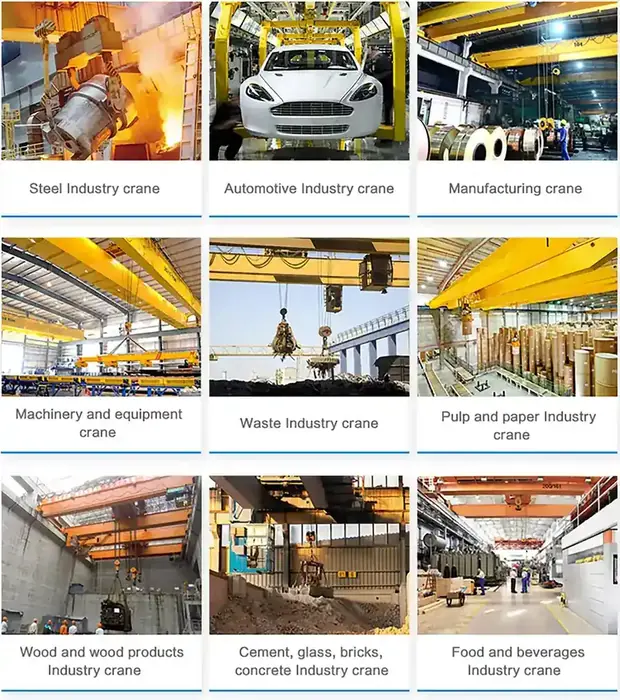

Where It Is Used
- WAREHOUSE, MACHING WORKSHOP, CONSURCTION INDUSTRY, CEMENT INDUSTRY, AUTOMOTIVE INDUSTRY, PAPER INDUSTRY, FOOD INDUSTRY, ETC.
- Sinomac Industrial single girder DIN overhead crane is also called european type EOT crane which is suitable the light duty working condition warehouse, workshop and so on.
- The DIN Overhead crane is much suitable for light industrial applications. such as the installation and maintenance of equipment in power stations or other workplaces, or workshops and warehouses where work is not frequent.

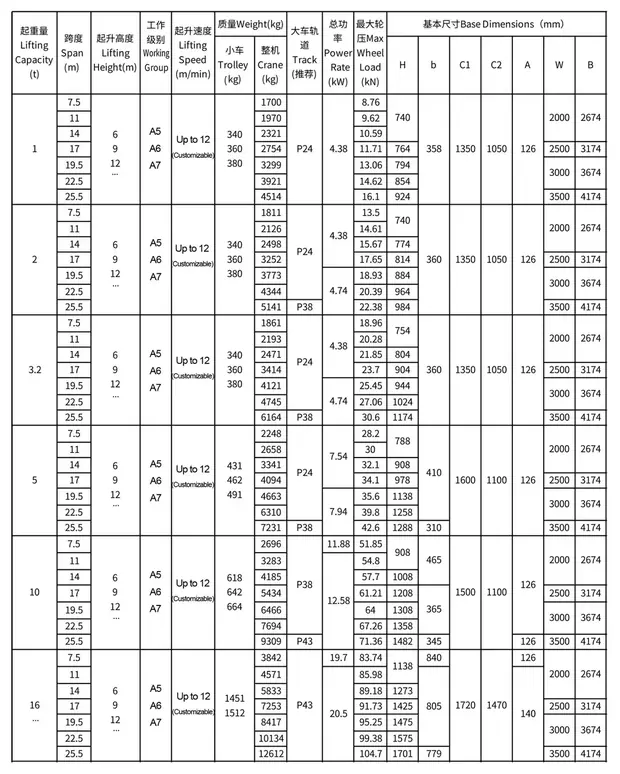

Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| Capacity | 1~32 T |
|---|---|
| Span | ≤50M |
| Lifting Height | CUSTOMIZABLE |
| Classification/duty | UP TO A7/FEM 4M |
| Control Type | REMOTE/PENDNT/CABIN |
| Design Standard | FEM/DIN/ISO |
| Service Temp. | 40~+60℃ |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.
Related Products
Fem-overhead-crane
- Design Standard
- FEM/DIN/ISO
- Capacity
- 1 T -160T
Double-girder-overhead-shop-crane
- Capacity
- 5~800t
- Lift Height
- Max. 160m
Single-girder-overhead-crane
- Capacity
- 0.5~32t
- Lift Height
- 3~120m or Customized
Grab-overhead-crane
- Max.Lifting Height
- 18-26m
- Lifting Capacity
- 5-20t
Frequently Asked Questions
What information do you need to quote a 1-20-ton-din-overhead-crane?

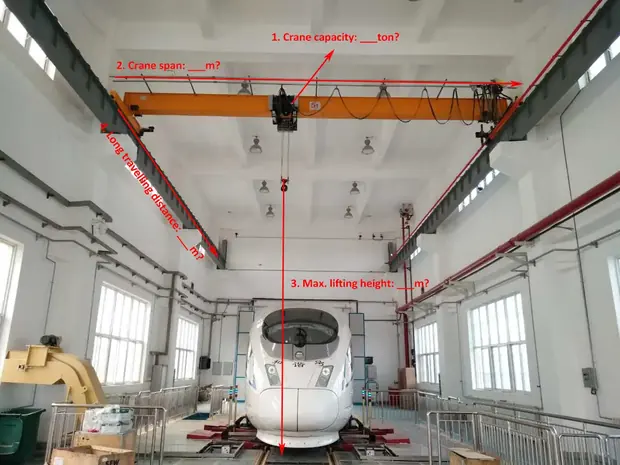

Capacity, span rail centre to rail centre, lifting height, duty or working condition, power supply, travel distance and the service area conditions. A workshop drawing speeds it up considerably.
Can the 1-20-ton-din-overhead-crane be customised?
Yes. Sinomac provides a special products customisation service, and free production drawings for regional partners and clients buying crane kits.
How long does a quotation take?
A quotation is issued within 24 hours and a CAD drawing within 48 hours, both free of charge.
What testing is done before shipment?
Every hoist is pre-commissioned before packing and the crane is pre-assembled for a factory acceptance test. A third party inspection can be arranged at your request.
Are your cranes built to FEM and DIN standards?
Yes. Sinomac designs to FEM, DIN and ISO. Duty group is set from your real lifting cycle, so the classification on the nameplate matches how the crane is actually used.
Can you supply a crane kit instead of a complete crane?

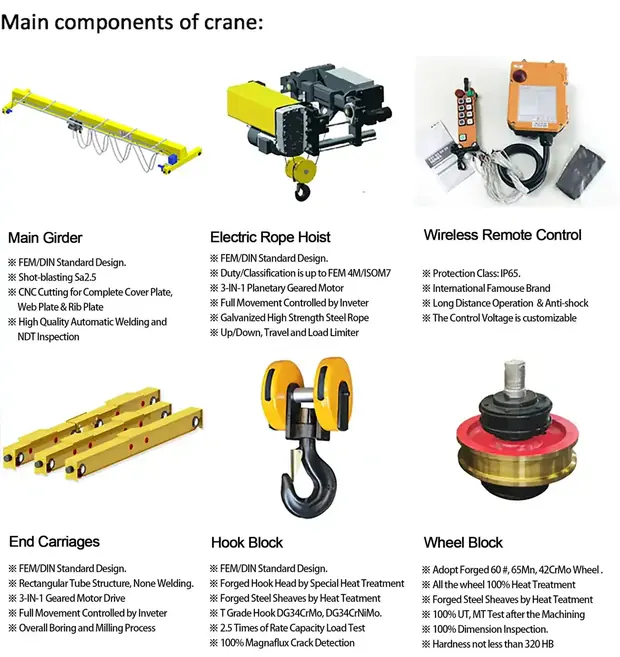

Yes. Sinomac supplies hoist, end carriages, drives, control system and anti-sway as a kit, and provides free production drawings of the girder for regional partners and clients buying kits, which lowers shipping cost.
Request a Quotation for the 1-20-ton-din-overhead-crane
Send capacity, span, lifting height and duty. A quotation follows within 24 hours.
