Grab-overhead-crane

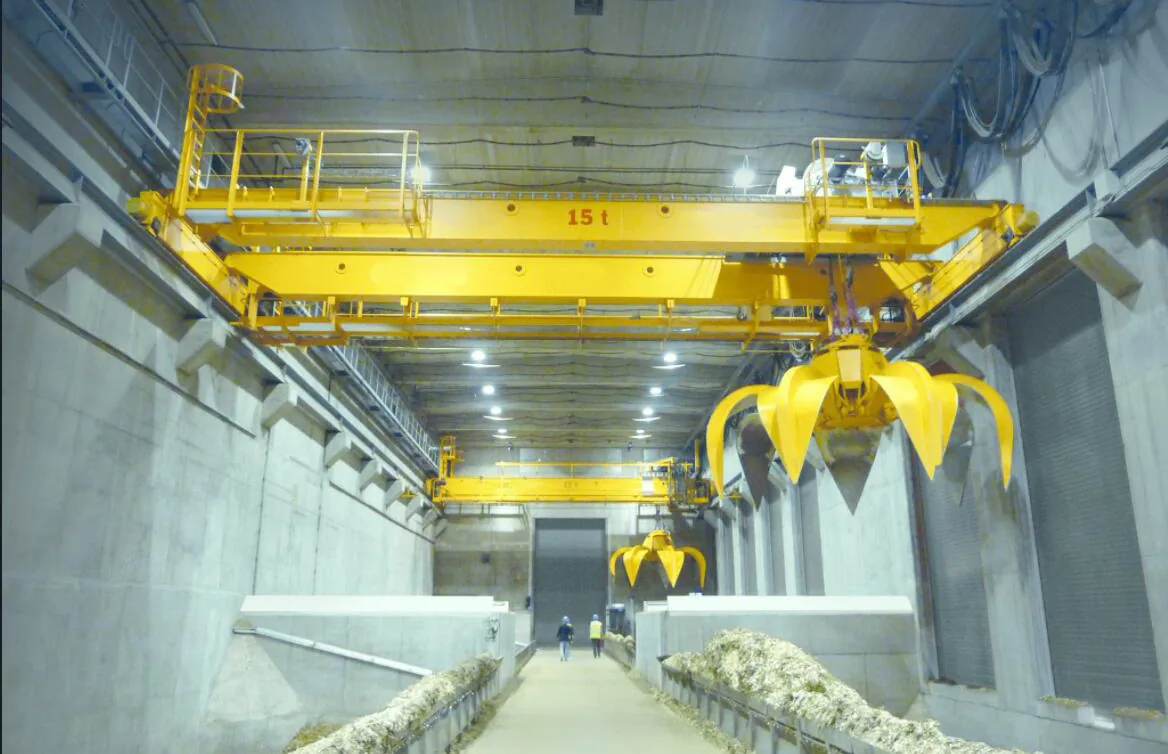

Grab overhead crane is equipped with grab bucket and hoisting machinery, specialized in handling all kinds of powder and granular bulk materials.Widely used in power station, storage, smelting workshop of steel mill, port, cement.
- Max.Lifting Height
- 18-26m
- Lifting Capacity
- 5-20t
- Span
- 10.5-31.5m
- Work Duty
- M5-M8
- Rail Recommended
- 43kg/m, QU80
- Work Voltage
- 3PH 220V-480v 50Hz/60Hz or Customized
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design
Product Overview
<
p
>
Technical Features
- Reasonable structure, strong bearing capacity
- Low noise, soft starting and stopping
- Safe and reliable operation
- Commodious cabin and open view
- Low cost maintenance, long working life
- Strong box type,welding by machine hand
- Wheels are vacuum casting,medium frequency quenching
- Wheels,wire rope drum,gears, couplings are processed by CNC machine center, TOP quality control.
- Heavy duty motor,Or Sq.cage motor with VVVF, IP54 or IP44,insulation class F or H,soft starting and smooth running.
- Siemens or Schneider electric components are used for durable and safe operation
Where It Is Used
- The main structure of the overhead crane consists of bridge, travelling mechanism, hoist and trolley, grab and electrical equipment. With rich experience in the crane industry, we can provide you with the ideal overhead crane system for your application.
- Our workshop grab overhead crane has reasonable design, compact structure and nice appearance
- Sinomac Industrial(SANOMAC) supplies various grab overhead cranes to meet clients’ different requirements and work conditions
Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| Max.Lifting Height | 18-26m |
|---|---|
| Lifting Capacity | 5-20t |
| Span | 10.5-31.5m |
| Work Duty | M5-M8 |
| Rail Recommended | 43kg/m, QU80 |
| Work Voltage | 3PH 220V-480v 50Hz/60Hz or Customized |
| Liting Capacity | t | 5-32 | ||
|---|---|---|---|---|
| Max.Lifting Height | m | 18-26 | ||
| Span | m | 10.5-31.5 | ||
| Work Duty | FEM | M5-M8 | ||
| Speed | Trolley | Hoisting | m/min | 40.1-48.6 |
| Travelling | 43.2-45.6 | |||
| Bridge Travelling | 87.3-114.4 | |||
| Weight | Trolley | T | 5.2/5.9-19.3/20.4 | |
| Total | Indoor | T | 19.9-75.6 | |
| Outdoor | 20.7-76.8 | |||
| Grab | Volume | m 3 | 0.75-10 | |
| Dead weight | kg | 2546-10123 |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.
Related Products
1-20-ton-din-overhead-crane
- Capacity
- 1~32 T
- Span
- ≤50M
Fem-overhead-crane
- Design Standard
- FEM/DIN/ISO
- Capacity
- 1 T -160T
Double-girder-overhead-shop-crane
- Capacity
- 5~800t
- Lift Height
- Max. 160m
Single-girder-overhead-crane
- Capacity
- 0.5~32t
- Lift Height
- 3~120m or Customized
Frequently Asked Questions
What information do you need to quote a grab-overhead-crane?
Capacity, span rail centre to rail centre, lifting height, duty or working condition, power supply, travel distance and the service area conditions. A workshop drawing speeds it up considerably.
Can the grab-overhead-crane be customised?
Yes. Sinomac provides a special products customisation service, and free production drawings for regional partners and clients buying crane kits.
How long does a quotation take?
A quotation is issued within 24 hours and a CAD drawing within 48 hours, both free of charge.
What testing is done before shipment?
Every hoist is pre-commissioned before packing and the crane is pre-assembled for a factory acceptance test. A third party inspection can be arranged at your request.
Are your cranes built to FEM and DIN standards?
Yes. Sinomac designs to FEM, DIN and ISO. Duty group is set from your real lifting cycle, so the classification on the nameplate matches how the crane is actually used.
Can you supply a crane kit instead of a complete crane?
Yes. Sinomac supplies hoist, end carriages, drives, control system and anti-sway as a kit, and provides free production drawings of the girder for regional partners and clients buying kits, which lowers shipping cost.
Request a Quotation for the Grab-overhead-crane
Send capacity, span, lifting height and duty. A quotation follows within 24 hours.
