Single-girder-overhead-crane
Single girder overhead crane have the advantages of compact appearance, light weight, low wheel pressure, stable running speed, low noise, and convenient installation and maintenance. It is suitable for use in warehouses
- Capacity
- 0.5~32t
- Lift Height
- 3~120m or Customized
- Span
- 3~32m
- Lifting Mechanism
- Electric Wire Rope Hoist or Electric Chain Hoist
- Protection Class
- IP44/IP54/IP55
- Working Temperature
- 40~+60℃
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design

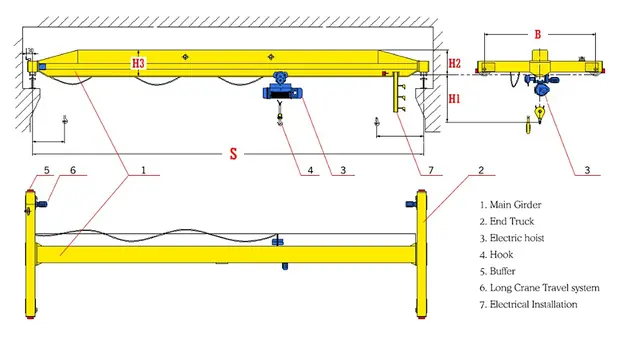

Product Overview
<
p
>

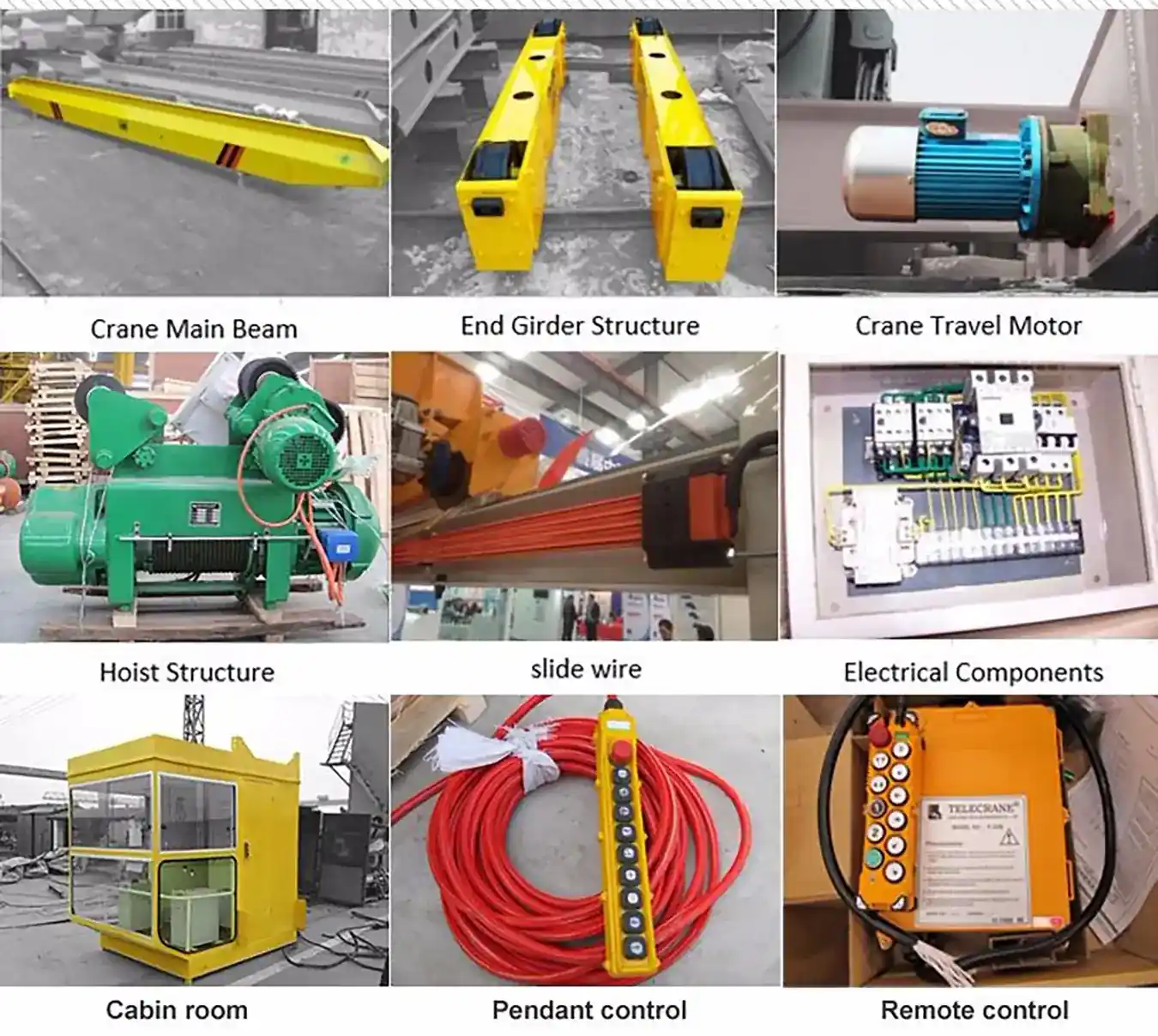

Product Gallery
Technical Features
- DIN/FEM standard deflection
- Whole length CNC cutting for complete web plate, high deflection accuracy
- High quality automatic welding and NDT inspection
- Shot-blasting Sa2.5 for complete girder after welding, stress release
- High tension bolts mounting between girder and legs, safety connection
- Excellent driving properties, long lifetime design.
- Simple installation, convenient operation and maintenance, smooth operation, low noise
Where It Is Used
- Single girder overhead crane have the advantages of compact appearance, light weight, low wheel pressure, stable running speed, low noise, and convenient installation and maintenance. It is suitable for use in warehouses, workshops, power stations and other places such as maintenance jobs and materials handlings.
- 1. Single girder overhead crane is characterized by more reasonable structure and higher strength steel as a whole, which also called traditional overhead crane. If it’s installed in the warehouse, it’s also called the warehouse EOT crane.
- 3. Widely used in plants, warehouse, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosive environment.
Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| Capacity | 0.5~32t |
|---|---|
| Lift Height | 3~120m or Customized |
| Span | 3~32m |
| Lifting Mechanism | Electric Wire Rope Hoist or Electric Chain Hoist |
| Protection Class | IP44/IP54/IP55 |
| Working Temperature | 40~+60℃ |
| Color | Customized |
| Capacity | 0.5~32t |
|---|---|
| Span | 3~32m |
| Lifting Height | 3~120m or customized |
| Lifting speed | Single speed: 3.5~8 m/min or customized Double speed: 3.5~8/0.35~0.8 m/min or customized |
| Lifting mechanism | Wire rope hoist or electric chain hoist |
| Work duty | A3~A5 |
| Power supply | 220/230/380/400/415/440V/460-AC-3Phase-50/60Hz or as require |
| Control method | Push button, wireless remote control, cabin control |
| Application area | Factory, workshop, warehouse, power station, logistic, steel mill etc. |
| Color | Customized |
| Working temperature | 40~40° or as require |
| Protection class | IP44; IP54; IP55; IP65 |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.
Related Products
1-20-ton-din-overhead-crane
- Capacity
- 1~32 T
- Span
- ≤50M
Fem-overhead-crane
- Design Standard
- FEM/DIN/ISO
- Capacity
- 1 T -160T
Double-girder-overhead-shop-crane
- Capacity
- 5~800t
- Lift Height
- Max. 160m
Grab-overhead-crane
- Max.Lifting Height
- 18-26m
- Lifting Capacity
- 5-20t
Frequently Asked Questions
What information do you need to quote a single-girder-overhead-crane?
Capacity, span rail centre to rail centre, lifting height, duty or working condition, power supply, travel distance and the service area conditions. A workshop drawing speeds it up considerably.
Can the single-girder-overhead-crane be customised?
Yes. Sinomac provides a special products customisation service, and free production drawings for regional partners and clients buying crane kits.
How long does a quotation take?
A quotation is issued within 24 hours and a CAD drawing within 48 hours, both free of charge.
What testing is done before shipment?
Every hoist is pre-commissioned before packing and the crane is pre-assembled for a factory acceptance test. A third party inspection can be arranged at your request.
Are your cranes built to FEM and DIN standards?
Yes. Sinomac designs to FEM, DIN and ISO. Duty group is set from your real lifting cycle, so the classification on the nameplate matches how the crane is actually used.
Can you supply a crane kit instead of a complete crane?
Yes. Sinomac supplies hoist, end carriages, drives, control system and anti-sway as a kit, and provides free production drawings of the girder for regional partners and clients buying kits, which lowers shipping cost.
Request a Quotation for the Single-girder-overhead-crane
Send capacity, span, lifting height and duty. A quotation follows within 24 hours.
