20-ton-heavy-gantry-crane
20 ton heavy gantry crane is designed with compact structure, high work duty. Sinomac Industrial(SANOMAC)20 ton heavy gantry crane is reliable, easy operation, and wide application, etc.
- Capacity
- 0.5~800t
- Span
- 12~50m or Customized
- Left/Right Cantilever
- 1/3 of Span
- Classification/Duty
- A3-A8
- Lifting Height
- 3~80m/Customized
- Lifting Speed
- 2~16m/min/Customized
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design
Product Overview
<
p
>
Product Gallery

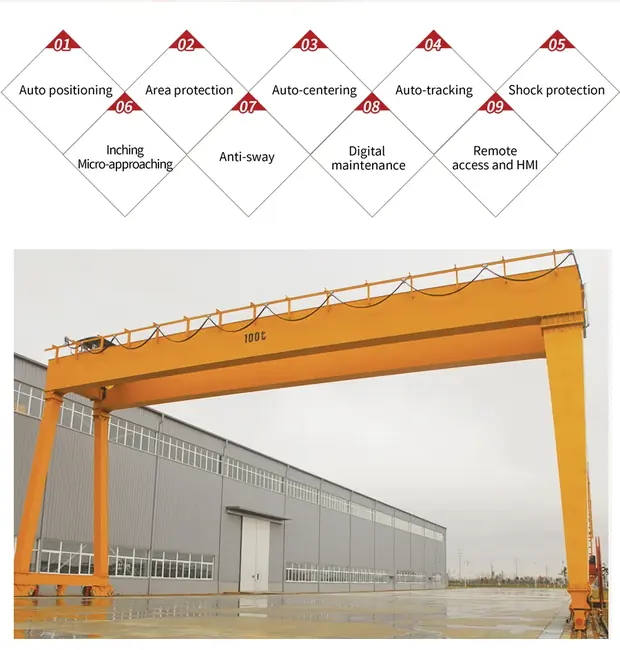

Technical Features
- Smooth starting and stopping
- Safe and reliable traveling
- Low noise, commodious cabin, and good view
- Convenient maintenance, excellent exchangeability for parts and components
- Saves electricity specifications

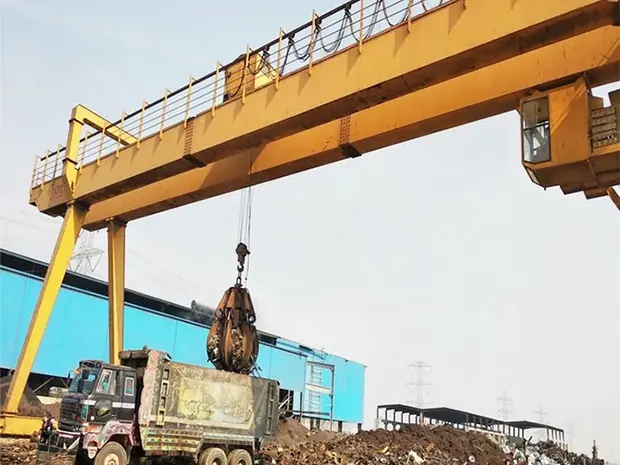

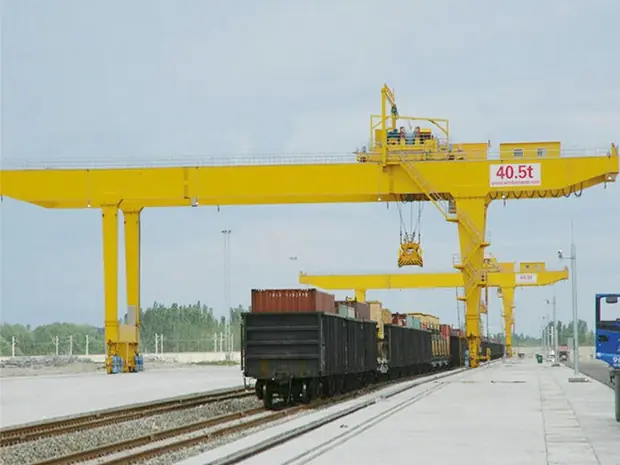

Where It Is Used
- This 20T heavy gantry crane is beautiful design and durable and widely used in open-air warehouse, of course, also can be used indoors. Please let us know the condition in your workshop, just tell us your demands, we can design the most suitable crane for you.
- When you collaborate with Sinomac Industrial(SANOMAC), you’re embarking on more than just a transaction; you’re entering a realm of comprehensive expertise as a premier gantry crane manufacturer in the China. Our commitment goes beyond the surface, extending to meticulous load testing, thorough final commissioning, and the intricacies of delivery and installation for our rugged 20T heavy gantry crane.

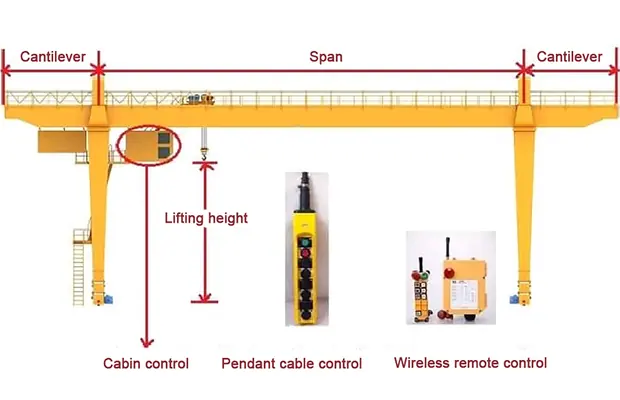

Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| Capacity | 0.5~800t |
|---|---|
| Span | 12~50m or Customized |
| Left/Right Cantilever | 1/3 of Span |
| Classification/Duty | A3-A8 |
| Lifting Height | 3~80m/Customized |
| Lifting Speed | 2~16m/min/Customized |
| Cross Speed | 20~60m/min/Customized |
| Control Type | Pendant/Remote/Cab |
| Power Supply | 3PH 220V-480V/Customized |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.
Related Products
1-20-ton-light-gantry-crane
- Capacity
- 1~20 Tons
- Lift Height
- 3~40m
Double-girder-gantry-crane
- Capacity
- 0.5~800t
- Span
- 12~50m or Customized
Semi-gantry-crane
- Capacity
- 0.25-80 Ton
- Lift Height
- 12m
Portable-gantry-crane
- Capacity
- 0.5-10 tons
- Lift Height
- 1-10m
Frequently Asked Questions
What information do you need to quote a 20-ton-heavy-gantry-crane?
Capacity, span rail centre to rail centre, lifting height, duty or working condition, power supply, travel distance and the service area conditions. A workshop drawing speeds it up considerably.
Can the 20-ton-heavy-gantry-crane be customised?
Yes. Sinomac provides a special products customisation service, and free production drawings for regional partners and clients buying crane kits.
How long does a quotation take?
A quotation is issued within 24 hours and a CAD drawing within 48 hours, both free of charge.
What testing is done before shipment?
Every hoist is pre-commissioned before packing and the crane is pre-assembled for a factory acceptance test. A third party inspection can be arranged at your request.
Are your cranes built to FEM and DIN standards?
Yes. Sinomac designs to FEM, DIN and ISO. Duty group is set from your real lifting cycle, so the classification on the nameplate matches how the crane is actually used.
Can you supply a crane kit instead of a complete crane?
Yes. Sinomac supplies hoist, end carriages, drives, control system and anti-sway as a kit, and provides free production drawings of the girder for regional partners and clients buying kits, which lowers shipping cost.
Request a Quotation for the 20-ton-heavy-gantry-crane
Send capacity, span, lifting height and duty. A quotation follows within 24 hours.
