Planetary-geared-electric-hoist
Electric Hoist adopts Germany technology and all key components are imported with original packaging,such as energy-efficient motors,safety brake,load protection clutch and high-strength wear-resisting chain. The excellent quality makes it match the similar advanced European products.
- Electric Hoist Type
- Wire Rope Hoist
- Lifting Capacity
- 1~80T
- Lifting Height
- 0~120m
- Working Class
- M3-M7
- Ambient Temperature
- 40~40℃
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design
Product Overview
<
p
>
Product Gallery

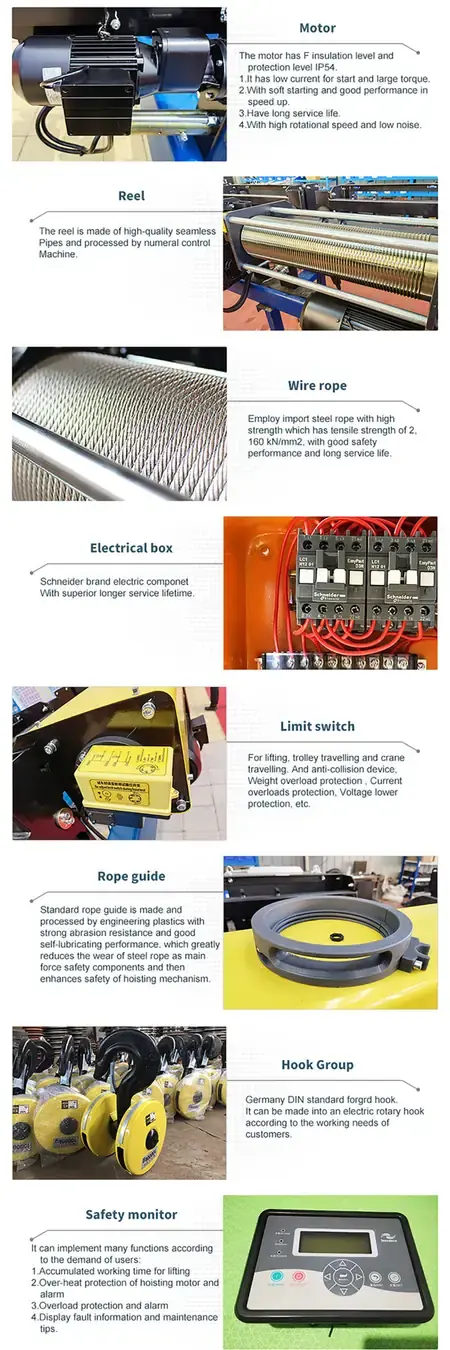

Technical Features

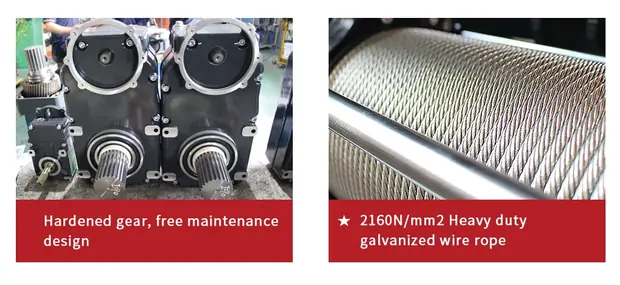

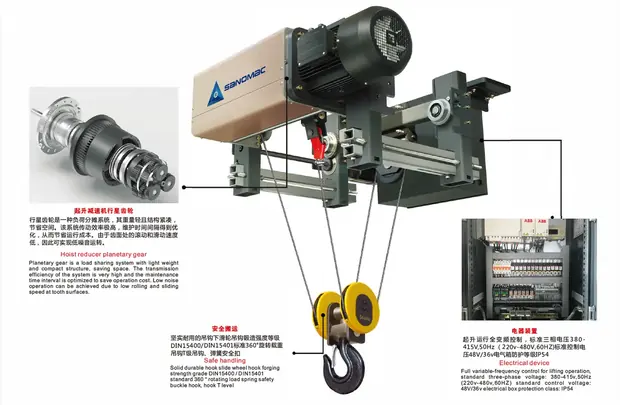

- Adopted 3-IN-1 Planetary Type Geared Motor, Lowest Noises, Free Maintenance, Free Lubricant Oil Fill, Lower Headroom.
- Full Inverter (VFD) Drive. Inverter adopted Toshiba-Schneider Inverter Company.
- The Hook Block adopted the forged hook, Material of hook: 35CrMo.
- The Brake Type- Electromagnetic inserted into the motor which have the automatic brake, if the power is fault.
- Hoist has the up/down limiter and overload limiter to make sure the safety.
- The Duty/Classification is up to FEM 4M/ISOM7.
- The electric cabin protection class can be up to IP67.
- All the Main Electric Component is adopted Schneider.
- All wires have color, number or wire size marks, which can be easy identified
- All the movement is controlled by Inverter (VFD), the Inverter is adopted the TOSHIBA-SCHNEIDER Brand.
Where It Is Used
- Galvanized Steel Rope adopted the crane industrial famous brand. High Strength 2160N/m2 with long Service Life and 1.8 times safety factor.
- Low headroom electric hoist are specialized lifting devices that are designed to operate in areas with low headroom. They are compact, versatile, and can lift heavy loads while occupying minimal space. Low headroom electric hoist are widely used in various industries, including automotive, manufacturing, warehousing, construction, and mining.
- Sinomac Industrial(SANOMAC) is a Professional Crane & Hoist System Slolutions Provider.

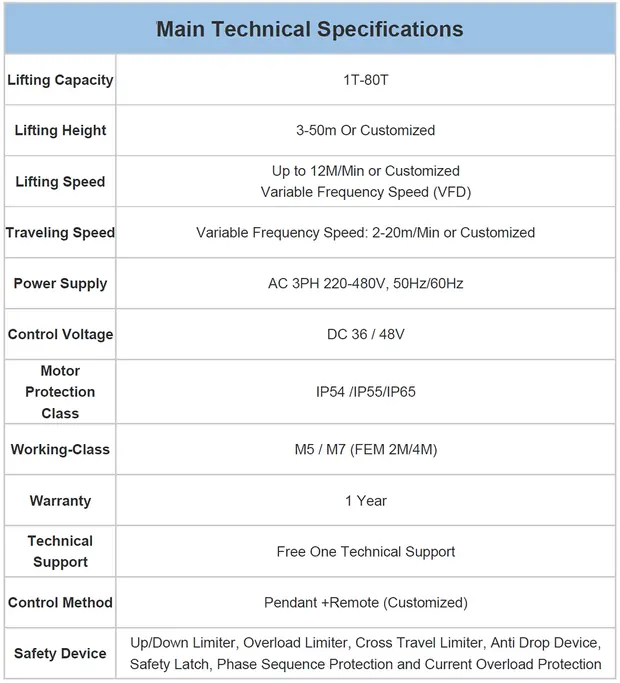

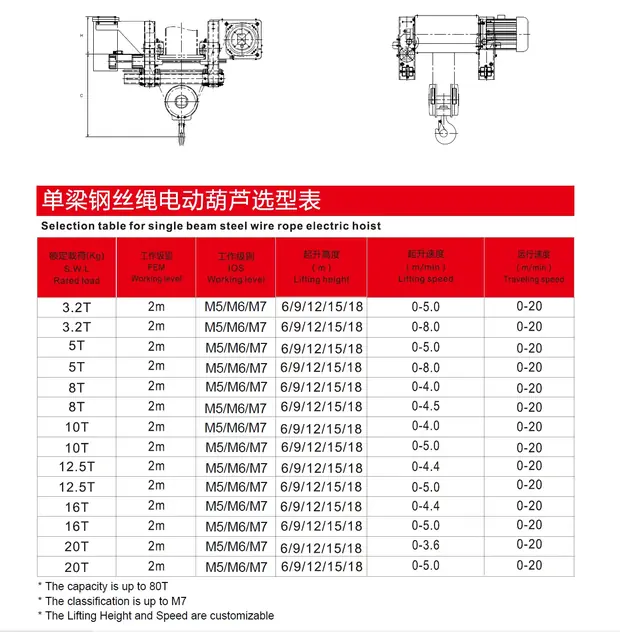

Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| Electric Hoist Type | Wire Rope Hoist |
|---|---|
| Lifting Capacity | 1~80T |
| Lifting Height | 0~120m |
| Working Class | M3-M7 |
| Ambient Temperature | 40~40℃ |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.
Related Products
Electric-wire-rope-hoist
- Product Type
- CD MD
- Lifting Capacity
- 0.5~80t
Electric-chain-hoist
- MAX Capacity
- 100T
- Lifting Height
- 0-120m
Explosion-proof-rope-hoist
- Classification/Duty
- M5
- Classification
- M5
1-20-ton-din-overhead-crane
- Capacity
- 1~32 T
- Span
- ≤50M
Frequently Asked Questions
What information do you need to quote a planetary-geared-electric-hoist?
Capacity, span rail centre to rail centre, lifting height, duty or working condition, power supply, travel distance and the service area conditions. A workshop drawing speeds it up considerably.
Can the planetary-geared-electric-hoist be customised?
Yes. Sinomac provides a special products customisation service, and free production drawings for regional partners and clients buying crane kits.
How long does a quotation take?
A quotation is issued within 24 hours and a CAD drawing within 48 hours, both free of charge.
What testing is done before shipment?
Every hoist is pre-commissioned before packing and the crane is pre-assembled for a factory acceptance test. A third party inspection can be arranged at your request.
Are your cranes built to FEM and DIN standards?
Yes. Sinomac designs to FEM, DIN and ISO. Duty group is set from your real lifting cycle, so the classification on the nameplate matches how the crane is actually used.
Can you supply a crane kit instead of a complete crane?
Yes. Sinomac supplies hoist, end carriages, drives, control system and anti-sway as a kit, and provides free production drawings of the girder for regional partners and clients buying kits, which lowers shipping cost.
