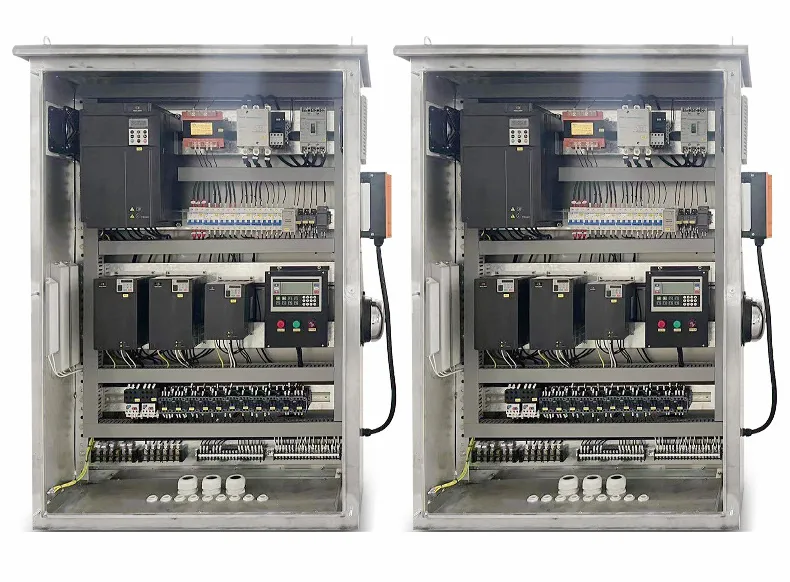

Crane-control-panel
Crane control panel design is complied with DIN/FEM standard, all the component adopted the world famous brand, such as Schneider, Siemens, ABB and so on, which is effective to ensure the safe, stable and high efficient operation of the crane.
- Material of Cabinet
- Galvanized Steel/Stainless Steel/Customized
- Brand of Electrics
- Schneider/Siemens/ABB/Customized
- Wire Connection Standard
- EN/CE/ANSI/IEC/AS/NZS…
- Output Connection
- Aviation Plug & Socket
- Protection Class
- IP55/IP65(Explosion Proof)
Quotation in 24 hours · CAD drawing in 48 hours · FEM / DIN / ISO design
Product Overview
<
p
>
Technical Features
- Thickened Sheet Plate, Thickness is up to 3MM
- Crane Control Panel adopts computer aided design.
- Fuctional Customization is avaliable.
- Branded Electrical Components, Such as, Schneider, Siemens, ABB and so on.
- Aviation Plug and Socket Output Connection
- IEC/CE/ANSI/AS Standard and Your Special Designed Standard.
- Protection of Crane Control Panel is Up to IP65
- Electric Control System Drawing will be freely provided.
Where It Is Used
Applied across the industries listed below. Send your process conditions and an engineer will confirm suitability.
Specifications
Values below are the published standard configuration. Anything outside this range is a customisation question, not a catalogue lookup.
| Material of Cabinet | Galvanized Steel/Stainless Steel/Customized |
|---|---|
| Brand of Electrics | Schneider/Siemens/ABB/Customized |
| Wire Connection Standard | EN/CE/ANSI/IEC/AS/NZS… |
| Output Connection | Aviation Plug & Socket |
| Protection Class | IP55/IP65(Explosion Proof) |
Quality Control
Raw steel arrives with a Material Test Certificate and is spot inspected. Welders hold Class I international qualification. Girders are shot blasted to Sa2.5 before paint, and paint thickness is checked.
Customisation
Capacity, span, lifting height, duty group, power supply, control mode and service environment are all specified per order. Special products customisation is a standard service.
Documentation and Support
Equipment and main parts qualification certificates, electrical drawing diagram, installation operation and maintenance manual, and commissioning instructions ship with the equipment. Online support runs 24/7.
Use Guide
- Confirm the duty group. Count average lifts per hour and average load, not peak tonnage. This sets the FEM classification and drives the whole design.
- Check the building. Wheel load, headroom and hook approach decide whether the unit fits. Ask for the CAD drawing before ordering.
- Specify the environment. Temperature, dust, humidity and any hazardous area classification change the motor, brake and enclosure rating.
- Plan the power supply. Long travel needs a conductor rail or festoon system, which is quoted separately and must match the runway length.
- Book commissioning. Installation supervision or online commissioning support, plus operator training, before the unit goes into production.
Related Products
Conductor-rail
- Conductor Material
- Copper(5000A) /Aluminum(3000A).
- Max Allowable Amper
- 5000A/3000A
Mobile-conductive-busbar
- Conductor Material
- 99.99% Oxygen Free Copper.
- Max Allowable Amper
- 200A
Festoon-system
View specification
C-track-cable-trolley
View specificationFrequently Asked Questions
What information do you need to quote a crane-control-panel?
Capacity, span rail centre to rail centre, lifting height, duty or working condition, power supply, travel distance and the service area conditions. A workshop drawing speeds it up considerably.
Is the crane-control-panel available as a spare part or kit item?
Yes. Sinomac provides a special products customisation service, and free production drawings for regional partners and clients buying crane kits.
How long does a quotation take?
A quotation is issued within 24 hours and a CAD drawing within 48 hours, both free of charge.
What testing is done before shipment?
Every hoist is pre-commissioned before packing and the crane is pre-assembled for a factory acceptance test. A third party inspection can be arranged at your request.
Are your cranes built to FEM and DIN standards?
Yes. Sinomac designs to FEM, DIN and ISO. Duty group is set from your real lifting cycle, so the classification on the nameplate matches how the crane is actually used.
Can you supply a crane kit instead of a complete crane?
Yes. Sinomac supplies hoist, end carriages, drives, control system and anti-sway as a kit, and provides free production drawings of the girder for regional partners and clients buying kits, which lowers shipping cost.
Request a Quotation for the Crane-control-panel
Send capacity, span, lifting height and duty. A quotation follows within 24 hours.
