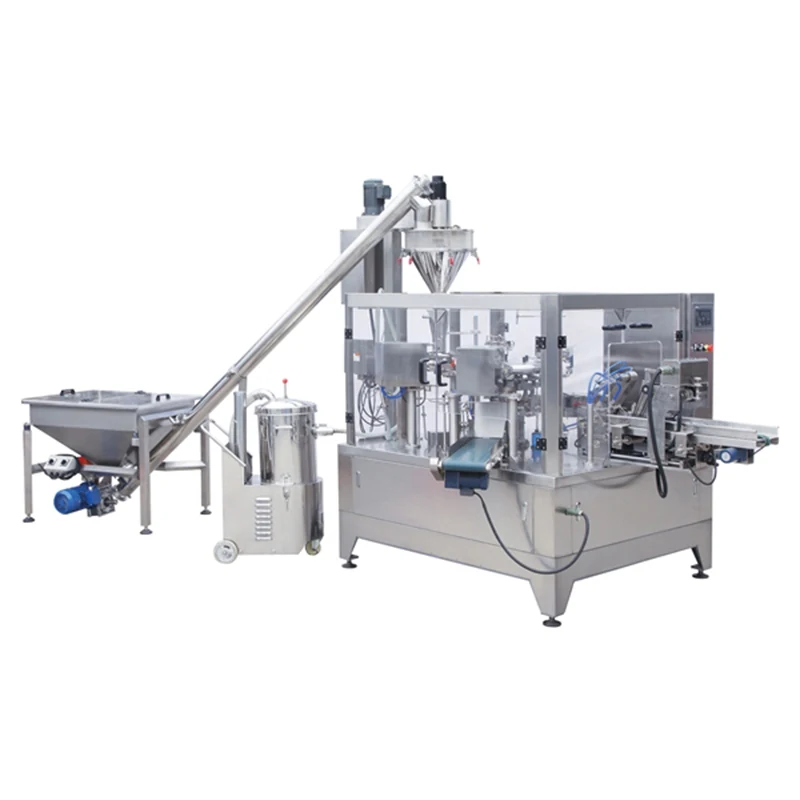

Doypack Powder Packing Machine
A fully automatic doypack machine for premade stand up pouches: it picks up the bag, opens it, fills and seals it.
What This Machine Does
A fully automatic doypack machine for premade stand up pouches: it picks up the bag, opens it, fills and seals it. It is built for powders such as seasoning, milk powder and fine sugar, where dust control and food grade contact surfaces decide whether the line is acceptable at all.
Key Benefits
- Fully automatic from bag pick up through filling to sealing
- Material contact parts in stainless steel 304 or food grade plastic
- PLC control with a man machine interface for simple operation
- Frequency conversion speed regulation across the working range
- One button synchronous control of 8 sets of clips for width changes
Problems It Solves
- Powder dust escaping around the filling head into the room
- Slow manual pouch filling limiting retail production
- Contact surfaces that do not meet food hygiene requirements
- Errors that waste pouches when a bag fails to open
Who It Is For
- Food powder producers
- Dairy and nutrition packers
- Sugar and seasoning processors
- Plants moving from sacks into retail pouches
Application Scenarios
- Seasoning and spice powder packing
- Milk powder and nutritional powder in stand up pouches
- Fine sugar and food powders in retail formats
- Zipper and spout pouches for premium products
Technical Features
- Open zipper mechanism designed for zipper bag characteristics with a high opening rate
- Safety logic: no pouch means no filling, no pouch means no sealing, no coding ribbon alarm
- Emergency stop and alarm with safety door interlocks
- Clip width adjustment by motor with synchronous control of 8 sets
- Frequency conversion adjustment for speed within the specified range
Doypack Powder Packing Machine Model Table
Figures below are taken from the TITAN model sheets. Where a figure depends on the crop or the contamination level it is stated that way rather than averaged.
| Item | Specification |
|---|---|
| Pouch material | Laminated film, PE, PP |
| Pouch pattern | Stand up pouch, with zipper or spout, flat pouch |
| Max filling range | Up to 5 kg |
| Pouch size | Width 100 to 210 mm, length 100 to 350 mm, other sizes available |
| Speed | 10 to 60 bags per minute |
| Voltage | 380 V three phase 50/60 Hz, customisable |
| Total power | 8.5 kW |
| Compressed air | 0.6 m3/min supplied by user |
How This Machine Is Built
Quality Control
- Bag opening rate checked during the test run
- Safety interlocks verified including no pouch and no coding ribbon alarms
- Filling accuracy checked against the required pouch weight
Materials And Wear Parts
- Stainless steel 304 contact parts
- Food grade plastic components
- PP and PE film handling
Customisation Options
- Pouch size and pattern within the published range
- Voltage customised to the destination supply
- Options including dust absorption, nitrogen flushing and date coding
Use Guide
- Confirm pouch dimensions against the machine range before ordering film
- Supply 0.6 m3/min of compressed air from the plant system
- Use the motorised clip adjustment when changing pouch width
- Keep the sealing jaws clean when running fine powders
How It Compares With The Alternatives
| Vertical form fill seal | Premade doypack pouches give a retail ready presentation that a pillow bag cannot. |
|---|---|
| Manual pouch filling | 10 to 60 bags per minute with safety logic that stops wasted pouches. |
Doypack Powder Packing Machine Questions
What pouch sizes does it take?
Width 100 to 210 mm and length 100 to 350 mm as standard, with other sizes available.
How fast does it run?
10 to 60 bags per minute depending on product and pouch.
What powers it?
380 V three phase at 50 or 60 Hz, 8.5 kW total, with 0.6 m3/min of compressed air supplied by the user.
Is it suitable for milk powder?
Yes. It is specified for powders such as seasoning, milk powder and fine sugar.
What safety features are fitted?
No pouch or open error stops filling, no pouch stops sealing, missing coding ribbon raises an alarm, plus emergency stop and safety door.
What are the contact parts made of?
Stainless steel 304 or food grade plastic in line with food hygiene requirements.
