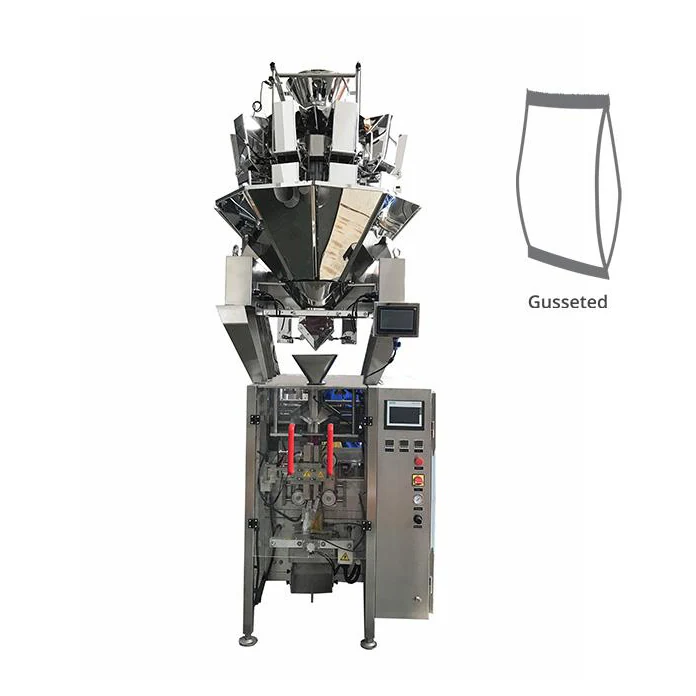

TT-ZVF-200 Granule Packing Machine
A vertical form fill seal machine for granules, chunks and flakes: snacks, cheese, pasta, candies, pet food, IQF frozen food and rice.
What This Machine Does
A vertical form fill seal machine for granules, chunks and flakes: snacks, cheese, pasta, candies, pet food, IQF frozen food and rice. Bag making, measuring, filling, printing and cutting are finished in one operation, driven by dual servo control.
Key Benefits
- Bag making, measuring, filling, printing and cutting in one operation
- Dual servo control with stable, reliable biaxial high accuracy output
- Servo driven double belt film pulling with less pulling resistance and better bag forming
- Separate circuit boxes for pneumatic and power control keep the electrics stable
- Stainless steel construction that is easy to clean between products
Problems It Solves
- Irregular products that volumetric fillers cannot weigh accurately
- Poor bag forming when film pulling is uneven
- Electrical noise from pneumatics affecting control stability
- Long cleaning times between products
Who It Is For
- Food processors packing retail formats
- Pet food producers
- Frozen food plants
- Rice packers serving retail customers
Application Scenarios
- Snack, pasta and candy packing
- Pet food and IQF frozen food bagging
- Rice and granule retail packs
- Irregular shaped products that need weighing rather than volumetric filling
Technical Features
- Dual servo control with PLC and colour touch screen
- Auto positioning belts, auto film detection and auto centering film spindle
- Intermittent running motion at 40 to 100 bags per minute
- Date coding by hot stamping, thermal transfer or label applicator
- Options including perforation, dust absorb, PE film sealing, nitrogen flushing and coffee valve
TT-ZVF-200 Granule Packing Machine Model Table
Figures below are taken from the TITAN model sheets. Where a figure depends on the crop or the contamination level it is stated that way rather than averaged.
| Item | Specification |
|---|---|
| Model | TT-ZVF-200 |
| Bag styles | Pillow bag, gusseted or block bottom bag optional |
| Bag width | 60 to 200 mm |
| Product length | 50 to 300 mm |
| Film width | Up to 420 mm |
| Working efficiency | 40 to 100 bags per minute |
| Power and voltage | 4.8 kW |
| Compressed air | 0.7 MPa, 0.3 m3/min |
| Dimensions | 1380 x 980 x 1400 mm |
| Machine weight | 600 kg |
How This Machine Is Built
Quality Control
- Film tracking and bag forming checked on the test run
- Servo accuracy verified on repeated cycles
- Coder and sealing functions tested
Materials And Wear Parts
- Stainless steel construction
- Stainless steel and aluminium options on the frame
Customisation Options
- Bag style from pillow, gusseted or block bottom
- Coding method selected from hot stamping, thermal transfer or label applicator
- Options such as nitrogen flushing, coffee valve, dust absorb and perforation
Use Guide
- Confirm film width against the 420 mm maximum before ordering
- Supply air at 0.7 MPa and 0.3 m3/min
- Use auto film detection and centering rather than adjusting by hand
- Clean the former and sealing jaws between products
How It Compares With The Alternatives
| Doypack powder machine | Form fill seal from roll film for granules, where the doypack machine uses premade pouches for powders. |
|---|---|
| Volumetric fillers | Weighing suits irregular shapes such as pasta, snacks and frozen food. |
TT-ZVF-200 Granule Packing Machine Questions
How fast does it run?
40 to 100 bags per minute with intermittent running motion.
What bag sizes are possible?
Bag width 60 to 200 mm with product length 50 to 300 mm, using film up to 420 mm wide.
Which products suit this machine?
Granule, chunk, flake, roll and irregular shapes such as snacks, cheese, pasta, candies, pet food, IQF frozen food and rice.
What utilities are needed?
4.8 kW power and compressed air at 0.7 MPa, 0.3 m3/min.
Can it print a date code?
Yes, by hot stamping coder, thermal transfer coder or label applicator.
What does it weigh?
600 kg, with overall dimensions of 1380 x 980 x 1400 mm.
