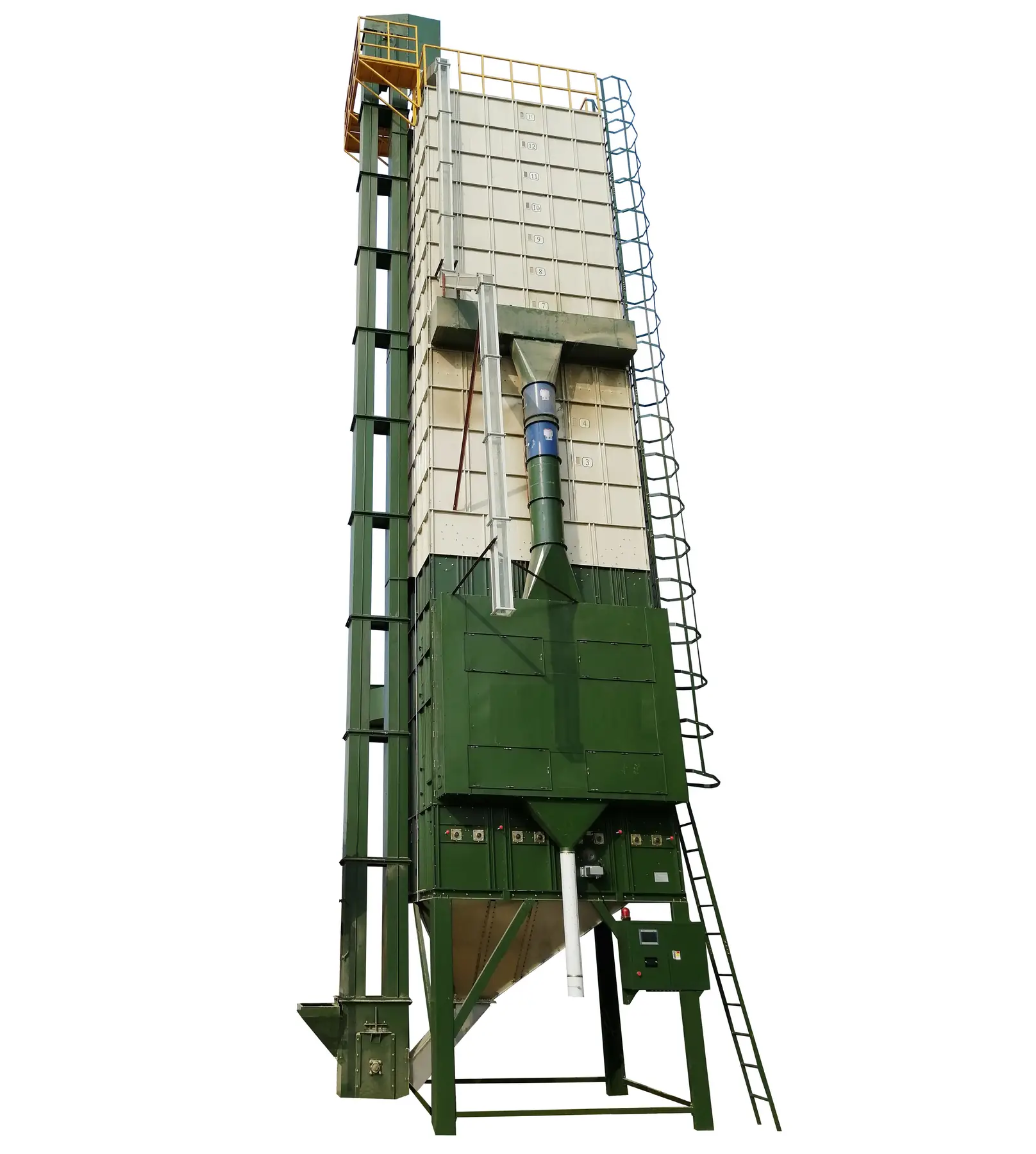

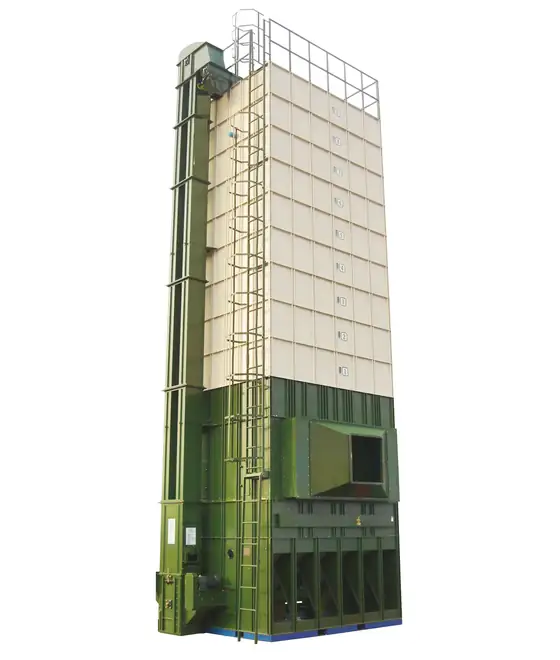

TT 5H Low Temperature Grain Dryer
The TT 5H dryer handles paddy, corn, wheat, rice, soybean, sorghum, rapeseed, cashew, barley and other agricultural products.
What This Machine Does
The TT 5H dryer handles paddy, corn, wheat, rice, soybean, sorghum, rapeseed, cashew, barley and other agricultural products. It uses maximum air volume with low temperature drying at around 40 to 60 C, heating the grain briefly and then circulating it, which keeps the broken rate down while improving dehydration efficiency.
Key Benefits
- Low temperature fully drying technology that protects grain quality
- Moisture removal of 0.5 to 1 percent per hour across the whole range
- Flexible fuel: husk, straw, wood, peanut stalk, corn cob, coal, diesel, gas or steam
- Even blending through circular drying with maximum air volume
- Batch sizes from 5 to 30 t across six models
Problems It Solves
- Wet grain waiting for a dryer and heating in the heap
- High temperature drying cracking the kernel and raising breakage later
- Fuel cost when diesel or gas is the only option
- Uneven drying between the outside and the centre of the batch
Who It Is For
- Rice mills and paddy processors
- Grain traders and storage operators
- Seed processors
- Plants with a biomass stream available as fuel
Application Scenarios
- Harvest intake drying at a rice mill
- Conditioning maize, wheat and soybean before storage
- Seed drying where germination must be protected
- Rice mills burning their own husk as dryer fuel
Technical Features
- Low temperature fully drying with maximum heat exchange technology
- Air temperature around 40 to 60 C with high air volume
- Circulating batch operation for even moisture distribution
- Feeding time 50 to 70 minutes and discharge 50 to 75 minutes depending on model
- Thermal relay and air pressure safety devices
TT 5H Low Temperature Grain Dryer Model Table
Figures below are taken from the TITAN model sheets. Where a figure depends on the crop or the contamination level it is stated that way rather than averaged.
| Model | Capacity (t) | Power (kW) | Air intake (m3/h) | Net weight (t) |
|---|---|---|---|---|
| TT 5H-10 | 5 to 10 | 8.5 | 10000 to 14000 | 2.3 |
| TT 5H-12 | 5 to 10 | 8.5 | 10000 to 14000 | 2.5 |
| TT 5H-15 | 5 to 15 | 9.2 | 10000 to 14000 | 3.0 |
| TT 5H-20 | 7 to 20 | 13.15 | 12500 to 14000 | 3.7 |
| TT 5H-25 | 10 to 25 | 20.35 | 20000 to 25000 | 4.5 |
| TT 5H-30 | 10 to 30 | 20.35 | 20000 to 25000 | 5.0 |
How This Machine Is Built
Quality Control
- Safety devices including thermal relay and air pressure protection verified
- Fan and air distribution checked during commissioning
- Moisture removal rate confirmed on the first batches
Customisation Options
- Batch size selected from the daily intake peak
- Fuel type chosen from the biomass or fossil options
- Conveying connections designed with the intake route
Use Guide
- Size the batch from the peak daily intake, not the average
- Include feeding and discharge minutes in the cycle calculation
- Keep drying air in the 40 to 60 C band to protect the kernel
- Match the elevator capacity to the fill and discharge rate
How It Compares With The Alternatives
| High temperature continuous dryer | Lower drying rate but a much lower broken rate, which is what a rice mill is paid for. |
|---|---|
| Sun drying | Predictable throughput and no weather risk, with fuel that the mill often already produces. |
TT 5H Low Temperature Grain Dryer Questions
How fast does it remove moisture?
0.5 to 1 percent per hour, which is the rate that protects grain quality.
What fuels can be used?
Husk, straw, wood, peanut stalk, corn cob and other biomass waste, or coal, diesel, kerosene, natural gas and steam.
Which crops does it dry?
Paddy, corn, wheat, rice, soybean, sorghum, rapeseed, cashew, barley and many other agricultural products.
How long is a full cycle?
Feeding takes 50 to 70 minutes and discharge 50 to 75 minutes depending on model, plus the drying hours needed for the moisture to be removed.
What safety devices are fitted?
Thermal relay and air pressure protection are listed for the range.
Can it dry seed?
Low temperature drying is the approach used where germination has to be protected.
