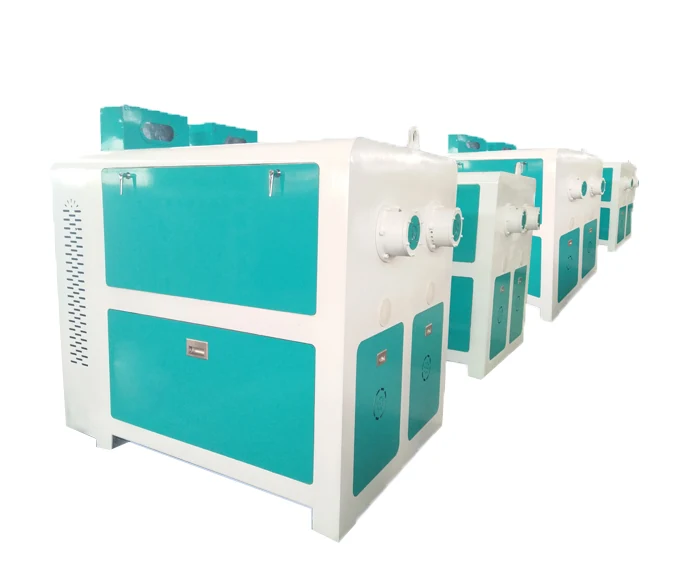

TTS Horizontal Grain Scourer
The horizontal grain scourer is the general grain version of the TTS range, designed for surface treatment of grains and wheat in the first and second cleaning sections.
What This Machine Does
The horizontal grain scourer is the general grain version of the TTS range, designed for surface treatment of grains and wheat in the first and second cleaning sections. It removes impurities and adhering contamination and improves product sanitation by reducing the microbe count and the insect and insect fragment count.
Key Benefits
- Surface treatment for general grain cleaning, not only wheat milling
- Reduces bacteria counts and insect fragment counts in the same pass
- Aspiration at the discharge removes detached hull particles
- High throughput from a 2100 mm long machine
- Same TTS frame sizes from 9 TPH to 25 TPH
Problems It Solves
- Adhering dust, sand and earth lumps left on the kernel surface
- Sanitation figures that fail an audit
- Detached hull particles staying in the product stream
- Limited space for a cleaning upgrade
Who It Is For
- Grain processing plants
- Mills cleaning several crops on one line
- Storage operators improving grain sanitation
- Plants adding a scouring stage to an existing cleaning section
Application Scenarios
- Grain cleaning sections in processing plants
- First and second cleaning of wheat and other grains
- Intensive scouring duties with the appropriate rotor design
- Cleaning ahead of storage or milling
Technical Features
- Horizontal rotor and screen jacket construction
- Aspiration channel or air recycling aspirator at the discharge
- Rotor and screen jacket designs selectable per application
- Rotating speed from 420 to 480 rpm
- Motor from 15 kW to 18.5 kW x 2 across the range
TTS Horizontal Grain Scourer Model Table
Figures below are taken from the TITAN model sheets. Where a figure depends on the crop or the contamination level it is stated that way rather than averaged.
| Model | Motor | Air consumption | Rotating speed | Capacity | Weight |
|---|---|---|---|---|---|
| TTS-200 | 15 kW | 500 m3/h | 480 rpm | 9 TPH | 1300 kg |
| TTS-250 | 18.5 kW | 600 m3/h | 420 rpm | 11 TPH | 1500 kg |
| TTS-400 | 15 kW x 2 | 800 m3/h | 480 rpm | 18 TPH | 2100 kg |
| TTS-600 | 18.5 kW x 2 | 1000 m3/h | 420 rpm | 25 TPH | 2500 kg |
How This Machine Is Built
Quality Control
- Rotor balance verified at working speed
- Screen jacket clearance checked
- Run test before packing
Customisation Options
- Rotor and screen jacket selected per grain
- Model chosen with capacity headroom
- Discharge aspiration arrangement
Use Guide
- Place after destoning in the cleaning sequence
- Provide the listed air consumption at the discharge
- Match rotor and screen jacket to the grain being processed
- Inspect wear parts on the maintenance schedule
How It Compares With The Alternatives
| TTS wheat scourer | The same frame specified for general grain surface treatment rather than the wheat milling duty. |
|---|---|
| No scouring stage | Surface contamination and part of the microbe load leave before the grain is milled or stored. |
TTS Horizontal Grain Scourer Questions
How does this differ from the wheat scourer?
It is the same TTS frame range, specified for surface treatment of grains and wheat generally rather than for the wheat and durum milling duty specifically.
What capacity is available?
9 TPH on the TTS-200 up to 25 TPH on the TTS-600.
Does it need aspiration?
Yes, an aspiration channel or air recycling aspirator at the discharge is the rule.
Which grains can it treat?
Grains and wheat in the first and second cleaning sections, with durum and oats handled by the appropriate rotor and screen jacket designs.
What is the machine footprint?
2100 mm long, 1000 to 1650 mm wide and 1650 to 1750 mm high depending on the model.
