Microscope Slide
Precision calibration and measurement tools for microscope stage and eyepiece alignment, used to verify magnification accuracy, measure small features and validate optical system performance.
The Microscope Slide range covers 13 catalogue items. Models in this range include 0.1mm Grid Calibration Slide Microscope Stage Glass Micrometer Ruler; Microscope Calibration Slide 50mm 0.1mm DIV Glass Stage Micrometer; 50pcs Slides 1.2mm Thick and 100 pcs Cover Glass Biological Microscopes; Improved Neubauer Hemocytometer Blood Cell Counting Chambers. Every item is listed with the specification published for it, so a model can be compared on working distance, magnification, interface and fitment rather than on a description.
Every Microscope Slide In Stock
All 13 items in this category, listed in full.
0.1mm Grid Calibration Slide Microscope Stage Glass Micrometer Ruler
View Details

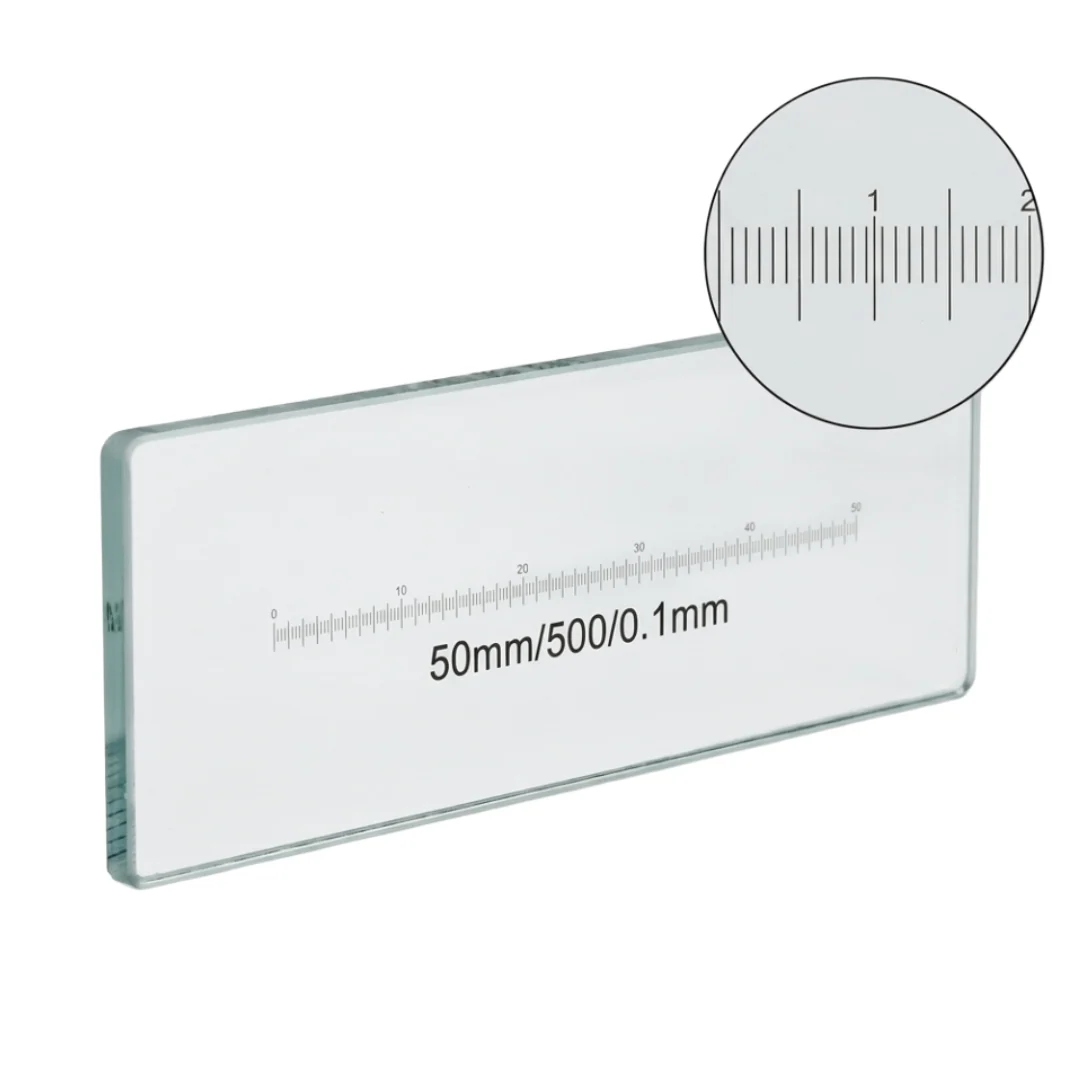

Microscope Calibration Slide 50mm 0.1mm DIV Glass Stage Micrometer
View Details

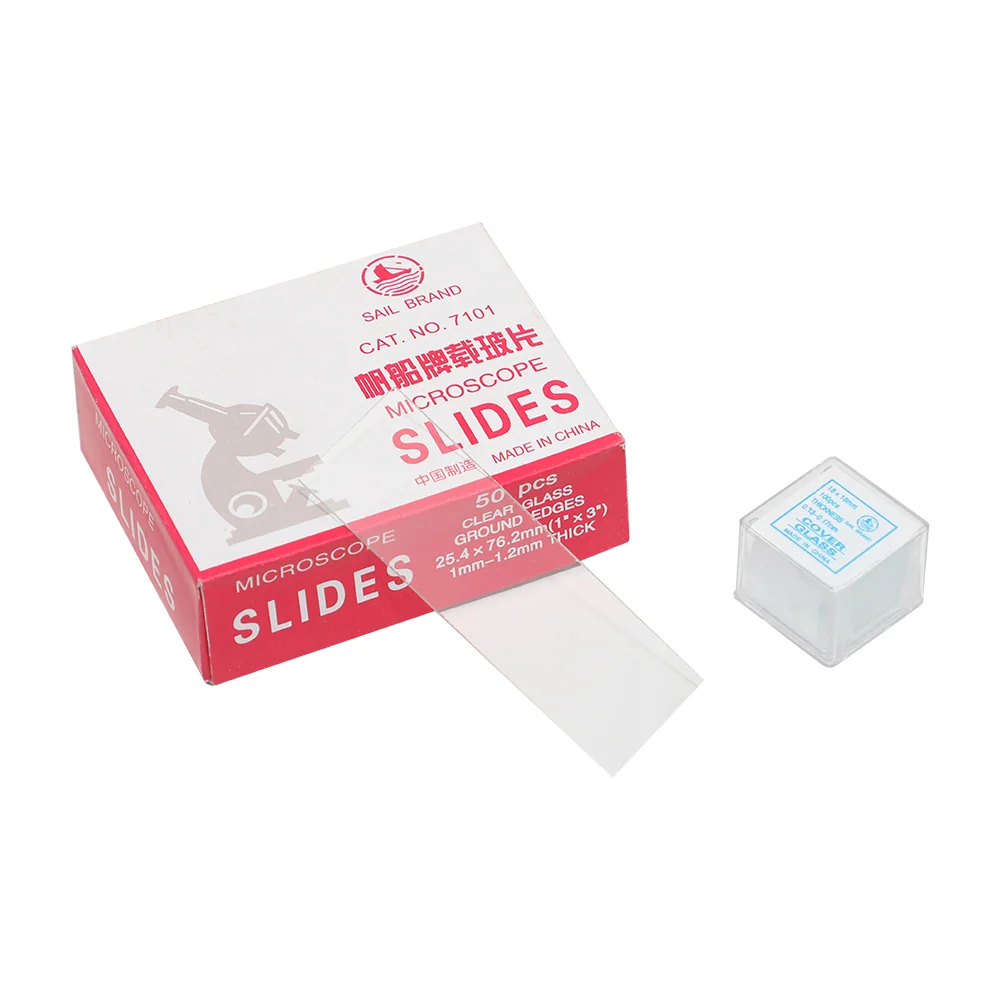

50pcs Slides 1.2mm Thick and 100 Pcs Cover Glass Biological Microscopes
View Details

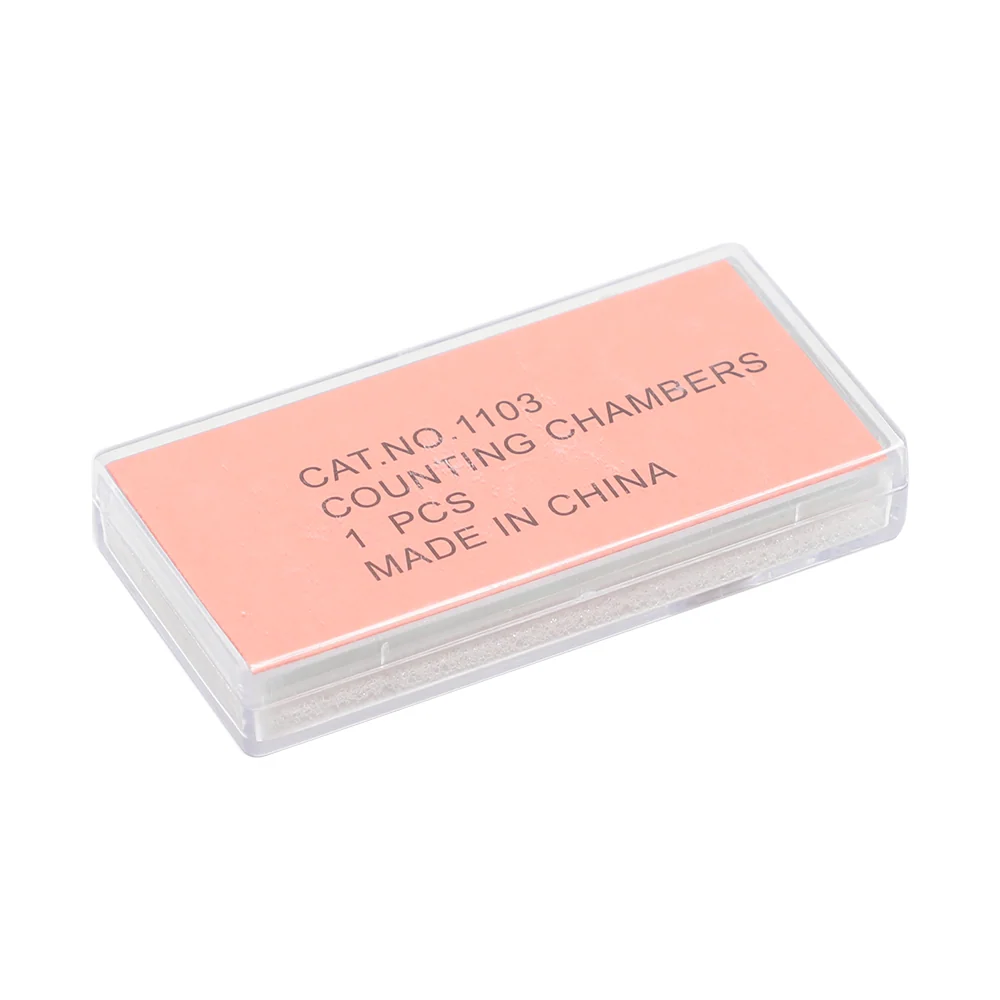

Improved Neubauer Hemocytometer Blood Cell Counting Chambers
View Details

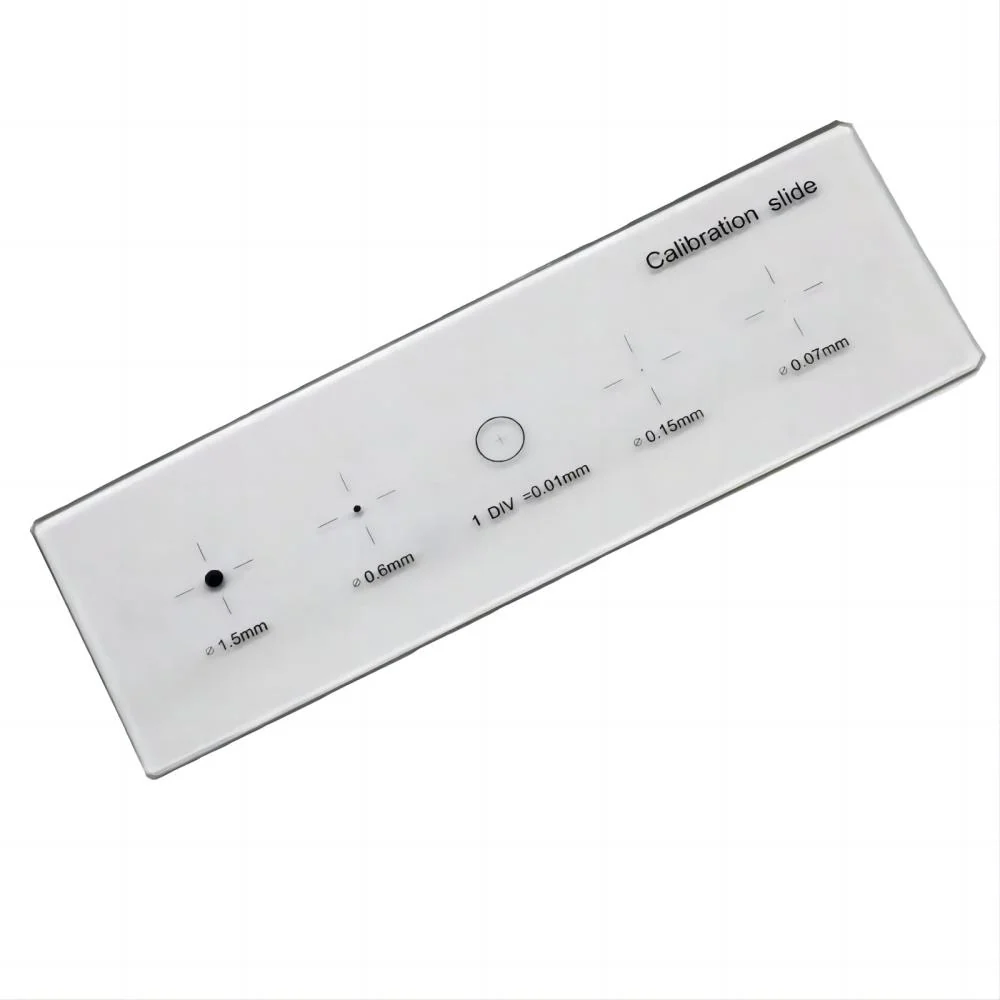

5-Scales 0.01mm Reticle Micrometer Crosshair Glass Microscope Slides
View Details

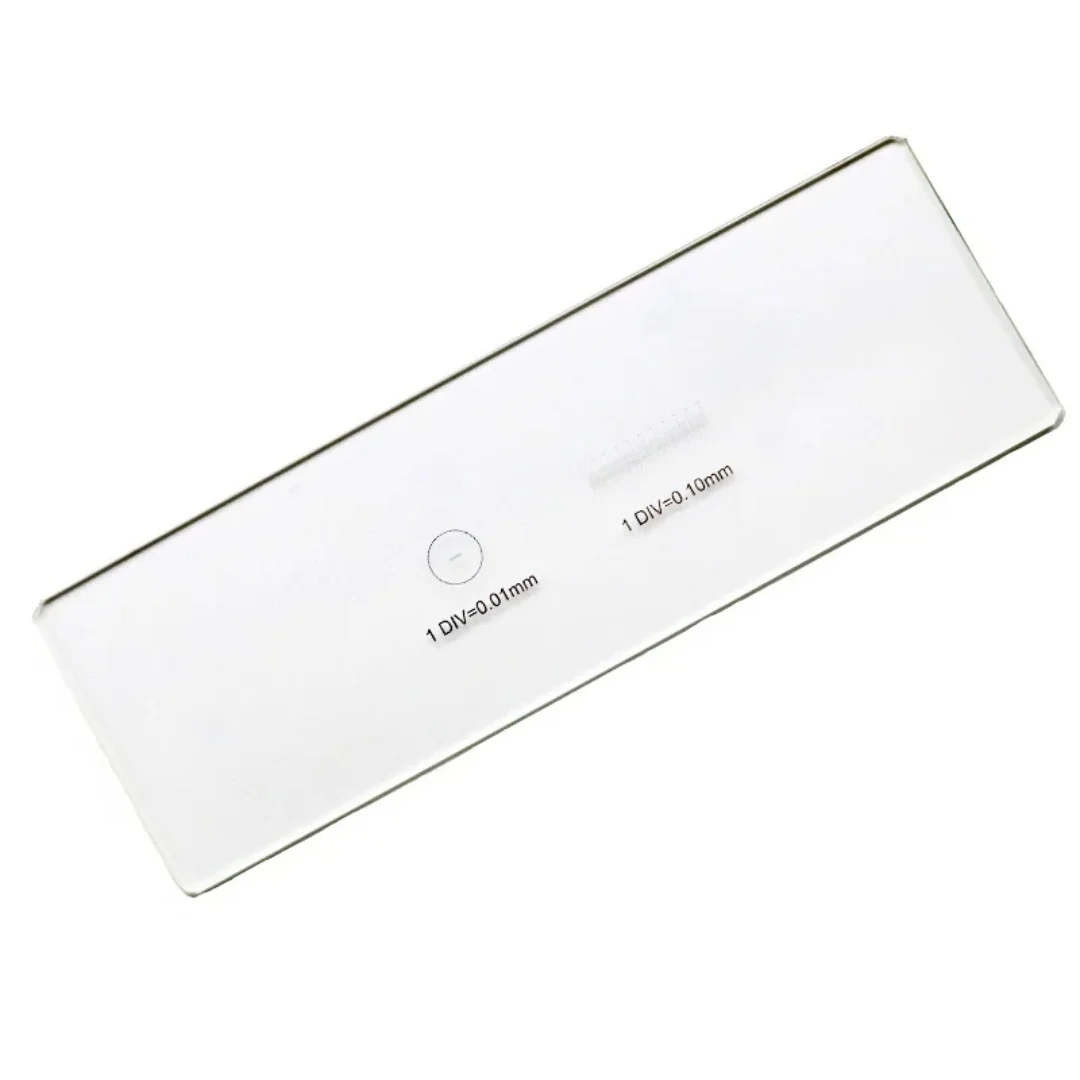

2 Scales DIV 0.01mm Microscope Reticle Calibration Slide
View Details

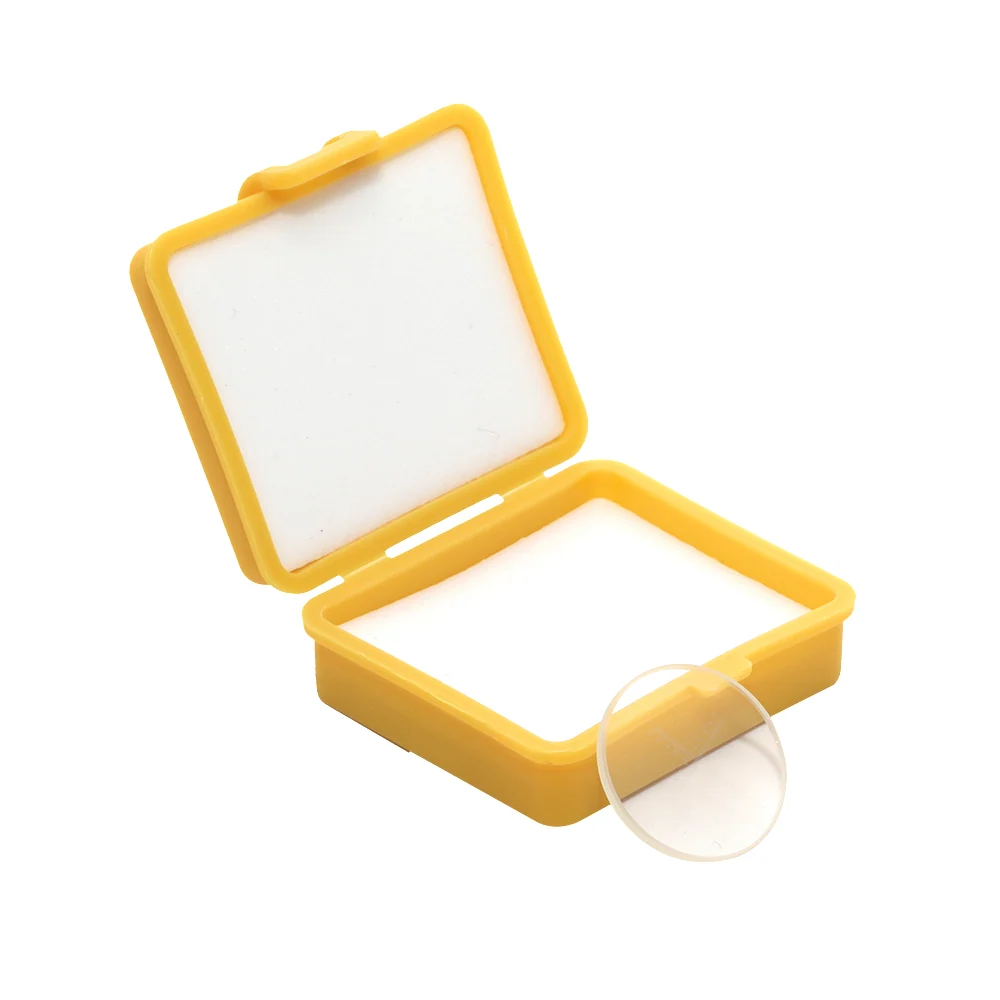

C7 0.1MM Micrometer Microscope Delimit Cross Line Reticle
View Details

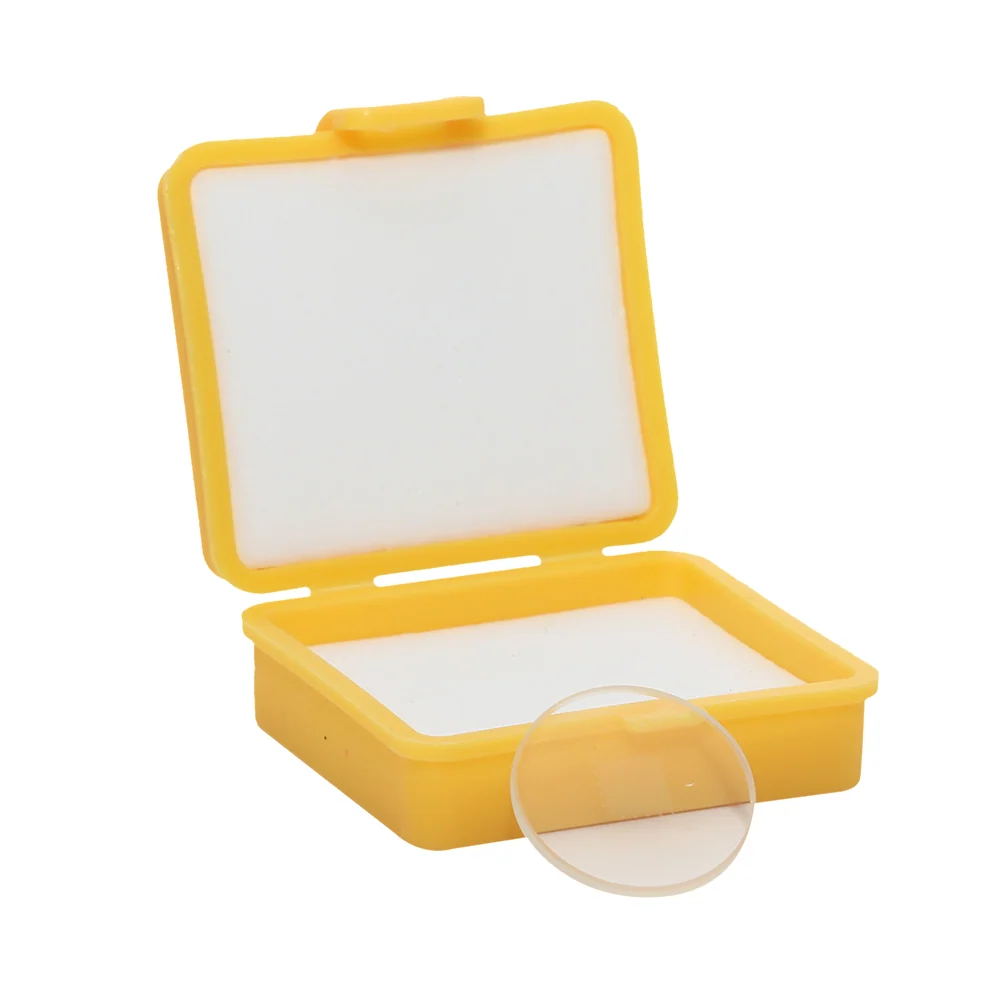

C6 DIV 0.2MM Graticule Micrometer Microscope Slide Grid Reticle
View Details

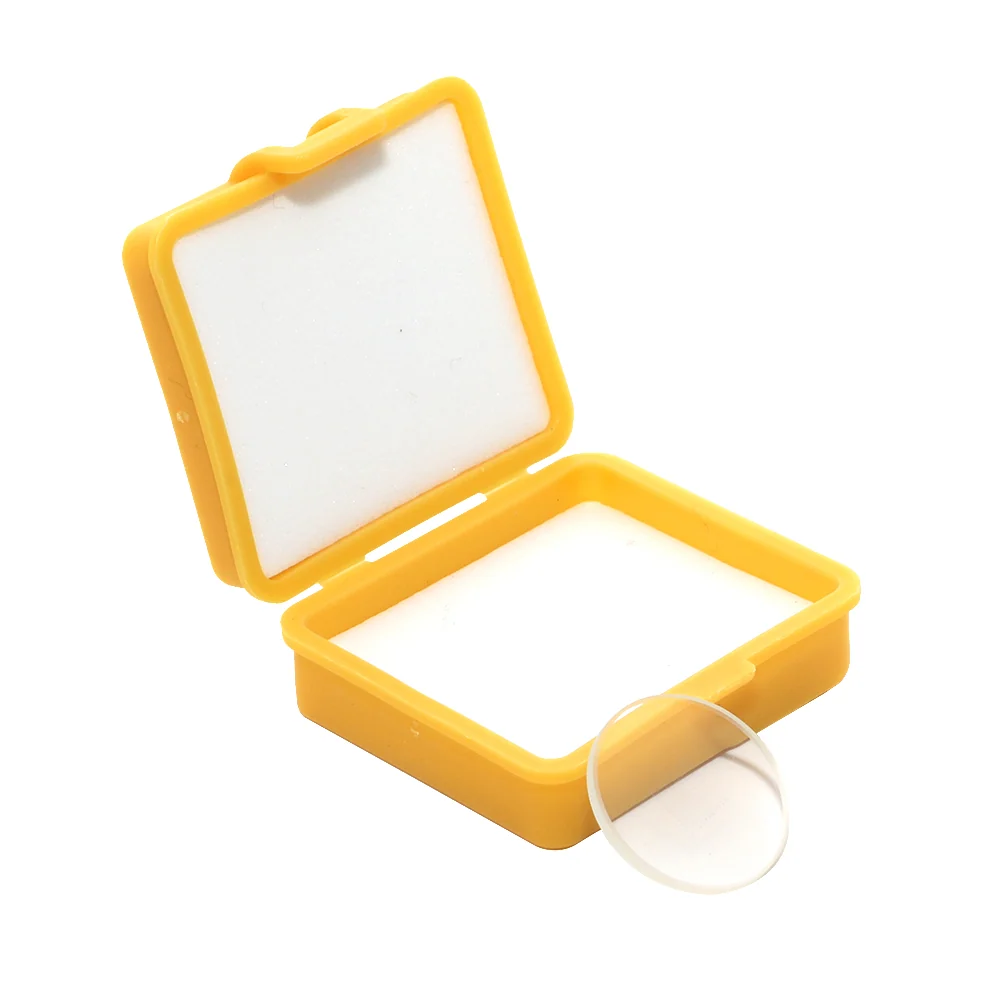

C5 DIV 0.5MM Grid Cell Scale Micrometer Microscope Calibration
View Details

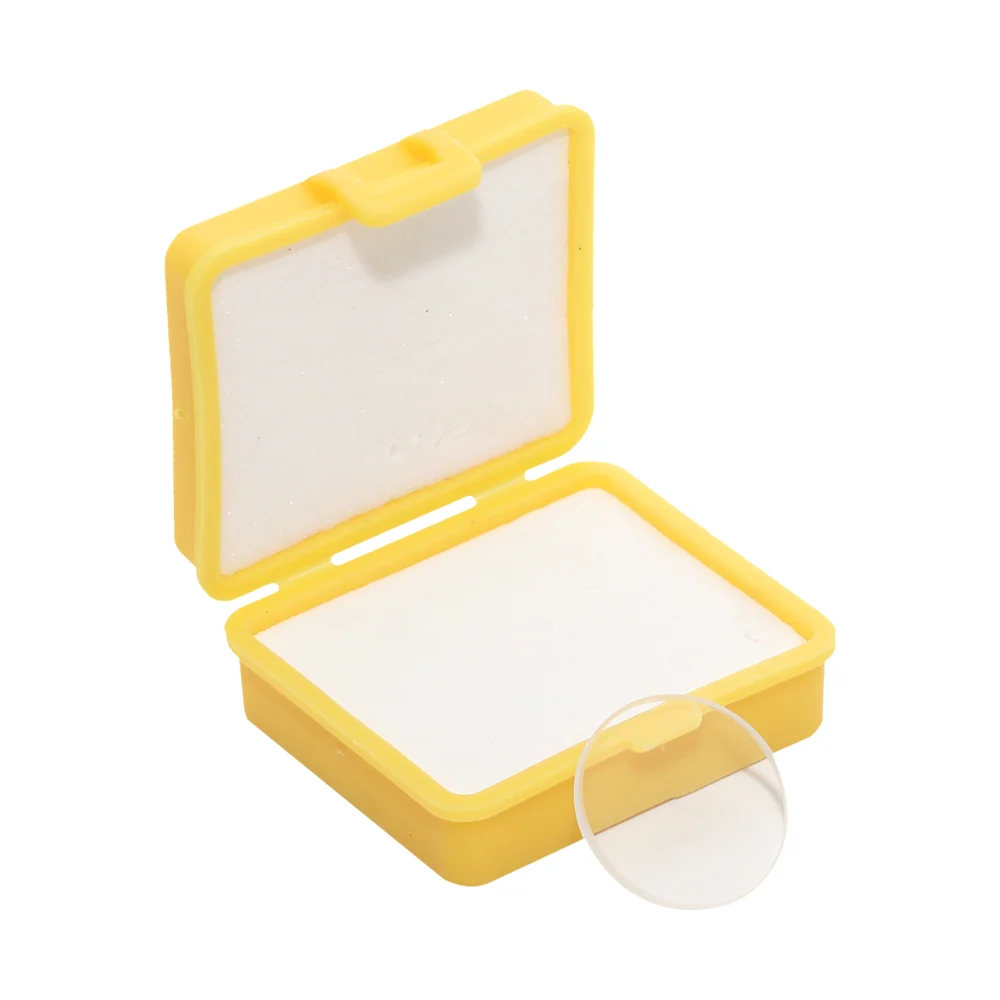

C3 Eyepiece Slide Reticle for Microscope Calibration
View Details

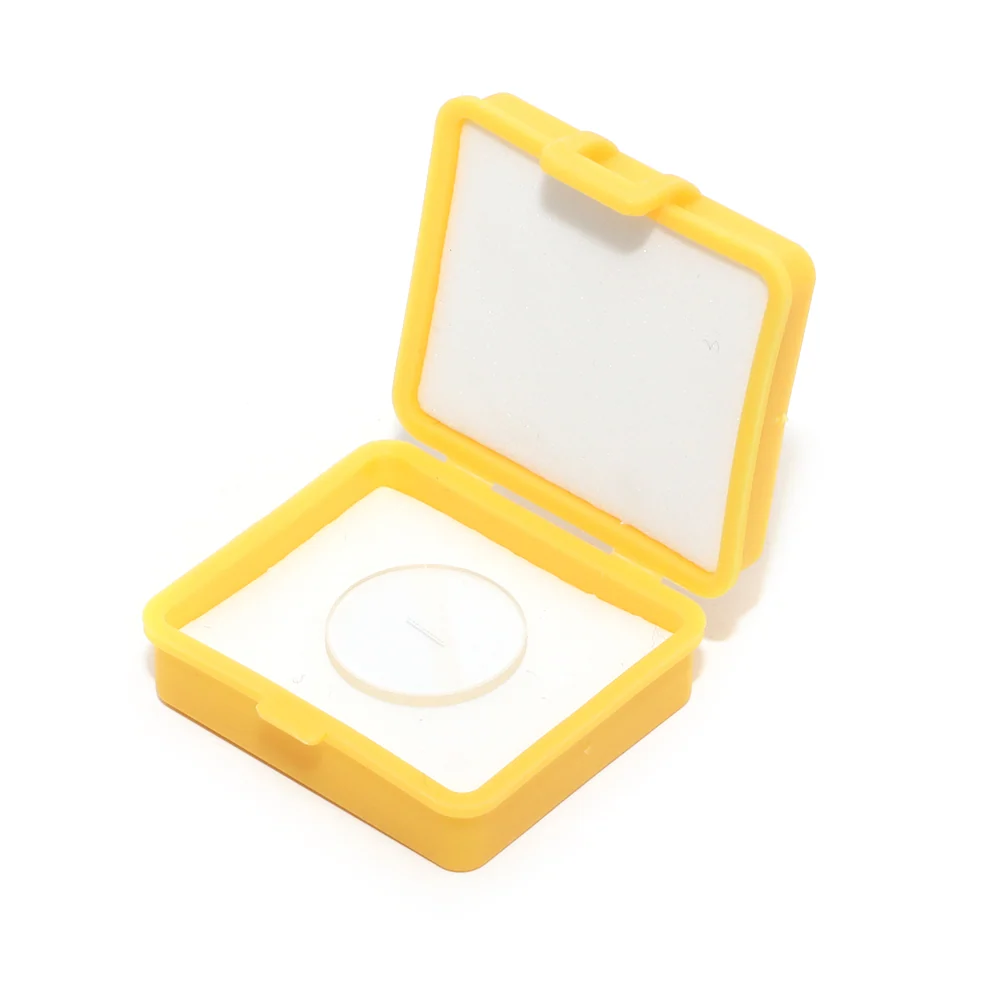

C4 DIV0.05MM Ocular Graticule Microscope Ruler Reticle
View Details

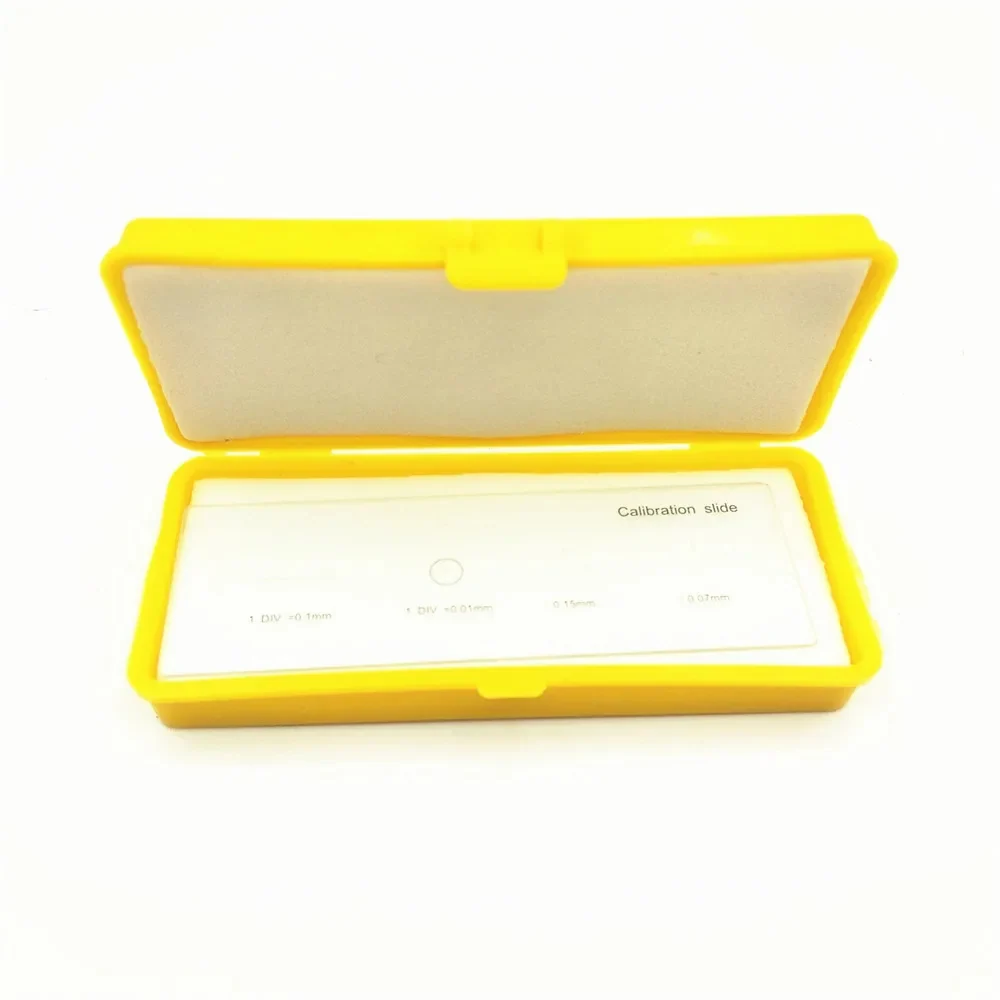

4-Scales 0.01mm Reticle Microscope Calibrating Ruler Multifunctional
View Details

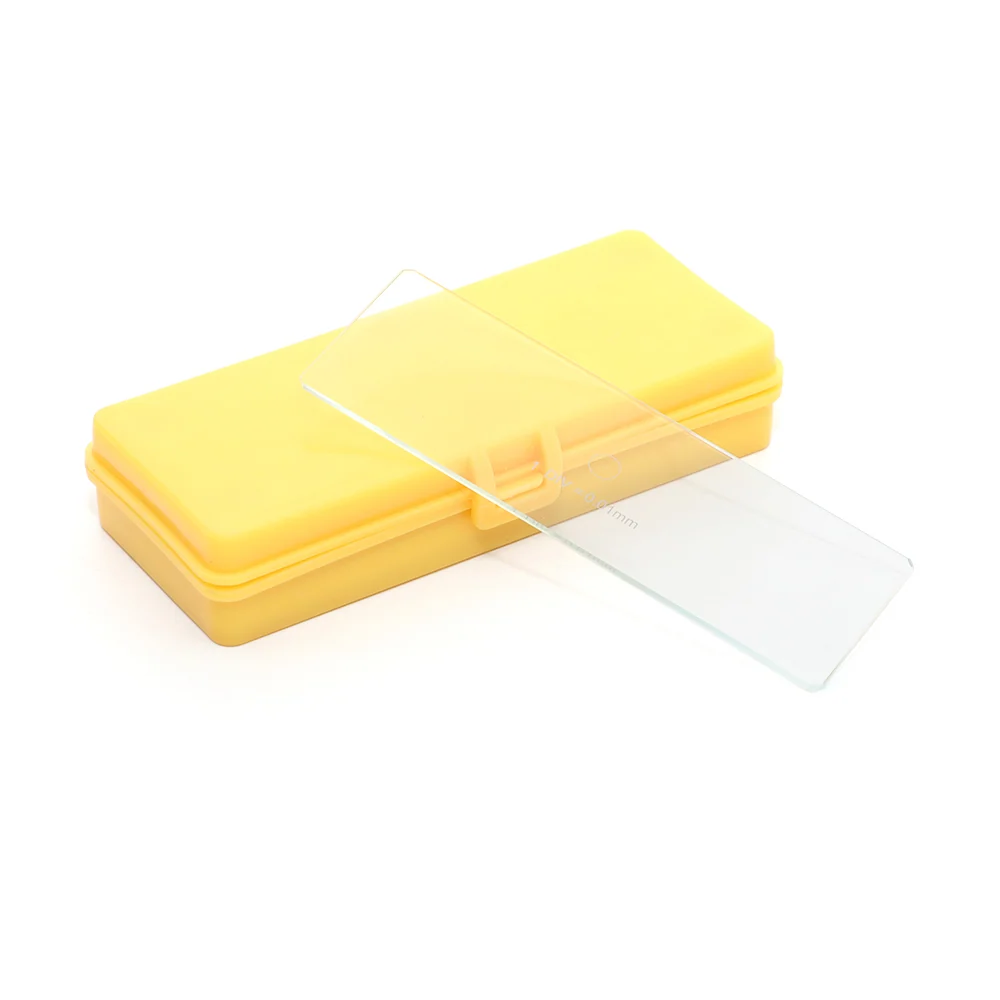

0.01mm Microscope Stage Micrometer Calibration Slide Calibration Ruler
View DetailsWhat Goes Wrong Without the Right Microscope Slide
- Uncalibrated microscopes show incorrect magnification, leading to measurement errors in production or research
- Lack of a reference scale makes it difficult to confirm if a microscope's stage or eyepiece reticle is accurate
- Manual estimation of small features on a specimen leads to inconsistent results between operators
- No standard reference for cell counting or particle sizing causes variability in biological or industrial testing
- Worn or inaccurate reticles in eyepieces or stage micrometers compromise quality control data
Who Buys From This Category
- Electronics manufacturers verifying solder joint dimensions and trace widths under high magnification
- Clinical and research labs calibrating microscopes for blood cell counting and microbial analysis
- University teaching labs ensuring students use accurate measurement tools during practical sessions
- Quality control teams in metallurgy and semiconductor industries measuring microstructures and defects
- Jewellery and watchmaking workshops measuring fine engraving and gem setting dimensions
Why These Items
- Optical glass construction ensures high clarity and minimal distortion for accurate visual measurement
- Defined grid and scale divisions (0.01mm to 0.5mm) provide a traceable reference for calibration
- Standardized 25mm x 75mm size fits most microscope stages and eyepiece reticle holders
- Multiple scale types (crosshair, grid, reticle) support different measurement tasks and microscope configurations
- Reusable design allows repeated use in calibration routines without degradation
Where These Are Used
- Verifying that a 100x objective delivers correct magnification using a 0.01mm reticle calibration slide
- Calibrating an eyepiece graticule before counting blood cells in a Neubauer chamber
- Measuring the width of a micro-solder bridge on a PCB using a 0.1mm stage micrometer
- Validating the accuracy of a 0.05mm ocular graticule in a metallurgical microscope
- Checking alignment of a crosshair reticle against a 0.01mm grid before photographing a micro-etched surface
Before You Order
- Compare the Microscope Slide models on the figure that decides the job, not on the headline magnification
- Confirm the interface dimension against equipment you already own before ordering
- Send the task as well as the model number so the configuration can be checked
- Ask for written confirmation of any figure a tender or audit depends on
Related Applications and Guides
Industries
Configuration Guides
Frequently Asked Questions
What is the difference between a stage micrometer and an eyepiece reticle?
A stage micrometer is placed on the microscope stage and provides a physical scale for calibrating the eyepiece reticle. An eyepiece reticle is a glass disc inserted into the eyepiece and is used to measure features once the scale is calibrated.
Can I use a 0.1mm grid slide to calibrate a 0.01mm reticle?
Yes, but only after calibration. The 0.1mm stage micrometer is used to determine how many divisions on the 0.01mm reticle correspond to 0.1mm, enabling accurate measurement at higher magnification.
Are these slides compatible with all microscope types?
They are designed for standard biological and stereo microscopes with flat stage surfaces. They fit most standard 25mm x 75mm stage mounts and are compatible with trinocular and digital microscope heads.
Do I need a cover glass with the calibration slides?
No. The calibration slides are designed as standalone stage tools. Cover glasses are only needed when preparing wet mounts or specimen slides.
How do I clean and maintain the calibration slides?
Wipe with a lint-free cloth and isopropyl alcohol. Avoid abrasive cleaners or scrubbing. Store in a dry, dust-free case to prevent scratches.
