HDMI Microscope Camera
HDMI microscope cameras that connect to video microscopes, stereo microscopes or biological microscopes for real-time image capture, measurement and live teaching. These cameras deliver 4K or 1080P output via HDMI, USB3.0, WiFi or dual outputs, with support for autofocus, low-delay 60fps streaming and mobile app integration.
The HDMI Microscope Camera range covers 17 catalogue items. Models in this range include SCAM4K8MPA/B Sony Imx678 IMX585 Digital Microscope Camera; Truechrome 4K SONY IMX485 WiFi HDMI Microscope Camera; X5FCAM4K8MPA Autofocus EDF 4K HDMI WiFi Microscope Camera; WUCAM1080P WiFi USB Microscope Camera with SONY IMX307 Sensor. Every item is listed with the specification published for it, so a model can be compared on working distance, magnification, interface and fitment rather than on a description.
Every HDMI Microscope Camera In Stock
All 17 items in this category, listed in full.
SCAM4K8MPA/B Sony Imx678 IMX585 Digital Microscope Camera
View Details

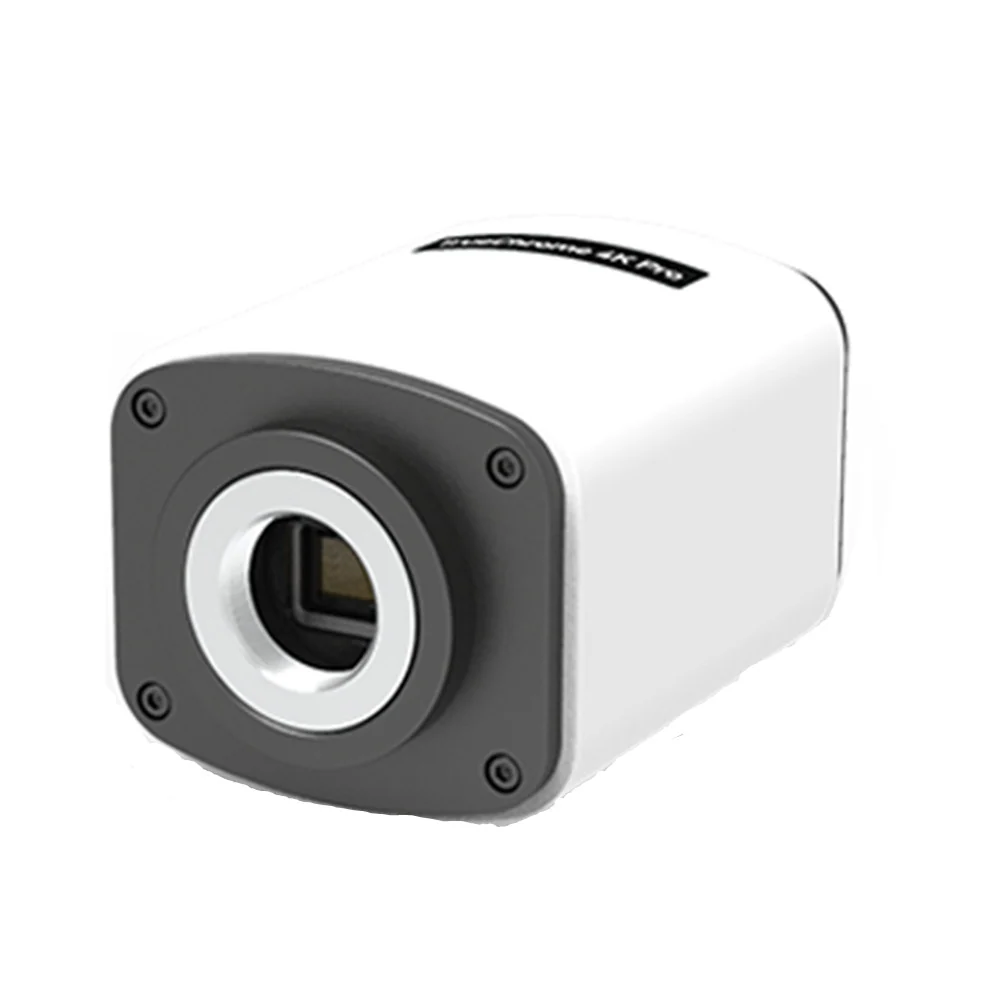

Truechrome 4K SONY IMX485 WiFi HDMI Microscope Camera
View Details

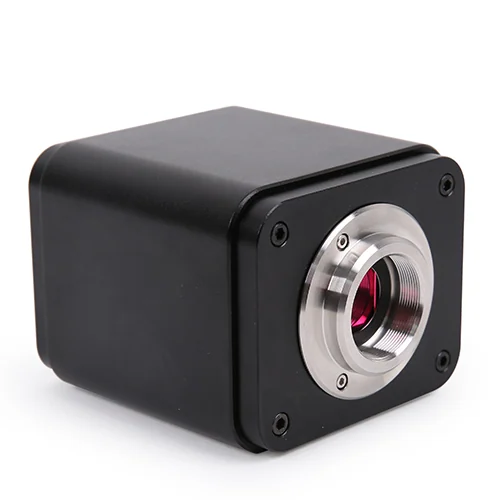

X5FCAM4K8MPA Autofocus EDF 4K HDMI WiFi Microscope Camera
View Details

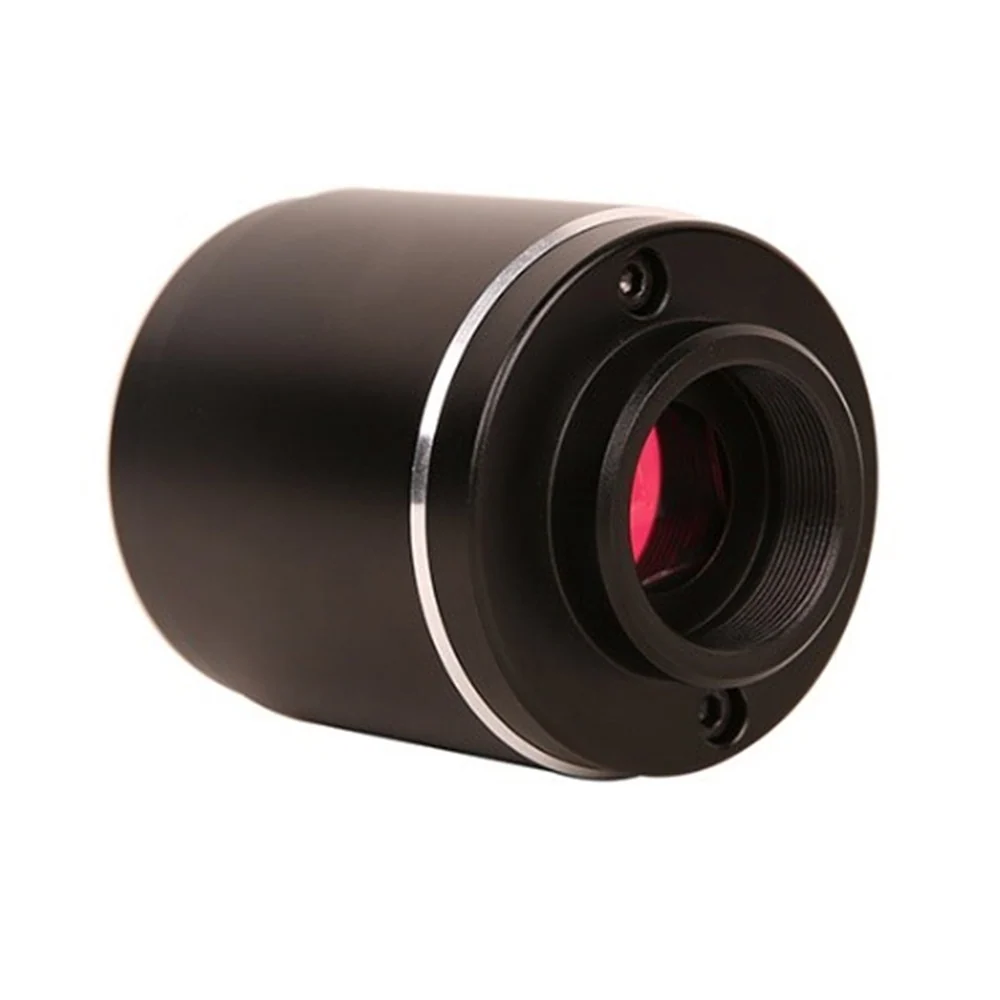

WUCAM1080P WiFi USB Microscope Camera with SONY IMX307 Sensor
View Details
XCAMTOP4K8MPA HDMI USB Microscope Camera Sony IMX334/IMX485
View Details

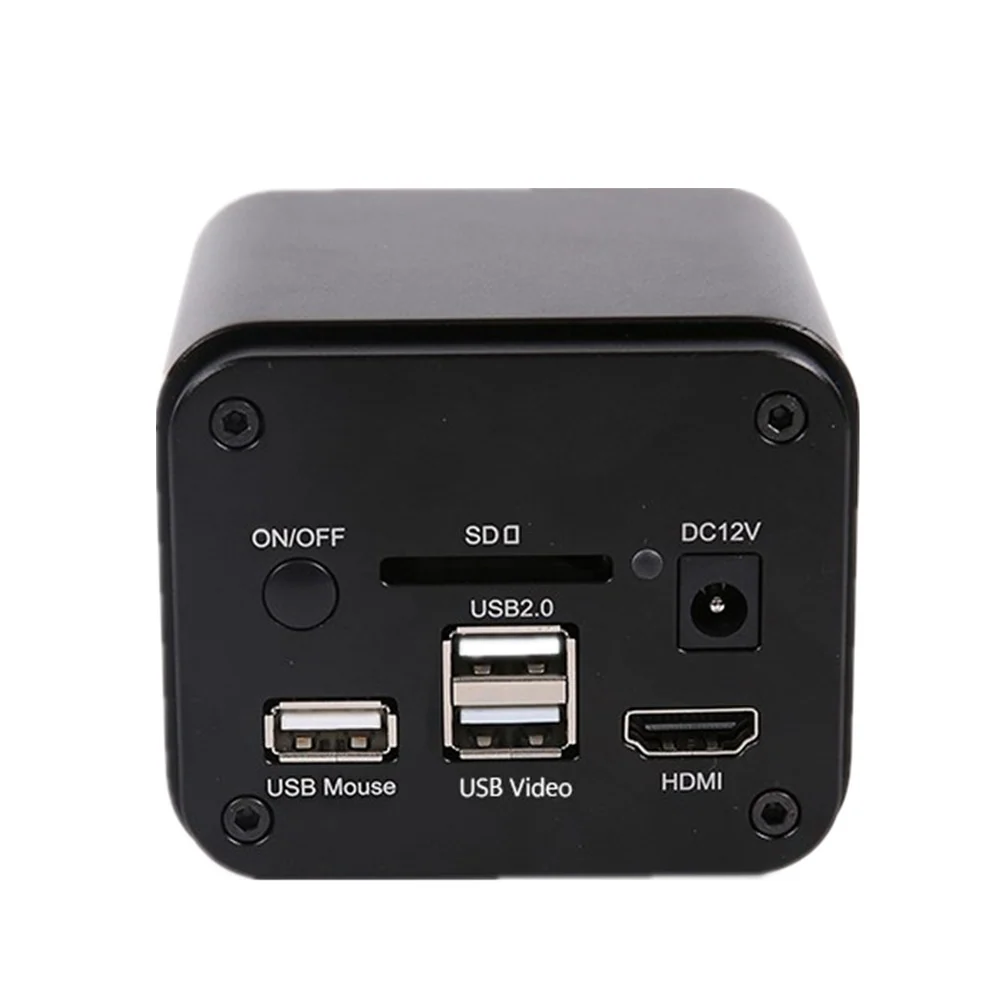

XFCAMTOP4K8MPA Autofocus 4K HDMI WiFi USB Microscope Camera
View Details

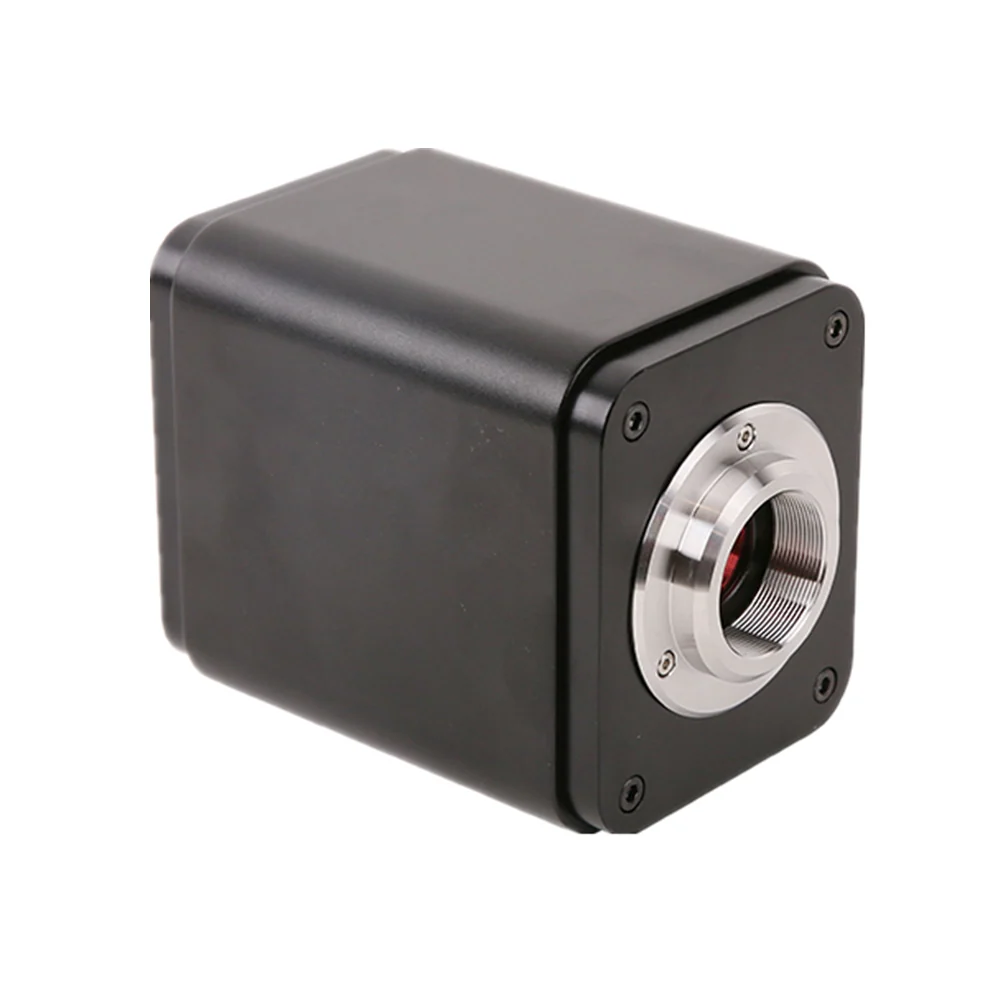

XCAMLITE4K HDMI/USB Multi-outputs 4K SONY Microscope Camera
View Details

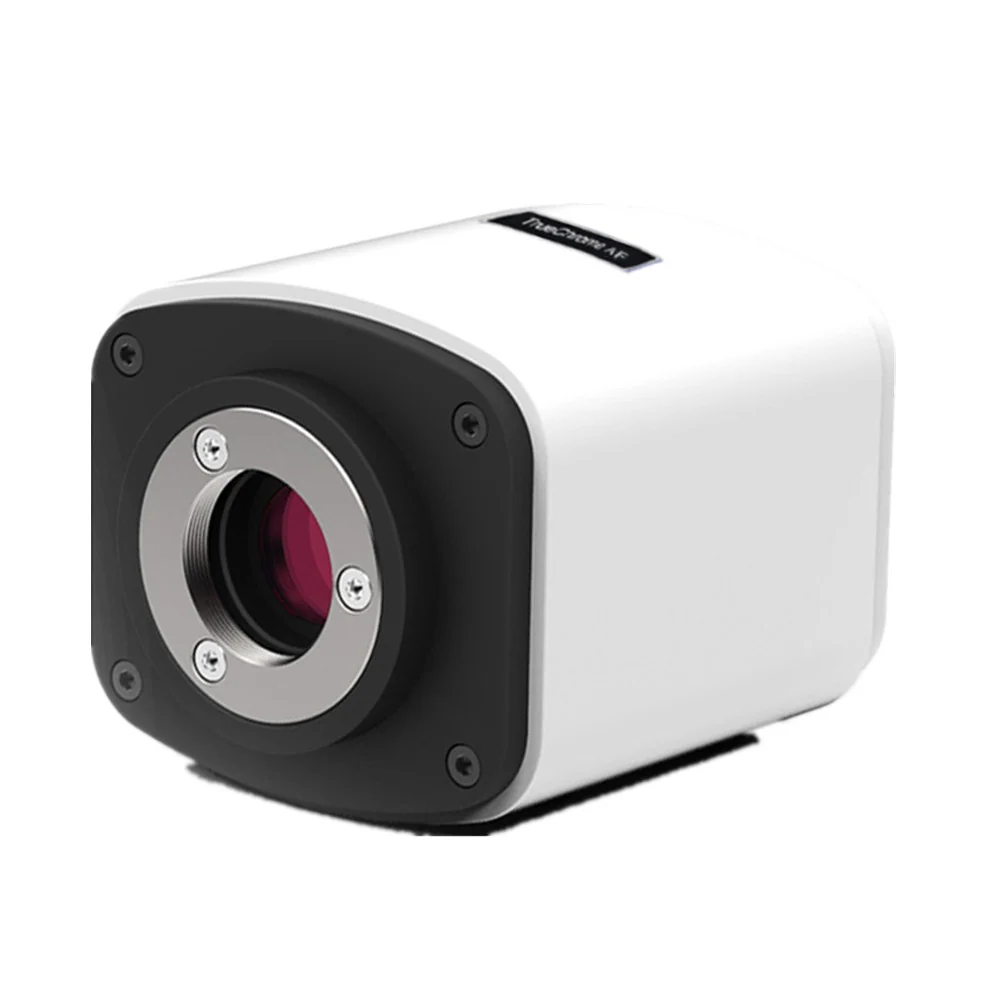

Truechrome AF AutoFocus 60fps HDMI Microscope Camera
View Details
Truechrome 4K Pro Sony IMX485 8MP HDMI+USB Microscope Camera
View Details

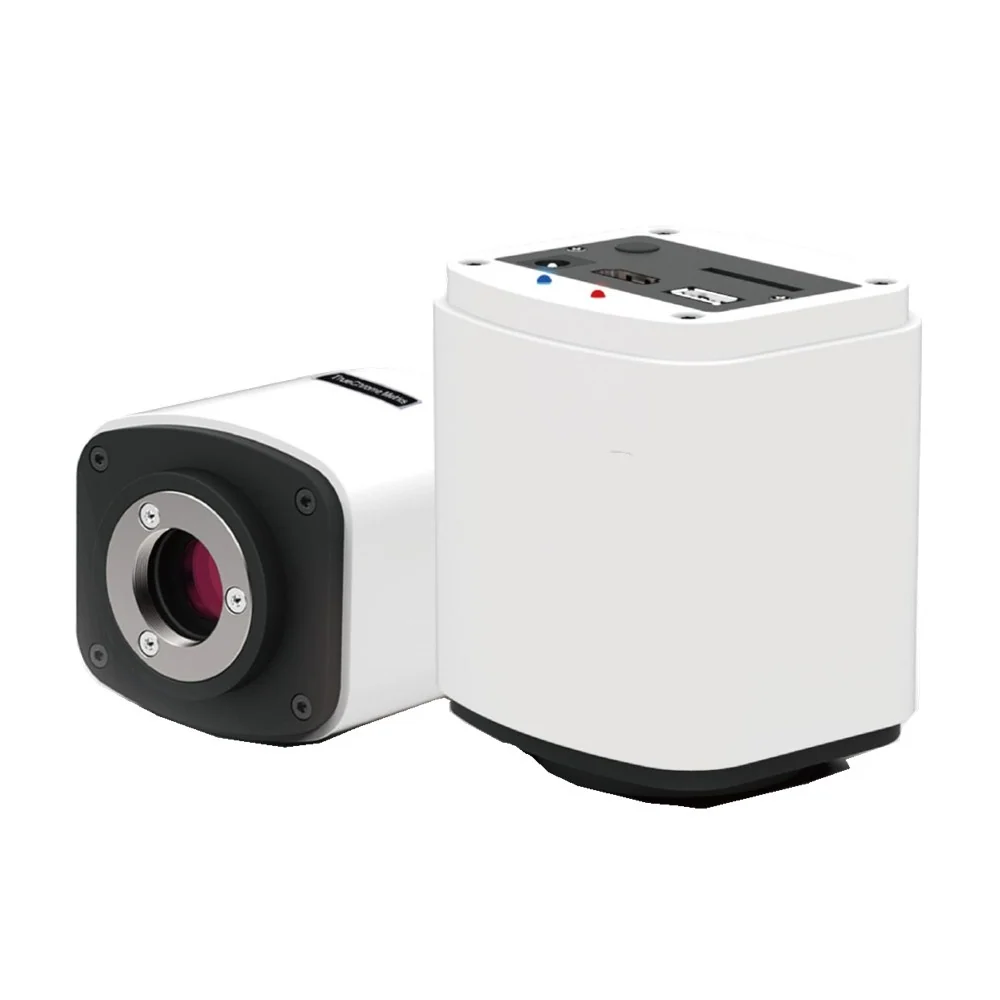

TrueChrome Metrics Digital Microscope Camera HDMI Cameras
View Details

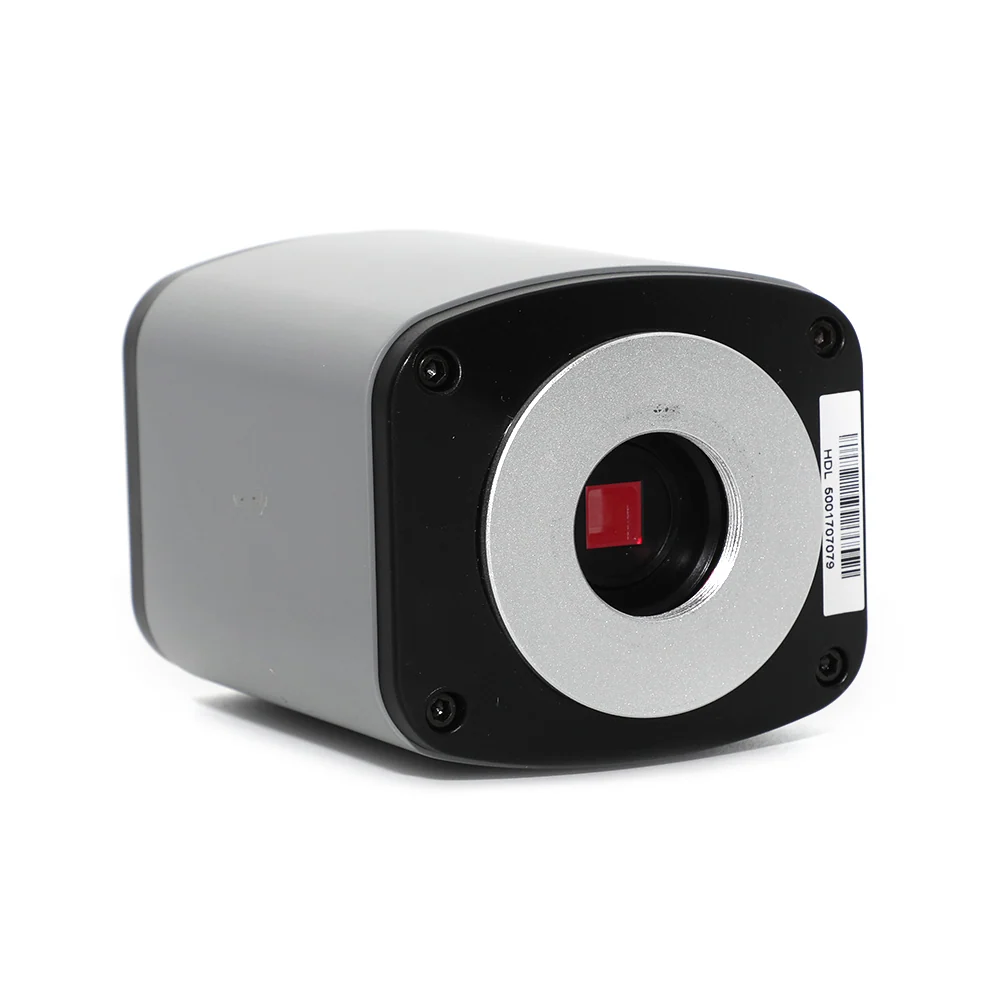

HD Lite 5M HDMI 1080P C-mount CMOS Microscope Camera
View Details

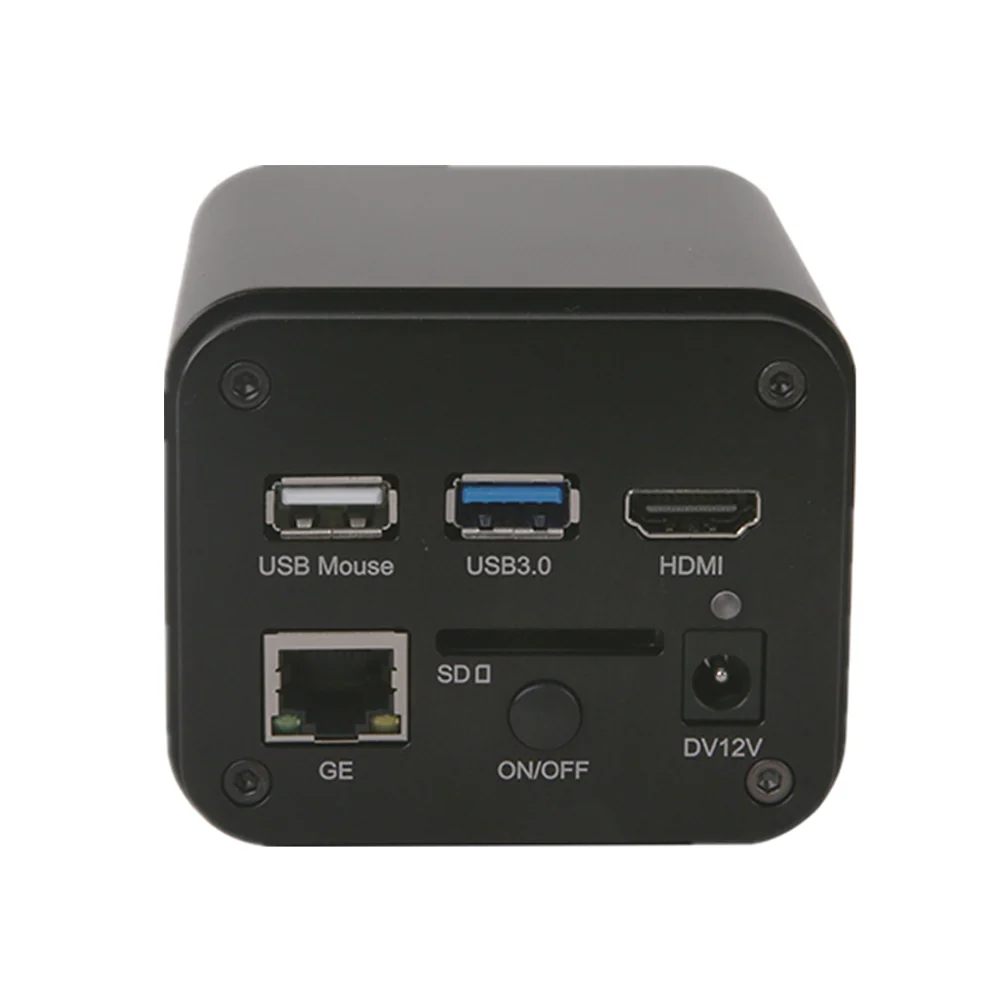

X7CAM4K HDMI USB WIFI Microscope Camera SONY IMX678/IMX585
View Details

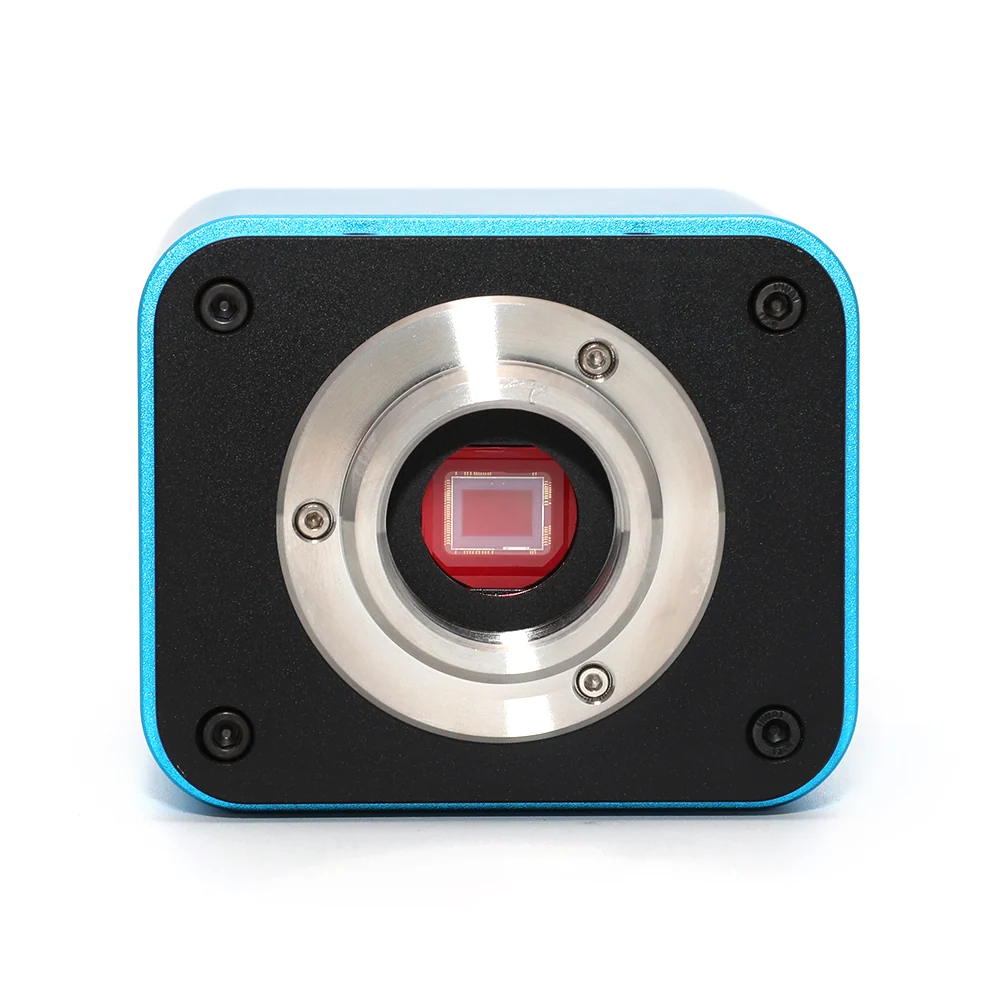

XFCAM1080PHB/D AutoFocus IMX178 IMX185 Microscope Camera
View Details
X5CAM4K HDMI Microscope Camera SONY IMX678 IMX585
View Details

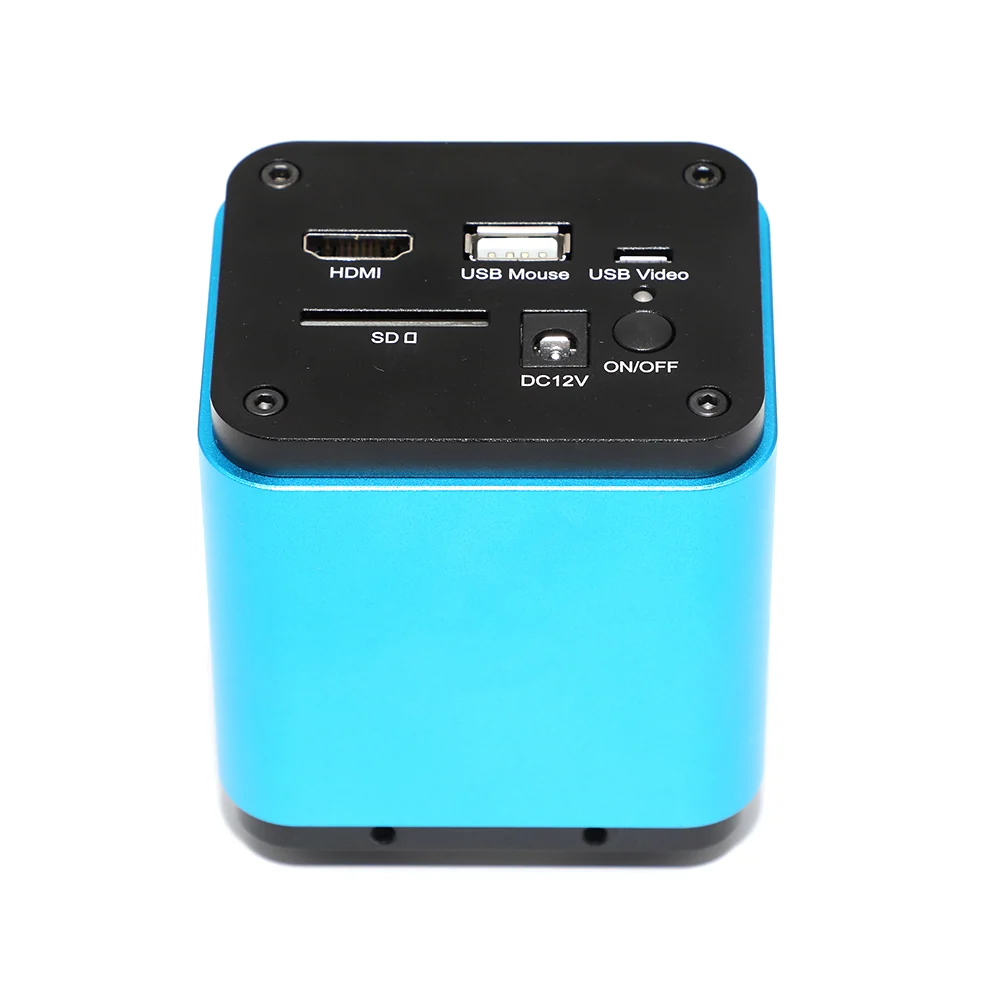

XCAM1080PHB/D HDMI+WiFi Industrial Microscope Camera
View Details
XCAM1080P2MPA HDMI+USB SONY CMOS Microscope Camera
View Details

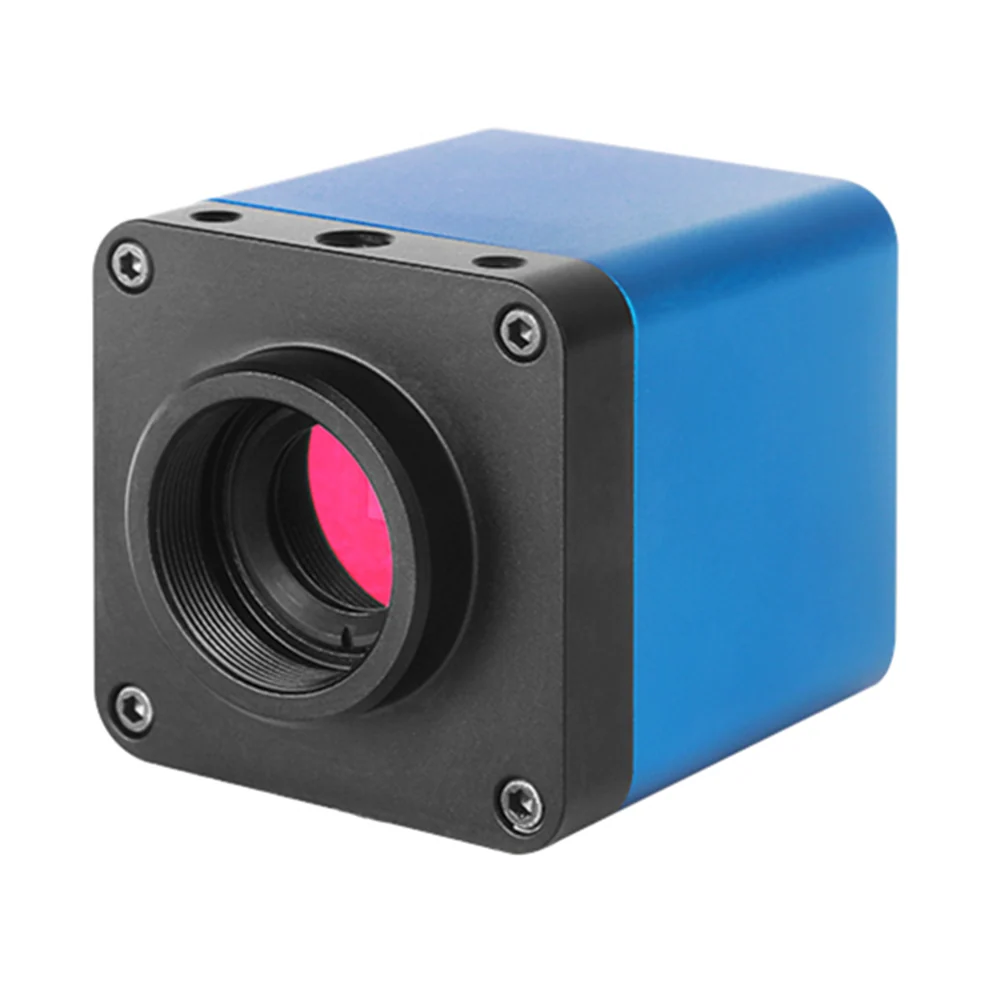

XCAMLITE1080PA HDMI C-Mount Microscope Industrial Camera
View DetailsWhat Goes Wrong Without the Right HDMI Microscope Camera
- A microscope without a digital output cannot record images or share live views during inspection or teaching
- USB2.0 cameras limit frame rate and resolution, causing lag in fast-moving processes
- No wireless connectivity means fixed camera placement and no remote viewing during training
- Lack of autofocus forces manual focus adjustments during repeated inspections
- Single-output cameras cannot feed both a monitor and a computer at once
Who Buys From This Category
- Electronics rework and inspection teams needing live image capture for BGA and SMD checks
- Teaching labs requiring real-time image sharing for student viewing during microscopy sessions
- Quality control stations that need to document defects with measurement tools
- Research labs recording surface features or biological samples with consistent lighting
- Manufacturing lines using digital microscopes for inline inspection and traceability
Why These Items
- 4K HDMI output with 60fps low-delay mode (average 40ms) enables real-time inspection without lag
- Dual or triple outputs (HDMI, USB3.0, WiFi) allow simultaneous monitor display, computer capture and mobile viewing
- Sony STARVIS 2 back-illuminated CMOS sensors deliver high sensitivity in low-light conditions
- Auto-focus models maintain sharp focus across variable sample heights without manual adjustment
- WiFi and Mosaic App support enable image capture, measurement and saving directly from Android or iOS devices
Where These Are Used
- Capturing a 4K image of a solder joint during BGA rework with real-time measurement overlay
- Streaming a live view of a biological specimen to a classroom monitor while a teacher explains under the microscope
- Recording a sequence of images from a metallurgical sample with consistent focus using autofocus
- Using the Mosaic App on a tablet to measure grain size on a polished metal surface during inspection
- Connecting a camera to a video microscope and sending output to both a large monitor and a data logger at the same time
Before You Order
- Compare the HDMI Microscope Camera models on the figure that decides the job, not on the headline magnification
- Confirm the interface dimension against equipment you already own before ordering
- Send the task as well as the model number so the configuration can be checked
- Ask for written confirmation of any figure a tender or audit depends on
Related Applications and Guides
Industries
Configuration Guides
Technical Articles
Frequently Asked Questions
What interfaces does the HDMI microscope camera support?
Cameras in this range support HDMI, USB3.0, WiFi, and some models offer dual or triple outputs including HDMI+USB, HDMI+WiFi, or HDMI+USB+WiFi.
Can I use the camera with a biological or stereo microscope?
Yes. These cameras are designed for use with stereo microscopes, biological microscopes, and video digital microscopes, provided the mounting interface matches.
Does the camera support autofocus?
Yes. Some models, such as the X5FCAM4K8MPA and XFCAMTOP4K8MPA, include autofocus functionality for consistent focus across variable sample heights.
What is the frame rate and delay for 4K output?
4K output supports up to 60fps with an average delay of 40ms in low-delay mode, suitable for real-time inspection and teaching.
Can I control the camera from a smartphone or tablet?
Yes. Models with WiFi support, such as the Truechrome 4K WiFi and X7CAM4K, work with the Mosaic App on Android and iOS for remote capture and measurement.
Get A Price On HDMI Microscope Camera
Send the model numbers you are considering, or describe the task and let us shortlist them for you.
