Hexagonal Wire Netting to EN 10223-2 in Eleven Mesh Sizes
Eleven mesh sizes with the minimum zinc coating and the tolerance standard published against each one.
Product Overview
What Hexagonal Wire Netting Is and Who Buys It
Hexagonal wire netting is manufactured in galvanized iron or PVC coated wire, twisted into a hexagonal pattern.
With good corrosion resistance and oxidation resistance, it serves as strengthening, protection and temperature keeping material in the form of mesh containers, stone cages, isolation walls, boiler covers and poultry fencing.
It is used across construction, chemical, breeding, garden and food processing industries, and is the base netting for Anwang's gabion products.
Key Benefits
- Eleven galvanized mesh sizes from 10 mm to 100 mm, each with its own gauge range and minimum zinc coating.
- Six PVC coated mesh sizes from 13 mm to 50 mm with published wire diameter ranges.
- Tolerances that comply with EN 10223-2:1997.
- Roll widths from 1 ft up to 2 m.
Who It Is For
Buyers Who Specify Hexagonal Wire Netting
- Poultry and livestock farmers
- Gabion and civil engineering contractors
- Plasterers and builders using netting as reinforcement
- Garden, landscaping and nursery suppliers
- Food processing and boiler insulation contractors
Problems It Solves
Netting bought by mesh size alone says nothing about how long it lasts. The minimum galvanization in grams per square metre is the number that does.
Tolerance on a twisted mesh drifts. These tolerances comply with EN 10223-2:1997, so what arrives can be checked against a published standard.
Netting used as gabion feedstock needs heavier wire than poultry netting in the same mesh size - the gauge bands here make that explicit.
PVC coated netting and galvanized netting are not interchangeable in wire diameter, and buying as if they were leads to short weight.
Application Scenarios

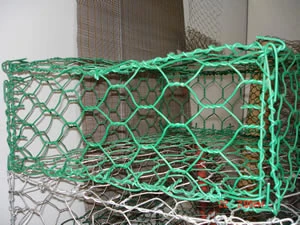

Hexagonal Wire Netting in Service
Every photograph below is from our own product record.
Technical Features
Hexagonal Wire Netting Specifications
Figures published here are the ones printed in our own product record. Anything we have never published is marked TBC and confirmed in writing before you order.
- Materials
- Galvanized iron wire or PVC coated wire
- Galvanized mesh sizes
- 3/8" 10 mm to 4" 100 mm, eleven sizes
- PVC coated mesh sizes
- 1/2" 13 mm to 2" 50 mm, six sizes
- Minimum galvanization
- 30 to 145 g per square metre depending on mesh size
- Wire gauge
- BWG 16 to BWG 27 depending on mesh size
- PVC coated wire diameter
- 0.6 mm to 1.4 mm
- Roll width
- 1 ft to 2 m
- Tolerance standard
- EN 10223-2:1997
- Applications
- Mesh containers, stone cages, isolation walls, boiler covers, poultry fencing
Galvanized Hexagonal Wire Netting
| Galvanized hexagonal wire netting | |||||
|---|---|---|---|---|---|
| mesh | Min. Gal.v. G/SQ.M | Width | Wire Gauge (Diameter) BWG | ||
| Inch | mm | Tolerance(mm) | |||
| 3/8" | 10mm | ±1.0 | 0.7mm - 145 | 2' - 1M | 27, 26, 25, 24, 23 |
| 1/2" | 13mm | ±1.5 | 0.7mm - 95 | 2' - 2M | 25, 24, 23, 22, 21 |
| 5/8" | 16mm | ±2.0 | 0.7mm - 70 | 2' - 2M | 27, 26, 25, 24, 23, 22 |
| 3/4" | 20mm | ±3.0 | 0.7mm - 55 | 2' - 2M | 25, 24, 23, 22, 21, 20, 19 |
| 1" | 25mm | ±3.0 | 0.9mm - 55 | 1' - 2M | 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" | 31mm | ±4.0 | 0.9mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 2" | 50mm | ±6.0 | 1.2mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 2-1/2" | 65mm | ±7.0 | 1.0mm - 30 | 1' - 2M | 21, 20, 19, 18 |
| 3" | 75mm | ±8.0 | 1.4mm - 30 | 2' - 2M | 20, 19, 18, 17 |
| 4" | 100mm | ±8.0 | 1.6mm - 30 | 2' - 2M | 19, 18, 17, 16 |
Tolerances comply with EN 10223-2:1997. Minimum galvanization applies to the typical wire diameter stipulated in that column and only to hot dipped galvanized netting. Download this table as CSV

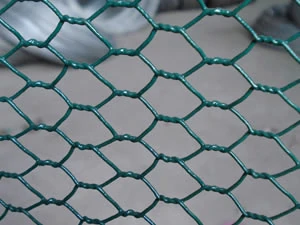

PVC Coated Hexagonal Wire Netting
| PVC Coated Hexagonal Wire Netting | |||
|---|---|---|---|
| Mesh | Wire Gauge (MM) | Width | |
| Inch | MM | ||
| 1/2" | 13mm | 0.6mm - 1.0mm | 2' - 2M |
| 3/4" | 19mm | 0.6mm - 1.0mm | 2' - 2M |
| 1" | 25mm | 0.7mm - 1.3mm | 1' - 2M |
| 1-1/4" | 30mm | 0.85mm - 1.3mm | 1' - 2M |
| 1-1/2" | 40mm | 0.85mm - 1.4mm | 1' - 2M |
| 2" | 50mm | 1.0mm - 1.4mm | 1' - 2M |
| We also offer other specifications you need |
Other specifications can be supplied on request. Download this table as CSV
Materials
Material Options
Galvanized iron wire for general agricultural, garden and construction duty, with minimum zinc coating from 30 to 145 g per square metre depending on mesh size. PVC coated wire where the netting sits in water, near the coast or has to last visibly - the polymer skin goes over the zinc, and the published wire diameters run from 0.6 mm to 1.4 mm.
Quality Control
Mesh size is checked against the published tolerance, which complies with EN 10223-2:1997. Note that the minimum galvanization figure applies only to hot dipped galvanized netting and only at the typical wire diameter stipulated in that column - it is a reference, not a blanket guarantee across every gauge in the row.
Certifications
- ISO9001 quality management
- Tolerances to EN 10223-2:1997
- Import and export licence
Customization Options
- Any of the eleven galvanized or six PVC coated mesh sizes
- Wire gauge selected within the published band for that mesh
- Roll width from 1 ft to 2 m
- PVC colour to specification
- Other specifications on request
Manufacturing Process
How Hexagonal Wire Netting Is Made
Wire drawing
Iron wire drawn to the ordered BWG gauge.
Galvanizing
Electro or hot dip galvanizing; minimum coating weight applies to hot dipped netting.
PVC coating
Applied over the zinc where ordered.
Twisting
Wire is twisted into the hexagonal pattern at the ordered mesh size.
Rolling
Netting rolled to the ordered width from 1 ft to 2 m and bundled.
Comparison
How It Compares
| Product | Where It Fits |
|---|---|
| Hexagonal wire netting | Twisted; light; flexible; the base netting for gabions |
| Chain link fence | Woven diamond; heavier wire; for fencing rather than containment |
| Welded wire mesh | Welded; rigid; holds aperture exactly |
Use Guide
- For poultry and garden use, choose a light gauge in a 13-25 mm mesh.
- For gabion and stone cage work, choose the heavier gauge end of the band in a larger mesh.
- Specify hot dipped galvanized when you want the published minimum coating weight to apply.
- Use PVC coated netting in water, near the coast and wherever appearance matters.
- Check mesh size against the EN 10223-2:1997 tolerance on delivery, not by eye.
FAQ
Hexagonal Wire Netting Questions Buyers Ask
Answers taken from our own product record. Where a figure has never been published, we say so instead of guessing.
What mesh sizes are available?
Eleven galvanized: 3/8", 1/2", 5/8", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" and 4", which is 10 mm to 100 mm. PVC coated is offered in six sizes from 1/2" to 2".
What tolerance applies to the mesh size?
The published tolerances comply with standard EN 10223-2:1997 and range from plus or minus 1.0 mm on 10 mm mesh to plus or minus 8.0 mm on 100 mm mesh.
How much zinc is on the wire?
The minimum galvanization column runs from 30 to 145 g per square metre depending on mesh size. It applies to the typical wire diameter stipulated in that column and only to hot dipped galvanized netting.
Can you supply it PVC coated?
Yes, in six mesh sizes from 13 mm to 50 mm with wire diameters from 0.6 mm to 1.4 mm.
What is it used for?
Strengthening, protection and temperature keeping - as mesh containers, stone cages, isolation walls, boiler covers and poultry fencing in construction, chemical, breeding, garden and food processing industries.
Can you make sizes outside the table?
Yes. The catalogue states that other specifications are offered as needed.
