Expanded Metal Mesh in Thicknesses From 0.5 mm to 8 mm
One sheet slit and stretched into mesh - no wire, no welds, nothing to unravel.
Product Overview
What Expanded Metal Mesh Is and Who Buys It
Expanded metal mesh is made by slitting and stretching a single sheet, so the mesh has no welds and no loose wire ends.
It is made from expanded steel mesh, aluminium, stainless steel, nickel and other metals, and used as steel reinforcement in petroleum, chemical industry and building decoration.
It is also used for fencing on roads, railways, civil buildings and water conservancy works, and for protecting machines, electrical equipment, windows and aquatic breeding.
Key Benefits
- Eighteen published specifications with thickness, short way and long way dimensions, strand width and weight.
- Thickness from 0.5 mm foil-weight mesh to 8 mm structural mesh.
- Multiple base metals - steel, aluminium, stainless, nickel.
- Widths to 2 m and lengths to 4 m on the heavier specifications.
Who It Is For
Buyers Who Specify Expanded Metal Mesh
- Petroleum and chemical plant fabricators using it as reinforcement
- Architectural and interior contractors
- Machine and electrical equipment guards
- Road, rail and water conservancy contractors
- Aquaculture equipment builders
Problems It Solves
Welded or woven mesh can unravel at a cut edge. Expanded mesh is one piece of metal, so it cannot.
Reinforcement mesh needs mass, not aperture. The weight column - 0.73 to 28.26 kg per square metre - is the number that actually matters, and it is published here.
Thin mesh bought for a heavy guard deforms on first impact; thicknesses run to 8 mm for exactly that case.
Punched sheet wastes the slug. Expanding wastes nothing, which shows up in the price of heavy gauges.
Application Scenarios
Expanded Metal Mesh in Service

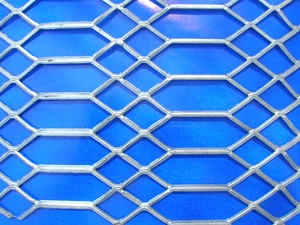

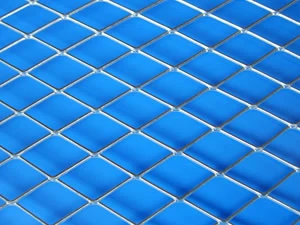

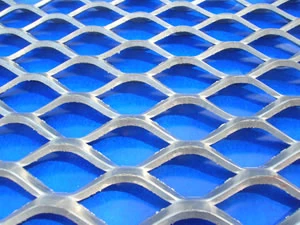

Every photograph below is from our own product record.
Technical Features
Expanded Metal Mesh Specifications
Figures published here are the ones printed in our own product record. Anything we have never published is marked TBC and confirmed in writing before you order.
- Materials
- Expanded steel mesh, aluminium, expanded stainless steel, expanded nickel and other metals
- Thickness
- 0.5 mm to 8 mm
- Weight
- 0.73 kg/m2 to 28.26 kg/m2
- Short way of mesh
- 10 mm to 50 mm
- Long way of mesh
- 25 mm to 100 mm
- Sheet width
- 0.5 m to 2 m
- Sheet length
- 2 m to 4.5 m
- Reinforcement uses
- Petroleum, chemical industry, building decoration
Expanded Metal Mesh Specifications
| specifications | width (m) | length (m) | weight (kg/m2) | |||
|---|---|---|---|---|---|---|
| mesh thickness(mm) | distance short(mm) | distance long(mm) | strip(mm) | |||
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
Short and long way distances are measured centre to centre in millimetres; weight is per square metre. Download this table as CSV
Materials
Material Options
Steel is the standard. Aluminium is chosen where weight is the constraint, stainless where corrosion is, and nickel for specialised chemical service. Because the mesh is formed from a single sheet, the base metal's own corrosion behaviour carries through with no coating at the cut edges to worry about.
Quality Control
Check thickness, short way and long way dimensions and weight per square metre against the specification line you ordered. Weight is the fastest single check that the right specification has been shipped.
Certifications
- ISO9001 quality management
- Import and export licence
Customization Options
- Any of the eighteen published specifications
- Steel, aluminium, stainless steel or nickel
- Raised or flattened mesh
- Sheet sizes to order within the published width and length ranges
- Framed panels for guarding
Manufacturing Process
How Expanded Metal Mesh Is Made
Sheet selection
Flat sheet selected in the ordered thickness from 0.5 mm to 8 mm.
Slitting and stretching
The sheet is slit and stretched in one operation to form the diamond pattern.
Flattening
Where a flat sheet is ordered, the raised mesh is rolled flat.
Cutting
Sheets cut to the ordered width and length.
Finishing
Edges trimmed and sheets stacked for shipment.
Comparison
How It Compares
| Product | Where It Fits |
|---|---|
| Expanded metal mesh | One-piece; no welds; up to 8 mm thick; strongest per kilogram |
| Perforated metal | Punched; exact round holes; thinner gauges; higher cost per square metre in heavy sheet |
| Welded wire mesh | Welded wires; lighter; cheaper for fencing and animal housing |
Use Guide
- Select by weight per square metre when the mesh is structural or a reinforcement layer.
- Select by short way and long way dimension when it is a guard or a screen.
- Orient the long way of mesh across the span for maximum stiffness.
- Use flattened mesh where anything will slide across the surface.
- For petroleum and chemical reinforcement duty, confirm the base metal with your enquiry.
FAQ
Expanded Metal Mesh Questions Buyers Ask
Answers taken from our own product record. Where a figure has never been published, we say so instead of guessing.
How thick can expanded metal mesh be made?
From 0.5 mm up to 8 mm. The heaviest published specification weighs 28.26 kg per square metre.
What metals can it be made from?
Expanded steel mesh, aluminium expanded metal mesh, expanded stainless steel, expanded nickel and other metals.
What sheet sizes are available?
Widths from 0.5 m to 2 m and lengths from 2 m to 4.5 m, depending on the specification.
Is it used as reinforcement?
Yes - as steel reinforcement material in petroleum, chemical industry and building decoration.
What else is it used for?
Fencing for road, railway, civil building and water conservancy construction, and protection of machines, electrical equipment, windows and aquatic breeding.
Can you supply flattened sheets?
Yes. Say whether you need raised or flattened mesh when you send the enquiry.
Get A Price For Expanded Metal Mesh
Give us the specification, the quantity and the destination port. We reply with price, packing and the full specification written out.
