Square Wire Mesh for Screening Sieving and Window Screen
Fifteen mesh counts with wire diameter and aperture stated for each, in widths up to 1.5 m.
Product Overview
What Square Wire Mesh Is and Who Buys It
Square wire mesh is woven from galvanized iron wire in a plain square pattern.
It is used mostly as window screen and as industrial sieves in the sugar, chemical and stone crusher industries, and for sieving grain.
Fifteen mesh counts are held, from 2 mesh with an 11.10 mm aperture down to 60 mesh at 0.27 mm, in widths from 0.60 m to 1.5 m.
Key Benefits
- Aperture published in millimetres for every mesh count, so screen selection is arithmetic not guesswork.
- Four workmanship options: hot dipped or electric galvanized, before or after weaving.
- Widths to 1.5 m for full-deck screens without a seam.
- The same weave serves both industrial sieving and window screening, simplifying a mixed order.
Who It Is For
Buyers Who Specify Square Wire Mesh
- Sugar refineries and food processors screening product
- Chemical plants sieving powders and granules
- Stone crusher and aggregate operators
- Grain handlers and seed cleaners
- Window and door screen fabricators
Problems It Solves
A screen that blinds off costs throughput. Matching mesh count and wire diameter to the material is what stops that happening.
Zinc burnt off at the weave points fails first - which is why the workmanship option of galvanizing before or after weaving matters.
Sieve cloth bought without a published aperture cannot be matched to a particle size distribution.
Narrow cloth forces seams across a screen deck; widths up to 1.5 m avoid them.
Application Scenarios

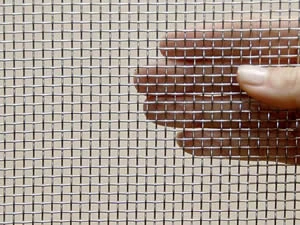

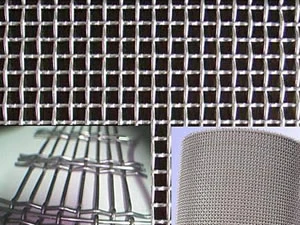

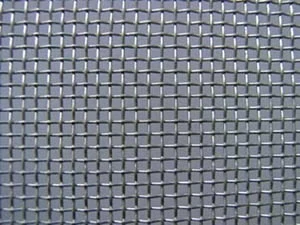

Square Wire Mesh in Service
Every photograph below is from our own product record.
Technical Features
Square Wire Mesh Specifications
Figures published here are the ones printed in our own product record. Anything we have never published is marked TBC and confirmed in writing before you order.
- Material
- Galvanized iron wire
- Workmanship
- Hot dipped galvanized before or after weaving; electric galvanized before or after weaving
- Mesh counts
- 2, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 30, 40, 50, 60 per inch
- Wire diameter
- 1.60 mm down to 0.15 mm
- Aperture
- 11.10 mm down to 0.27 mm
- Width
- 0.60 m to 1.5 m
- Main uses
- Window screen, industrial sieves in sugar, chemical and stone crusher industries, grain sieving
Square Wire Mesh Count Wire Diameter and Aperture
| Mesh/inch | Wire Dia. (mm) | Aperture (mm) |
|---|---|---|
| 2 | 1.60 | 11.10 |
| 4 | 1.20 | 5.15 |
| 5 | 1.00 | 4.08 |
| 6 | 0.80 | 3.43 |
| 8 | 0.60 | 2.57 |
| 10 | 0.55 | 1.99 |
| 12 | 0.50 | 1.61 |
| 14 | 0.45 | 1.36 |
| 16 | 0.40 | 1.19 |
| 18 | 0.35 | 1.06 |
| 20 | 0.30 | 0.97 |
| 30 | 0.25 | 0.59 |
| 40 | 0.20 | 0.44 |
| 50 | 0.16 | 0.35 |
| 60 | 0.15 | 0.27 |
| Available in width:0.60m-1.5m |
Available in widths from 0.60 m to 1.5 m. Download this table as CSV
Materials
Material Options
Galvanized iron wire. Hot dipped galvanizing gives the heavier zinc layer and the longer life outdoors; electric galvanizing gives a thinner, more even coating and a cleaner surface. Galvanizing before weaving keeps the wire straight and the weave tight; galvanizing after weaving seals the crossing points.
Quality Control
Mesh count and aperture are checked across the roll width, not only at the edge, because a slack selvedge shows up as oversize aperture in service. For sieving duty, confirm the aperture tolerance you need at order stage.
Certifications
- ISO9001 quality management
- Import and export licence
Customization Options
- Mesh counts and wire diameters outside the fifteen listed
- Any of the four galvanizing workmanship options
- Widths from 0.60 m to 1.5 m
- Cut panels and framed screens
- Stainless steel equivalent where galvanized iron is unsuitable
Manufacturing Process
How Square Wire Mesh Is Made
Wire drawing
Iron wire drawn to the gauge matching the ordered mesh count.
Galvanizing
Hot dipped or electric, before weaving when specified.
Weaving
Plain square weave on the ordered mesh count.
Post galvanizing
Applied after weaving when that workmanship is ordered.
Cutting and rolling
Cut to width between 0.60 m and 1.5 m and rolled.
Comparison
How It Compares
| Product | Where It Fits |
|---|---|
| Square wire mesh | Woven galvanized iron; 0.27-11.10 mm aperture; sieving and window screen |
| Stainless steel wire mesh | Woven stainless; down to 0.02 mm; corrosive and food service |
| Welded wire mesh | Welded, not woven; rigid; 6.4 mm and coarser |
Use Guide
- Pick the mesh count from the aperture column against your cut point, not from the mesh number alone.
- For abrasive duty such as stone crushing, move up a wire diameter rather than down a mesh count.
- Specify galvanized after weaving where the screen is washed down.
- Tension screen cloth evenly across the deck; slack cloth blinds and wears at the clamp.
- Where product contact or corrosion is a concern, move to the stainless steel cloth instead.
FAQ
Square Wire Mesh Questions Buyers Ask
Answers taken from our own product record. Where a figure has never been published, we say so instead of guessing.
What aperture does each mesh count give?
From 11.10 mm at 2 mesh down to 0.27 mm at 60 mesh. The full table with wire diameter is on this page.
What widths can you supply?
0.60 m to 1.5 m.
What does galvanized before or after weaving change?
Before weaving keeps the weave tight and the wire straight. After weaving seals the crossing points, which is the first place a screen corrodes.
Is this suitable for food-grade screening?
This product is galvanized iron wire. For food, pharmaceutical or chemically aggressive duty use the stainless steel wire mesh line in 304, 304L, 316 or 316L.
Can it be used as window screen?
Yes, that is one of its two main uses. For dedicated insect screening, the insect screen line offers aluminium, fibreglass, plastic, stainless and PVC options as well.
What is the minimum order?
Not published on the original catalogue. Send the mesh count, width and metres by WhatsApp or email and we will confirm it.
Get A Price For Square Wire Mesh
Give us the specification, the quantity and the destination port. We reply with price, packing and the full specification written out.
