Industrial & Filtration Mesh
Welded Wire Mesh Rolls and Panels From 1/4 Inch to 2 Inch
Nine export mesh sizes with the wire gauge band published against each one.
Product Overview
What Welded Wire Mesh Is and Who Buys It
Welded wire mesh is made from plain steel wire and stainless steel wire, cross-welded at every intersection, giving good corrosion resistance and oxidation resistance.
It is used for poultry houses, egg baskets, runway enclosures, draining racks, porch guards, rat-proofing, machine safety guards, animal and plant pens and shelving.
Four finishes are offered and nine mesh sizes are held for export, each with its own usable wire gauge range.
Key Benefits
- Nine sizes from 6.4 mm to 50.8 mm covering almost every general-purpose application.
- Wire gauge range published against each aperture, in BWG number and millimetres.
- Four finishes: galvanized before weaving, galvanized after weaving, thermal electroplated and PVC coated.
- Standard export roll sizes - 3, 4, 5 and 6 ft wide by 100 ft - that fit ordinary container loading.
Who It Is For
Buyers Who Specify Welded Wire Mesh
- Poultry and livestock equipment makers
- Machine builders who need guarding mesh
- Builders fitting rat-proofing, porch guards and draining racks
- Distributors stocking general-purpose mesh rolls
- Fabricators cutting mesh into baskets, racks and shelves
Problems It Solves
Buying mesh by aperture alone gets you the wrong wire. Each aperture here has a published gauge band - 1/2 inch mesh runs BWG 22 to BWG 16, not one fixed wire.
Galvanized-after-weaving costs more but covers the weld nugget; galvanized-before-weaving leaves it exposed. Both are offered so the choice is yours to make rather than the supplier's to hide.
Imperial-only catalogues force conversion errors. Every size here is listed in both millimetres and inches.
Mesh that rusts inside a wet poultry house or a draining rack has to be replaced instead of cleaned.
Application Scenarios
Welded Wire Mesh in Service

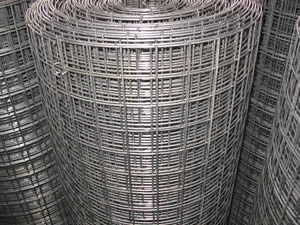

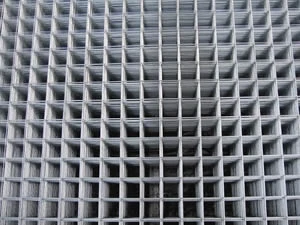

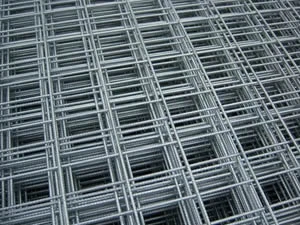

Every photograph below is from our own product record.
Technical Features
Welded Wire Mesh Specifications
Figures published here are the ones printed in our own product record. Anything we have never published is marked TBC and confirmed in writing before you order.
- Materials
- Plain steel wire and stainless steel wire
- Finishes
- Galvanized before weaving, galvanized after weaving, thermal electroplated, PVC coated
- Mesh sizes
- 6.4, 9.5, 12.7, 19.1, 25.4, 38.1, 50.8 mm plus 25.4x12.7 and 25.4x50.8 mm
- Wire gauge
- BWG 24 to BWG 12, that is 0.56 mm to 2.77 mm
- Export roll width
- 3, 4, 5 and 6 ft
- Export roll length
- 100 ft
- Typical uses
- Poultry houses, egg baskets, runway enclosures, draining racks, porch guards, rat-proofing, machine guards, pens and shelves
Welded Wire Mesh Sizes and Wire Gauge Range
| Mesh Size | Wire Gauge Diameter | ||
|---|---|---|---|
| In MM | In Inch | BWG No. | MM |
| 6.4mm | 1/4Inch | BWG24-22 | 0.56mm- 0.71mm |
| 9.5mm | 3/8Inch | BWG23-19 | 0.64mm - 1.07mm |
| 12.7mm | 1/2Inch | BWG22-16 | 0.71mm - 1.65mm |
| 19.1mm | 3/4Inch | BWG21-16 | 0.81mm - 1.65mm |
| 25.4x 12.7mm | 1 x 1/2Inch | BWG21-16 | 0.81mm - 1.65mm |
| 25.4mm | 1Inch | BWG21-14 | 0.81mm - 2.11mm |
| 38.1mm | 1 1/2Inch | BWG19-14 | 1.07mm - 2.11mm |
| 25.4 x 50.8mm | 1 x 2Inch | BWG17-14 | 1.47mm - 2.11mm |
| 50.8mm | 2Inch | BWG16-12 | 1.65mm - 2.77mm |
Each aperture is supplied across a band of gauges, not a single wire. Download this table as CSV
Materials
Material Options
Plain low carbon steel wire is the standard. Stainless steel wire is welded where the mesh is washed down, sits in a damp building or handles food. The finish decides service life as much as the base wire: galvanizing after weaving covers the weld nugget, thermal electroplating gives an even light coating, and PVC adds a polymer skin over the zinc.
Quality Control
Check aperture, wire gauge and finish on arrival. Weld integrity is the property that matters most in guarding and animal housing - a mesh that has lost welds at the selvedge will unravel in service.
Certifications
- ISO9001 quality management
- Import and export licence
Customization Options
- Apertures and gauges outside the nine export sizes
- Any of the four finishes
- Panels cut to size instead of rolls
- Stainless steel instead of plain steel wire
- PVC colour to specification
Manufacturing Process
How Welded Wire Mesh Is Made
Wire drawing
Rod is drawn to the ordered BWG gauge.
Pre-treatment
Galvanizing applied before weaving when that option is ordered.
Welding
Wires are resistance-welded at every intersection.
Post-treatment
Galvanizing after weaving, thermal electroplating or PVC coating as ordered.
Cutting and rolling
Mesh is cut to panel size or rolled to the 100 ft export length.
Comparison
How It Compares
| Product | Where It Fits |
|---|---|
| Welded wire mesh | Welded at every crossing; rigid; holds aperture exactly |
| Square wire mesh | Woven, not welded; finer apertures down to 0.27 mm; used for sieving and screening |
| Hexagonal wire netting | Twisted; lighter and cheaper; flexes and conforms |
Use Guide
- Choose aperture by what has to be kept out - 1/4 inch for rodents, 1/2 to 1 inch for poultry, 1.5 to 2 inch for general pens and guards.
- Then pick the gauge inside that aperture's published band: heavier for guards, lighter for baskets.
- Specify galvanized after weaving for wet or washed-down installations.
- Cut with bolt cutters, not an abrasive disc, to avoid burning the zinc back from the cut.
- Support panels on a frame at 300-450 mm centres where they carry load.
FAQ
Welded Wire Mesh Questions Buyers Ask
Answers taken from our own product record. Where a figure has never been published, we say so instead of guessing.
What mesh sizes do you export as standard?
1/4, 3/8, 1/2, 3/4, 1, 1.5 and 2 inch, plus the rectangular 1x1/2 inch and 1x2 inch. In millimetres that is 6.4 to 50.8 mm.
What wire gauge comes with each mesh size?
A band, not a single wire. For example 1/2 inch mesh is supplied in BWG 22 to BWG 16 (0.71-1.65 mm) and 2 inch mesh in BWG 16 to BWG 12 (1.65-2.77 mm). The full table is on this page.
What roll sizes do you ship?
General export rolls are 3, 4, 5 and 6 ft wide by 100 ft long. Panels are cut to order.
Which finish should I choose for a poultry house?
Galvanized after weaving or PVC coated. Both cover the weld points, which is where corrosion starts in a damp building.
Can you weld it in stainless steel?
Yes - welded wire mesh is made from plain steel wire and stainless steel wire.
Do you supply panels as well as rolls?
Yes. Welded wire mesh panels are a standard product line alongside the rolls.
Get A Price For Welded Wire Mesh
Give us the specification, the quantity and the destination port. We reply with price, packing and the full specification written out.
