Gabion Boxes Sack Gabions and Reno Mattresses for Erosion Control
Three gabion formats, each with its own published size table, for bank protection that has to flex instead of crack.
Product Overview
What Gabion Box Is and Who Buys It
Gabion boxes are wire containers made of hexagonal wire netting, filled with stone on site to form flexible retaining and protection structures.
Anwang supplies three formats: the standard gabion box, the cylindrical sack gabion for river training and emergency works, and the Reno mattress for bank protection and channel lining.
Sack gabions are made to ASTM A 975 and EN 10223, and Reno mattress physical and mechanical properties meet or exceed ASTM A975-97.
Key Benefits
- Economic - fill with stone and seal, with no special technology needed for installation.
- Weather proof under natural destruction and corrosion resistant.
- No collapse even under a big scope of deforming.
- Sludge in the stones supports plant growth, so the structure blends into the natural environment.
- Folds flat for transport, which cuts freight cost.
Who It Is For
Buyers Who Specify Gabion Box
- River training and flood defence contractors
- Highway and railway embankment engineers
- Bridge protection and scour works
- Coastal and seaside protection projects
- Soil and water conservation programmes
Problems It Solves
Rigid concrete walls crack when the ground settles. A gabion deflects and keeps its structural integrity.
A solid wall traps water behind it. Stone fill lets water seep through while retaining the soil, so no additional drainage is needed to relieve hydrostatic pressure.
Emergency river works cannot wait for formwork. Sack gabions are filled on site and launched, including under water.
Hexagonal gabions bulge when filled. Top welded wire gabions hold their shape and install in as much as 40% less time.
Application Scenarios
Gabion Box in Service

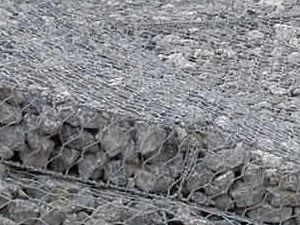

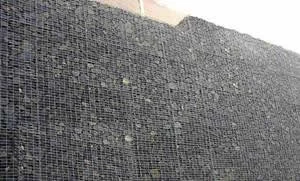

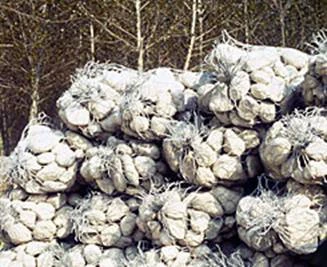

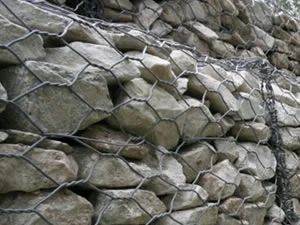

Every photograph below is from our own product record.
Technical Features
Gabion Box Specifications
Figures published here are the ones printed in our own product record. Anything we have never published is marked TBC and confirmed in writing before you order.
- Base construction
- Hexagonal wire netting; double twisted steel woven wire mesh on sacks and mattresses
- Gabion mesh openings
- 60x80, 80x100, 80x120, 100x120, 100x150, 120x150 mm
- Wire diameter, uncoated
- 2.0 mm to 4.0 mm
- Wire diameter, PVC coated
- 2.0/3.0 mm to 3.0/4.0 mm inner/outside
- Selvedge wire
- One wire gauge thicker than the netting wire
- Sack gabion sizes
- 1.8 m and 2.7 m long, 0.6 m and 0.9 m diameter, 0.54 to 1.80 cubic metres
- Reno mattress sizes
- 3, 4, 5 and 6 m long, 2 m wide, 0.15-0.30 m thick
- Reno mattress mesh
- 5x7 and 6x8
- Standards
- ASTM A 975, EN 10223, ASTM A975-97
Gabion Box Mesh Openings and Wire Diameters
| Opening (mm) | Wire Diameter(Metal Wire) (mm) | Wire Diameter (PVC Coate)/ Inner/Outside(mm) | Strands |
|---|---|---|---|
| 60X80 | φ2.0-2.8 | φ 2.0/3.0-2.5/3.5 | 3 |
| 80X100 | φ 2.0-3.2 | φ 2.0/3.0-2.8/3.8 | 3 |
| 80X120 | φ 2.0-3.2 | φ 2.0/3.0-2.8/3.8 | 3 |
| 100X120 | φ 2.0-3.4 | φ 2.0/3.0-2.8/3.8 | 3 |
| 100X150 | φ 2.0-3.4 | φ 2.0/3.0-2.8/3.8 | 3 |
| 120X150 | φ 2.0-4.0 | φ 2.0/3.0-3.0/4.0 | 3 |
The wire of the outside frame edge is one wire gauge thicker than the netting wire. Download this table as CSV
Sack Gabion Sizes
| Sackgabion | ||
|---|---|---|
| Lenght(m) | Diameter(m) | volume(m3) |
| 1.8 | 0.6 | 0.54 |
| 2.7 | 0.6 | 0.80 |
| 1.8 | 0.9 | 1.2 |
| 2.7 | 0.9 | 1.80 |
Sack gabions are supplied with reinforcing wires inserted during manufacture to help close them during installation. Download this table as CSV
Reno Mattress Sizes
| Length(m) | Width(m) | Height(m) | Mesh type(m) |
|---|---|---|---|
| 3m | 2m | 0.15-0.20-0.25 | 5x7 |
| 4m | 2m | 0.15-0.20-0.25 | 5x7 |
| 5m | 2m | 0.15-0.20-0.25 | 5x7 |
| 6m | 2m | 0.15-0.20-0.25 | 5x7 |
| 3m | 2m | 0.17-0.23-0.30 | 6x8 |
| 4m | 2m | 0.17-0.23-0.30 | 6x8 |
| 5m | 2m | 0.17-0.23-0.30 | 6x8 |
| 6m | 2m | 0.17-0.23-0.30 | 6x8 |
All sizes and dimensions are nominal. Tolerances of 3% of width and length and 2.5 cm of height are permitted. Download this table as CSV
Materials
Material Options
Hexagonal wire netting in plain or PVC coated wire. For uncoated netting the wire diameter runs from 2.0 mm to 4.0 mm; for PVC coated netting the outside diameter runs from 3.0 mm to 4.0 mm. The wire used in sack gabions is heavily zinc coated soft temper steel. Reno mattresses are available with different levels of coating protection, and an additional polymer protective coating can be applied over the base coating where the environment is more aggressive.
Quality Control
Mesh opening, wire diameter and selvedge wire gauge are the three dimensions that decide whether a gabion survives its design life. Reno mattress sizes are nominal, with tolerances of 3% of width and length and 2.5 cm of height permitted. Physical and mechanical properties of the Reno mattresses meet or exceed the requirements of ASTM A975-97.
Certifications
- ISO9001 quality management
- Sack gabions to ASTM A 975 and EN 10223
- Reno mattress properties to ASTM A975-97
Customization Options
- Any of the six mesh openings with matching wire diameter
- Plain zinc coated or PVC coated wire
- Box, sack gabion or Reno mattress format
- Reno mattress length 3-6 m and thickness 0.15-0.30 m
- Top welded wire gabions where shape retention matters more than flexibility
Manufacturing Process
How Gabion Box Is Made
Netting
Hexagonal double twisted wire mesh woven in the ordered opening.
Selvedging
All mesh panel edges are selvedged with a wire of greater diameter.

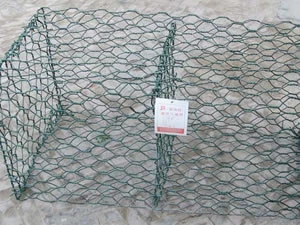

Assembly
Panels are assembled into boxes, sacks or mattress bases with internal diaphragms.
Reinforcement
Sack gabions receive reinforcing wires during manufacture to help close them on site.
Folding and packing
Units are folded flat and bundled, which cuts transport freight.
Comparison
How It Compares
| Product | Where It Fits |
|---|---|
| Hexagonal gabion box | Flexible; conforms to settlement; bulges slightly when filled |
| Top welded wire gabion | Holds its shape better, does not bulge, installs in up to 40% less time |
| Reno mattress | Thin and wide; for bank lining and scour protection rather than retaining height |
| Sack gabion | Cylindrical; filled and launched on site, including under water; for emergency works |
Use Guide
- Choose the format by the job: box for retaining height, mattress for lining a bank, sack for emergency and underwater work.
- Select mesh opening and wire diameter together from the table - they are paired.
- Use PVC coated wire in saline, industrial or polluted water.

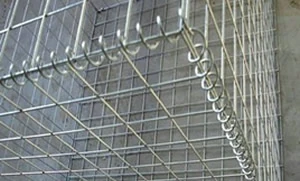

- Fill with stone on site, secure the lid with spiral binders, lacing wire or C rings, and install diaphragms and stiffeners before filling.
- Units are shipped folded - allow site space to open and assemble them before filling.
FAQ
Gabion Box Questions Buyers Ask
Answers taken from our own product record. Where a figure has never been published, we say so instead of guessing.
What mesh openings do you make gabion boxes in?
Six: 60x80, 80x100, 80x120, 100x120, 100x150 and 120x150 mm, each with its own wire diameter range from 2.0 mm up to 4.0 mm.
What is the difference between a gabion box and a Reno mattress?
A box retains height. A Reno mattress is a thin, wide structure made of hexagonal double twisted wire mesh, filled with stone on site to line river banks and channels for erosion control and embankment stability.
When would I use a sack gabion?
River training and emergency works. Sack gabions are cylindrical, filled with stone at the site, and supplied with reinforcing wires inserted during manufacture to make closing them easier during installation.
What standards do they meet?
Sack gabions are made from double twisted steel woven wire mesh panel according to ASTM A 975 and EN 10223. Reno mattress physical and mechanical properties meet or exceed ASTM A975-97.
Do gabions need drainage behind them?
No. The stone fill allows water to seep through the structure while retaining the soil, so no additional drainage is required to relieve hydrostatic pressures.
How are they shipped?
Folded flat. Less transport freight is one of the stated features - they are folded together for transport and opened for installation.
Get A Price For Gabion Box
Give us the specification, the quantity and the destination port. We reply with price, packing and the full specification written out.
