Electric and Hot Dip Galvanized Iron Wire From 8# to 24#
Two galvanizing routes, two gauge ranges, and a zinc coating figure you can actually specify against.
Product Overview
What Galvanized Iron Wire Is and Who Buys It
Galvanized iron wire is supplied in two forms. Electric galvanized wire is processed from low carbon steel wire by drawing and electric galvanizing, in gauges from 8# to 16#.
Hot-dip galvanized wire is made from super carbon steel by drawing and hot-dip zinc coating, in gauges from 8# to 24#.
The thick zinc layer on hot-dipped wire offers superior corrosion resistance with a firm coating, at 40 to 300 g per square metre.
Key Benefits
- A published zinc coating range of 40 to 300 g per square metre on hot dipped wire.
- Gauge conversion table covering 8# to 22# in SWG, BWG and metric millimetres.
- Two processes so cost and service life can be traded deliberately.
- Supplied by the same plant that weaves and welds the mesh, so feedstock and finished mesh match.
Who It Is For
Buyers Who Specify Galvanized Iron Wire
- Wire mesh weavers buying feedstock
- Expressway and construction fencing contractors
- Binding and tying wire distributors
- Agricultural and vineyard suppliers
- Anyone converting between SWG, BWG and metric gauge on a purchase order
Problems It Solves
Electro and hot dip galvanized wire are sold as if they were the same product. They are made from different base steel, cover different gauge ranges and carry different amounts of zinc.
Gauge numbers mean different diameters in SWG, BWG and metric. That is where ordering errors happen, so the conversion table is published here.
Wire specified without a zinc coating weight will be supplied at whatever the mill happened to run.
Wire for weaving has to be consistent along its length or it breaks the loom, not just the product.
Application Scenarios

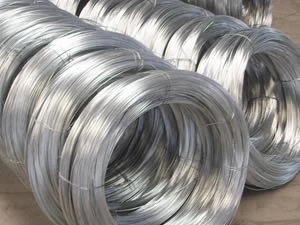

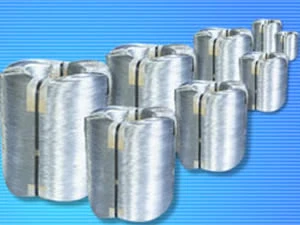

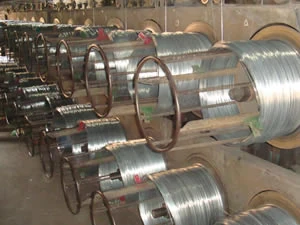

Galvanized Iron Wire in Service
Every photograph below is from our own product record.
Technical Features
Galvanized Iron Wire Specifications
Figures published here are the ones printed in our own product record. Anything we have never published is marked TBC and confirmed in writing before you order.
- Electric galvanized wire material
- Low carbon steel wire, drawn then electric galvanized
- Electric galvanized gauge
- 8# to 16#
- Electric galvanized uses
- Weaving of wire mesh, fencing for expressway and construction
- Hot-dip galvanized material
- Super carbon steel, drawn then hot-dip zinc coated
- Hot-dip galvanized gauge
- 8# to 24#
- Zinc coating
- 40 g/m2 to 300 g/m2
- Coating property
- Thick zinc layer offering super corrosion resistance with a firm coating layer
- Gauge table coverage
- 8# to 22# in SWG, BWG and metric
Wire Gauge Conversion SWG BWG and Metric
| Galvanized wire, steel wire, annealed wire | |||
|---|---|---|---|
| wire gauge size | SWG(mm) | BWG(mm) | metric(mm) |
| 8 | 4.06 | 4.19 | 4.00 |
| 9 | 3.66 | 3.76 | - |
| 10 | 3.25 | 3.40 | 3.50 |
| 11 | 2.95 | 3.05 | 3.00 |
| 12 | 2.64 | 2.77 | 2.80 |
| 13 | 2.34 | 2.41 | 2.50 |
| 14 | 2.03 | 2.11 | - |
| 15 | 1.83 | 1.83 | 1.80 |
| 16 | 1.63 | 1.65 | 1.65 |
| 17 | 1.42 | 1.47 | 1.40 |
| 18 | 1.22 | 1.25 | 1.20 |
| 19 | 1.02 | 1.07 | 1.00 |
| 20 | 0.91 | 0.89 | 0.90 |
| 21 | 0.81 | 0.813 | 0.80 |
| 22 | 0.71 | 0.711 | 0.70 |
The same table applies to galvanized wire, steel wire and annealed wire. A dash means no standard metric equivalent is listed. Download this table as CSV
Materials
Material Options
Electric galvanized wire starts from low carbon steel wire, which draws cleanly and takes a thin, even zinc layer. Hot-dip galvanized wire starts from super carbon steel and carries a much heavier zinc layer, from 40 up to 300 g per square metre, which is why it lasts longer outdoors. The base steel and the coating are chosen together, not separately.
Quality Control
Check gauge against the SWG, BWG or metric column you ordered to - a 14# wire is 2.03 mm in SWG and 2.11 mm in BWG, and that difference matters on a loom. On hot dipped wire, confirm the required zinc coating weight in grams per square metre at order stage.
Certifications
- ISO9001 quality management
- Import and export licence
Customization Options
- Electric galvanized 8# to 16# or hot-dip galvanized 8# to 24#
- Zinc coating weight specified between 40 and 300 g/m2
- Coil weight to order
- Cut lengths and straightened wire
- Black annealed wire from the same plant where no coating is needed
Manufacturing Process
How Galvanized Iron Wire Is Made
Rod selection
Low carbon steel for electro galvanized wire, super carbon steel for hot-dip.
Drawing
Rod drawn down to the ordered gauge between 8# and 24#.
Electric galvanizing
Thin, even zinc deposited electrolytically for the electro grade.
Hot-dip zinc coating
Wire passed through molten zinc for a 40-300 g/m2 firm coating.
Coiling
Wire coiled, weighed and tagged with gauge and coating.
Comparison
How It Compares
| Product | Where It Fits |
|---|---|
| Electric galvanized iron wire | Low carbon steel; thin even coating; 8#-16#; for weaving and general fencing |
| Hot-dip galvanized iron wire | Super carbon steel; 40-300 g/m2 zinc; 8#-24#; for exposed and long-life duty |
| Black iron wire | No coating; 300-700 MPa tensile; for binding, loop tie and cut wire |
Use Guide
- Decide the environment first: hot dipped outdoors and at the coast, electro for indoor and short-life work.
- Convert your gauge in the table before ordering, and state which system you are using.
- For mesh weaving, specify the tightest diameter tolerance you can live with.
- Specify the zinc coating weight, not just the word galvanized.
- Where the wire will be buried or immersed, ask about PVC coated wire instead.
FAQ
Galvanized Iron Wire Questions Buyers Ask
Answers taken from our own product record. Where a figure has never been published, we say so instead of guessing.
What is the difference between electric and hot-dip galvanized wire?
Electric galvanized wire is drawn from low carbon steel and electro galvanized, in gauges 8# to 16#. Hot-dip galvanized wire is drawn from super carbon steel and hot-dip zinc coated, in gauges 8# to 24#, with a thicker zinc layer of 40 to 300 g per square metre.
How much zinc is on hot-dipped wire?
40 g/m2 to 300 g/m2. The thick zinc-coating layer offers super corrosion resistance with a firm coating layer.
What gauges do you supply?
8# to 16# electro galvanized and 8# to 24# hot-dip galvanized. The published conversion table covers 8# to 22# in SWG, BWG and metric.
What is electro galvanized wire used for?
Weaving of wire mesh, and fencing for expressway and construction.
Is 14# wire 2.03 mm or 2.11 mm?
2.03 mm in SWG and 2.11 mm in BWG. There is no standard metric equivalent listed for 14#. Always state which gauge system your order uses.
Do you also supply uncoated wire?
Yes - black iron wire and black annealed wire are a separate product line, with tensile strengths of 500-700 MPa and 300-450 MPa respectively.
Get A Price For Galvanized Iron Wire
Give us the specification, the quantity and the destination port. We reply with price, packing and the full specification written out.
