Welded Mesh Fence Panels for Road Rail and Site Perimeters
Rigid panel fencing that arrives straight, lines up on a 2440 mm post grid and stays rust-free after installation.
Product Overview
What Welded Mesh Fence Is and Who Buys It
Welded mesh fence is a rigid panel fence made from galvanized iron wire or plastic coated iron wire, welded into flat panels and stiffened with horizontal ribs.
It is used to protect and isolate roads, railways, airports, residential districts, seaports, gardens and livestock areas.
Anwang supplies it in four panel sizes with matching pole heights, so a contractor can set out a run without re-cutting panels on site.
Key Benefits
- A set-out you can plan from the drawing: panel length 2405 mm, post centres 2440 mm, no field improvisation.

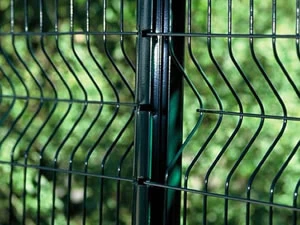

- Two or three horizontal ribs per panel, so the taller panels do not flex when a vehicle brushes them.
- A finish chosen for the environment - electro galvanized inland, hot dip or PVC coated near coast and industry.
- One supplier for panels, posts and the razor or barbed wire topping when the perimeter needs it.
Who It Is For
Buyers Who Specify Welded Mesh Fence
- Fencing contractors bidding road, rail and airport perimeter packages
- Municipal and utility buyers enclosing substations, pumping stations and depots
- Developers separating residential blocks, car parks and green space
- Port and logistics operators fencing yards and container areas
- Farm and husbandry buyers who need a panel fence rather than a roll
Problems It Solves
Roll fencing sags and rolls up at the bottom; a ribbed welded panel keeps its line for the life of the run.
Mixed panel and post dimensions force site cutting. The four sizes here pair each panel height with a stated pole height on a fixed 2440 mm post spacing.
Cut ends on galvanized-after-welding material rust first. Specifying galvanizing before or after welding at order stage decides where that risk sits.
Fence delivered with bent panel edges wastes a day of straightening before the first post goes in.
Application Scenarios

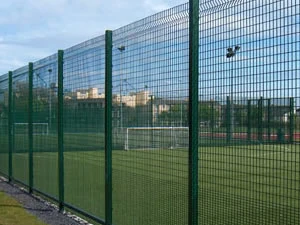

Welded Mesh Fence in Service
Every photograph below is from our own product record.
Technical Features
Welded Mesh Fence Specifications
Figures published here are the ones printed in our own product record. Anything we have never published is marked TBC and confirmed in writing before you order.
- Material
- Galvanized iron wire or plastic (PVC) coated iron wire
- Process
- Welded; galvanized before welding or galvanized after welding
- Panel length
- 2405 mm on all four stock sizes
- Panel heights
- 1270 mm, 1570 mm, 1720 mm, 2000 mm
- Post centres
- 2440 mm
- Ribs per panel
- 2 on the three shorter panels, 3 on the 2000 mm panel
- Standard reference height
- 2 m and 2.5 m fence lines
- Wire diameter and aperture
- TBC - the source catalogue lists panel geometry only
Welded Mesh Fence Panel and Post Dimensions
| Welded Mesh Fence | |||
|---|---|---|---|
| Panel dimensions LxHmm. | Pole height mm. | Distance between poles mm. | Number of ribs |
| 2405 x1270 | 1500 | 2440 | 2 |
| 2405 x1570 | 1850 | 2440 | 2 |
| 2405 x1720 | 2130 | 2440 | 2 |
| 2405 x2000 | 2450 | 2440 | 3 |
Panel dimensions are quoted length x height in millimetres. Download this table as CSV
Materials
Material Options
Low carbon steel wire drawn and then galvanized, or the same wire finished with a PVC coating over the zinc. Galvanizing before welding protects the parent wire and leaves the weld nugget bare; galvanizing after welding covers the nugget as well. Say which one the site needs when you ask for a price, because it changes both cost and service life.
Quality Control
Anwang works to the principle of live depending on quality and finishes product to the international standard quoted on the order. Panel height, panel length, post height and rib count are the four dimensions to check on arrival - they are the ones that decide whether the run sets out correctly.
Certifications
- ISO9001 quality management
- Import and export licence
Customization Options
- Panel height and length outside the four stock sizes
- Electro galvanized, hot dip galvanized or PVC coated finish
- PVC colour to your specification
- Panels supplied with or without posts, clamps and fittings
- Razor barbed wire or barbed wire topping supplied on the same order
Manufacturing Process
How Welded Mesh Fence Is Made
Wire drawing
Low carbon rod is drawn down to the ordered wire gauge.
Coating
Electro or hot dip galvanizing, before or after welding as specified; PVC coating applied over zinc when ordered.
Welding
Wires are cross-welded into flat panels on automatic welding lines.
Ribbing and cutting
Horizontal ribs are pressed in and panels cut to the ordered height.
Bundling
Panels are stacked, edge-protected and strapped for container loading.
Comparison
How It Compares
| Product | Where It Fits |
|---|---|
| Welded mesh fence | Rigid panel, holds a straight line, needs a post every 2440 mm |
| Chain link fence | Flexible roll, follows uneven ground, cheaper per metre, can sag over time |
| Razor barbed wire | Not a fence on its own - a deterrent topping fitted to either of the above |
Use Guide
- Set posts at 2440 mm centres and check the first three before continuing the run.
- Match pole height to panel height from the table - a 2000 mm panel takes a 2450 mm pole.
- Bolt panels to posts through the ribs, not between them.
- Touch up any cut or drilled edge on galvanized-after-welding panels before backfilling.
- Where the perimeter needs deterrence as well as demarcation, fit razor barbed wire along the top rail.
FAQ
Welded Mesh Fence Questions Buyers Ask
Answers taken from our own product record. Where a figure has never been published, we say so instead of guessing.
What panel sizes are held as standard?
Four: 2405x1270, 2405x1570, 2405x1720 and 2405x2000 mm. All four use 2440 mm post centres, and the matching pole heights are 1500, 1850, 2130 and 2450 mm.
Should I order galvanized before welding or after welding?
Galvanizing after welding covers the weld points as well as the wire, which matters in coastal and industrial air. Galvanizing before welding costs less and is common inland. Both are offered - state which one you want on the enquiry.
Can the fence be PVC coated?
Yes. The material for this fence is galvanized iron wire or plastic coated iron wire, so a PVC finish over zinc is a standard option.
How many ribs does each panel have?
Two ribs on the 1270, 1570 and 1720 mm panels, three on the 2000 mm panel.
Do you supply the posts and fittings as well?
Yes, pole heights are listed against each panel size. Tell us whether you want panels only or a complete run with posts and clamps.
What is the minimum order and lead time?
Not published on the original catalogue. Send the panel size and total metres by WhatsApp or email and we will confirm both before you commit.
Get A Price For Welded Mesh Fence
Give us the specification, the quantity and the destination port. We reply with price, packing and the full specification written out.
