Insect Screen in Seven Materials for Hotels and Buildings
Seven screen materials with their mesh counts, gauges, roll sizes and colours set out side by side.
Product Overview
What Insect Screen Is and Who Buys It
Insect screen, also called window screen, is fine mesh fitted to windows and doors to keep insects and bugs out.
It is widely used in hotels and buildings, and Anwang can supply it in seven different materials.
General specifications run 14x14, 16x14, 16x16, 18x16, 18x18 and 18x14 mesh, with general wire diameter BWG31 or BWG32.
Key Benefits
- Seven materials in one table, so the specification decision can be made in one pass.
- Standard export roll sizes: 3ft x 100ft, 4ft x 100ft, 1x25 m, 1.2x25 m, 1.2x30 m and 1.5x25 m.
- Stainless steel screen available in 304, 316 and 316L for demanding environments.
- Weave type stated for plastic screen - mesh 12, 14 and 16 hinged weave, mesh 18, 22 and 24 plain weave.
Who It Is For
Buyers Who Specify Insect Screen
- Window and door system fabricators
- Hotel and apartment developers fitting out in bulk
- Building product distributors
- Insect screen frame and retractable screen assemblers
- Petroleum and pipeline packaging users, for the PVC screen grade
Problems It Solves
The wrong screen material in a coastal hotel corrodes within a season - which is why aluminium, stainless and fibreglass are all offered.
A screen that is too fine cuts airflow; too coarse and it stops nothing. The mesh counts here run from 10x10 to 30x30 so the trade-off is yours.
Colour matters on a facade. Galvanized iron comes white or light blue, enamelled iron green or dark green, aluminium silver, and plastic and fibreglass in a range of colours.
Buying screen by the metre rather than in standard 100 ft rolls raises the cost of a large fit-out.
Application Scenarios

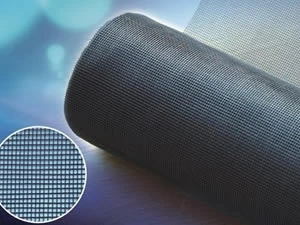

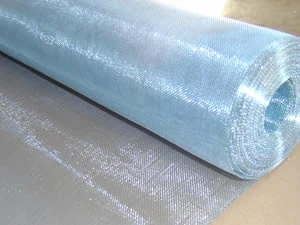

Insect Screen in Service
Every photograph below is from our own product record.
Technical Features
Insect Screen Specifications
Figures published here are the ones printed in our own product record. Anything we have never published is marked TBC and confirmed in writing before you order.
- Galvanized iron screen
- 10x10 to 30x30 mesh, BWG31-34, electric galvanized after weaving, white or light blue
- Enamelled iron screen
- Same meshes and gauges, green or dark green
- Aluminium iron screen
- Same meshes and gauges, silver
- Aluminium screen
- Al-Mg alloy or pure aluminium
- Fibreglass screen
- 12x12 to 16x14 mesh, BWG31-32, all kinds of colour
- Plastic screen
- 12x12 to 30x30; mesh 12, 14, 16 hinged weave; mesh 18, 22, 24 plain weave; white, blue, green and others
- Stainless steel screen
- 14x14 to 20x20 mesh, SWG34-38, material 304, 316, 316L
- PVC screen
- 12x12 to 18x18 mesh, BWG31-32, for petroleum, pipeline and packaging use, all kinds of colour
- General wire diameter
- BWG31 or BWG32
- Roll sizes
- 3ft x 100ft, 4ft x 100ft, 1x25 m, 1.2x25 m, 1.2x30 m, 1.5x25 m
Insect Screen Materials Meshes Gauges and Sizes
| Description | Specification | Application | ||
|---|---|---|---|---|
| Mesh | Wire Gauge | Size | ||
| Galv. iron insect screen/window screen | 10x10 | BWG31 BWG32 BWG33 BWG34 | 3'x100' 4'x100' 1x25M 1.2x30M 1.5x25M | Electric galvanized after weaving. White or light-blue |
| 14x14 | ||||
| 16x16 | ||||
| 18x18 | ||||
| 18x14 | ||||
| 22x22 | ||||
| 24x24 | ||||
| 30x30 | ||||
| Enamelled iron insect screen/window screen | Same as above | Green or dark green | ||
| Aluminum iron insect screen/window screen | Same as above | Silver | ||
| Aluminum insect screen/window screen | Same as above | Material: Al-Mg alloy or pure aluminum | ||
| Fiber glass insect screen/window screen | 12x12 | BWG31 BWG32 | 3'x100' 4'x100' 1x25M 1.2x25M | All kinds of color |
| 14x14 | ||||
| 16x16 | ||||
| 16x14 | ||||
| Plastic insect screen/window screen | 12x12 | Same as above | Mesh 12,14,16: hinged weave. Mesh 18,22,24: plain weave White , blue, green, etc. | |
| 14x14 | ||||
| 16x16 | ||||
| 18x18 | ||||
| 22x22 | ||||
| 24x24 | ||||
| 30x30 | ||||
| Stainless steel insect screen/window screen | 14x14 | SWG38 SWG37 SWG36 SWG35 SWG34 | 3'x100' 4'x100' 1x25M 1.2x25M | Material:304,316,316L |
| 16x16 | ||||
| 18x18 | ||||
| 18x14 | ||||
| 20x20 | ||||
| PVC insect screen/window screen | 12x12 | BWG31 BWG32 | Same as above | Fit in with petroleum, pipeline, package, all kinds of color |
| 14x14 | ||||
| 16x16 | ||||
| 18x18 |
Rows marked same as above repeat the specification of the row before them, as printed in the source catalogue. Download this table as CSV
Materials
Material Options
Galvanized iron is the economy screen, electric galvanized after weaving and supplied white or light blue. Enamelled iron adds colour and a little more protection. Aluminium and Al-Mg alloy resist corrosion without a coating. Fibreglass and plastic will not corrode at all and come in a range of colours. Stainless steel in 304, 316 or 316L is the specification for coastal and industrial buildings. PVC screen is listed as fitting in with petroleum, pipeline and packaging use.
Quality Control
Mesh count and wire gauge are checked against the ordered row of the table. On coloured screen, confirm the colour reference in writing - the catalogue lists colour families rather than specific colour codes.
Certifications
- ISO9001 quality management
- Import and export licence
Customization Options
- Any of the seven materials in the meshes listed against it
- Roll sizes from the six standard options
- Colour to the listed families
- Stainless in 304, 316 or 316L
- Cut pieces for frame assembly
Manufacturing Process
How Insect Screen Is Made
Material selection
Metal wire, fibreglass or plastic filament selected for the environment.
Weaving
Woven to the ordered mesh count; plastic screen hinged or plain weave depending on mesh.
Coating
Galvanized iron screen is electric galvanized after weaving; enamelled and PVC coatings applied as ordered.
Colouring
Colour applied to the specification - white, light blue, green, dark green, silver and others.
Rolling
Cut and rolled to one of the standard export roll sizes.
Comparison
How It Compares
| Product | Where It Fits |
|---|---|
| Insect screen | Fine screen for windows and doors; seven materials; colour options |
| Square wire mesh | Galvanized iron woven mesh; also used as window screen but aimed at industrial sieving |
| Stainless steel wire mesh | Finer and more corrosion resistant; filtration rather than insect exclusion |
Use Guide
- Choose the material by environment first: fibreglass or plastic inland, aluminium or stainless at the coast.
- Then choose mesh count - 14x14 to 18x18 covers most insect exclusion duty.
- Match the colour to the frame; darker screens are less visible from inside.
- Order in 100 ft rolls for fit-outs; it costs less per square metre than cut lengths.
- For petroleum and pipeline packaging duty, use the PVC grade.
FAQ
Insect Screen Questions Buyers Ask
Answers taken from our own product record. Where a figure has never been published, we say so instead of guessing.
What materials can insect screen be supplied in?
Seven: galvanized iron, enamelled iron, aluminium iron, aluminium, fibreglass, plastic, stainless steel and PVC.
What are the general specifications?
14mesh x 14mesh, 16x14, 16x16, 18x16, 18x18 and 18x14, with general wire diameter BWG31 or BWG32.
What stainless grades do you use?
304, 316 and 316L, in meshes from 14x14 to 20x20 with SWG34 to SWG38 wire.
What roll sizes do you ship?
3ft x 100ft, 4ft x 100ft, 1x25 m, 1.2x25 m, 1.2x30 m and 1.5x25 m, depending on material.
What colours are available?
Galvanized iron in white or light blue, enamelled iron in green or dark green, aluminium in silver, and fibreglass, plastic and PVC in a range of colours.
Which weave is used on plastic screen?
Mesh 12, 14 and 16 are hinged weave. Mesh 18, 22 and 24 are plain weave.
Get A Price For Insect Screen
Give us the specification, the quantity and the destination port. We reply with price, packing and the full specification written out.
