Steel Bar Grating and Stair Treads to BS EN and ASTM Standards
The only product in this range where the raw material, the welder qualification and the galvanizing standard are all named.
Product Overview
What Steel Bar Grating Is and Who Buys It
Steel bar grating - also called steel metal grating and used for stair treads - is built from bearing bars and twisted square cross bars welded into a panel.
Bearing bars run from 20 mm to 100 mm deep and 2 mm to 10 mm thick, plain or serrated, at pitches from 25 mm to 50 mm.
Raw material is procured to BS EN 10025 Grade S275 JR and ASTM A1011M from ISO 9001 certified mills, welders are tested to BS EN 287-1:2004 and AWS D1.1:2010, and hot dip galvanizing follows BS EN ISO 1461:2009 and ASTM A123.
Key Benefits
- Bearing bar depth, thickness and pitch all selectable, so the panel can be engineered to the span.
- Plain or serrated bearing bar for dry or slip-risk areas.
- Three finishes: self colour, hot dip galvanized, painted.
- 100% inspection at a series of points through the process, so the finished product can be guaranteed.
Who It Is For
Buyers Who Specify Steel Bar Grating
- Petrochemical and process plant contractors specifying walkways and platforms
- Steel fabricators buying stair treads by the panel
- Water treatment and utility projects
- Industrial building contractors
- Anyone whose specification names a British, European or American standard
Problems It Solves
Most grating is sold without naming the steel standard. Here the steel is procured to BS EN 10025 Grade S275 JR and ASTM A1011M as a minimum.
Welder qualification is invisible on a delivery note. Anwang's welders are tested and approved to BS EN 287-1:2004 and AWS D1.1:2010.
Galvanizing thickness is where grating quietly fails. This product is hot dip galvanised to BS EN ISO 1461:2009 and ASTM A123 when required.
Smooth grating in a wet or oily plant is a slip claim waiting to happen - serrated bearing bar is a stock option.
Application Scenarios
Steel Bar Grating in Service

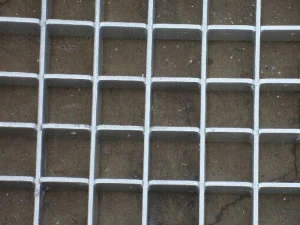

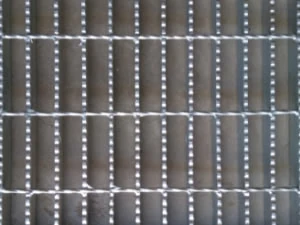

Every photograph below is from our own product record.
Technical Features
Steel Bar Grating Specifications
Figures published here are the ones printed in our own product record. Anything we have never published is marked TBC and confirmed in writing before you order.
- Bearing bar height
- 20, 25, 30, 32, 35, 38, 40, 45, 50, 55, 60, 65, 70, 80, 90, 100 mm
- Bearing bar thickness
- 2, 2.5, 3, 3.5, 4, 4.5, 5, 6, 7, 8, 9, 10 mm
- Bearing bar type
- Plain or serrated
- Twisted square cross bar diameter
- 5, 6, 8 mm
- Bearing bar pitch
- 25, 30, 33, 34, 35, 40, 41, 50 mm
- Cross bar pitch
- 20, 25, 38, 50, 76, 100 mm
- Finish
- Self colour, hot dip galvanized, painted
- Steel standards
- BS EN 10025 Grade S275 JR, ASTM A1011M
- Welding standards
- BS EN 287-1:2004, AWS D1.1:2010
- Galvanizing standards
- BS EN ISO 1461:2009, ASTM A123
Materials
Material Options
All raw materials are purchased from quality approved mills which are all ISO 9001 certified. Steel is procured to the following minimum standards: BS EN 10025 Grade S275 JR and ASTM A1011M. That is the floor, not the ceiling - if your project specification names a higher grade, send it with the enquiry.
Quality Control
For us quality in all of its forms counts, and the quality commitment starts from the raw materials purchased through to delivery of the finished product. There is a series of inspection points within the process where 100% of material is inspected, so the finished product can be guaranteed to be of the highest standard.
Certifications
- ISO9001 quality management
- Raw material to BS EN 10025 Grade S275 JR and ASTM A1011M
- Welders approved to BS EN 287-1:2004 and AWS D1.1:2010
- Hot dip galvanizing to BS EN ISO 1461:2009 and ASTM A123
Customization Options
- Any combination of bearing bar depth, thickness and pitch from the published ranges
- Plain or serrated bearing bar
- Stair treads with nosing
- Self colour, hot dip galvanized or painted finish
- Panels cut and banded to a drawing
Manufacturing Process
How Steel Bar Grating Is Made
Raw material approval
Steel bought only from ISO 9001 certified mills against BS EN 10025 S275 JR or ASTM A1011M.
Bearing bar preparation
Flat bar cut to the ordered depth and thickness, plain or serrated.
Welding
Bearing bars and twisted square cross bars welded by welders tested to BS EN 287-1:2004 and AWS D1.1:2010.
Hot dip galvanizing
Applied where required, to BS EN ISO 1461:2009 and ASTM A123.
Inspection
100% inspection at a series of points through the process.
Comparison
How It Compares
| Product | Where It Fits |
|---|---|
| Steel bar grating | Load-bearing walkway and platform panel; engineered by span |
| Expanded metal mesh | Lighter; used for guarding and reinforcement rather than walking surfaces |
| Perforated metal | Sheet product; decorative and filtration duty, not structural flooring |
Use Guide
- Start from the span and the imposed load, then choose bearing bar depth and pitch.
- Specify serrated bearing bar anywhere water, oil or ice is expected.
- Hot dip galvanize for external and process areas; self colour only inside dry buildings.
- Fit grating with proprietary clips at every fourth bearing bar as a minimum.
- Send your drawing with the enquiry - panels are cut and banded to it rather than cut on site.
FAQ
Steel Bar Grating Questions Buyers Ask
Answers taken from our own product record. Where a figure has never been published, we say so instead of guessing.
What steel standard do you work to?
Steel is procured to minimum standards BS EN 10025 Grade S275 JR and ASTM A1011M, from quality approved mills which are all ISO 9001 certified.
Are your welders qualified?
Yes. Welders are tested and approved to BS EN 287-1:2004, the British Standard and European norm, and AWS D1.1:2010, the American standard.
To what standard do you galvanize?
Where required, products are hot dip galvanised to BS EN ISO 1461:2009 and ASTM A123.
What bearing bar sizes are available?
Heights from 20 mm to 100 mm in sixteen steps and thicknesses from 2 mm to 10 mm in twelve steps, plain or serrated.
Can you supply stair treads?
Yes - stair tread is part of this product line alongside grating panels.
How is quality controlled?
There is a series of inspection points within the process at which 100% of material is inspected, from raw material purchase through to delivery.
Get A Price For Steel Bar Grating
Give us the specification, the quantity and the destination port. We reply with price, packing and the full specification written out.
