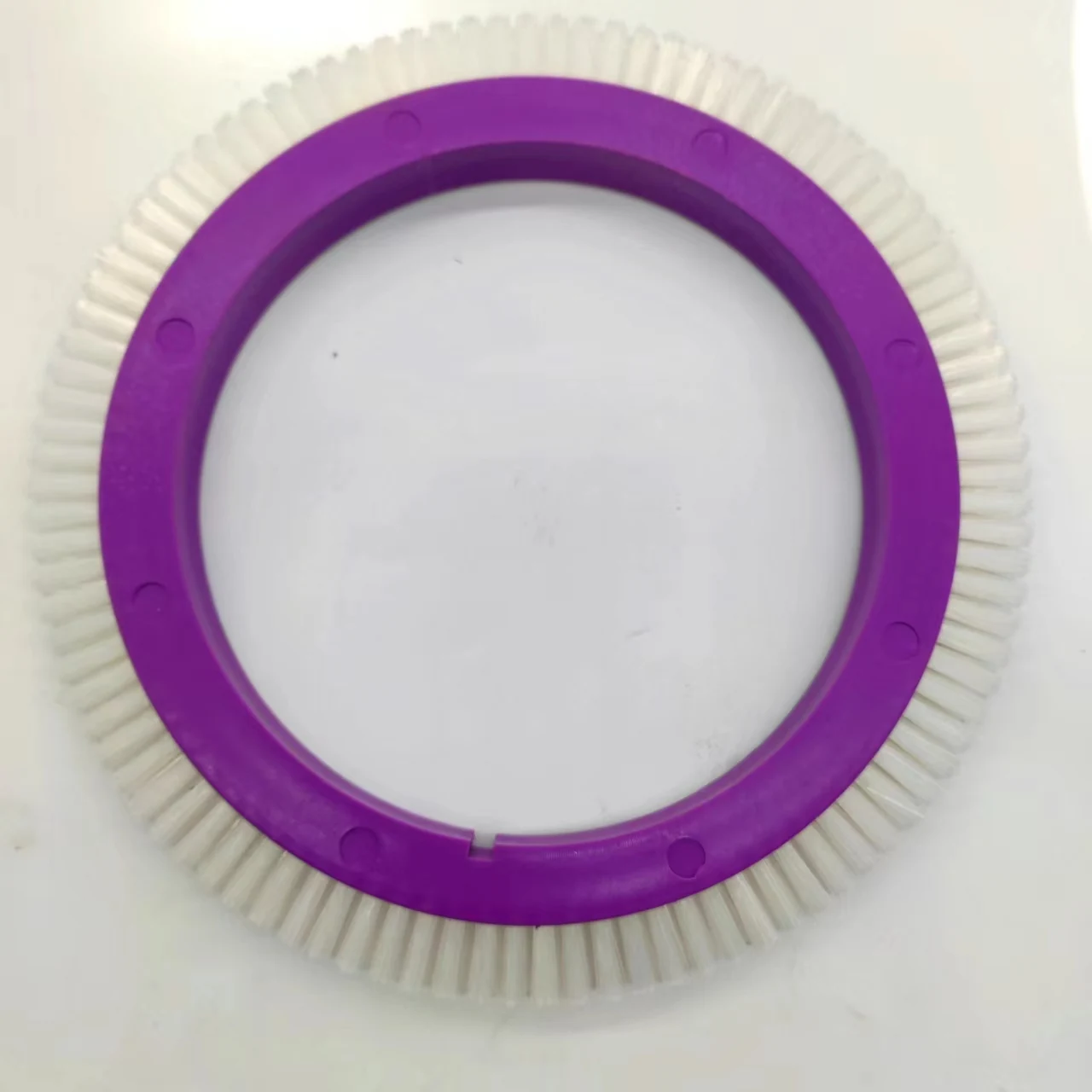

Brush Wheel For Bruckner Stenters 220 x 158
The large Bruckner brush wheel at 220 by 158, the main pressing size for Bruckner pin beds.
Product Overview
The large Bruckner brush wheel at 220 by 158. It is the main pressing wheel on a Bruckner pin bed, pressing the cloth onto the pins and keeping loose fibre from accumulating there.
The size is close to the large Monforts wheel but not the same: 158 against 167 across the wheel. That difference is enough to matter when the wheel has to sit in the housing, so the two are not interchangeable.
Key Benefits
- Main Bruckner pressing size at 220 by 158, held as running stock
- Five bristle options including nylon for high temperature positions
- Supplied alongside Bruckner clips, chains, pin plates and holders
- Wheel bodies in red, green and purple for position coding
Who It Is For
- Bruckner users buying brush wheels as a routine consumable
- Maintenance stores distinguishing Bruckner from Monforts wheel sizes
- Engineers specifying bristle by position
Problems It Solves
- Cloth not fully seated on the pins as the brush wears down
- Monforts and Bruckner wheels being confused in the store
- Fibre building up in the pin bed and marking the cloth
Application Scenarios
- Bruckner pin beds due for brush wheel renewal
- Hot positions where PP bristle has deformed
- Plants running both Bruckner and Monforts frames and needing the sizes kept apart
Technical Features
- Size 220 by 158
- Bristle options: PP, nylon for high temperature, brown pig hair, black pig hair, hard hair with glue
- Wheel body colours: red, green, purple
- Made for Bruckner stenter machines
Specifications
| Size | 220 x 158 |
|---|---|
| Machine | Bruckner stenter |
| Bristle options | PP, nylon (high temperature), brown pig hair, black pig hair, hard hair with glue |
| Wheel colours | red, green, purple |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Diameter and width measured on every wheel
- Bore concentricity checked
- Bristle pull test on a batch sample
Customisation Options
- Bristle type per position
- Wheel colour for coding
- Non-standard sizes from a sample wheel
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
The Bruckner 220 by 158 and the Monforts 220 by 167 look similar and are not interchangeable. Keeping them on separate, marked shelves prevents a mis-issue that only shows up when the wheel will not fit the housing.
Use Guide
Mark Bruckner and Monforts wheels separately in the store
Match bristle type to position temperature
Set brush pressure so the cloth seats fully without the brush riding the plate
Replace in matched sets across the position
Clear fibre at shift changes on dusty articles
FAQ
Questions About Brush Wheel For Bruckner Stenters 220 x 158
Is this the same as the Monforts large wheel?
No. Bruckner is 220 by 158, Monforts is 220 by 167. They are not interchangeable.
What bristle types do you offer?
PP, nylon for high temperature, brown pig hair, black pig hair and hard hair with glue.
Do you make a small Bruckner wheel too?
Yes, at 155 by 85.
Can you make a size not on your list?
Yes, from a sample wheel.
Minimum order?
No fixed minimum; sets for a position are usual.
Lead time?
Within 7 days for standard sizes.
