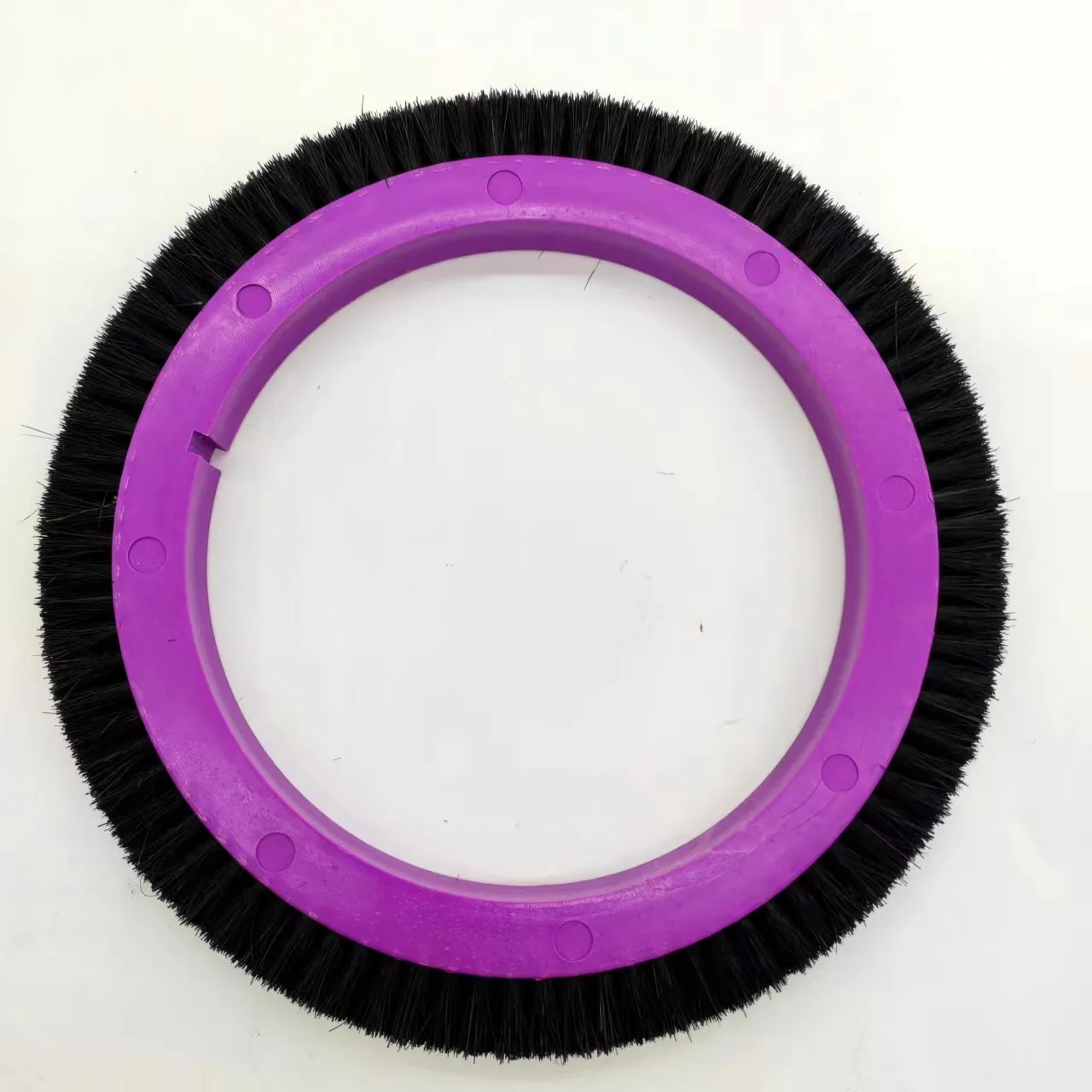

Brush Wheel For Artos Stenters 205 x 145
The Artos brush wheel size at 205 by 145, supplied with the Artos chain and pin parts.
Product Overview
The brush wheel for Artos stenter frames at 205 by 145. It presses the cloth onto the pins and keeps loose fibre from building up in the pin bed, the same job it does on any pin stenter, but at the Artos size.
It is supplied alongside the rest of our Artos range: chains with copper or PEEK sliders, PEEK bushes, pin plates in two seat profiles, pin holders and clips. That means an Artos overhaul can be ordered as one shipment.
Key Benefits
- Artos size at 205 by 145, matched to the Artos housing
- Five bristle options including nylon for high temperature
- Ships with the rest of the Artos chain-side range
- Wheel bodies in red, green and purple for coding
Who It Is For
- Artos users buying brush wheels as a consumable
- Mills planning a complete Artos chain-side overhaul
- Stores keeping Artos wheel sizes separate from other brands
Problems It Solves
- Cloth not seating fully on the pins as the brush wears
- Artos wheels being confused with other brand sizes
- Multiple suppliers for one Artos overhaul
Application Scenarios
- Artos pin beds due for brush wheel renewal
- Artos overhauls where chain, plates and brushes are all being replaced
- Hot positions where PP bristle has previously deformed
Technical Features
- Size 205 by 145
- Bristle options: PP, nylon for high temperature, brown pig hair, black pig hair, hard hair with glue
- Wheel body colours: red, green, purple
- Made for Artos stenter machines
Specifications
| Size | 205 x 145 |
|---|---|
| Machine | Artos stenter |
| Bristle options | PP, nylon (high temperature), brown pig hair, black pig hair, hard hair with glue |
| Wheel colours | red, green, purple |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Diameter and width measured on every wheel
- Bore concentricity checked
- Bristle pull test on a batch sample
Customisation Options
- Bristle type per position
- Wheel colour for coding
- Non-standard sizes from a sample wheel
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
The Artos 205 by 145 sits between the F2 wheel at 205 by 157 and the LK wheel at 207 by 80. The diameters are close and the widths are not, which is exactly the kind of similarity that causes mis-issues from a store, so mark the shelves by brand.
Use Guide
Mark Artos wheels separately from other brands in the store
Match bristle to the position temperature
Set brush pressure so the cloth seats without the brush riding the plate
Replace in matched sets across a position
Clear fibre at shift changes on dusty articles
FAQ
Questions About Brush Wheel For Artos Stenters 205 x 145
What size is the Artos wheel?
205 by 145. It is close to the F2 size at 205 by 157, so mark them separately in the store.
What else do you supply for Artos frames?
Chains with copper or PEEK sliders, PEEK bushes and sliders, pin plates in two seat profiles, pin holders and clips.
Which bristle for a hot position?
Nylon, which is the high temperature option.
Can you make a size not listed?
Yes, from a sample wheel.
Minimum order?
No fixed minimum.
Lead time?
Within 7 days for standard sizes.
