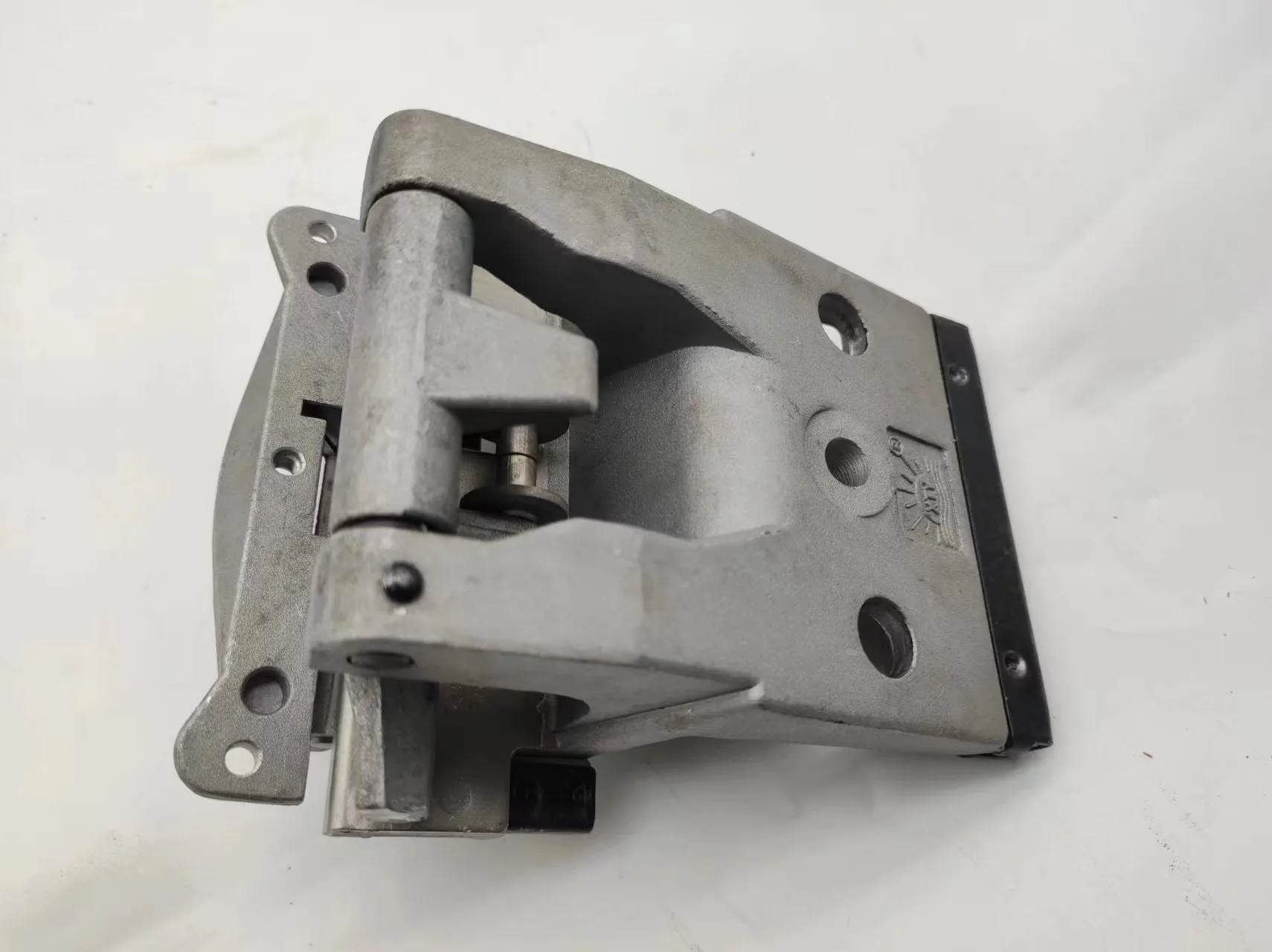

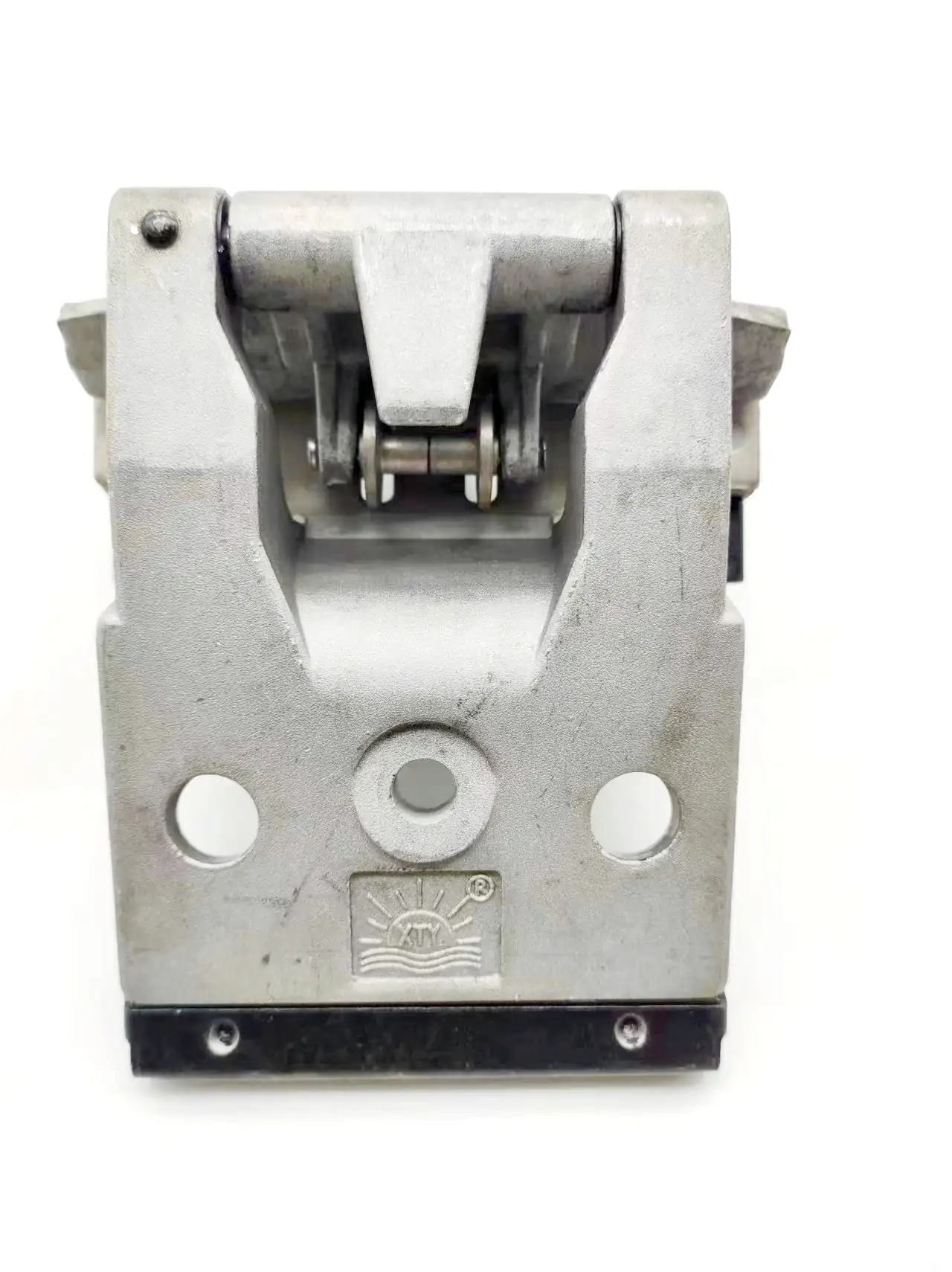

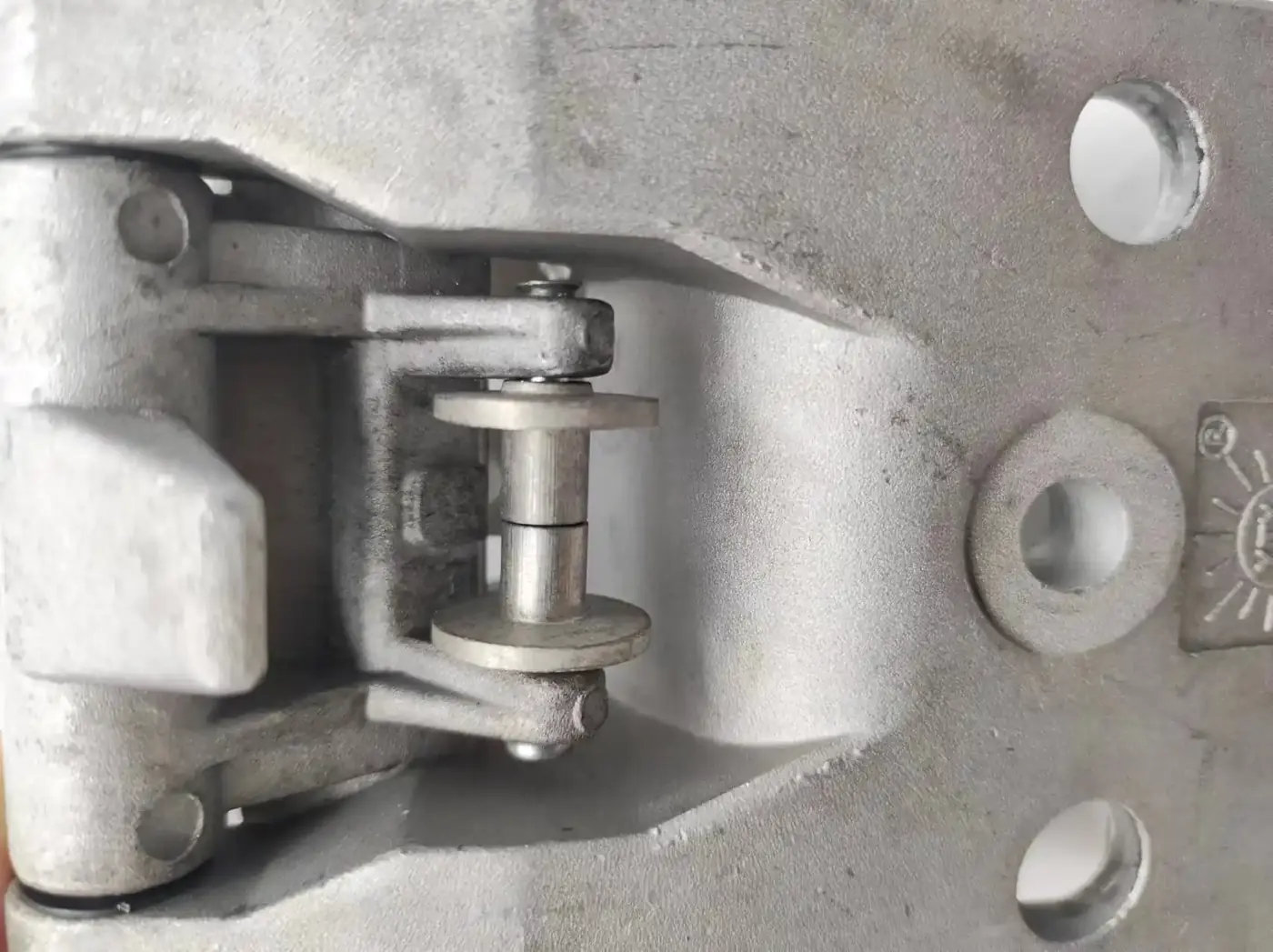

Double Use Pin and Clip For Monforts Stenters
One part that works as a pin stenter and as a clip stenter, so the frame runs both ways without a bed change.
Product Overview
A stenter is a transport device that carries fabric from one point to another continuously in open width with precise width control. Stenters come in two types, pin stenters and clip stenters, according to how the fabric is held onto the chains.
This part does both. It can be used as a pin stenter and as a clip stenter, which removes the usual choice between the two. The clip section requires a specific edge, preferably a selvedge, to grip and is normally confined to woven fabrics; the pin section carries pins about 5 mm long in two rows at three to four per centimetre, thickened at the base so the fabric does not touch the hot base plate.
Key Benefits
- One part runs both pin and clip work, so the frame changes article without a bed change
- Clip mode leaves no pin marks in the selvedge
- Pin mode holds more tension for faster running
- Removes the cost of holding two separate bed specifications
Who It Is For
- Commission finishers with an unpredictable article mix
- Mills running one Monforts frame for a wide product range
- Engineers trying to remove changeover time from the schedule
Problems It Solves
- Losing production time changing a bed between pin and clip
- Turning away work because the frame is set the wrong way
- Holding two complete bed specifications in the store
Application Scenarios
- Mills whose schedule mixes woven clip work and knit pin work on one frame
- Plants that cannot justify a second stenter for the other holding method
- Frames that currently lose a shift to bed changeovers
Technical Features
- Works as both a pin stenter and a clip stenter

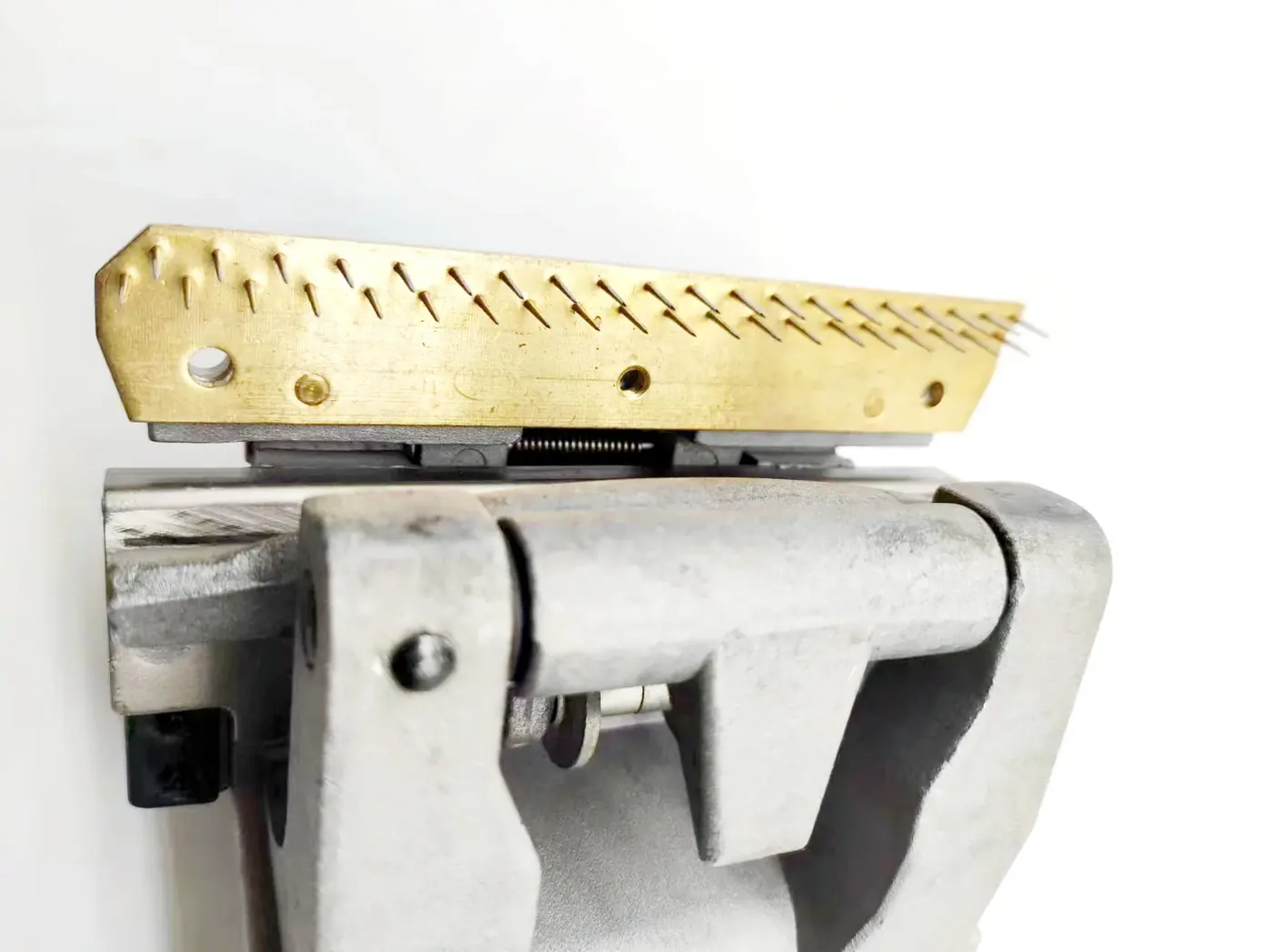

- Pin section: approximately 5 mm pins, two rows, 3 to 4 pins per cm
- Pins thicker near the base to prevent fabric contact with the hot base plate
- Metal construction, silver finish, approximate weight 0.76 kg
Specifications
| Machine | Monforts stenter |
|---|---|
| Type | double use, pin and clip |
| Pin length | approx 5 mm |
| Pin density | approx 3-4 pins/cm in two rows |
| Weight | approx 0.76 kg |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Both holding modes function tested on every unit
- Pin height measured across the pin section
- Knife closure force checked against the reference
Customisation Options
- Reproduced from your sample
- Pin density adjusted for your article range
- Supplied mounted on chain as a section
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Against a dedicated pin bed, this is heavier and costs more per unit, and a dedicated bed will always be slightly better at its own job. Against holding two beds and changing between them, it removes the changeover entirely, which is usually the bigger number.
Use Guide
Confirm that your article mix genuinely needs both modes before paying for the capability
Fit complete sections so the bed behaves consistently
Check pin height and clip closure separately after fitting
Set press wheel pressure for the pin mode and verify clip release at the machine end
Inspect both the knife edges and the pin points at each maintenance stop
FAQ
Questions About Double Use Pin and Clip For Monforts Stenters
Can one part really do both?
Yes. It can be used as a pin stenter and also as a clip stenter, which is the point of the design.
What is the advantage over changing beds?
You do not lose the shift to a changeover, and you do not hold two complete bed specifications in the store.
Does the pin section use standard pins?
Yes, about 5 mm long in two rows at three to four per centimetre, thickened at the base so the fabric stays off the hot base plate.
Will clip mode leave the edges flat?
Clip stenters leave no pin marks in the selvedge, which is the reason to use clip mode on articles where the edge shows.
How heavy is it?
Approximately 0.76 kg per unit, which is heavier than a single-mode clip or plate.
Lead time?
Within 7 days for standard profiles.
