Skeletal Container Tipper Trailer Semi Trailer for Sale China Factory for Sale
Skeletal container tipper, 54000kg payload at 5700kg tare with 2, 3 or 4 axle options.
Overview
What This Trailer Is Built For

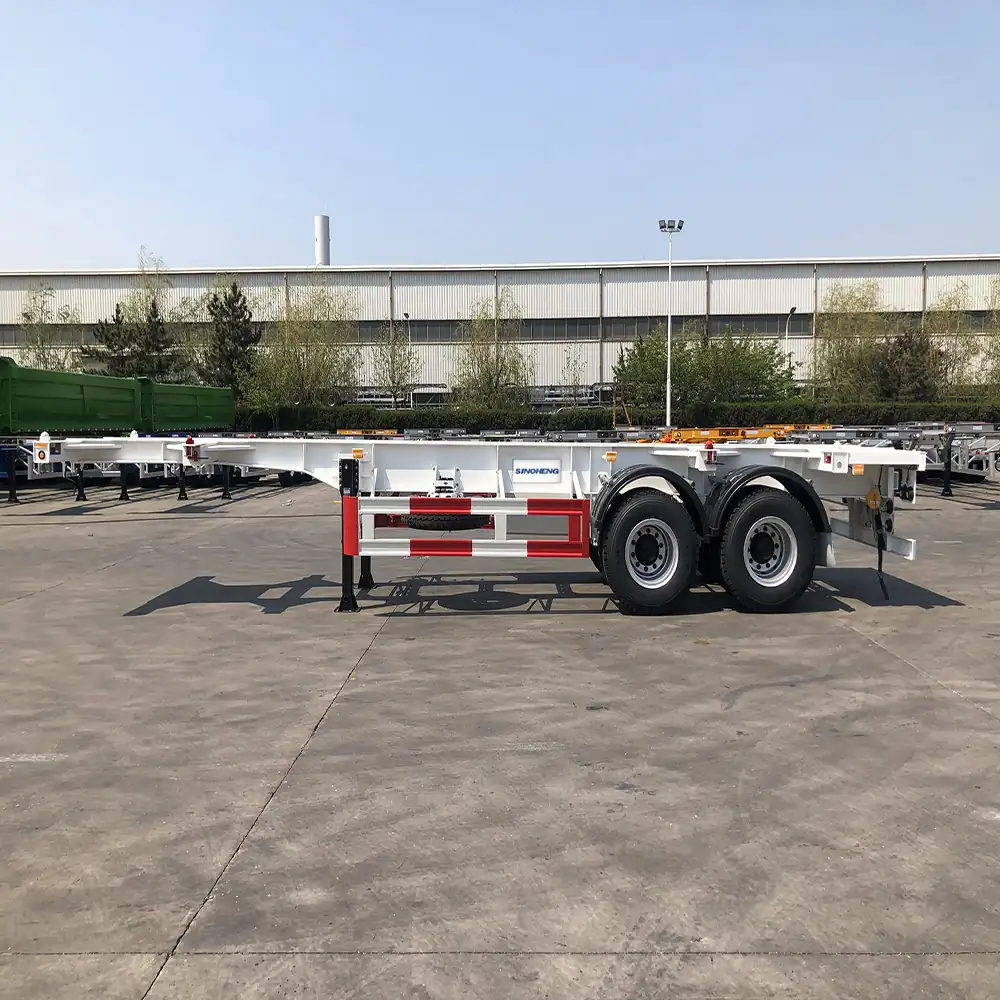

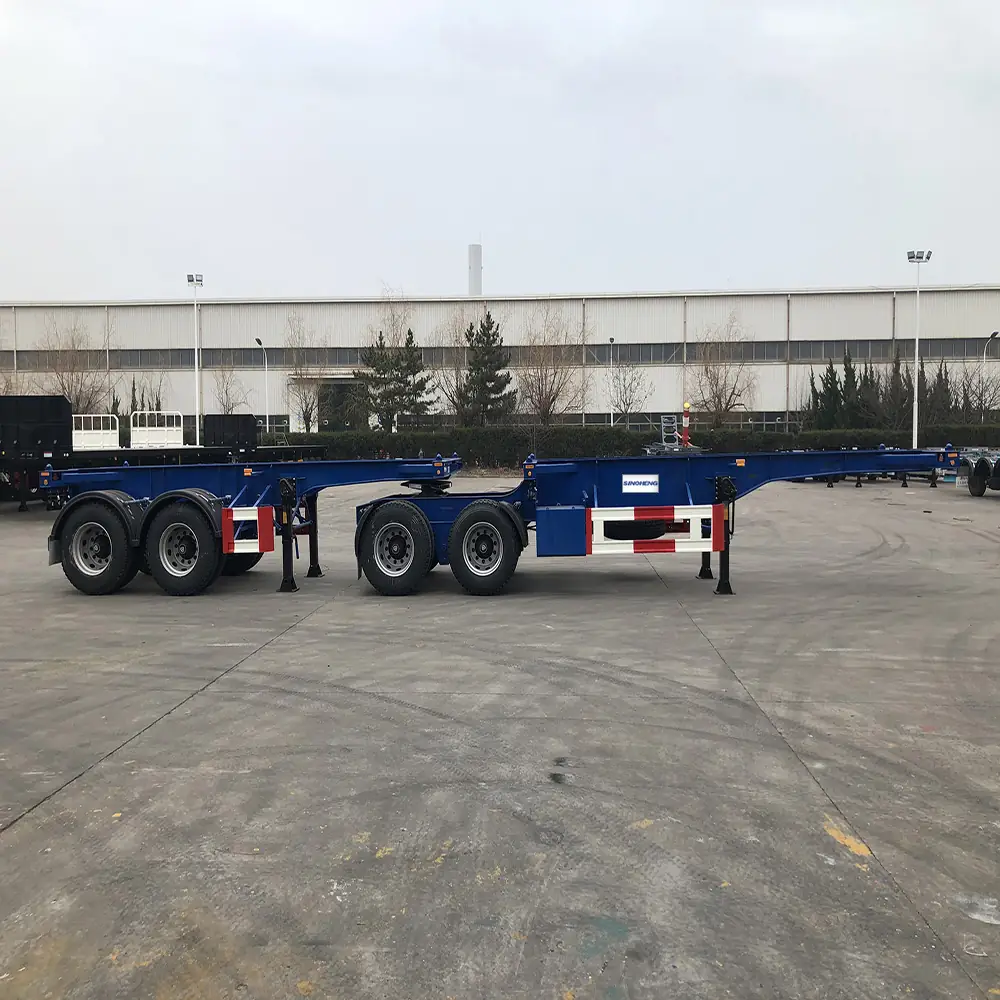

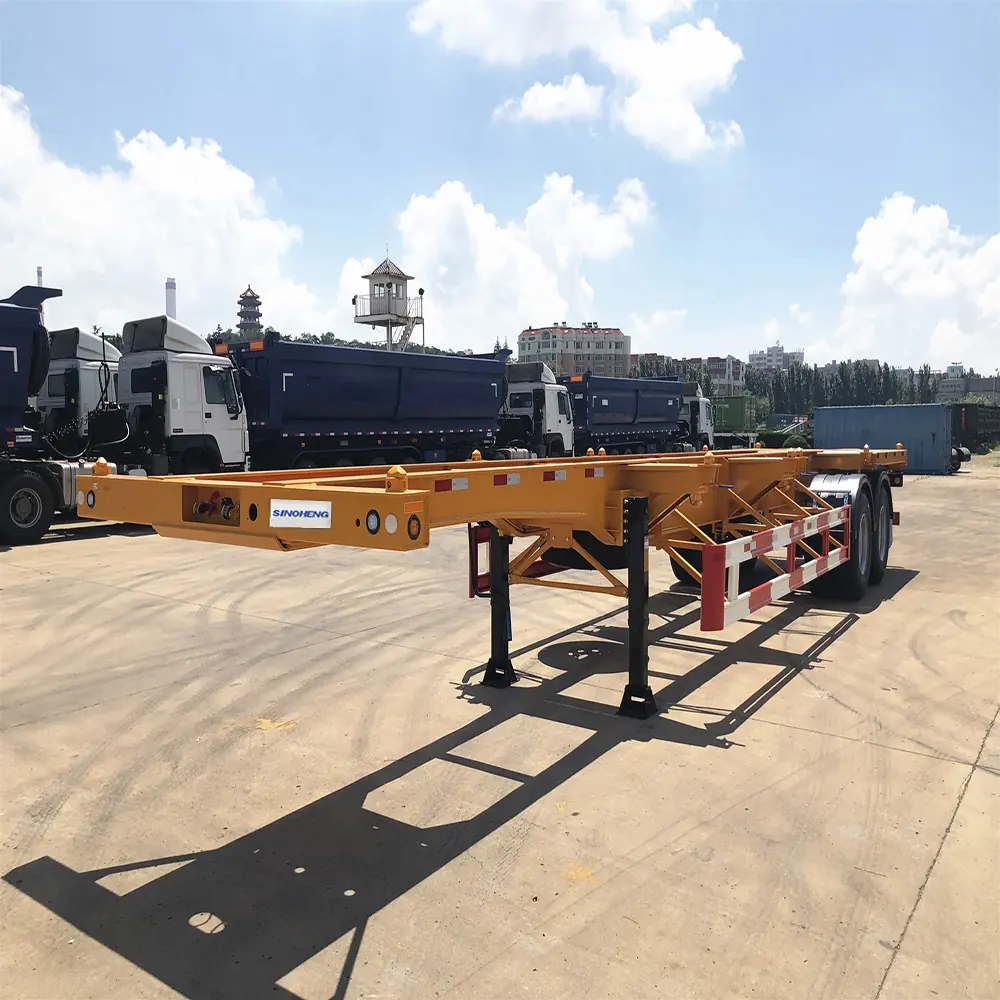

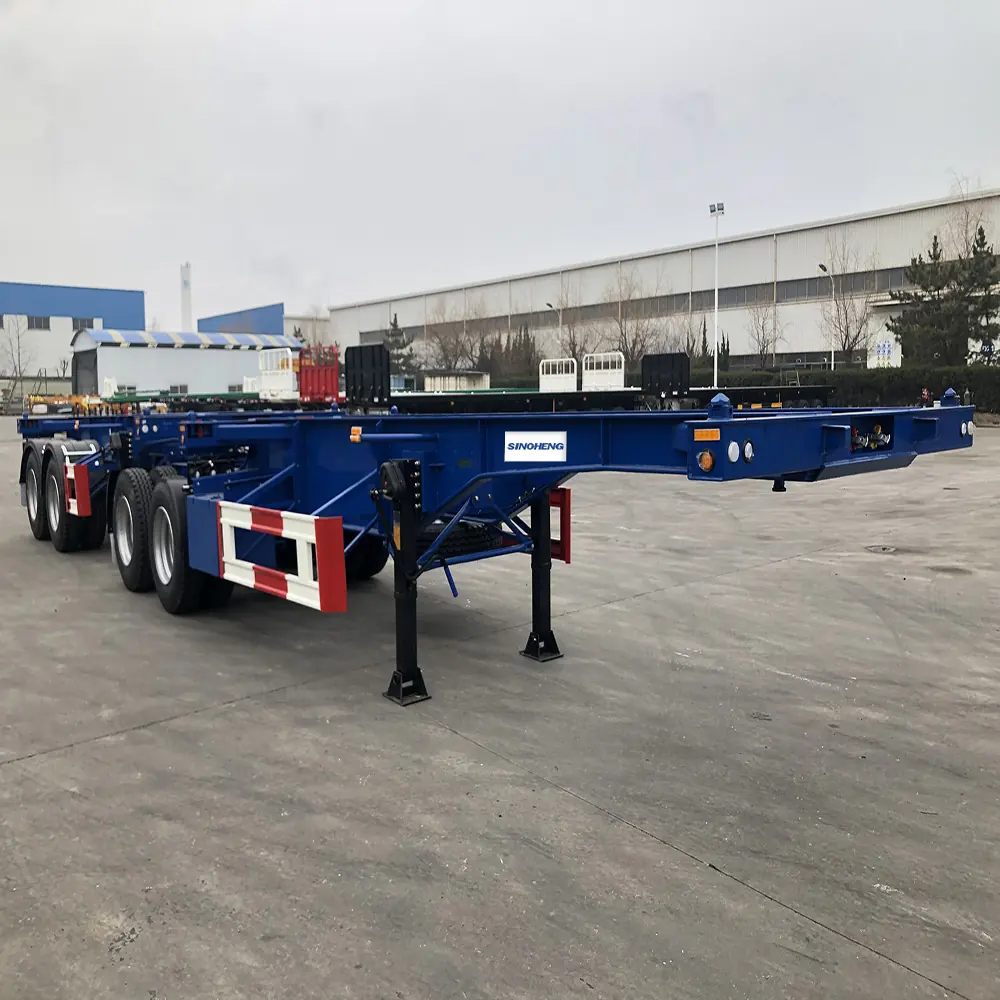

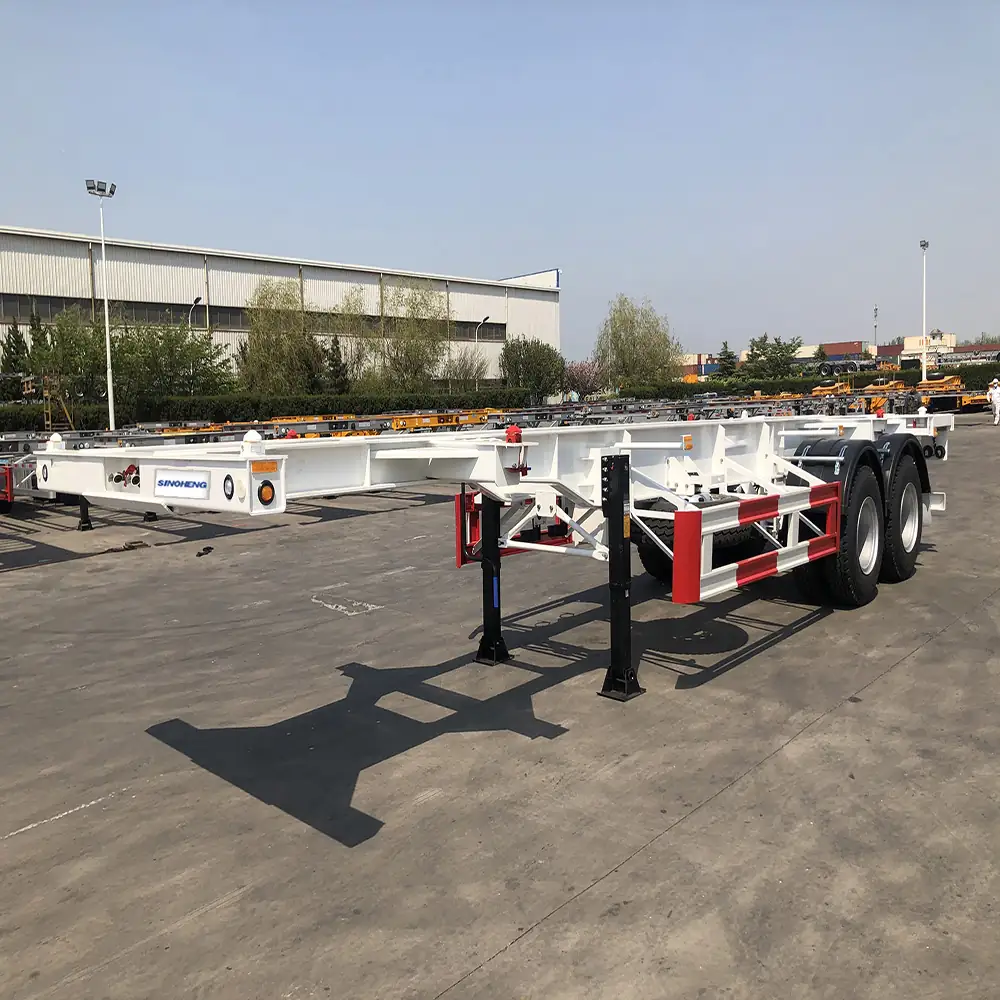

A skeletal container trailer with tipping capability, at 5700kg tare and 54000kg payload for a 61000kg gross, all plus or minus 5 percent. That combination is unusual: a skeletal frame is normally the lightest chassis you can buy but cannot discharge bulk, while a tipping chassis normally costs weight. This build keeps the tare at 5700kg and still tilts the container to 45-60 degrees for gravity discharge. Axles are 13T in 2, 3 or 4 pieces from BPW, FUWA, Yonglitai, Huajin or another Chinese brand on mechanical suspension, with two spare wheel brackets, a 28 tonne JOST or FUWA landing gear, 24V LED lighting with a 7-way receptacle, and optional ABS.
Key Benefits
What You Get
- 5700kg tare with tipping capability, where most tipping chassis weigh considerably more
- 54000kg payload within a 61000kg gross
- Hydraulic tipping to 45-60 degrees discharges containerised bulk under gravity
- Axle count selectable at 2, 3 or 4 with five brand options
- Two spare wheel brackets for long remote routes
Problems Solved
What It Fixes
- Tipping chassis normally cost several tonnes of payload against a plain skeletal
- Containerised bulk has to be emptied manually where no tipping plant exists
- Fixed axle counts do not match every route weight limit
- One spare wheel is not enough on long remote routes
Who It Is For
Operators Who Buy This Model
- Container hauliers carrying bulk in boxes
- Port and inland depot operators
- Mining logistics contractors
- Fleets that need tipping without losing payload
Application Scenarios
Where It Works
- Containerised bulk haulage with on-site discharge
- Port to inland depot container work
- Mining and aggregate movement in containers
- Mixed container carrying and tipping contracts
Technical Features
Build Specification
- Skeletal container tipper semi-trailer
- Tare weight 5700kg, payload 54000kg, gross weight 61000kg, all plus or minus 5 percent
- Axles 13T, 2, 3 or 4 pieces, BPW, FUWA, Yonglitai, Huajin or other Chinese brand
- Mechanical suspension, spare wheel bracket 2 pieces
- Landing gear standard 28 ton, JOST or FUWA or other Chinese brand
- Electrical system 24V with LED lights, receptacle 7 ways with 7-wire harness
- ABS optional, hydraulic container tipping to 45-60 degrees
Specifications
Manufacturer Data Sheet
| Type | Skeleton semi-trailer Parameter |
|---|---|
| Tare Weight | (kg) 5,700 kg(±5%) |
| Payload | (kg) 54,000 kg(±5%) |
| Gross Weight | (kg) 61,000 kg(±5%) |
| Axle | 13T,2/3/4 pcs,BPW or FUWA or Yonglitai or Huajin Brand or other china brand |
| Suspension | Mechanical |
| Spare Wheel Bracket | 2 pieces |
| ABS | Optional upon choice |
| Landing Gear | Standard 28Ton, JOST brand or FUWA brand or other china brand. |
| Electrical System | 1.Voltage:24V, LED lights 2.Receotacle:7 ways (7 wire harness) |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Twist lock position and locking function check at every corner
- Hydraulic tipping cycle test under load
- Frame weld inspection at the corner casting mountings
- Weighbridge check of tare weight before dispatch
Customization
What You Can Change
- Axle count 2, 3 or 4 at 13T
- Axle brand chosen from five options
- Twist lock layout for your container sizes
- ABS anti-lock braking fitted on request
- Tipping angle configured to your bulk material
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| Plain skeletal container chassis | This build adds tipping for only a small weight penalty; a plain skeletal is marginally lighter but cannot discharge bulk. |
| Platform tipping trailer | The skeletal is lighter for pure container work; the platform also carries flat cargo. |
| 20ft two-axle container chassis | This build handles larger boxes and higher payload; the 20ft chassis is shorter and cheaper for 20 foot work only. |
Use Guide
Operating This Trailer
- Confirm all twist locks are engaged before moving or tipping
- Tip only on level firm ground with the area behind clear
- Lower the frame fully before travelling
- Check both spare wheels before long remote runs
- Match the axle count to your route weight limits
Related Products
Related Trailers
Container Chassis Skeletal20ft 2 axles Container Tipper Trailer China Manufacturer Direct Sale
20ft two-axle container chassis, 7000*2470mm, 40T payload on a Q345B main beam with WABCO braking.
View Specification
Transport Semi-trailer Shipping Container Skeleton Three Axles Frame Skeletal Semi Truck Trailer China Factory
Three-axle skeletal container frame, 5500kg tare and 34500kg payload, the lightest chassis in the range.
View Specification
Rear Tipper Semi Trailer Dump Truck Trailer 4 Axle Semi-Trailer
Four-axle rear tipper with a 55cbm rectangular body and HYVA front-mounted lifting for high-density bulk work.
View SpecificationKnowledge
Related Guides
How to Judge the Quality of Chassis Protection Work
Material choice, surface preparation, spray technique and coat count, and how to tell a proper underbody treatment from a superficial one.
The Semi Trailer Manufacturing Industry in China
Where China's trailer industry is concentrated, who the major players are, and what actually matters when you are comparing suppliers.
FAQ
Questions About This Model
What Is the Tare Weight
5700kg plus or minus 5 percent, which is very light for a chassis with tipping capability.
What Payload Can It Carry
54000kg within a 61000kg gross. Confirm your local axle and gross limits, which may set a lower legal figure.
Can It Discharge Bulk
Yes. The hydraulic system tilts the container to between 45 and 60 degrees so bulk cargo slides out under gravity.
How Many Axles Can I Specify
2, 3 or 4 at 13T each, in BPW, FUWA, Yonglitai, Huajin or another Chinese brand.
How Many Spare Wheels Are Carried
Two spare wheel brackets are fitted, which matters on long routes away from service points.
Is ABS Available
Yes, ABS is optional on this model.
What Lighting Is Fitted
24V LED lights with a 7-way receptacle and 7-wire harness.
Get A Price For The Skeletal Configuration You Need
Send your country of use, cargo, load weight and axle limits. We confirm the configuration and quote FOB or CIF in one to three days.
