Container Side Loader Container Side Lifter 40 Ton Side lifter Truck Trailer
Self-loading container side lifter, 37000kg lifting capacity, Kubota-powered crane and 40000kg gross.
Overview
What This Trailer Is Built For

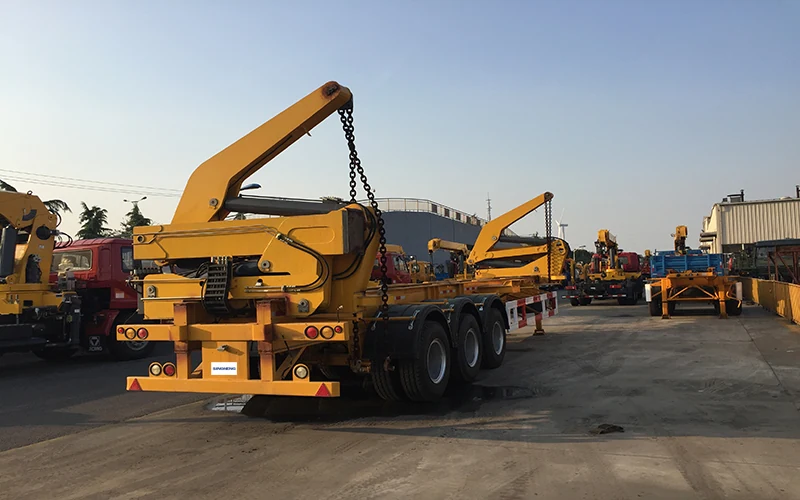

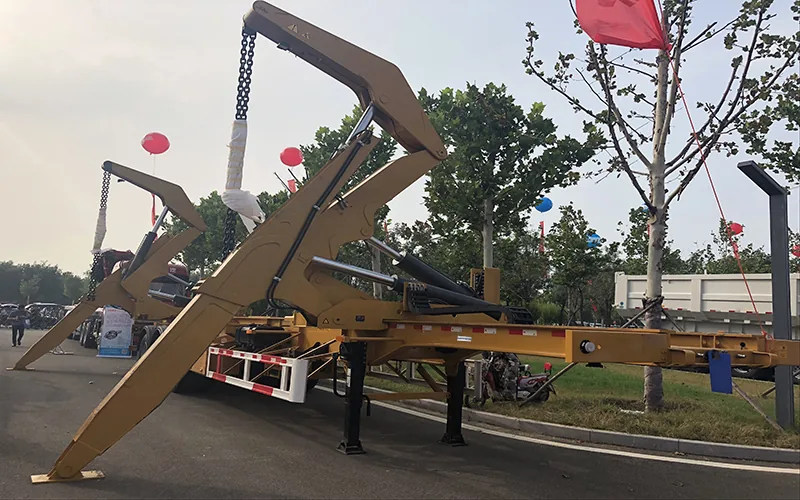

A container side lifter that loads and discharges its own container without a crane, forklift or reach stacker on site. The crane set has a 37000kg maximum lifting capacity, a 4000mm working range and 32000mm stabilizer outreach, driven by a Kubota V2403-M-DI-E3B-CSL-1 engine rated 36.5kW at 2600 r/min to off-road Euro III. Maximum gross mass is 40000kg on a 14100x2500x4000mm trailer with 8000+1350+1350mm wheel base. The side lifter unit itself weighs 7250kg of the 14500kg curb mass, and the hydraulic system can also tip the container 45 to 60 degrees so bulk cargo slides out under its own weight.
Key Benefits
What You Get
- Loads and unloads its own container, so no reach stacker or crane is needed at either end
- 37000kg lifting capacity handles a fully loaded 20 foot box
- Hydraulic tipping to 45-60 degrees discharges sand, ore and other bulk straight from the container
- 32000mm stabilizer outreach gives a stable footprint on uneven yard surfaces
- Kubota off-road Euro III engine is a serviceable, widely supported power unit
Problems Solved
What It Fixes
- Hiring a crane or reach stacker at each end doubles the cost of a container move
- Sites without lifting equipment cannot receive containers at all
- Containerised bulk normally has to be emptied by hand or by tipping the whole trailer
- Uneven yard ground makes standard lifting arrangements unstable
Who It Is For
Operators Who Buy This Model
- Container hauliers serving sites without lifting plant
- Project logistics operators in remote regions
- Inland depots and container yards
- Contractors receiving containerised bulk materials
Application Scenarios
Where It Works
- Container delivery to sites with no lifting equipment
- Depot and siding work where a reach stacker is not available
- Bulk cargo delivery in containers with direct tipping discharge
- Remote project logistics in mining, oil and construction
Technical Features
Build Specification
- Maximum lifting capacity 37000kg, working range 4000mm, stabilizer outreach 32000mm
- Curb mass 14500kg of which the side lifter is 7250kg, maximum gross mass 40000kg
- Semi-trailer outline 14100x2500x4000mm, side lifter outline 1020x2500x2490mm
- Wheel base 8000+1350+1350mm, track 1820mm on all three axles
- Rear overhang 2370mm, departure angle 13 degrees
- Engine Kubota V2403-M-DI-E3B-CSL-1, 36.5kW at 2600 r/min, off-road Euro III
- Hydraulic container tipping to 45-60 degrees for bulk discharge
Specifications
Manufacturer Data Sheet
| Max Lifting Capacity | 37000 |
|---|---|
| Max Working Range | 4000 |
| Max Stabilizer Outreach | 32000 |
| Curb Mass | 14500 |
| Mass Of Side Lifter | 7250 |
| Maximum Gross Mass | 40000 |
| Semi-Trailer Outline Dimension | 14100x2500x4000 |
| Side Lifter Outline Dimension | 1020x2500x2490 |
| Wheel Base | 8000+1350+1350 |
| Track Front/Rear Axle | 1820/1820/1820 |
| Front / Rear Overhang | mm -/2370 |
| Approach / Departure Angle | 13 |
| Engine Model | V2403-M-DI-E3B-CSL-1 Kubota V2403-M-DI-E3B-CSL-1 |
| Power / Rotation Speed | 36.5/2600 |
| Emission Standard | Off-road, Euro III |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Crane load test at rated capacity before dispatch
- Stabilizer deployment and locking function check
- Hydraulic circuit pressure test through the full lift and tip cycle
- Engine run-in and emission compliance check
Customization
What You Can Change
- Lifting capacity and crane reach matched to your container mix
- Twist lock layout for 20 or 40 foot boxes
- Axle brand and suspension selected to local service support
- Stabilizer leg length set to your yard conditions
- Tipping angle configured for the bulk material you carry
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| Skeletal container chassis | A skeletal trailer needs lifting equipment at both ends; the side lifter carries its own crane and works anywhere. |
| Tipping container chassis | This unit both lifts and tips; a tipping chassis can discharge bulk but still needs a crane to place the box. |
| Truck-mounted crane | The side lifter is built around container handling specifically, with twist lock pick-up and a matched frame, not a general lifting arm. |
Use Guide
Operating This Trailer
- Deploy both stabilizers fully onto firm ground before any lift
- Check container weight against the 37000kg rating before lifting
- Keep the working area clear during lift and tip operations
- Tip bulk only with the container locked and the ground level
- Service the Kubota engine and hydraulic circuit on the stated intervals
Related Products
Related Trailers
Transport Semi-trailer Shipping Container Skeleton Three Axles Frame Skeletal Semi Truck Trailer China Factory
Three-axle skeletal container frame, 5500kg tare and 34500kg payload, the lightest chassis in the range.
View Specification
Skeletal Container Tipper Trailer Semi Trailer for Sale China Factory for Sale
Skeletal container tipper, 54000kg payload at 5700kg tare with 2, 3 or 4 axle options.
View Specification
Rear Tipper Semi Trailer Dump Truck Trailer 4 Axle Semi-Trailer
Four-axle rear tipper with a 55cbm rectangular body and HYVA front-mounted lifting for high-density bulk work.
View SpecificationKnowledge
Related Guides
Ten Types of Semi Trailer and How to Choose
A working comparison of the ten semi-trailer types we build most often, what each is actually for, and how to pick the one that matches your cargo and your roads.
FAQ
Questions About This Model
How Much Can the Crane Lift
37000kg maximum lifting capacity, with a 4000mm working range and 32000mm stabilizer outreach.
Can It Discharge Bulk Cargo
Yes. The hydraulic system tips the container to 45-60 degrees so material such as sand or ore slides out under its own weight.
What Engine Drives the Crane
A Kubota V2403-M-DI-E3B-CSL-1 rated 36.5kW at 2600 r/min, built to off-road Euro III emission standard.
What Is the Maximum Gross Mass
40000kg. Curb mass is 14500kg, of which the side lifter unit itself accounts for 7250kg.
Can It Handle Both 20 and 40 Foot Containers
The twist lock layout is configured to your container mix at order. Tell us which sizes you handle and we will set it up.
What Ground Does It Need
Firm, level ground under both stabilizers. On soft surfaces use spreader plates under the legs.
What Is the Delivery Time
A side lifter is normally a customized build of around 45 days. We confirm the schedule when the crane specification is signed.
