Container Chassis Skeletal20ft 2 axles Container Tipper Trailer China Manufacturer Direct Sale
20ft two-axle container chassis, 7000*2470mm, 40T payload on a Q345B main beam with WABCO braking.
Overview
What This Trailer Is Built For

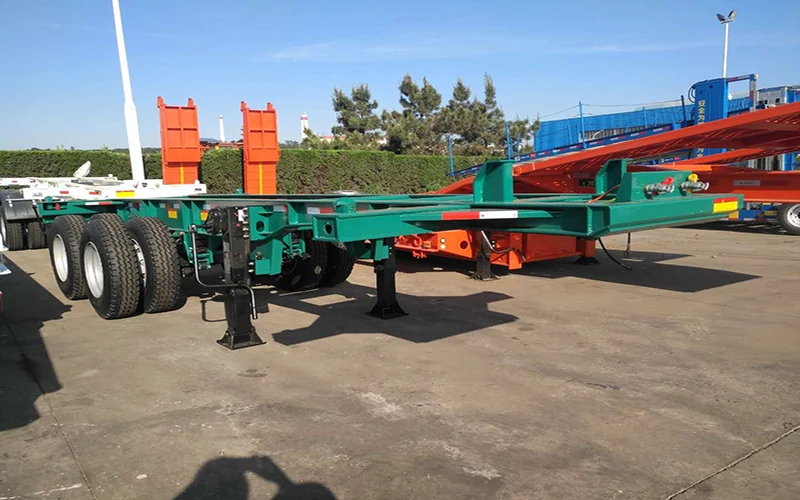

A 20 foot two-axle container chassis at 7000*2470mm in steel, rated at 40 tonne maximum payload. The main beam is Q345B or ST52-3 structural steel, braking is a WABCO relay emergency valve, leaf springs are 90mm wide by 13mm thick in 10 layers, axles are FUWA on mechanical suspension with 12R22.5 tires, and the landing gear is a JOST two-speed unit. The chassis carries TS16949 certification. It is the tipping version, so the hydraulic system can tilt the container 45 to 60 degrees to discharge bulk cargo under gravity.
Key Benefits
What You Get
- Hydraulic container tipping to 45-60 degrees discharges bulk without unloading the box
- Q345B or ST52-3 main beam is structural grade steel, not general mild steel
- WABCO relay emergency valve gives predictable braking with a loaded container
- 40 tonne payload covers a fully loaded 20 foot box
- Short 7000mm chassis manoeuvres in container yards and tight site accesses
Problems Solved
What It Fixes
- Emptying a bulk container by hand or by shovel is slow and expensive
- General mild steel chassis fatigue under repeated container loading
- Basic brake valves give inconsistent response with a loaded box
- Long chassis cannot manoeuvre in tight container yards
Who It Is For
Operators Who Buy This Model
- Container hauliers carrying bulk in boxes
- Port and inland depot operators
- Construction supply chains receiving containerised material
- Fleets running 20 foot boxes exclusively
Application Scenarios
Where It Works
- Containerised bulk delivery with direct tipping discharge
- Port to inland depot container shuttle work
- Construction material delivery in containers
- Yard and siding container repositioning
Technical Features
Build Specification
- 20ft 2 axle container chassis, steel, size 7000*2470mm
- Maximum payload 40T
- Main beam Q345B or ST52-3
- Leaf spring 90mm wide x 13mm thick x 10 layers
- Axles FUWA, mechanical suspension, tires 12R22.5
- Brake WABCO relay emergency valve, landing gear JOST brand two-speed
- TS16949 certification, hydraulic container tipping to 45-60 degrees
Specifications
Manufacturer Data Sheet
| Use | Truck Trailer |
|---|---|
| Type | 20ft 2 axles Container Chassis |
| Material | Steel |
| Size | 7000*2470mm |
| Max Payload | 40T |
| Axle | FUWA |
| Suspension | Mechanical |
| Tire | 12R22.5 |
| Certification | TS16949 Leaf Spring 90(W)mm*13(thickness)mm*10Layers Main Beam Q345B/ST52-3 Brake WABCO Relay Emergency Valve |
| Landing Gear | JOST Brand Two-speed |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Twist lock position and locking function check
- Main beam weld inspection at the container mounting points
- Hydraulic tipping cycle test under load
- Brake valve response test
Customization
What You Can Change
- Twist lock layout for your container types
- Axle brand and rating chosen to suit local service
- Tire specification changed to local supply
- Tipping angle configured to the bulk material you carry
- Landing gear brand specified at order
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| Fixed skeletal container chassis | The tipping version discharges bulk directly; a fixed skeletal chassis needs the container emptied by other means. |
| Three-axle 40ft chassis | The 20ft two-axle unit is lighter, shorter and cheaper to run where you only handle 20 foot boxes. |
| Container side lifter | The side lifter also loads and unloads the box itself; this chassis carries and tips but still needs lifting equipment to place the container. |
Use Guide
Operating This Trailer
- Confirm all twist locks are engaged before moving off
- Tip only on level firm ground with the area behind clear
- Check container weight against the 40 tonne payload rating
- Lower the chassis fully before travelling
- Inspect the hydraulic circuit and twist locks at every service
Related Products
Related Trailers
Transport Semi-trailer Shipping Container Skeleton Three Axles Frame Skeletal Semi Truck Trailer China Factory
Three-axle skeletal container frame, 5500kg tare and 34500kg payload, the lightest chassis in the range.
View Specification
Skeletal Container Tipper Trailer Semi Trailer for Sale China Factory for Sale
Skeletal container tipper, 54000kg payload at 5700kg tare with 2, 3 or 4 axle options.
View Specification
Rear Tipper Semi Trailer Dump Truck Trailer 4 Axle Semi-Trailer
Four-axle rear tipper with a 55cbm rectangular body and HYVA front-mounted lifting for high-density bulk work.
View SpecificationFAQ
Questions About This Model
Can It Tip the Container
Yes. The hydraulic system tilts the container to between 45 and 60 degrees so bulk cargo slides out under its own weight.
What Payload Can It Carry
40 tonnes maximum, which covers a fully loaded 20 foot container.
What Steel Is the Main Beam
Q345B or ST52-3 structural steel, not general mild steel.
What Brake System Is Fitted
A WABCO relay emergency valve, which gives consistent response with a loaded box.
What Certification Does It Carry
TS16949 is listed for this model. We confirm the documents that apply to your destination before shipment.
What Landing Gear Is Used
A JOST brand two-speed unit.
Can It Carry 40 Foot Containers
This model is built as a 20 foot two-axle chassis. For 40 foot boxes we supply the three-axle skeletal or frame transport chassis instead.
