Dump Tipper Semi-Trailer Bucket 6 Axles Tipper Truck Trailer China Factory Direct for Sale
Six-axle bucket dump tipper, 10500*2500*3800mm, 70 tonne payload on FUWA 16 tonne axles.
Overview
What This Trailer Is Built For

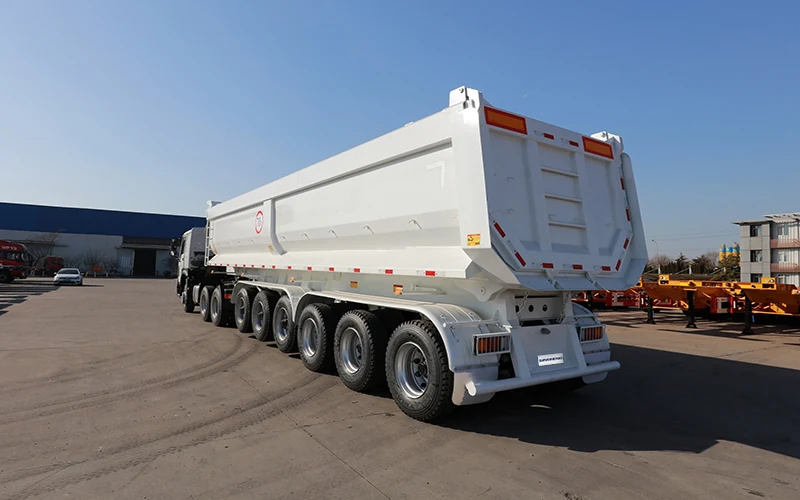

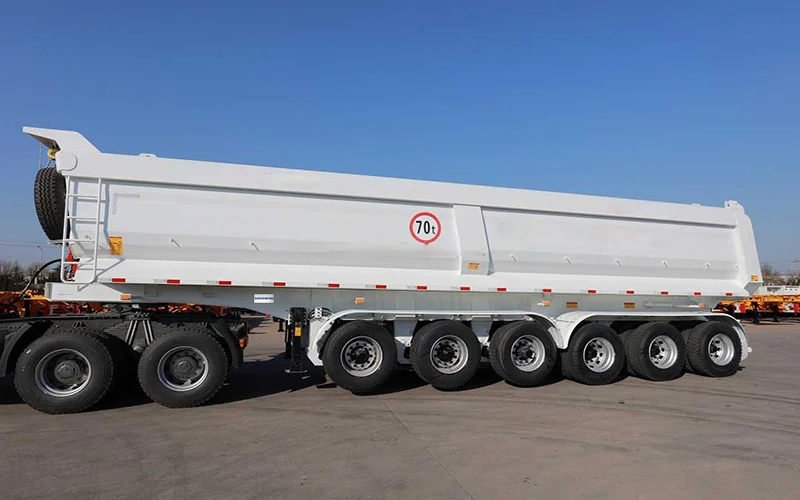

A six-axle tipper with a bucket body at 10500mm*2500mm*3800mm, rated at 70 tonnes maximum payload on FUWA 16 tonne axles. Six axles at 16 tonnes each is a very high total axle rating for a 10.5 metre trailer, which is what lets it carry 70 tonnes of dense material without exceeding per-axle limits. Suspension is mechanical, the kingpin is a JOST-compatible 2 inch 50mm or 3.5 inch 90mm, landing gear is JOST two-speed, tires can be 11.00R20, 12R22.5, 315 or 385 series, the trailer carries CE marking, and the colour is finished to your request.
Key Benefits
What You Get
- Six 16 tonne axles carry 70 tonnes of dense material inside per-axle limits
- Compact 10500mm length keeps the trailer manageable on site haul roads despite the high payload
- Bucket body shape sheds sticky and wet material better than a squared box
- Four tire series options so the trailer suits whatever your market stocks
- CE marking supports import into markets that require it
Problems Solved
What It Fixes
- Three and four-axle tippers exceed per-axle limits on dense material
- Long trailers cannot negotiate tight mine haul roads
- Squared bodies retain wet and sticky material after tipping
- Missing CE documentation blocks import clearance
Who It Is For
Operators Who Buy This Model
- Mining haulage contractors moving dense material
- Quarry operators at the top end of payload
- Operators in markets with strict axle-load enforcement
- Fleets needing CE documentation for import
Application Scenarios
Where It Works
- High-tonnage ore and overburden haulage
- Dense aggregate and rock transport
- Mine site haul road operation
- Markets with strict per-axle weight enforcement
Technical Features
Build Specification
- Six axles, dump tipper trailer with bucket body, material steel
- Size 10500mm*2500mm*3800mm
- Maximum payload 70 ton
- Axles FUWA 16 ton, mechanical suspension
- Kingpin 2 inch 50mm or 3.5 inch 90mm
- Landing gear JOST brand two-speed
- Tires 11.00R20, 12R22.5, 315 or 385 series, CE certification, colour to customer request
Specifications
Manufacturer Data Sheet
| Use | Truck Trailer |
|---|---|
| Type | 6 axles dump tipper trailer |
| Material | Steel |
| Size | 10500mm*2500mm*3800mm |
| Max Payload | 70ton Brand Name tipper trailer |
| Axle | FUWA 16ton tipper trailer |
| Suspension | Mechanical suspension tipper trailer Color Customer’s Request |
| King Pin | 2′′(50mm)or3.5′′(90mm) tipper trailer |
| Landing Gear | JOST Brand Two-speed |
| Tire | 11.00r20 12r22.5 315 385 |
| Certification | ce |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Six-axle alignment checked as a set
- Hydraulic lift cycle tested under load
- Main beam and body weld inspection
- Brake balance test across all axles
Customization
What You Can Change
- Body volume and plate thickness set to your material
- Tire series selected from four options
- Kingpin 2 inch or 3.5 inch
- Colour finished to your request
- Axle rating and brand adjusted to local service support
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| Three-axle tipper | Six axles carry 70 tonnes of dense material legally; three axles reach their limit at roughly half that. |
| Four-axle 60 tonne tipper | Six axles add payload and spread ground pressure; four axles are lighter and cheaper to maintain. |
| U-shape body tipper | The bucket body sheds wet material well and takes rock impact; a U-shape sheds sticky material fastest. |
Use Guide
Operating This Trailer
- Confirm per-axle limits in your market before specifying the axle count
- Distribute the load evenly across all six axles
- Tip only on level compacted ground
- Check tire pressures across all positions before each shift
- Inspect the body floor for wear after abrasive material work
Related Products
Related Trailers
Rear Flip Tipper Semi Trailer 40cubic 3 Axle Heavy Duty for Sale
40 cubic metre rear flip tipper, HYVA or China lifting brand, mechanical or air suspension.
View Specification
Heavy Truck Trailer 3 Axles Dump Semi Side Trailer 80ton Hydraulic Side Tipping Trailer
80 tonne hydraulic side tipping trailer on an Hg60 main beam with 12 twist locks.
View Specification
Heavy Duty Tipping Truck Trailer Dump Semi Trailer China Manufacturer
Gooseneck rear dump trailer, 30m3 body at 9600kg tare with a full HYVA 196 lifting set.
View SpecificationKnowledge
Related Guides
How to Specify a Trailer for Your Market
The information to gather before you ask for a quotation, and why a trailer specified for the wrong market fails early.
FAQ
Questions About This Model
Why Six Axles
Six 16 tonne axles let the trailer carry 70 tonnes of dense material while staying inside per-axle limits that a three or four-axle unit would exceed.
What Payload Can It Carry
70 tonnes maximum. Confirm the legal figure for your market, which is usually set by axle-load rules.
Which Axles Are Fitted
FUWA 16 tonne axles on mechanical suspension.
Which Tires Can I Choose
11.00R20, 12R22.5, 315 series or 385 series, depending on what is available where you operate.
Does It Have CE Certification
CE marking is listed for this model. We confirm the exact documents that apply to your destination before shipment.
Can I Choose the Colour
Yes, the trailer is finished to your requested colour at the factory.
What Is the Delivery Time
About 45 days for a customized six-axle build, or around 10 days from stock where a unit is available.
