Side Dump Semi Tipper Trailers Dropside 3 Axles Sidewall Cargo Lorry Semi Truck Trailers
Van-type side dump drop-side trailer, 60 tonne payload, heavy mechanical suspension and 16 tires.
View SpecificationSide Wall Truck Trailer
Cargo Trailer with Side Wall Semi-trailer 40ft Drop side Sidewall Cargo Lorry Semi Truck Trailers
40ft sidewall cargo trailer, 12500*2500*1550mm, 60T payload with 600 or 800mm side wall height.
Overview
What This Trailer Is Built For

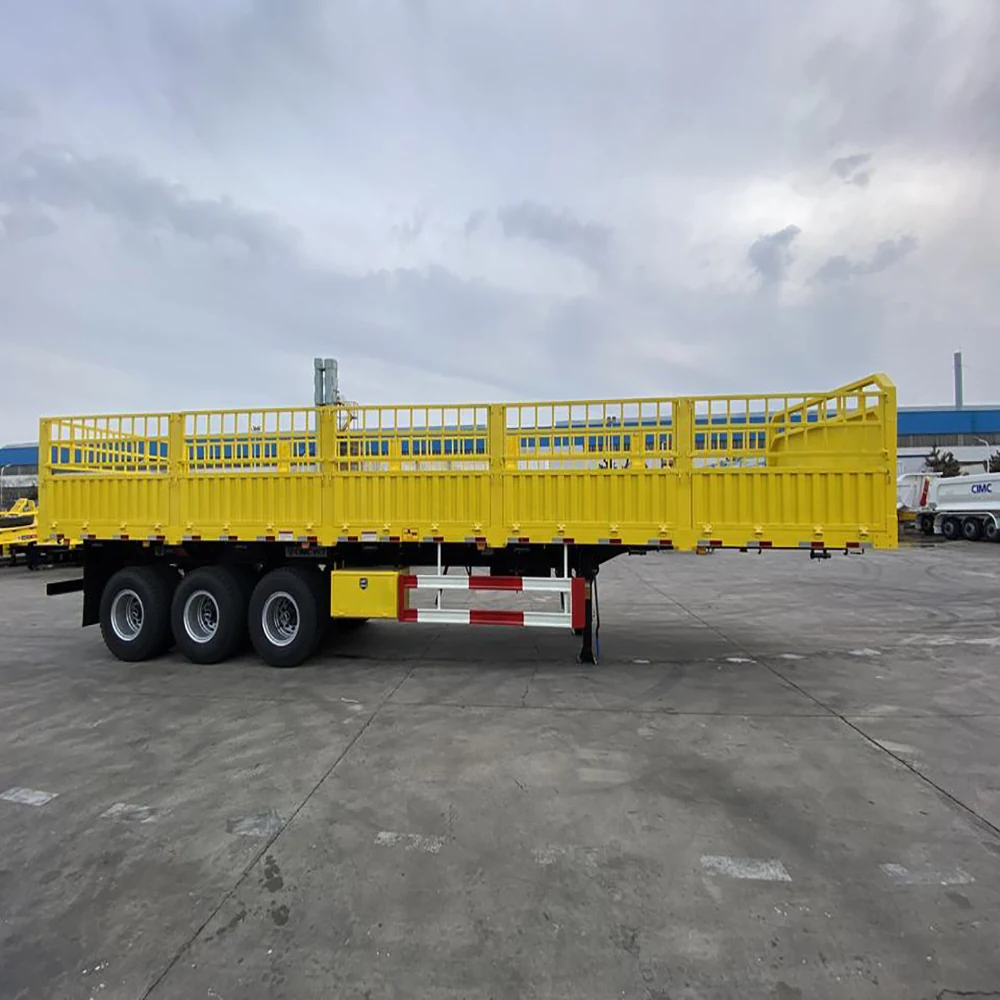

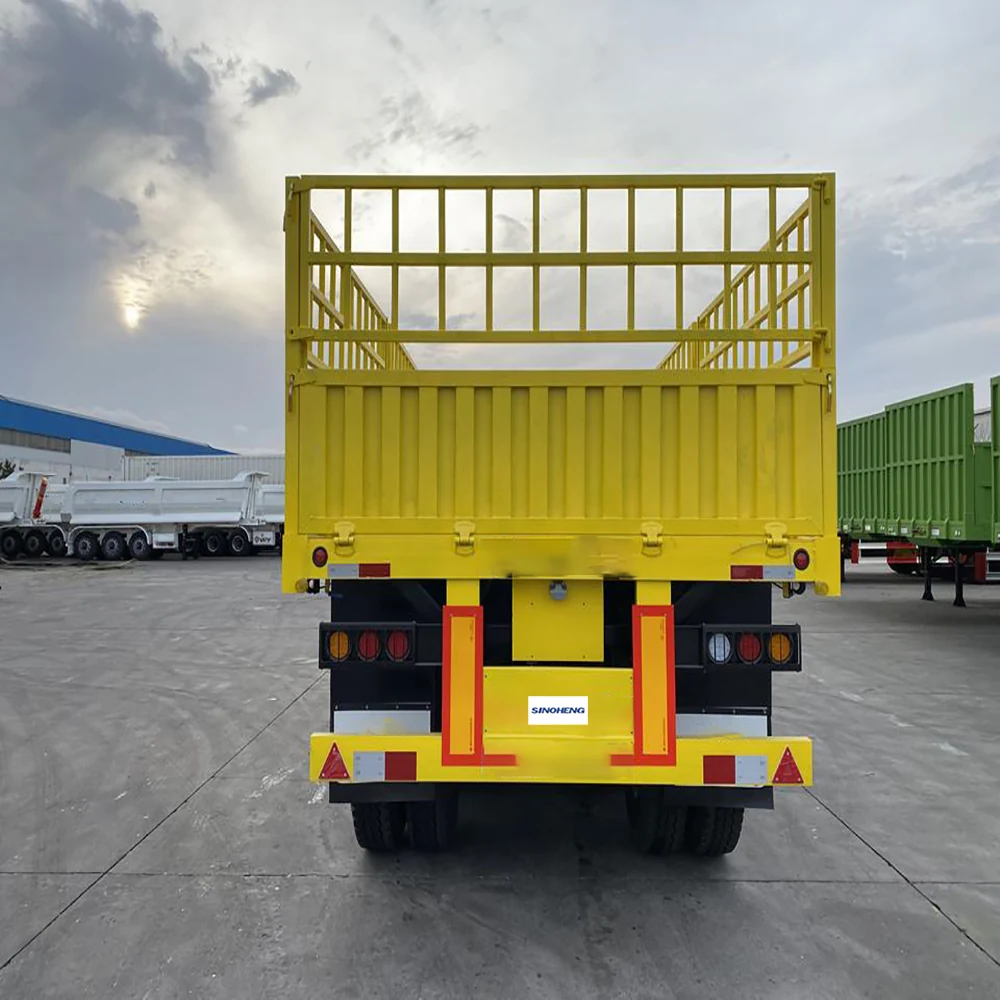

A 40 foot sidewall cargo trailer at 12500*2500*1550mm outside with a 12489*2480*1530mm body, rated at 40, 50 or 60 tonne payload. Side wall height can be built at 600mm or 800mm, which is the decision that matters most: 600mm keeps forklift reach easy, 800mm contains deeper loose loads. Axles are 13T, 16T or 20T BPW or FUWA on mechanical suspension, wheel rims are 22.5*9.0, tires are 12R22.5 Linglong or Triangle brand, and the kingpin is a 3.5 inch JOST.
Key Benefits
What You Get
- Side wall height of 600mm or 800mm lets you trade forklift access against load containment
- Payload options at 40, 50 and 60 tonnes avoid paying for capacity you will not use
- Axle ratings from 13T to 20T let the trailer be matched to your heaviest regular load
- Drop sides open for forklift loading from either side of the deck
- Named tire and axle brands mean predictable parts availability
Problems Solved
What It Fixes
- Loads slide and fall from an unfenced flat deck
- Side walls that are too high block forklift reach into the deck
- Fixed axle ratings force you to overbuy or run overloaded
- Rear-only loading wastes forklift time at every stop
Who It Is For
Operators Who Buy This Model
- Building material distributors
- Bulk bag and sack haulage operators
- Steel stockholders delivering by forklift
- Fleets carrying mixed palletised and loose cargo
Application Scenarios
Where It Works
- Building material and block delivery to construction sites
- Bagged cement, fertiliser and feed transport
- Steel and pipe haulage with side loading
- General palletised freight needing side containment
Technical Features
Build Specification
- 40ft cargo trailer with side wall, dimension 12500*2500*1550mm, body 12489*2480*1530mm
- Maximum payload 60T, available at 40, 50 or 60 tonne rating
- Side wall height 600mm or 800mm
- Axles 13T, 16T or 20T, BPW or FUWA brand, mechanical suspension
- Wheel rims 22.5*9.0, tires 12R22.5 Linglong or Triangle brand
- Kingpin 3.5 inch JOST brand
Specifications
Manufacturer Data Sheet
| Type | 40ft cargo trailer with side wall |
|---|---|
| Material | 12489*2480*1530mm |
| Max Payload | 60T |
| Suspension | Mechanical suspension cargo trailer wheel rim 22.5*9.0 wheel rims cargo trailer Dimension 12500*2500*1550mm |
| Payload | 40ton, 50ton, 60ton |
| Tire | 12R22.5 linglong tire/triangle brand |
| Axles | 13T/16/20T BPW or FUWA brand Side wall height 600mm, 800mm |
| King Pin | 3.5′′ Jost brand 40ft flatbed trailer |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Side wall hinge and latch function tested through full travel
- Deck load test at the specified payload
- Axle alignment and brake balance check
- Weld inspection at the side wall mountings
Customization
What You Can Change
- Side wall height 600mm or 800mm
- Payload rating 40, 50 or 60 tonnes
- Axle rating 13T, 16T or 20T in BPW or FUWA
- Tire brand Linglong or Triangle
- Deck length and internal width adjusted at order
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| Flatbed semi-trailer | Side walls contain loose and bagged cargo; a flat deck is better for containers and oversize loads. |
| Fence stake trailer | Solid side walls hold fine material that would escape through stakes; stakes ventilate produce and weigh less. |
| Curtain-sided trailer | Drop side walls take forklift knocks that curtains do not survive; curtains give full-height side access. |
Use Guide
Operating This Trailer
- Choose 600mm side walls if forklift reach into the deck matters more than load depth
- Latch all side panels before moving off, including after side loading
- Distribute dense cargo evenly rather than concentrating it in one bay
- Inspect hinges and latches at every service
- Match the axle rating to your heaviest regular load, not your average
Related Products
Related Trailers
Side Wall Semi-trailer with 3 Axles 40 Feet Truck
40 foot three-axle sidewall trailer, 13000x2500x2850mm, 50T capacity with 24V LED lighting.
View Specification
Flatbed Container Side Wall Cargo 3 axle Semi-trailer China Factory
Flatbed sidewall trailer with container locking, 13000x2500x2850mm and 50T capacity.
View Specification
Flatdeck Interlink Tandem Trailers Dropside Sidewall Cargo Lorry Semi Truck Semi-trailer China Factory
Flatdeck interlink tandem drop-side trailer set, 13000x2500x2850mm, 50T on 13T FUWA axles.
View SpecificationFAQ
Questions About This Model
What Side Wall Heights Are Available
600mm or 800mm. Choose 600mm where forklifts need to reach into the deck, and 800mm where you carry deeper loose loads.
What Payload Can It Carry
40, 50 or 60 tonnes depending on the axle rating you specify. The maximum build is 60T.
Which Axles Can Be Fitted
13T, 16T or 20T in BPW or FUWA brand, on mechanical suspension.
What Are the Internal Body Dimensions
12489*2480*1530mm inside a 12500*2500*1550mm overall envelope.
What Tires Does It Use
12R22.5 in Linglong or Triangle brand on 22.5*9.0 wheel rims.
Can It Be Loaded by Forklift From the Side
Yes, the side walls drop for side loading. The 600mm wall height gives the easiest forklift access.
What Is the Warranty and After Sales Support
One year quality guarantee from delivery, spare parts for the life of the trailer, and engineers available to travel where a fault needs on-site work.
Get A Price For The Cargo Configuration You Need
Send your country of use, cargo, load weight and axle limits. We confirm the configuration and quote FOB or CIF in one to three days.
