Overview
What This Trailer Is Built For

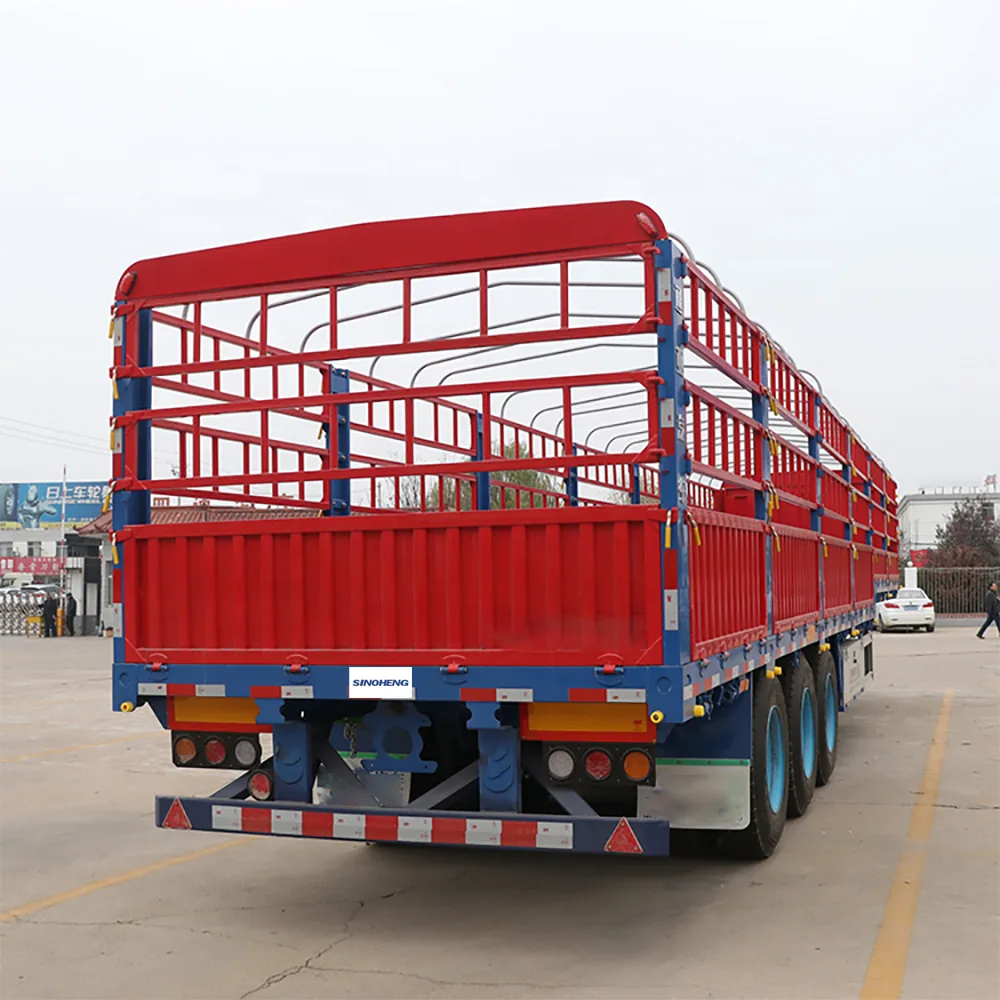

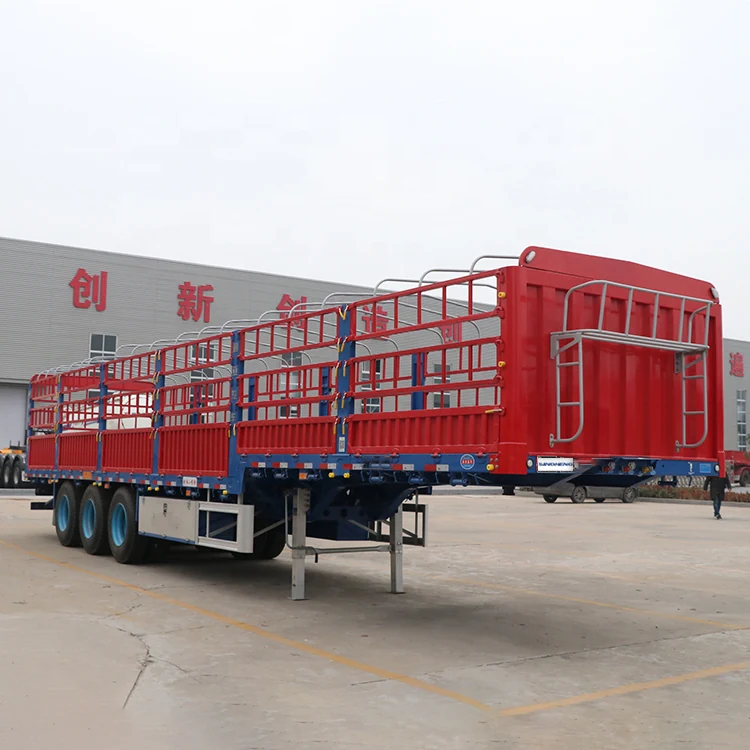

A three-axle trailer that does two jobs: carry containers on a flat deck with twist locking, or carry loose and palletised cargo behind side walls. Outer dimension is 13000 x 2500 x 2850mm at about 7.5 tonnes gross tare, rated to 50 tonnes on three 13T FUWA axles. Suspension is American style mechanical with 90mm wide by 13mm thick 10-piece heavy duty spring leaves, tires are 12.00R22.5 Triangle or Double Coin in 13 pieces on 9.00-22.5 rims, and the lighting is 24V LED with a 7-way receptacle. For operators whose work alternates between containers and general freight, that dual capability is the whole point.
Key Benefits
What You Get
- One chassis covers container work and general cargo, so you do not need two trailers
- 50 tonne loading capacity on three 13T FUWA axles
- Heavy duty 90x13mm 10-piece spring leaves take repeated full loads
- 24V LED lighting outlasts filament lamps on rough roads
- 13 tires and 13 rims including the spare keep the trailer running after a puncture
Problems Solved
What It Fixes
- Dedicated container chassis run empty on the return leg
- Buying separate container and cargo trailers doubles the capital cost
- Filament lighting fails constantly and causes inspection failures
- Light spring packs sag under mixed heavy loads
Who It Is For
Operators Who Buy This Model
- Hauliers alternating between containers and general cargo
- Fleets wanting higher trailer utilisation
- Freight forwarders with mixed contracts
- Operators who cannot justify two dedicated trailers
Application Scenarios
Where It Works
- Container haulage on the outbound leg and general freight on the return
- Port to inland depot work with mixed cargo types
- Building material and packaged goods distribution
- Fleet operations where trailer utilisation matters more than specialisation
Technical Features
Build Specification
- Three axles, flatbed with container side wall, outer dimension 13000 x 2500 x 2850mm
- Gross tare about 7.5 tons, loading capacity up to 50T
- Axles 13T per axle, three axles, FUWA brand
- American style mechanical suspension, spring leaf 90mm wide x 13mm thick x 10 pieces heavy duty
- Tires 12.00R22.5, 13 pieces, Triangle or Double Coin brand
- Rims 9.00-22.5, 13 pieces
- 24V LED lighting, 7-way receptacle, toolbox 1m x 0.5m x 0.5m
Specifications
Manufacturer Data Sheet
| Gross Weight | About 7.5 tons Outer side dimension(mm) 13000 x 2500 x 2850 |
|---|---|
| Loading Capacity | (Ton) ≤ 50T AXLES 13 T /PER, 3axles FUWA Brand |
| Tire | 12.00R22.5, 13pieces Triangle or double coin brand |
| Rim | 9.00-22.5, 13pieces China Brand |
| Suspension | Mechanical suspension (America |
| ABS | Without Light LED light Voltage 24V Receptacle 7 ways (7 wire harness) |
| Tool Box | One piece, 1mx0.5mx0.5m ( |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Twist lock position and locking function check
- Side wall hinge and latch test through full travel
- Axle alignment and brake balance test
- Electrical circuit and LED function test at 24V
Customization
What You Can Change
- Twist lock layout for your container sizes
- Side wall height and removable or hinged arrangement
- Axle rating and brand chosen to local service support
- Tire brand Triangle or Double Coin
- ABS anti-lock braking added on request
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| Dedicated skeletal container chassis | The skeletal chassis is lighter for pure container work; this trailer earns on the return leg with general cargo. |
| Plain flatbed trailer | The side walls contain loose and bagged cargo that a bare flat deck cannot hold. |
| Box van trailer | This deck takes containers and overheight loads; a box body is sealed but cannot carry either. |
Use Guide
Operating This Trailer
- Engage all twist locks before moving a container
- Latch the side walls before every departure when carrying loose cargo
- Distribute dense pallets evenly along the deck
- Check the 7-way receptacle connection at every coupling
- Inspect spring packs after periods of continuous full loading
Related Products
Related Trailers
Cargo Trailer with Side Wall Semi-trailer 40ft Drop side Sidewall Cargo Lorry Semi Truck Trailers
40ft sidewall cargo trailer, 12500*2500*1550mm, 60T payload with 600 or 800mm side wall height.
View Specification
Side Wall Semi-trailer with 3 Axles 40 Feet Truck
40 foot three-axle sidewall trailer, 13000x2500x2850mm, 50T capacity with 24V LED lighting.
View Specification
Flatdeck Interlink Tandem Trailers Dropside Sidewall Cargo Lorry Semi Truck Semi-trailer China Factory
Flatdeck interlink tandem drop-side trailer set, 13000x2500x2850mm, 50T on 13T FUWA axles.
View SpecificationFAQ
Questions About This Model
Can It Carry Both Containers and Loose Cargo
Yes. The deck has container twist locking and side walls for loose and palletised cargo, so one trailer covers both duties.
What Is the Loading Capacity
Up to 50 tonnes on three 13T FUWA axles, against about 7.5 tonnes gross tare.
What Spring Leaves Are Fitted
Heavy duty 90mm wide by 13mm thick leaves in 10 pieces per axle, on American style mechanical suspension.
Is ABS Included
The standard build is without ABS. It can be added on request, and several markets now require it.
What Lighting Is Used
24V LED lighting with a 7-way receptacle and 7-wire harness.
How Many Wheels Are Supplied
13 tires and 13 rims, which includes the spare.
Can the Twist Lock Layout Be Changed
Yes. Tell us which container sizes you carry and we will set the twist lock positions accordingly.
