Cargo Trailer Hydraulic Cylinder Side Tipper Truck 13M Drop Side Dump Semi-Trailer
13 metre drop side dump trailer with hydraulic side tipping and 50T capacity.
Overview
What This Trailer Is Built For

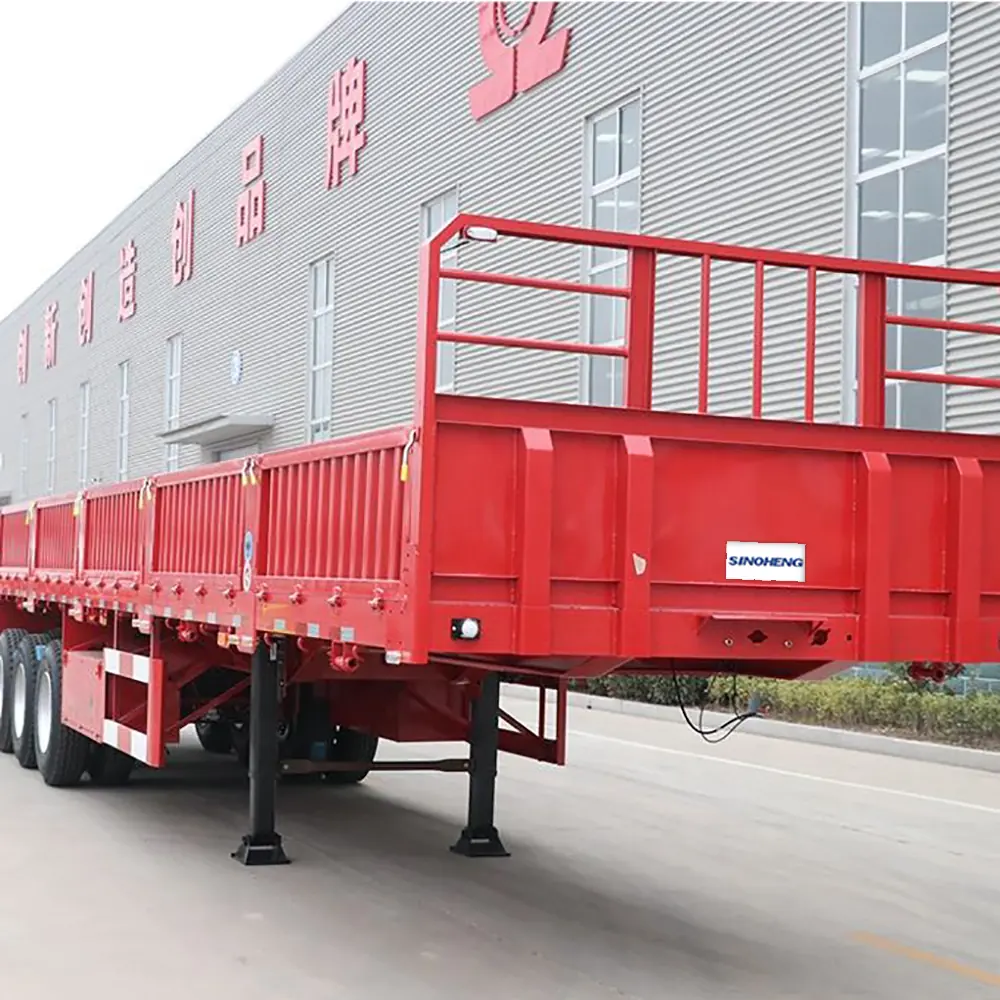

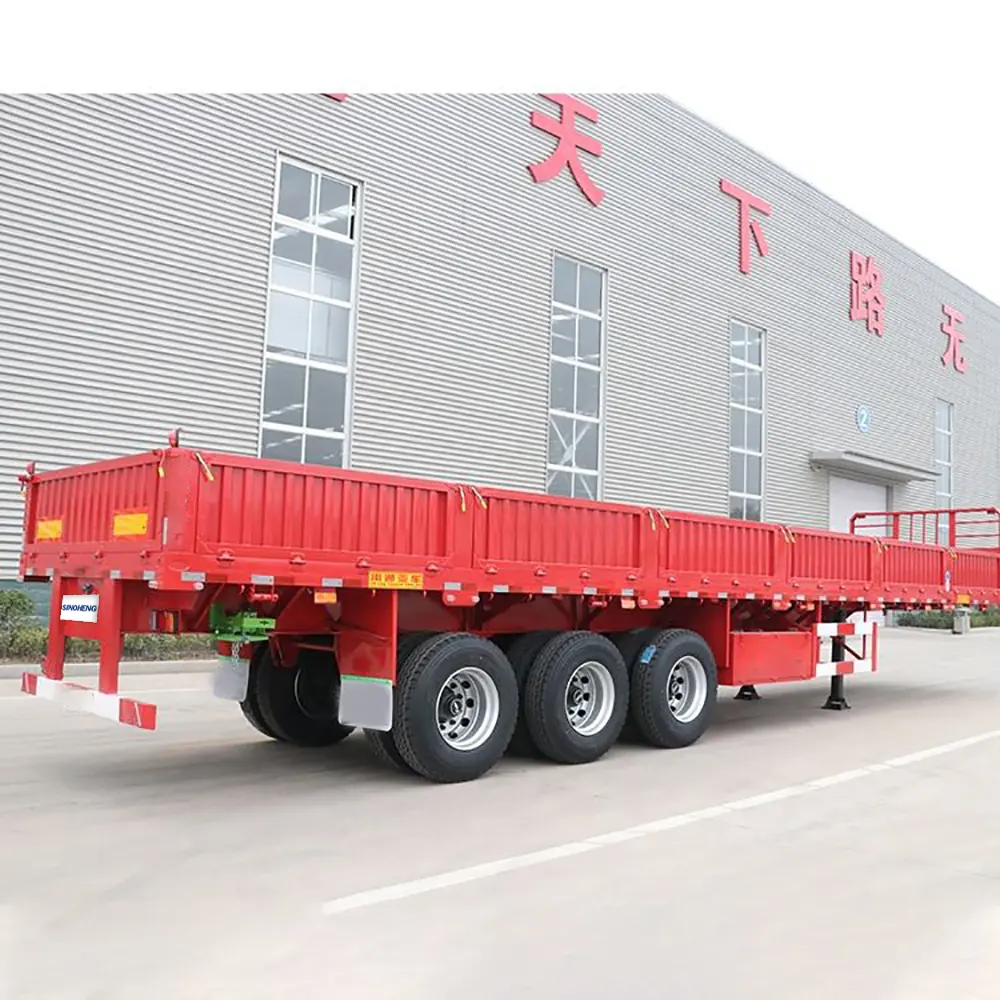

A 13 metre drop side cargo trailer with a hydraulic cylinder side tipping function, rated up to 50 tonnes on three 13T FUWA axles. It is the trailer for operators whose loads change: drop the sides for forklift loading of palletised freight, or tip the whole body to the side to discharge bulk along a road edge or into a hopper. Suspension is American style mechanical with heavy duty 10-piece spring leaves, tires are 12.00R22.5 Triangle or Double Coin in 13 pieces on 9.00-22.5 rims, and lighting is 24V LED with a 7-way receptacle.
Key Benefits
What You Get
- Hydraulic side tipping discharges bulk along a road edge without needing rear clearance
- Drop sides open for forklift loading of palletised and packaged cargo
- 13 metre deck carries a full commercial load of either cargo type
- 50 tonne capacity on three 13T FUWA axles
- One trailer replaces a separate tipper and cargo trailer in a mixed fleet
Problems Solved
What It Fixes
- Rear tipping needs clearance behind the trailer that roadworks rarely allow
- Dedicated tippers sit idle when the contract is palletised freight
- Fixed-side bodies cannot be loaded by forklift
- Running two specialised trailers ties up capital in part-used assets
Who It Is For
Operators Who Buy This Model
- Hauliers with alternating bulk and cargo work
- Road construction contractors
- Building material distributors
- Fleets seeking higher trailer utilisation
Application Scenarios
Where It Works
- Road construction material placement along a carriageway
- Alternating bulk and palletised freight contracts
- Building material delivery with both bulk and packaged items
- Agricultural haulage with mixed load types
Technical Features
Build Specification
- 13 metre drop side cargo trailer with hydraulic cylinder side tipping
- Loading capacity up to 50T
- Axles 13T per axle, three axles, FUWA brand
- American style mechanical suspension, spring leaf 90mm x 13mm x 10 pieces heavy duty
- Tires 12.00R22.5, 13 pieces, Triangle or Double Coin brand
- Rims 9.00-22.5, 13 pieces
- 24V LED lighting, 7-way receptacle, toolbox 1m x 0.5m x 0.5m
Specifications
Manufacturer Data Sheet
| Loading Capacity | (Ton) ≤ 50T AXLES 13 T /PER, 3axles FUWA Brand |
|---|---|
| Tire | 12.00R22.5, 13pieces Triangle or double coin brand |
| Rim | 9.00-22.5, 13pieces China Brand |
| Suspension | Mechanical suspension (America |
| ABS | Without Light LED light Voltage 24V Receptacle 7 ways (7 wire harness) |
| Tool Box | One piece, 1mx0.5mx0.5m ( |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Hydraulic side tipping cycle tested under load
- Drop side hinge and latch function check
- Axle alignment and brake balance test
- Loaded stability check before dispatch
Customization
What You Can Change
- Side panel height and hinged or removable arrangement
- Tipping cylinder sized to your material density
- Axle rating and brand chosen to local service support
- Tire brand Triangle or Double Coin
- ABS anti-lock braking added on request
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| Rear dump trailer | Side tipping works where there is no rear clearance; rear tipping is more stable on soft or uneven ground. |
| Plain drop side cargo trailer | The tipping function turns the same trailer into a bulk unit; a plain drop side cannot discharge bulk. |
| Dedicated side tipper | This build also carries palletised cargo behind closed sides; a dedicated tipper is stronger for continuous heavy bulk. |
Use Guide
Operating This Trailer
- Tip only on level firm ground and never across a cross slope
- Confirm the discharge side is clear of people and structures before lifting
- Latch all drop sides before moving off
- Lower the body fully before travelling
- Inspect the hydraulic cylinder mountings at each service
Related Products
Related Trailers
Cargo Trailer with Side Wall Semi-trailer 40ft Drop side Sidewall Cargo Lorry Semi Truck Trailers
40ft sidewall cargo trailer, 12500*2500*1550mm, 60T payload with 600 or 800mm side wall height.
View Specification
Side Wall Semi-trailer with 3 Axles 40 Feet Truck
40 foot three-axle sidewall trailer, 13000x2500x2850mm, 50T capacity with 24V LED lighting.
View Specification
Flatbed Container Side Wall Cargo 3 axle Semi-trailer China Factory
Flatbed sidewall trailer with container locking, 13000x2500x2850mm and 50T capacity.
View SpecificationKnowledge
Related Guides
Four Reasons the Side Dump Truck Market Keeps Growing
Structure, load capacity, safety devices and cycle time: why side-unloading trailers have taken market share from conventional tippers.
FAQ
Questions About This Model
Does It Tip to the Side or the Rear
To the side, using a hydraulic cylinder. That lets you place material along a road edge where there is no room to raise a body at the rear.
Can It Also Carry Palletised Cargo
Yes. The drop sides open for forklift loading, so the same trailer handles both bulk and packaged freight.
What Is the Loading Capacity
Up to 50 tonnes on three 13T FUWA axles.
Is Side Tipping Safe on Uneven Ground
It needs level firm ground and must not be done across a cross slope. On poor ground a rear tipper is the safer choice.
What Tires Are Fitted
12.00R22.5 in Triangle or Double Coin brand, 13 pieces on 9.00-22.5 rims.
Can the Side Height Be Changed
Yes. Panel height and whether the panels hinge or lift away are both set at order.
What Support Comes With It
One year quality guarantee from delivery, spare parts for the life of the trailer, and engineers available to travel where needed.
Get A Price For The Cargo Configuration You Need
Send your country of use, cargo, load weight and axle limits. We confirm the configuration and quote FOB or CIF in one to three days.
