Types of Wire Rope Clips

Wire rope clips look similar on a shelf but differ in material, finish, standard and intended use. This guide explains how to distinguish US Type Malleable, DIN741, DIN1142, US Forged, Type A and Duplex styles, what the finish tells a buyer, and how to select the right clip for rigging, lifting or transport applications.

What Wire Rope Clips Actually Are

Wire rope clips are permanent or semi-permanent fittings used to terminate or join wire rope ends. They consist of three parts: the clamp body, U-bolt and nut. The saddle is placed on the live end of the rope to prevent slippage. Clips are not for temporary use and must be installed with correct torque and spacing. They are used in cranes, hoists, marine mooring, mining haulage, construction rigging and power line installations. A clip failure can lead to rope slippage or sudden release, so matching the clip to the rope diameter, standard and environment is critical.

US Type Malleable 450D11 Clips

These clips are made from cast malleable steel and are commonly used in North American markets. The body is typically electroplated with blue and white zinc for corrosion resistance. They are suitable for general rigging and transport applications where moderate exposure to moisture is expected. The design is simple and cost-effective. They are not intended for high-stress or repeated load cycles. Always check the grade stamp and ensure the clip matches the wire rope diameter and system standard.

Steel Cable Fasteners Wire Rope Clamp &Thimble & Sleeve Set- Customizable Packaging

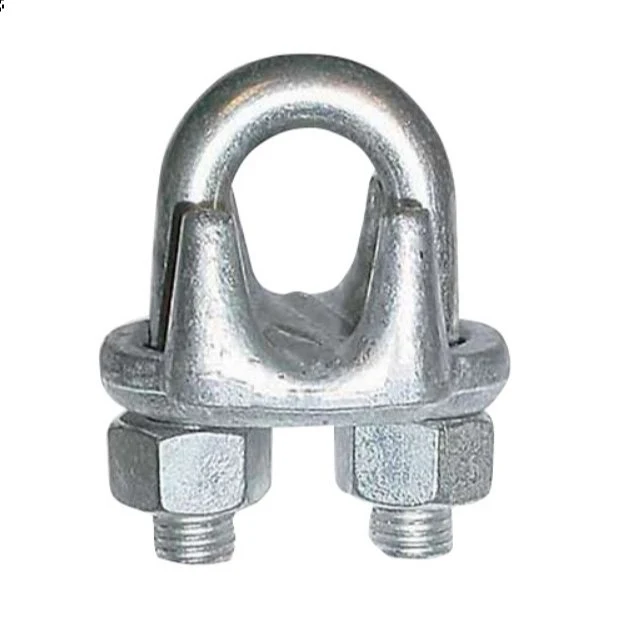

US Forged 450D12 Clips

Made from forged steel, these clips offer higher strength than malleable types. The body is usually fully hot-dip galvanized or body-only HDG for enhanced corrosion resistance. They are used in heavy-duty transport, marine and outdoor applications where exposure to salt, water or weather is common. The forging process improves grain structure and load capacity. These clips are often specified in compliance-sensitive projects. Confirm the working load limit and ensure the installation follows torque and spacing guidelines.

Steel Cable Fasteners Wire Rope Clamp &Thimble & Sleeve Set- Customizable Packaging

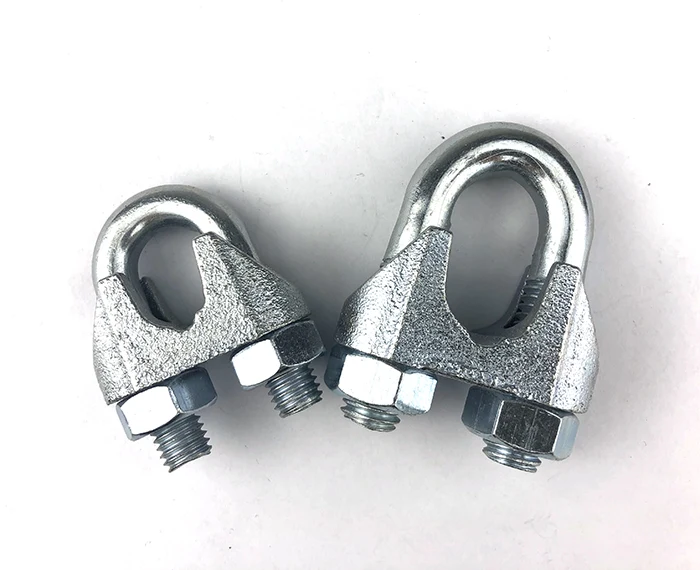

DIN741 Malleable Wire Rope Clips

The most widely used style in European and international markets. Made from malleable steel, the body has a rougher surface finish compared to plated types. Available with or without grooves to grip the rope. The groove design helps prevent rope slippage under load. These clips are typically used in cranes, hoists and fixed rigging systems. They are not recommended for dynamic or high-vibration environments. Always verify the groove alignment and ensure the saddle is on the live end.

Wire Rope Clamp And Thimble Set Customizable Packaging

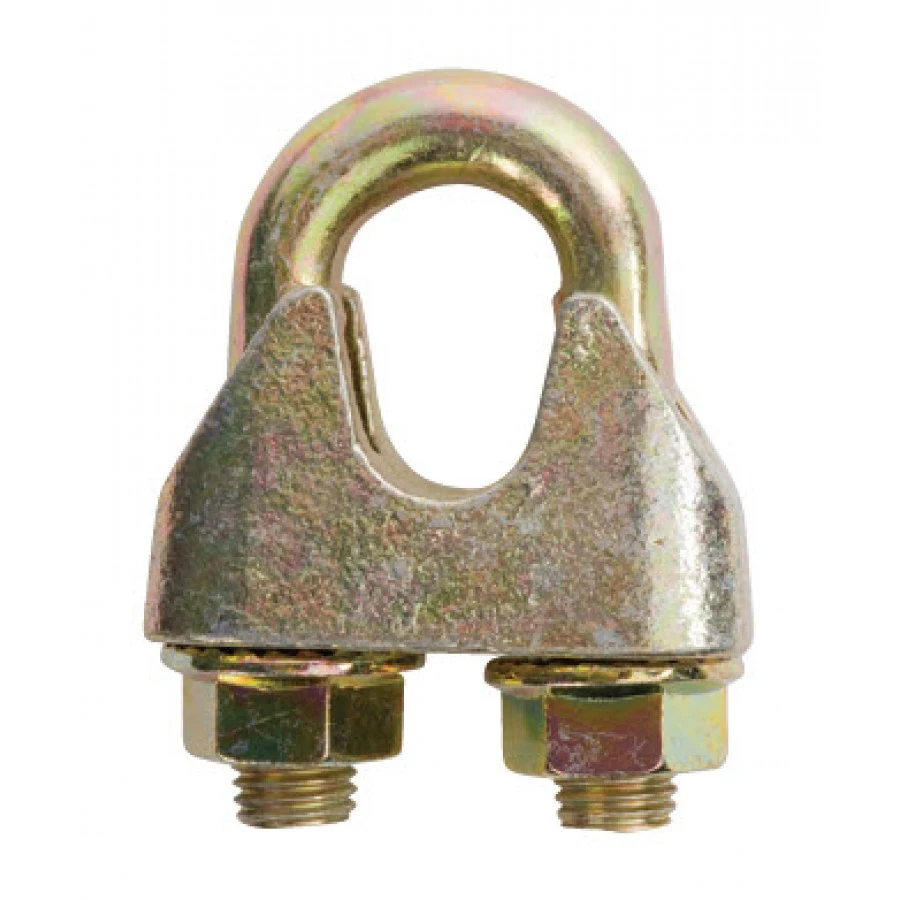

DIN1142 Malleable Wire Rope Clips

Similar to DIN741 but with a wider body and a more robust profile. The surface is usually colored zinc, which provides moderate corrosion protection. They are used in construction, mining and industrial lifting where higher durability is needed. The wider body distributes load better across the rope. They are not suitable for high-temperature environments. Confirm the rope diameter range and ensure the clip is not used beyond its rated capacity.

Wire Rope Clamp And Thimble Set Customizable Packaging

Type a Malleable Wire Rope Clips

Visually similar to US Forged 450D12 but made from malleable steel with a blue and white zinc or color zinc finish. They are used in general rigging and transport applications. The finish is not as durable as hot-dip galvanizing. These clips are common in lower-cost systems and are often used with smaller diameter ropes. They are not recommended for marine or high-moisture environments. Always check the grade stamp and verify the rope diameter compatibility.

Wire Rope Clamp And Thimble Set Customizable Packaging

Duplex and Simplex Wire Rope Clips

Simplex clips are single-unit clips used for basic rope termination. Duplex clips are double units, used when higher retention force is needed or when the rope diameter exceeds the capacity of a single clip. They are used in high-load applications such as crane hoists, overhead lifting and heavy transport. The two clips are installed in series with proper spacing. They require more torque and careful alignment. Always follow spacing rules and use a torque wrench during installation.

Fist Grip Clamp G-429 US Type Drop Forged Wire Rope Termination

How to Read the Finish on Arrival

The surface finish is a quick field indicator. Blue and white zinc suggests US Type Malleable or Type A. Hot-dip galvanizing indicates US Forged 450D12 or high-corrosion environments. Colored zinc points to DIN1142. A rough, uncoated finish is typical of DIN741. However, finish is not proof of grade or strength. Always check the grade stamp on the body and confirm the material and standard with the supplier. A plated clip can be made from low-grade steel, so the stamp is the only reliable source of truth.

Fist Grip Clamp G-429 US Type Drop Forged Wire Rope Termination

Matching the Clip to the Wire Rope and Application

A wire rope clip must match the rope diameter, the system standard (US, DIN, JIS, etc.) and the environment. Using a DIN741 clip on a US-standard system may not meet local compliance. Mixing malleable and forged types in the same assembly reduces the system's strength. The clip's working load limit must be verified against the rope's breaking strength. Always use a thimble when forming a loop. Install clips with the saddle on the live end and the U-bolt on the dead end. Follow spacing and torque requirements to prevent rope damage and failure.
