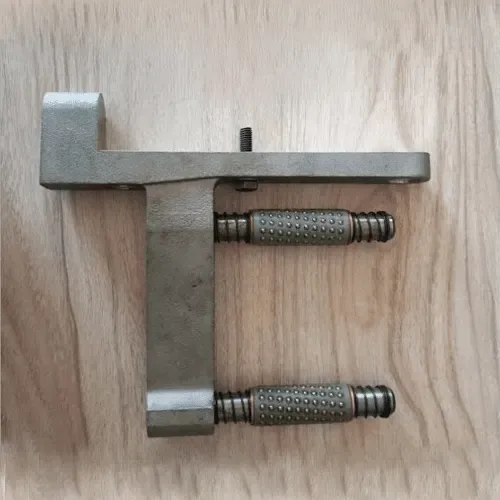

Guide Bar Frame 10
Catalogue item No. 2742This item is listed in the Guide Bar Frames And Ball Bearings range on the original Huaxiatex catalogue under the reference Guide Bar Frame 10. No further written description was published for it. Send the machine brand, the machine type, the gauge and a photograph of the part you are replacing and the match will be confirmed before anything is shipped.
- Part ReferenceGuide Bar Frame 10
- CategoryGuide Bar Frames And Ball Bearings
- Catalogue ItemNo. 2742
- Supplied FromBeijing, China
Product Overview
This item is listed in the Guide Bar Frames And Ball Bearings range on the original Huaxiatex catalogue under the reference Guide Bar Frame 10. No further written description was published for it. Send the machine brand, the machine type, the gauge and a photograph of the part you are replacing and the match will be confirmed before anything is shipped.
Guide Bar Frame 10 is listed on the Huaxiatex catalogue in the Guide Bar Frames And Ball Bearings category, part of the Warp Knitting Spare Parts range. Guide bar frames, ball bearings and machine axes.
What This Part Does
The guide bar frame carries the guide bar and transfers the swing and shog motion to it. Its bearings decide how much lost motion there is between the drive and the guide, and lost motion at that point becomes a fabric fault.
Where It Is Used
Karl Mayer warp knitting machines and compatible machines.
Who It Is For
Warp knitting mills and maintenance teams replacing worn guide bar frames and ball bearings, machine builders and rebuilders sourcing elements for refurbishment, and agents supplying spare parts to knitting plants. Products have been exported worldwide, covering Europe, Asia, Africa, Middle East.
Problems It Solves
- A machine standing because one worn part cannot be sourced quickly.
- A part with no readable number and no surviving parts book.
- Spare parts spread across several suppliers, each with its own minimum order.
- Replacement parts arriving in the wrong gauge because only the machine type was quoted.
Specification
| Part Reference | Guide Bar Frame 10 |
|---|---|
| Category | Guide Bar Frames And Ball Bearings |
| Catalogue Item | No. 2742 |
| Supplied From | Beijing, China |
Where a dimension is not published on the original catalogue it is not shown here. Send the old part or its measurements and it will be confirmed on the quotation rather than assumed.
Category Specification
| Bearing sizes listed | 10x43, 12x43, 12x70, 18x60, 18x65, 25x85, 25x110 |
|---|---|
| Bearing variants | Copper cage, double layer |
| Related parts | Guide bar frames, machine axes |
How To Order
Send These Five Things
- Machine brand and machine type.
- Bearing bore and outside diameter, or the old bearing marking.
- Whether the copper cage or double layer type is fitted.
- Quantity required.
Send them by WhatsApp on 0086-13693077663 or by email to [email protected]. WhatsApp is quicker for photographs; email is better where a written quotation has to reach a purchasing department.
Delivery
The company statement on delivery is that quick delivery is always done for any orders, even for a small order size. Tell us on the enquiry whether the machine is stopped, because an urgent single item and a routine restock are handled differently.
In This Category
Machine Applications
Related Solutions
Related Parts In Guide Bar Frames And Ball Bearings
Other items listed in the same category on the Huaxiatex catalogue.
Guide Bar Frame 12
Listed in the Guide Bar Frames And Ball Bearings range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 2744
Guide Bar Frame 13
Listed in the Guide Bar Frames And Ball Bearings range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 2745
Guide Bar Frame 14
Listed in the Guide Bar Frames And Ball Bearings range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 2746
Guide Bar Frame 15
Listed in the Guide Bar Frames And Ball Bearings range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 2747
All Kinds of Ball Bearings
Listed in the Guide Bar Frames And Ball Bearings range for warp knitting machines. Send the machine brand, type and gauge for confirmation.
- ItemNo. 2772
Questions About Guide Bar Frame 10
Will Guide Bar Frame 10 fit my machine?
Send the machine brand, the machine type and the gauge together with a photograph of the part you are replacing. The match is confirmed against the catalogue reference before anything is shipped.
What information do you need to quote?
The part reference or a photograph, the machine brand and type, the gauge, and the quantity. Sending all of it at once avoids a round trip.
How are the bearings sized on this site?
By bore and outside diameter in millimetres, written as bore x outside diameter.
How do I tell a worn bar frame bearing from a worn guide?
Rock the guide bar by hand with the machine stopped. Play at the frame is felt as a knock, a worn guide is not.
Can I order a single piece?
Yes. The company statement is that quick delivery is done for any order, even for a small order size.
Quote Guide Bar Frame 10
Send the machine brand, machine type, gauge and quantity and we will come back with a price. Single pieces are accepted.
