Stenter Chains

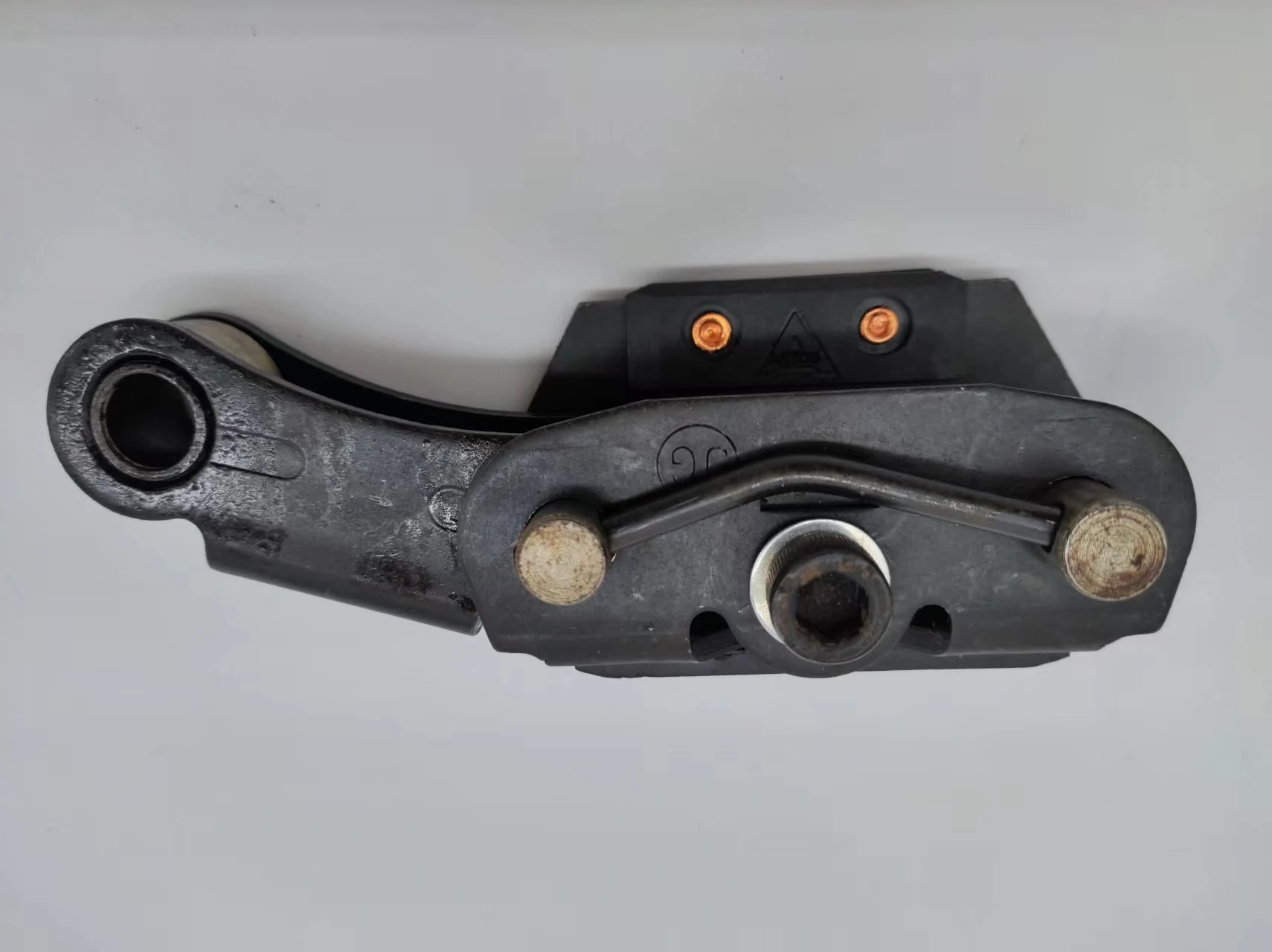

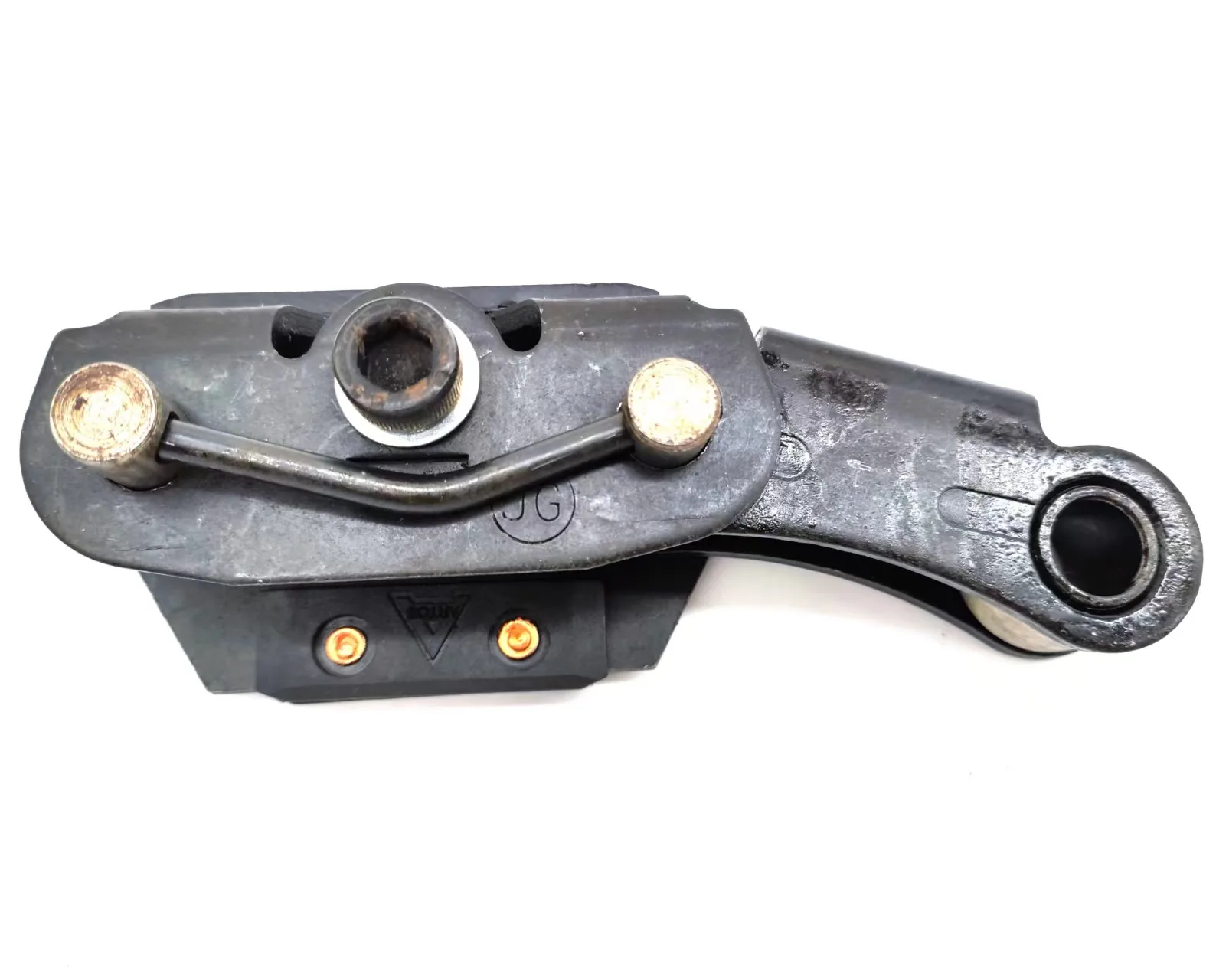

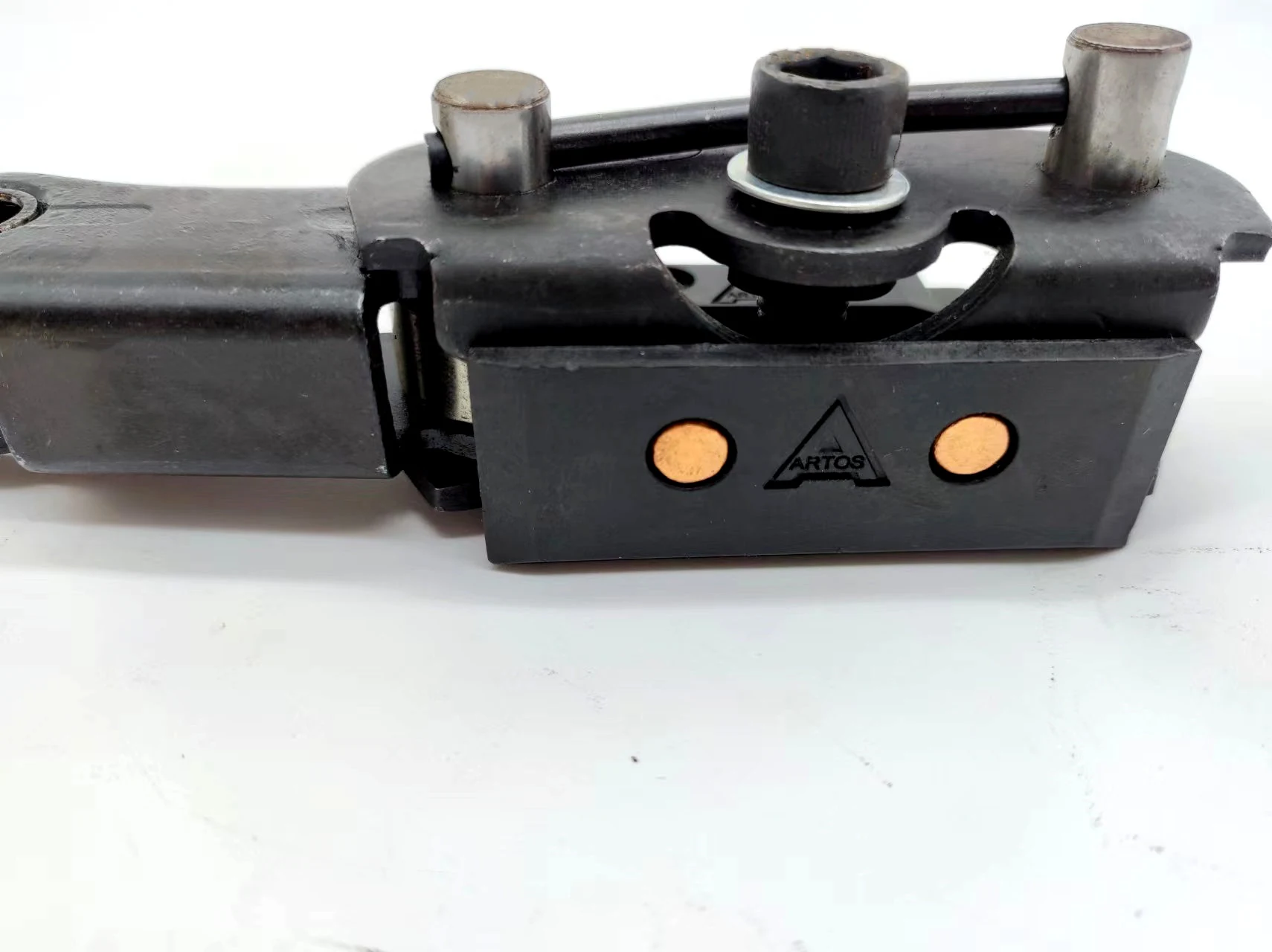

Artos Stenter Chain With PEEK Slider
Artos chain built with self-lubricating PEEK sliders instead of copper.
Product Overview
The same Artos oil-free guide chain assembly, built with PEEK sliders in place of copper. PEEK resin is a high performance thermoplastic with high temperature resistance, wear resistance, self-lubrication, low noise, corrosion resistance and high strength, and it is widely used in textile machinery for exactly these reasons.
The rest of the assembly is unchanged: connectors, U-shaped connectors, pins, PEEK bushes, PEEK dust cover screws and wear sleeves, on high quality bearings.
Key Benefits
- Self-lubricating PEEK sliders reduce the grease demand on the rail
- Low noise running compared with a metal slider
- High temperature and corrosion resistance in the chamber environment
- PEEK bushes as well as sliders, so both wear interfaces are upgraded
Who It Is For
- Artos users with a well-maintained rail wanting longer slider life
- Plants reducing grease consumption on the chain line
- Engineers upgrading from copper after repeated slider wear
Problems It Solves
- Copper sliders wearing out faster than the rest of the chain
- Grease demand on the rail and grease finding its way onto the cloth
- Chain noise on the track
Application Scenarios
- Artos frames with a guide rail in good condition
- Lines where chain noise is a problem
- Mills extending intervals between chain services
Technical Features
- PEEK sliders, self-lubricating and wear resistant
- PEEK bushes and PEEK dust cover screws
- High quality bearings
- Black finish, approximate weight 0.65 kg
Specifications
| Machine | Artos stenter, oil-free guide |
|---|---|
| Slider | PEEK |
| Bush | PEEK |
| Weight | approx 0.65 kg |
| Colour | black |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Slider dimensions measured on every link
- PEEK material grade verified on incoming stock
- Chain pitch measured over a run of links
Customisation Options
- PEEK or copper slider at your choice
- Chain length built to your machine
- PEEK sliders also sold separately for retrofitting an existing chain
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
PEEK against copper: PEEK is self-lubricating, quieter and longer lasting, but it wants a rail in good condition. Copper is more forgiving of a defective rail and conducts heat away. The rail condition decides this, not the price list.
Use Guide
Inspect and if necessary dress the guide rail before fitting PEEK sliders
Fit complete sections for uniform running
Clean the guide and chain at least once a year even with self-lubricating sliders
Use a high temperature grease on the bearing side
Track slider thickness at each service to confirm the expected wear rate
FAQ
Questions About Artos Stenter Chain With PEEK Slider
What is PEEK?
Polyether ether ketone resin, a high performance thermoplastic with high temperature resistance, wear resistance, self-lubrication, low noise, corrosion resistance and high strength. It is widely used in textile machinery.
Do PEEK sliders still need grease?
The sliders are self-lubricating, but the chain still needs its annual clean and a high temperature grease on the bearing side.
Can I retrofit PEEK sliders to my existing chain?
Yes. We sell PEEK sliders for Artos chains separately.
Does the rail need to be perfect?
It needs to be in good condition. PEEK does not tolerate a scored rail as well as copper does.
Is the rest of the chain the same?
Yes: connectors, U-shaped connectors, pins, PEEK bushes, PEEK dust cover screws and wear sleeves on high quality bearings.
Lead time?
Sliders within 7 days; full chains confirmed at quotation.
