ABS Sanitary Part Mould With Submarine Gate
Single cavity ABS tool, one slide, submarine gate, 60 sec cycle, 500,000 shots.
What This Tool Is
One impression, one slide and a submarine gate. The lowest maintenance burden of any mould in this catalogue, and the part still ejects finished. The tool runs one slide and a submarine gate. The archived record puts the cycle at 60 sec and the tool life at 500,000 shots.
ABS moulds easily, plates well and is the default for bathroom and consumer parts. It off-gasses in the tool, which is why stainless cavity steels turn up so often alongside it.
Company catalogue record 183.
Specification And Trade Terms
Mould specification
| Product materials | ABS |
|---|---|
| Cavity | 1 x 1 |
| Slider | 1 |
| Gate | Submarine gate |
| Cycle time | 60 sec |
| Warranty | 500,000 shots |
Commercial terms
| Product origin | China |
|---|---|
| Price terms | FOB Xiamen or CIF |
| Payment terms | T/T or L/C |
| Minimum order | 1 set |
| Mould standard | HASCO or DME standard components |
Key Benefits
A submarine gate runs under the parting line and shears off during ejection, so the part leaves the press finished
A single impression keeps the tool cost down and makes sense until annual volume genuinely outgrows one cavity
One slide is a low count for this kind of part, and every slide left out is cycle time and maintenance removed
ABS moulds easily, plates well and is the default for bathroom and consumer parts
Problems It Solves
ABS off-gasses in the tool, and a cavity that corrodes between runs shows up as pitting on a plated part
Hand degating a cosmetic part risks damaging the very face it is being trimmed on
A single impression tool cannot supply a programme once it reaches production volume, and by then the tool is already paid for
Who It Is For And Where It Is Used
Who it is for
- Bathroom and sanitary ware brands
- Sanitary component assemblers
- Trading companies holding a bathroom brand
Application scenarios
- Moving a European shower tool to an Asian source without changing the part
- Replacing a cover plate tool that has started to bow parts
- Adding a second impression once a launch programme reaches volume
Technical Features And Materials
Technical features
- 1 x 1 impression layout
- Submarine gate feed
- One mechanical slide with hardened wear plates
- Cavity and core rated at 500,000 shots
- HASCO or DME standard mould base components
Customisation options
- Built as a two cavity or multi impression tool where the annual volume supports it
- Cavity steel specified against your moulding grade and the shot count the programme actually needs
- Gate type moved away from the submarine gate if the cosmetic face or the degating requirement changes
- Cosmetic features such as texture, logos and part numbers cut as replaceable inserts so a later change does not mean a new cavity
- Mould base built to HASCO or DME dimensions, or to a standard your own tool room already stocks spares for
Materials
- ABS
How This Mould Is Made
- Cavity and core blocks are inspected against the specified grade before they enter the machining route
- Cavity geometry is cut on the CNC machining centres from programmes generated off the released part model

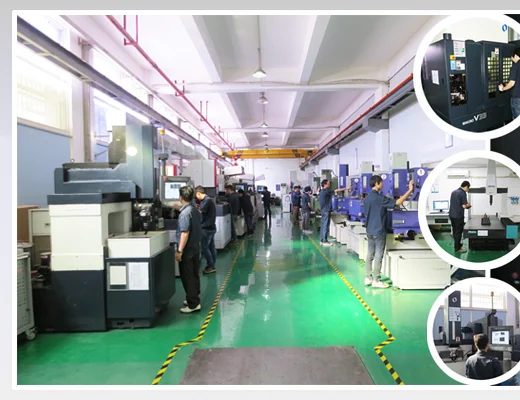

- Rib roots, text and internal corners are burned in with EDM electrodes, which is detail no rotating cutter can reach
- The one slide pocket is wire cut so the slide fit repeats rather than being filed in
- The moulding face is polished to the finish the part needs, which for a plated part is a different grade from a textured one
- Parting line, shut offs and ejection are fitted and spotted by hand at the bench
- The tool is trialled on one of our injection machines and the 60 sec cycle is measured rather than assumed
Quality Control On This Tool
- Incoming cavity and core steel is checked against the grade on the order, not against the delivery note
- Machined inserts and plates are measured between operations rather than only at the end of the route
- Slide travel and shut off contact are checked at the bench before the tool goes anywhere near a press
- Trial parts are measured on the 2D image measuring projector against the dimensions nominated on your drawing
- Corrections found at trial are recorded against the mould number with the date and the reason, so a repair years later starts from what the tool actually is
- Before shipment the water and hydraulic circuits are blown out and plugged and the moulding faces are oiled
Compared With The Alternatives
A two cavity version of the same part
Doubles output per cycle for roughly 60 to 70 percent more tool cost. It pays back above a few hundred thousand pieces a year and not below.
A hot runner version
Removes the runner weight and allows a gate in the middle of the part, at a higher tool cost and with a heated manifold to maintain.
Use And Maintenance Guide
- Run the tool in the ABS grade it was trialled with; changing grade changes shrinkage and cavity wear at the same time
- Inspect the submarine gate at every service, because gate condition is what decides whether parts come off the tool clean
- Grease the slide gibs on the interval in the tool documentation rather than waiting for flash to appear
- Check that every slide returns fully after a press change; a slide that does not return will damage the cavity on the next close
- Oil the moulding faces and plug the circuits for any storage longer than a week
Related Products
Moulds For Sanitary Ware Parts
ABS Sanitary Part Mould With S136 Cavity Steel
Stainless quenched cavity for a plated bathroom part
Product materials ABSMould material S136 quenching
Moulds For Sanitary Ware Parts
PP Cover Plate Mould With NAK80 Cavity Steel
Pre-hardened NAK80 on a large flat polypropylene part
Product materials PPMould material DAIDO NAK80
Moulds For Sanitary Ware Parts
ABS Sanitary Part Mould With Three Slides
Three independent pull directions on one impression
Product materials ABSMould material DAIDO S-Star quenching
Moulds For Automotive Interior Parts
PC ABS Automotive Part Mould With SKD61 Cavity Steel
SKD61 for the melt temperature and abrasion of PC ABS
Product materials PC/ABSMould material SKD61
Industries And Guides
Industry
Sanitary Ware
Shower heads, hand showers, cisterns, toilet seats and cover plates moulded in ABS and PP
Industry
Medical Instrument
Instrument housings and moulded components for medical equipment makers
Process Guide
Pinpoint Side Submarine And Valve Gates Compared
All four gate types appear in this catalogue. Where each one belongs, what it leaves on the part, and what it costs in mould construction.
ABS Sanitary Part Mould With Submarine Gate Questions
What buyers ask about this tool before ordering.
What does the submarine gate mean for the finished part?
A submarine gate runs under the parting line and shears off during ejection, so the part leaves the press finished. It needs a non cosmetic face to sit on and room beneath the parting line.
What does the 500,000 shots figure actually cover?
It is the cavity and core life the tool was built for, running the nominated ABS grade under normal maintenance. It is not a guarantee against damage from a mispositioned part, a press fault or a missed service interval.
Is the 60 sec cycle achievable in our press?
It was measured on a trial here with the mould running ABS. Cycle time follows the heaviest section of the part far more than it follows the press, so it should transfer, but confirm your clamp tonnage and cooling capacity with us first.
Do you supply the moulded parts as well as the mould?
Yes. The plant runs injection machines below 600 tons on the same site as the tool room, so a mould built here can be trialled and then run for production without shipping it anywhere.
