Gold/Silver Potassium Cyanide Making Machine · 2-5 kg batch
Silver Potassium Cyanide Electrolytic Making Machine
Silver salt production, cyanide gas purification and metal recovery in one cabinet.
Overview
What This Machine Is
Diaphragm electrolysis with an anion and cation exchange membrane, a 12 V / 10 A rectifier and titanium electrodes, combined with an extraction cabinet, vertical spray pump, spray recovery cabinet and exhaust system so the making, the fume treatment and the recovery all sit in one machine.
The problem it is built for
Silver salt production creates a gas problem and a losses problem at the same time, and most plants solve them with three separate pieces of equipment from three suppliers. This is specified as one integrated cabinet, which is why the fume path and the recovery path actually connect.
Specification
Silver Potassium Cyanide Electrolytic Making Machine Specification
Transcribed from the published product data. Where a figure is not published it is not listed here, and it has not been estimated.
| Function | Production of silver cyanide potassium |
|---|---|
| Machine type | Gold electrolytic machine |
| Principle | Diaphragm electrolysis |
| Capacity | 2 kg / 5 kg |
| Rectifier | 12 V / 10 A |
| Electrodes | Titanium anode and titanium cathode |
| Membrane | Nano ionic membrane |
| Size | 1320 x 750 x 1830 mm |
| Weight | 130 kg |
| Power supply | 220 VAC 60 Hz / 380 V AC 50 Hz |
| Brand | XHF |
| Warranty | 1 year |
| Packaging | Export carton + wooden box |
| Supply ability | 300 sets per year |
Download
Features
What Is Built Into It
Ion exchange membrane on top of electrolysis
Anion and cation exchange membrane technology is added to the electrolysis route, which is the difference between this and a plain electrolytic cell.
Three functions, one machine
Electrolytic preparation of the salt, cyanide gas purification and collection, and precious metal recycling are all integrated rather than bolted together.
Ten specified components
Rectifier, titanium electrodes, nano ionic membrane, heating and temperature control, time control and alarm, extraction cabinet, vertical spray pump, spray pipework and PP nozzles, spray waste recovery cabinet, exhaust fan and duct.
Electrolysis instead of the chemical route
The chemical method needs added acid, which the source states reduces the purity of the resulting salt. Electrolysis avoids that, and also minimises metal loss.
Loss recovered from the waste water
Metal carried into the exhaust and spray system is captured in the waste water recovery tank rather than written off.
Applications
Where It Is Used
- Jewelry factories producing silver plating and electroforming electrolyte
- Electroplating workshops running silver baths
- Precious metal recovery plants converting recovered silver into salt
Photographs

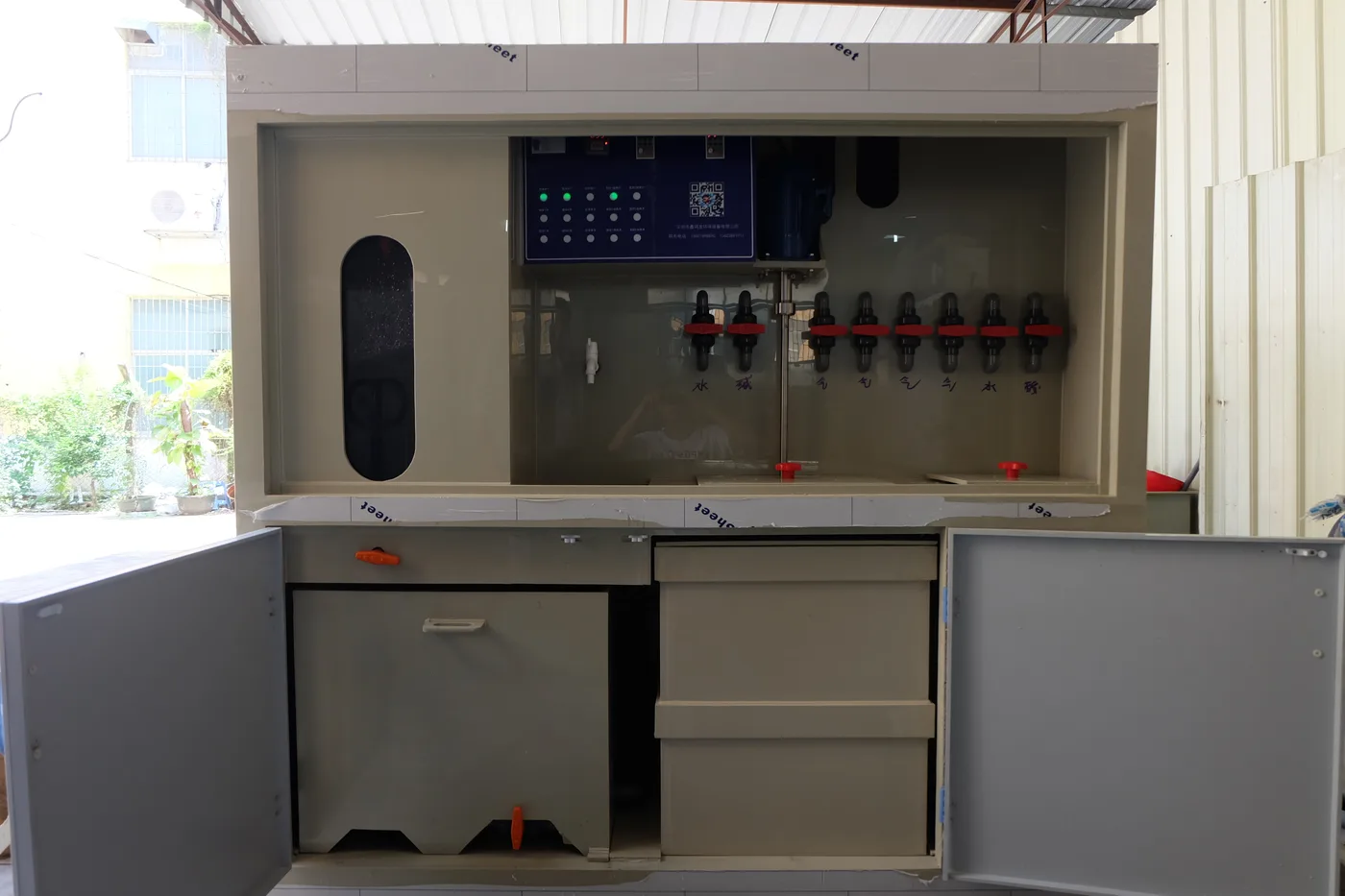

Silver Potassium Cyanide Electrolytic Making Machine In Detail
Every photograph on this page is of the actual machine as supplied. Nothing here is a render.
Industries
Industries Running This Machine
Jewelry Manufacturing
Electroforming, plating, acid finishing and scrap recovery for factories making gold and silver pieces.
Electroplating And Surface Finishing
Bath cleanliness, drag-out recovery and de-plating for plants running precious metal baths.
FAQ
Silver Potassium Cyanide Electrolytic Making Machine Questions
How is this different from the chemical method of making silver salt?
The chemical route needs added acid, which the source says greatly reduces the purity of the salt. Diaphragm electrolysis with an ion exchange membrane avoids that step entirely.
What handles the cyanide gas?
The machine includes an extraction cabinet, a vertical spray pump with PP spray nozzles, a spray waste recovery cabinet and an exhaust fan and duct as part of the specified configuration.
What batch sizes are offered?
2 kg and 5 kg.
Is it the same frame as the gold salt machine?
Same published dimensions, 1320 x 750 x 1830 mm at 130 kg, and the same diaphragm electrolysis principle. The electrode, membrane and rectifier specification is set for silver.
