RTG-1001
3D Hard Gold/Silver Jewelry Electroforming Machine
80 and 100 litre electroforming tanks with plus or minus 1 C control, for hollow gold and silver pieces.
Precious Metal Electroforming Equipment · RTG-1001 / 60 L
Cyanide-Free 24K Hard Gold Jewelry Electroforming Machine
PLC-dosed, cyanide-free 24K electroforming for 5D structures.
Overview
What This Machine Is
A 60 litre cyanide-free electroforming machine with an automatic dosing pump under PLC control: the program sets the ampere-hour value and meters the solution accordingly, and also controls circulation, filtration, cycle time, current and the forward and reverse swing.
The problem it is built for
Cyanide electroforming chemistry brings a licensing, ventilation and insurance problem into a jewelry factory before it produces a single piece. A cyanide-free bath removes that, and PLC dosing removes the second problem, which is an operator topping up a 24K bath by eye.
Specification
Cyanide-Free 24K Hard Gold Jewelry Electroforming Machine Specification
Transcribed from the published product data. Where a figure is not published it is not listed here, and it has not been estimated.
| Product name | Cyanide free 3D 24K hard gold jewelry electroforming machine |
|---|---|
| Brand | XHF |
| Model | RTG-1001 |
| Machine type | 5D gold jewelry electroforming machine |
| Tank size | 60 L (inner dia. 620 x 200 mm) |
| Electroforming power | 50 A / 12 V |
| Heating system | 2 kW |
| Total power | 3 kW |
| Temperature control accuracy | +/- 1 C |
| Anode | Platinum-titanium mesh (YD/PT) |
| Voltage | 220 V |
| Weight | 250 kg |
| Single package size | 152 x 105 x 127 cm |
| Core components | Motor, pump |
| Warranty | 1 year |
Download
Features
What Is Built Into It
Cyanide-free process
The defining feature. The same 24K hard gold and 5D structures without bringing cyanide chemistry into the workshop.
Automatic dosing under PLC
The dosing pump adds solution automatically on an ampere-hour trigger set in the program, so replenishment tracks the actual metal deposited rather than the operator's guess.
Five things the PLC controls
Dosing time and quantity, circulation and filtration speed, electroforming time with automatic stop, electroforming current, and swing direction, duration and speed.
Separate circulation and filter pumps
Two corrosion-resistant pumps rather than one doing both jobs, so filtration rate and circulation rate can be set independently.
Auto-stop on low level
Minimum tank level is preset; the machine alarms and stops rather than exposing the anode.
Applications
Where It Is Used

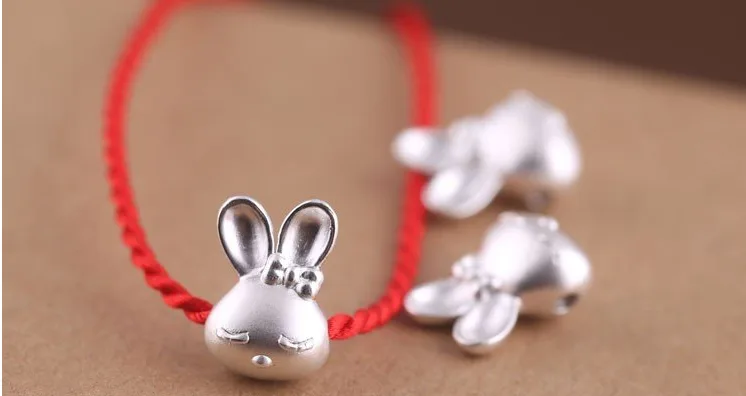

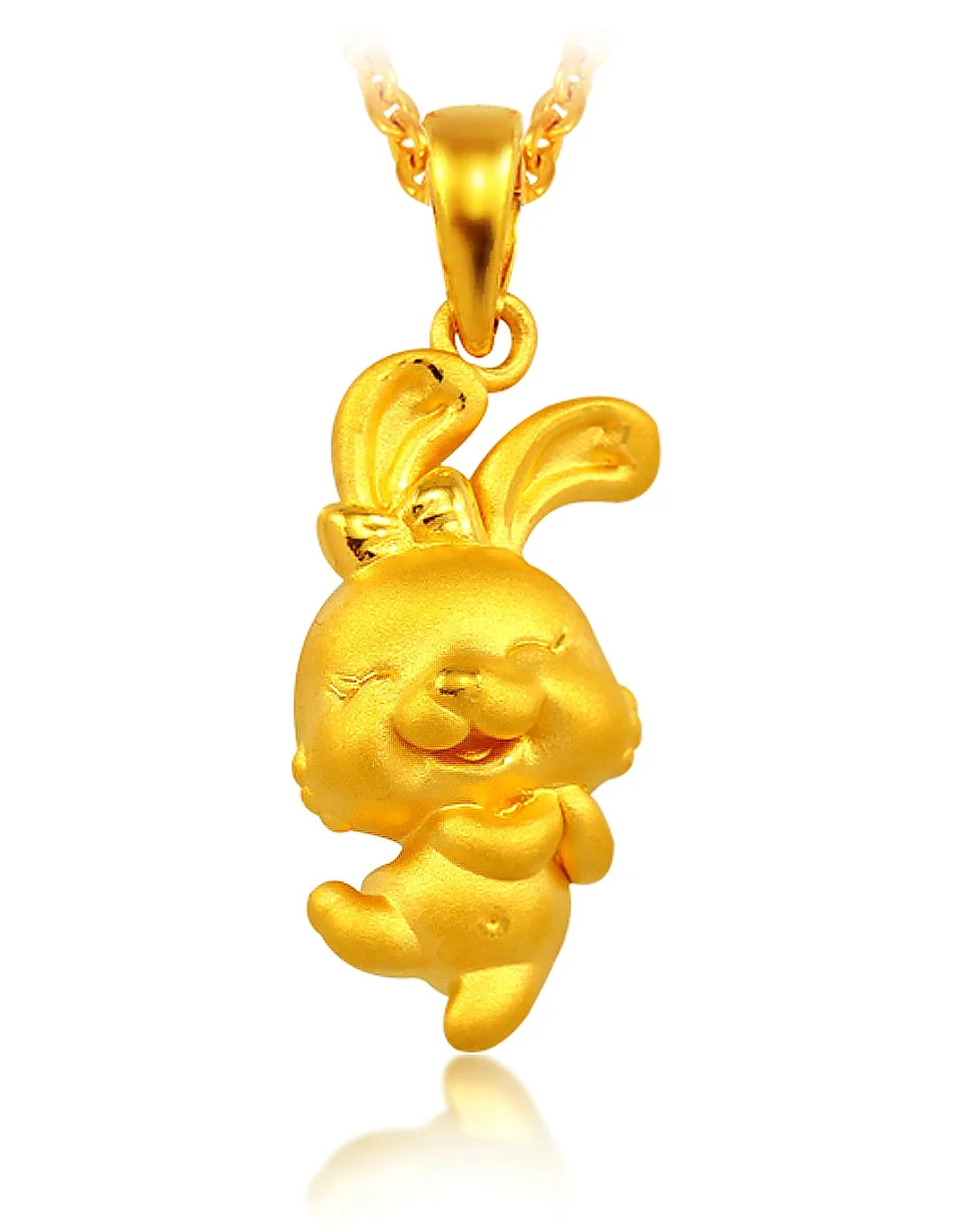

- 24K hard gold pendants, bracelets, rings, bangles and anklets

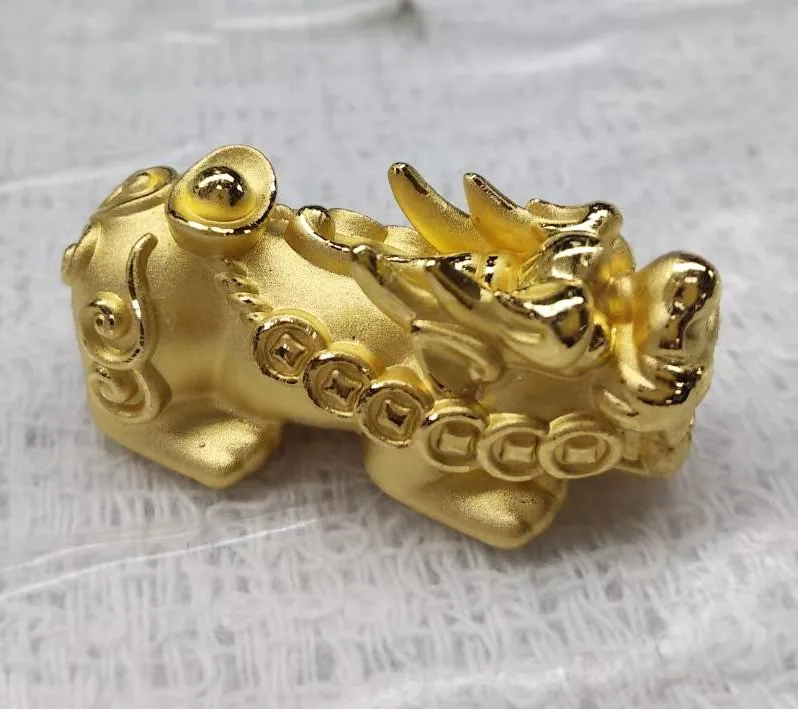

- 5D structure pieces with complex, artistic geometry
- Jewelry workshops that cannot or will not run cyanide chemistry
- Production where deposit thickness has to be repeatable batch to batch

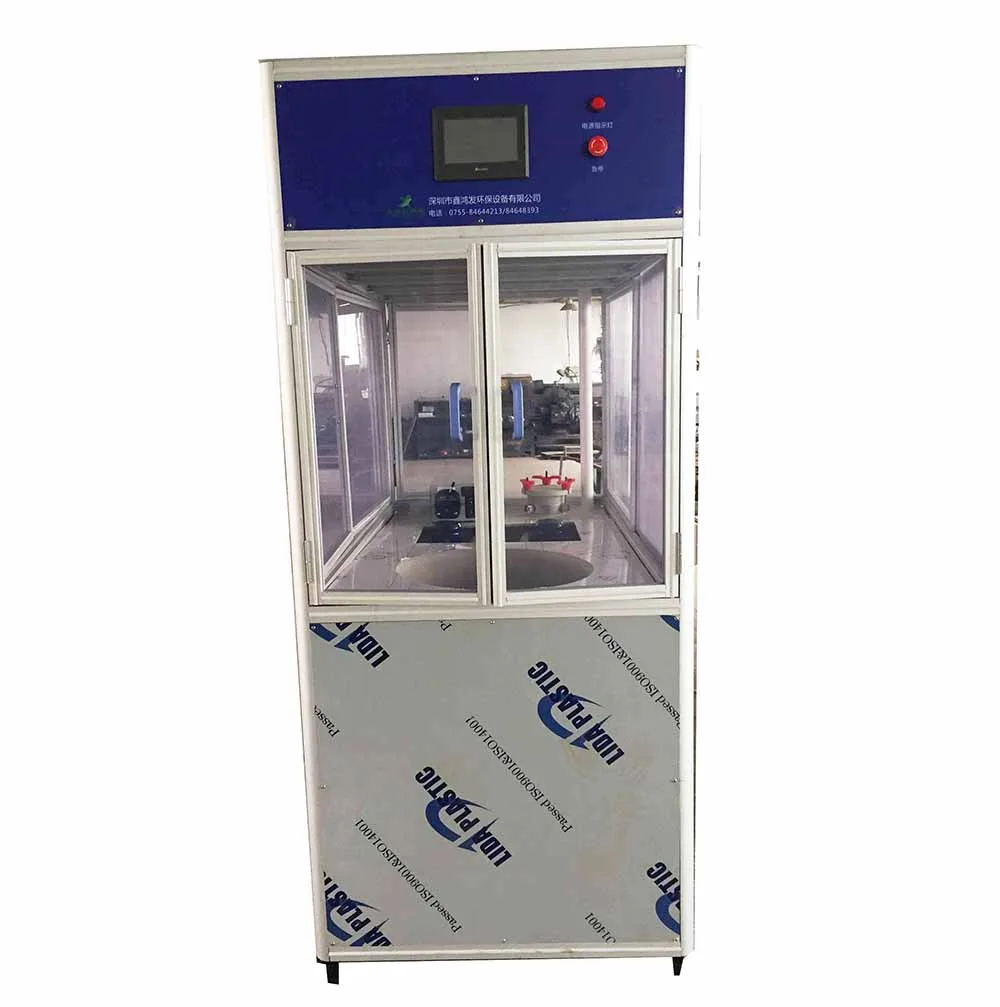

Photographs
Cyanide-Free 24K Hard Gold Jewelry Electroforming Machine In Detail
Every photograph on this page is of the actual machine as supplied. Nothing here is a render.
Industries
Industries Running This Machine
Jewelry Manufacturing
Electroforming, plating, acid finishing and scrap recovery for factories making gold and silver pieces.
FAQ
Cyanide-Free 24K Hard Gold Jewelry Electroforming Machine Questions
Why choose the cyanide-free machine over the standard 3D electroforming machine?
Chemistry and control. The cyanide-free bath avoids cyanide handling altogether, and this build adds PLC automatic dosing, which the standard 3D machine does not have.
What does 5D refer to here?
The machine type is listed as a 5D gold jewelry electroforming machine, aimed at the more complex and artistic structures in 24K hard gold.
What is the tank capacity?
60 litres, inner diameter 620 x 200 mm, on the RTG-1001 filter system with 50 A / 12 V power and 2 kW heating. Total connected power is 3 kW.
What are the shipping dimensions?
152 x 105 x 127 cm at 250 kg.
