Metal Nickel Sticker Electroforming Machine
Four tank sizes from 100 to 180 litres for electroformed nickel labels, logos and nameplates.
Overview
What This Machine Is
Nickel electroforming for metal stickers and trademarks: 100 L, 120 L, 150 L and 180 L tanks with a 600 mm inner diameter, 30 A / 12 V or 50 A / 12 V power, 1 to 4 kW heating, platinum-titanium anode and a 600 x 400 mm working area.
The problem it is built for
An electroformed nickel label reproduces a screen-printed master down to the edge of the letterform, which is exactly why it is used on appliances, instruments and brand hardware. The bath has to hold uniform current density across a 600 x 400 mm plate to do it.
Specification
Metal Nickel Sticker Electroforming Machine Specification
Transcribed from the published product data. Where a figure is not published it is not listed here, and it has not been estimated.
| Product name | Custom electroforming machine for signs, nameplating, UPs |
|---|---|
| Brand | XHF |
| Models | RTG-1001, RTG-2001, RTG-1004 |
| Tank sizes | 100 L (600x400), 120 L (600x500), 150 L (600x600), 180 L (600x700) mm |
| Electroforming power | 30 A / 12 V or 50 A / 12 V |
| Heating system | 1 kW / 2 kW / 3 kW / 4 kW |
| Anode | Platinum-titanium (YD/PT) |
| Inner working size | 600 x 400 mm |
| Dimension (L x W x H) | 1630 x 1200 x 1400 mm |
| Voltage | 200 V / 380 V |
| Weight | 200 kg |
| Core components | Pump, rectifier, anode and cathode |
| MOQ | 1 set |
| Warranty | 1 year |
Download
Features
What Is Built Into It
Four tank sizes on one frame
100, 120, 150 and 180 litres, each paired with its own rectifier and heater rating, so the machine is matched to plate size rather than oversized by default.
Gold, silver or nickel
Nickel is the common choice and what the machine is named for, but the same station is specified for gold and silver electroforming where the application calls for it.
Stainless steel master plate route
The process runs from a stainless steel plate that is ground, degreased, screen printed, exposed and developed into the master before it ever enters the tank.
Thick and thin work
Electroformed trademarks are made thick, electroformed metal pads thin. Both are named applications of the same machine.
Circulating filtration on every model
RTG-1001, RTG-2001 and RTG-1004 filter systems across the four tank sizes.
Applications
Where It Is Used
- Signs, logos and metal stickers for appliances, monitors, audio equipment and furniture
- Security doors, glass products, plastic phone shells and phone PU cases
- Stainless steel cups, belt buckles, motorcycles and gift boxes
- Pianos, guitars, wine boxes and other craft hardware

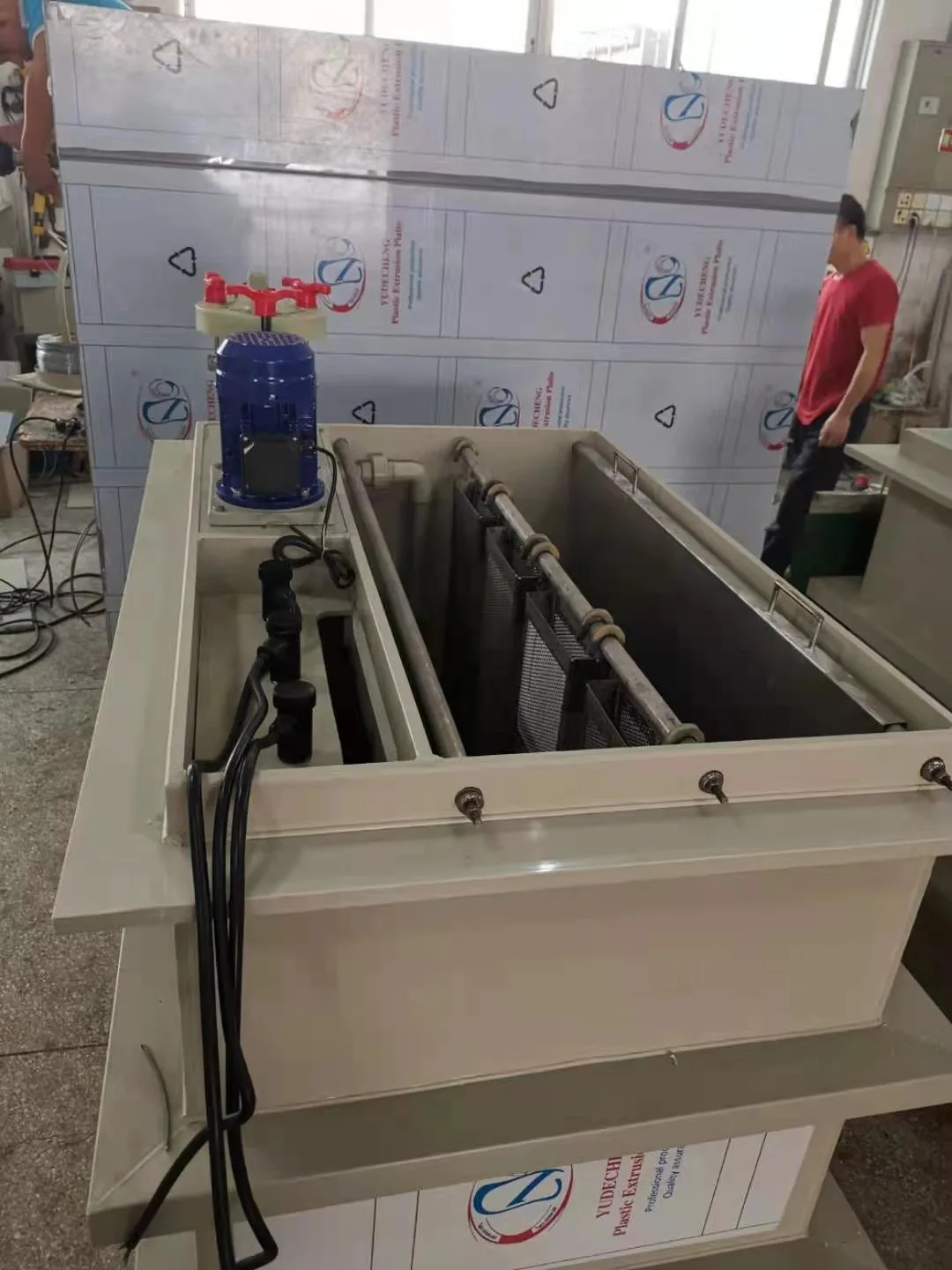

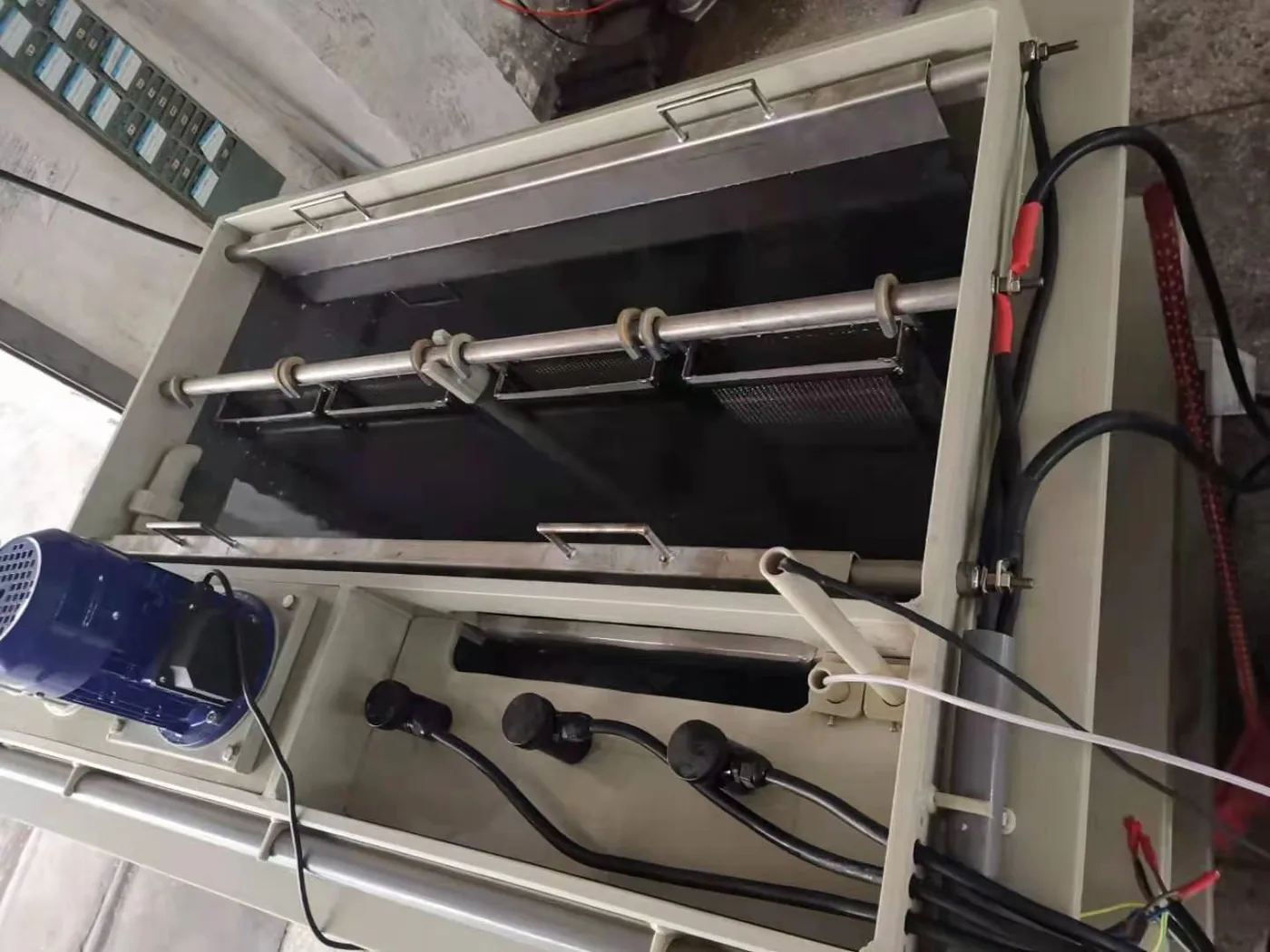

Photographs
Metal Nickel Sticker Electroforming Machine In Detail
Every photograph on this page is of the actual machine as supplied. Nothing here is a render.
Industries
Industries Running This Machine
Signage And Nameplate Manufacturing
Electroformed nickel labels, logos and trademarks from a screen-printed stainless master.
Electroplating And Surface Finishing
Bath cleanliness, drag-out recovery and de-plating for plants running precious metal baths.
FAQ
Metal Nickel Sticker Electroforming Machine Questions
What is the full production sequence?
Stainless steel plate, grinding and degreasing, silk screen, exposure and development, master plate, nickel electroforming, chromium electroplating, peeling, gluing, release paper, cutting, then packaging and warehousing.
Which tank do I need?
It follows plate size: 100 L for 600 x 400 mm, up to 180 L for 600 x 700 mm. Power steps with it, 30 A / 12 V on the smallest and 50 A / 12 V on the rest.
Can the configuration be adjusted?
Yes. The source notes the actual order can be adjusted based on the process you run.
Does it only do nickel?
No. Gold, silver or nickel electroforming is decided by the application; nickel is simply the most common.
