Large-Scale Silver Stripping Machine
A 5 metre, six-basket, 2000 litre stripping line for plants that de-plate by the batch.
Overview
What This Machine Is
The industrial version of the same electrolytic process: 5 x 1.6 x 3 m, a 2000 litre PP tank, six stainless baskets of 80 x 20 x 80 cm on an iron overhead crane, and 10 kW at 380 V.
The problem it is built for
Once de-plating stops being an occasional job and becomes a shift, batch size is the constraint. Six large baskets over a 2000 litre bath means a plant can clear a day's rejects in one loading instead of cycling a small tank six times.
Specification
Large-Scale Silver Stripping Machine Specification
Transcribed from the published product data. Where a figure is not published it is not listed here, and it has not been estimated.
| Total dimensions | 5 x 1.6 x 3 m |
|---|---|
| Tank material | PP (polypropylene) |
| Overhead crane material | Iron |
| Basket material | Stainless steel |
| Basket quantity | 6 units |
| Basket size | 80 x 20 x 80 cm |
| Tank capacity | 2000 L |
| Voltage | 380 V |
| Total power | 10 kW |
Download
Features
What Is Built Into It
Batch throughput instead of cycle time
Six baskets over a 2000 litre bath processes significant volumes of silver-coated material in a single batch, which is where the labour saving against manual stripping comes from.
Controlled electrolytic process
No chemical stripping bath to dispose of. Less reagent consumed, less toxic wastewater discharged, and filtration and neutralisation options available to meet discharge rules.
Clean separation at the interface
Complete removal of the silver layer without damaging the underlying material, which matters when the base part is going straight back into production.
Built for continuous duty
Corrosion-resistant construction throughout, with overload protection and insulation on the electrical side so the machine can be run by operators of different skill levels.
High-purity recovered silver
The silver that comes off is ready for refining or direct reuse, which is the point of doing this in-house rather than selling scrap by weight.
Applications
Where It Is Used
- Jewelry: silver stripped from outdated or damaged rings, necklaces and bracelets so the base material is reusable
- Electronics: silver removed from connectors, printed circuit boards and end-of-life parts
- Plating plants: recovery of silver deposited on racks, fixtures and rejected work
- Metal finishing and recycling operations working at plant rather than bench scale

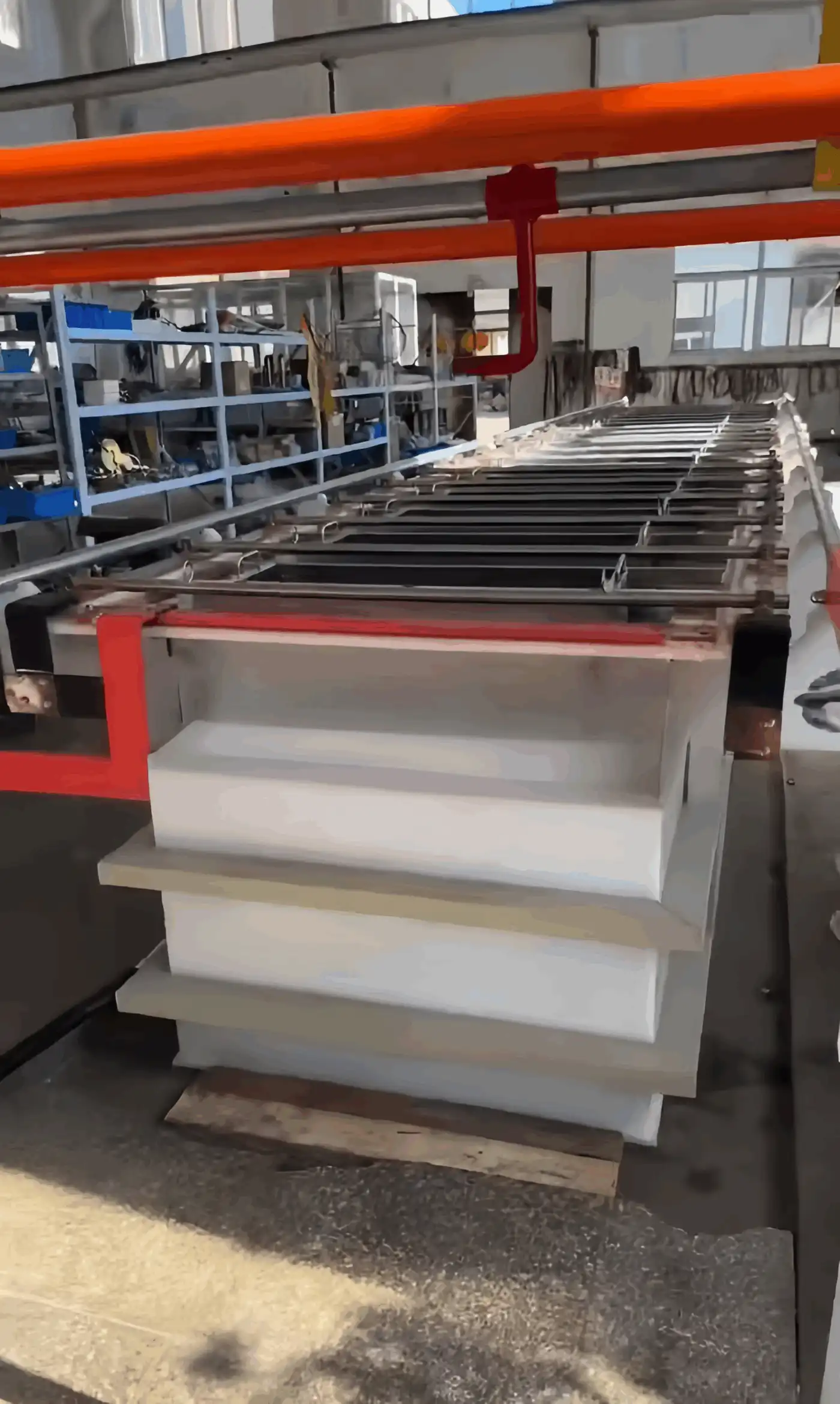

Photographs
Large-Scale Silver Stripping Machine In Detail
Every photograph on this page is of the actual machine as supplied. Nothing here is a render.
Industries
Industries Running This Machine
Electroplating And Surface Finishing
Bath cleanliness, drag-out recovery and de-plating for plants running precious metal baths.
Precious Metal Refineries
From mixed feed to a documented purity figure: 9999 silver, cathode copper, aqua regia gold dissolution.
Electronics And E-Waste Recycling
The urban mine: gold, silver, palladium and platinum recovered from boards, connectors and leach liquor.
FAQ
Large-Scale Silver Stripping Machine Questions
How does this differ from the small stripping machine?
Same electrolytic principle, different scale. 2000 litres and six 80 x 20 x 80 cm baskets against four 60 x 28 x 60 cm baskets, 10 kW against 6 kW, and a 5 metre footprint against 2.5 metres.
What about the wastewater?
The process is electrolytic rather than chemical, so it consumes far fewer reagents than a chemical stripping bath. Filtration and neutralisation options can be specified to bring discharge in line with local environmental requirements.
Is the recovered silver ready to sell?
It comes off at high purity and is described as ready for refining or direct reuse. If you want it taken to 9999, pair it with the silver electrolysis refining machine.
Can the tank size be changed?
Customisation on size, capacity and function is offered across the range. Tell us the batch weight you need to clear per shift.
Related
Machines Usually Specified With It
10 kg/day
Silver Electrolysis Refining Machine
80 to 92.5 percent scrap silver taken to 9999 on 10 percent dilute nitric acid alone.
12V / 10A

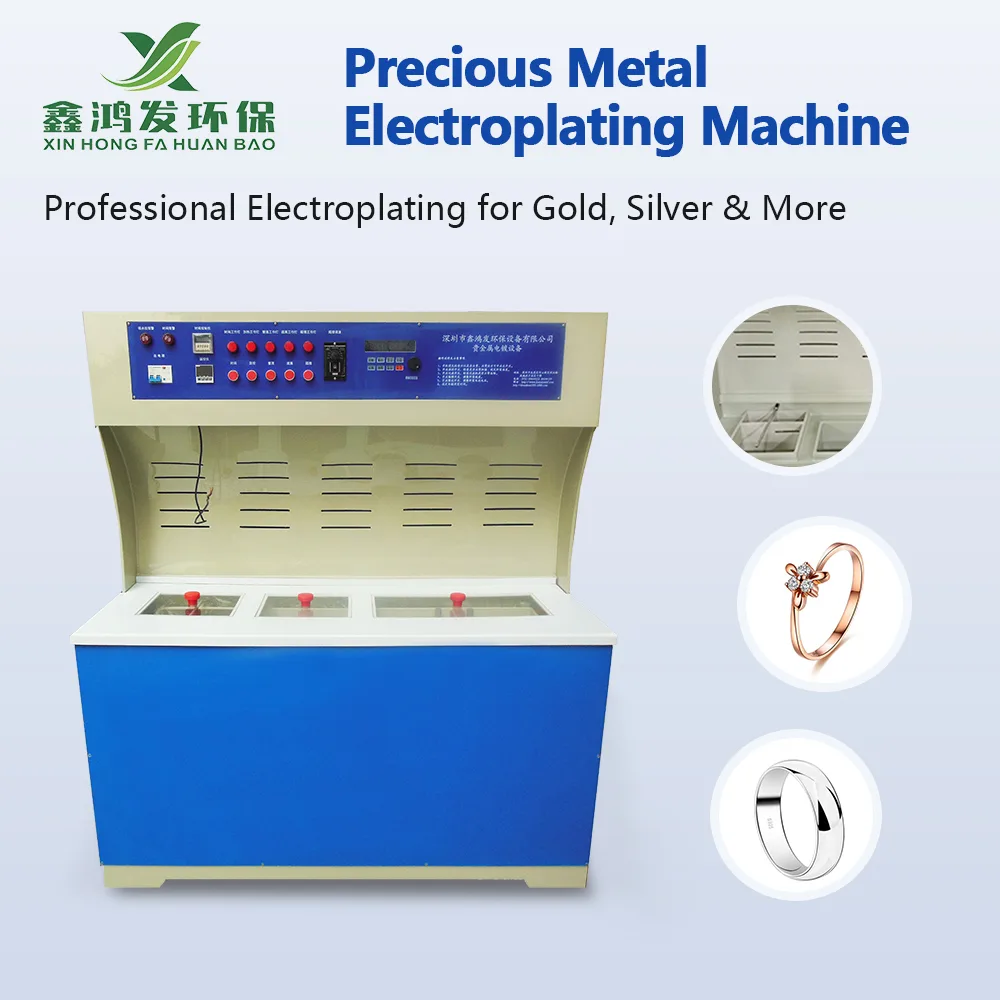

Precious Metal Jewelry Electroplating Equipment
