Precious Metal Electrolytic Recovery Machine
High-frequency pulse recovery that pulls gold and silver straight out of spent solution as metal.
Overview
What This Machine Is
Developed in-house, this machine reduces silver, gold, copper or nickel ions directly to metal under automatic intelligent control, reaching 99.8 percent purity with a recovery rate of 99 percent or better on gold and silver. Available in one, two, three and four-head configurations.
The problem it is built for
Drag-out tanks, strip solutions and rinse waters carry away real money, and the concentration is too low for anyone to bother with chemically. Electrolytic adsorption makes low-concentration recovery worth doing, and the residual liquid comes back inside discharge limits.
Specification
Precious Metal Electrolytic Recovery Machine Specification
Transcribed from the published product data. Where a figure is not published it is not listed here, and it has not been estimated.
| Product name | Electrolytic gold recovery equipment |
|---|---|
| Brand | XHF |
| Function | Recovering precious metal in the plating solution |
| Recovery rate | >=99% gold and silver; >=90% copper, nickel, platinum, palladium |
| Output purity | 99.8% |
| Principle | High-frequency pulse electrolytic adsorption |
| Shell material | PP |
| Voltage | 220 V / 380 V |
| Power | 300 W / 350 W / 400 W / 500 W |
| Key components | PLC, motor, pump |
| Tare weight | 50 kg |
| Delivery time | 7 to 15 days |
| Warranty | 1 year |
| Place of origin | Guangdong, China |
Download
Features
What Is Built Into It
Electrolytic adsorption, automatically controlled

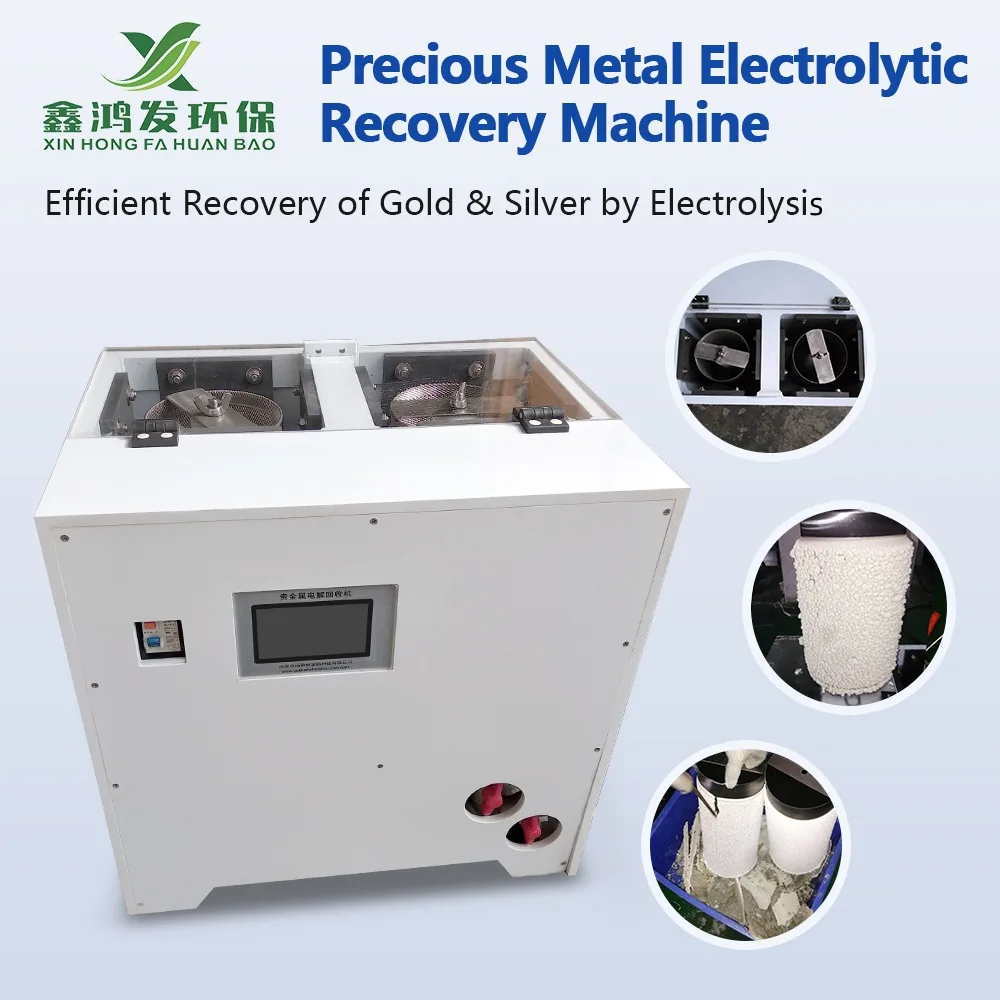

Metal ions in solution are reduced onto the cathode and the deposit is peeled off for re-refining. Intelligent control handles the current so the deposit does not splash or over-electrolyse.

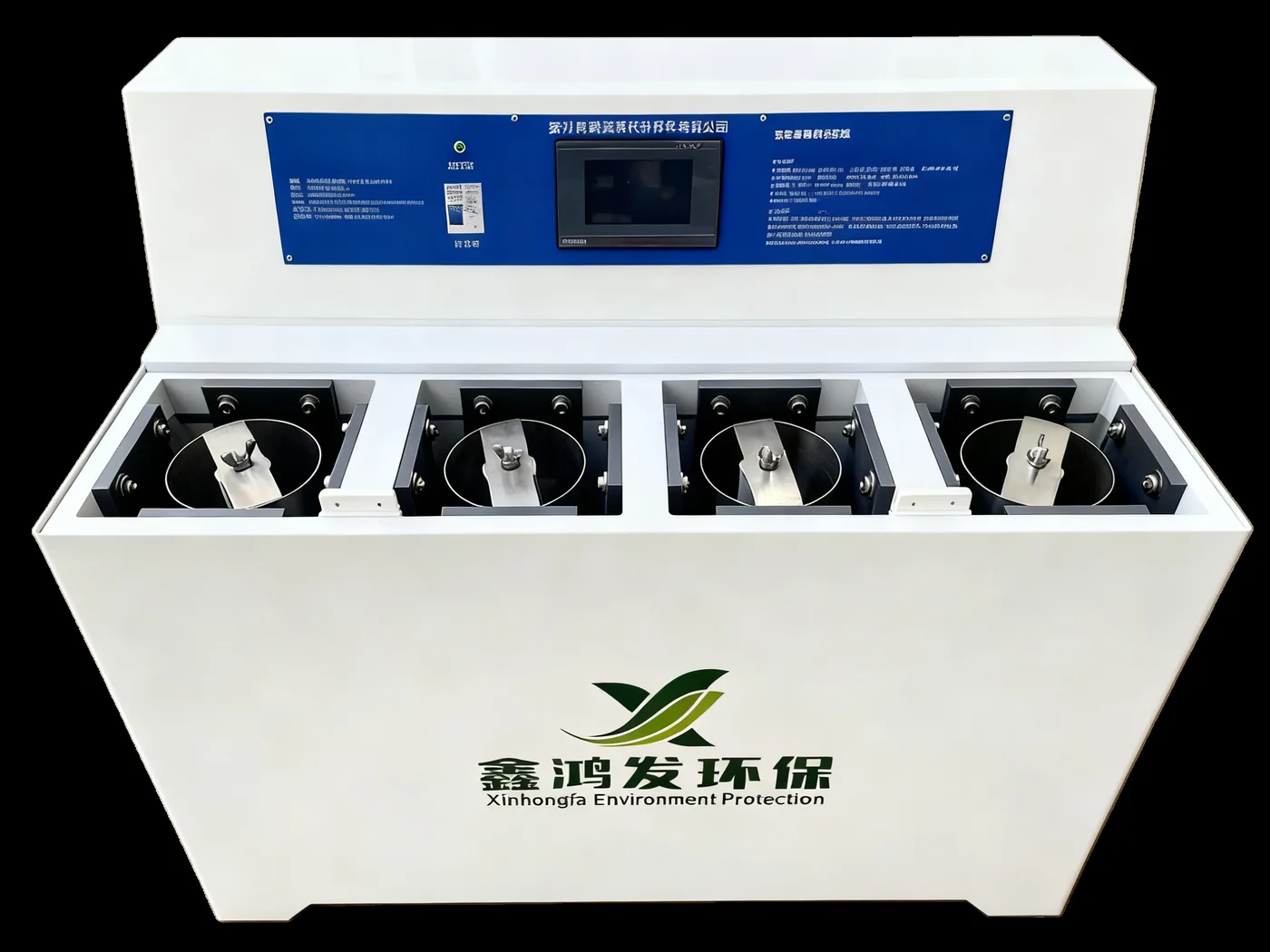

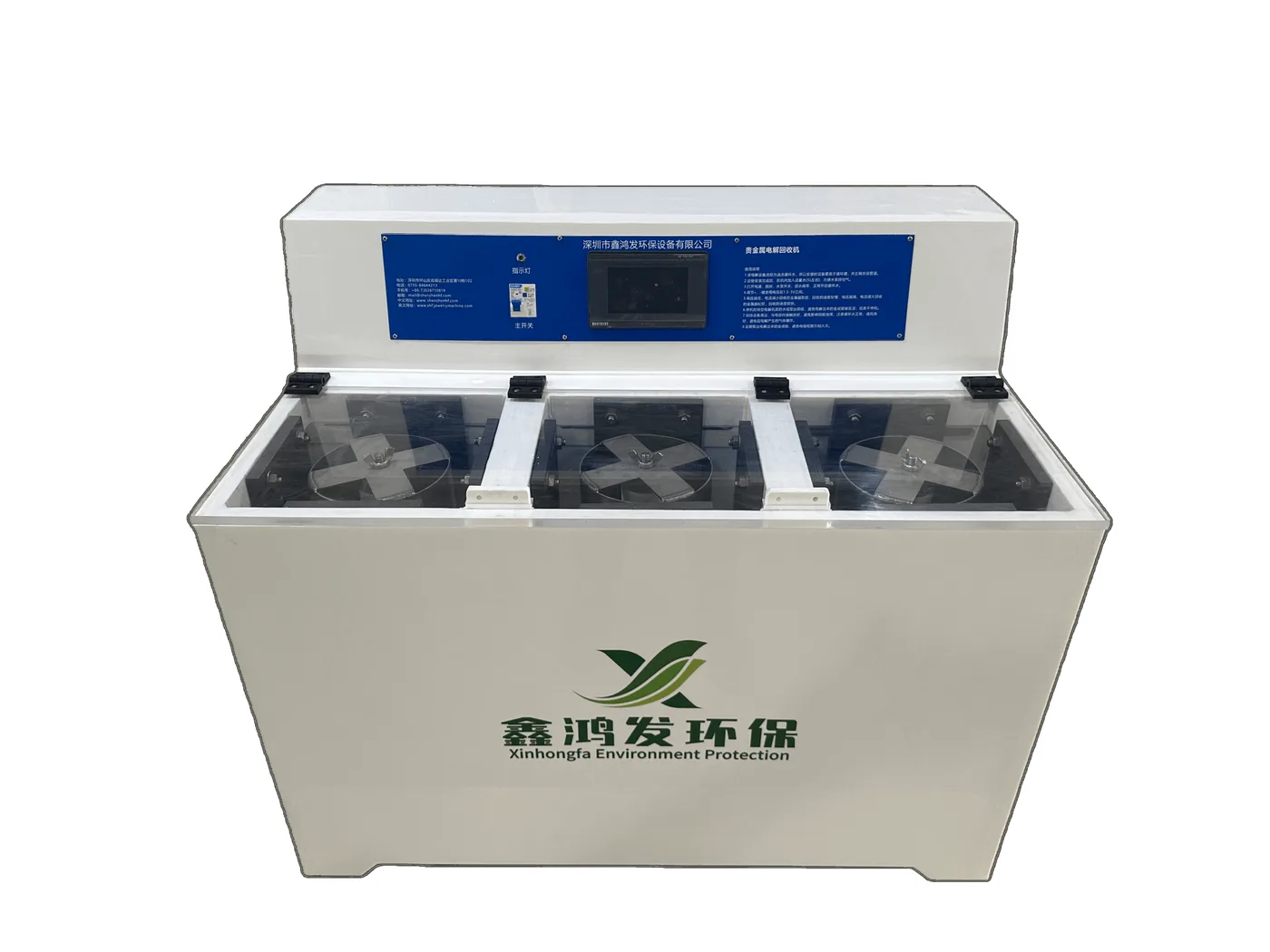

One to four heads
The same cell scales by head count, so a workshop running one plating line and a plant running four can both be matched without changing technology.
Works on the dilute streams
Plating solution, drag-out tank, strip solution, plating rinse waters, iodine and iodide etching solution, e-waste stripping solution and spent photographic developer are all named applications.
Residual silver below 20 mg/L
On spent fixer, the published figures are a recovery rate of 98 percent or better with residual silver in the treated liquid below 20 mg/L, which is inside environmental discharge standards.

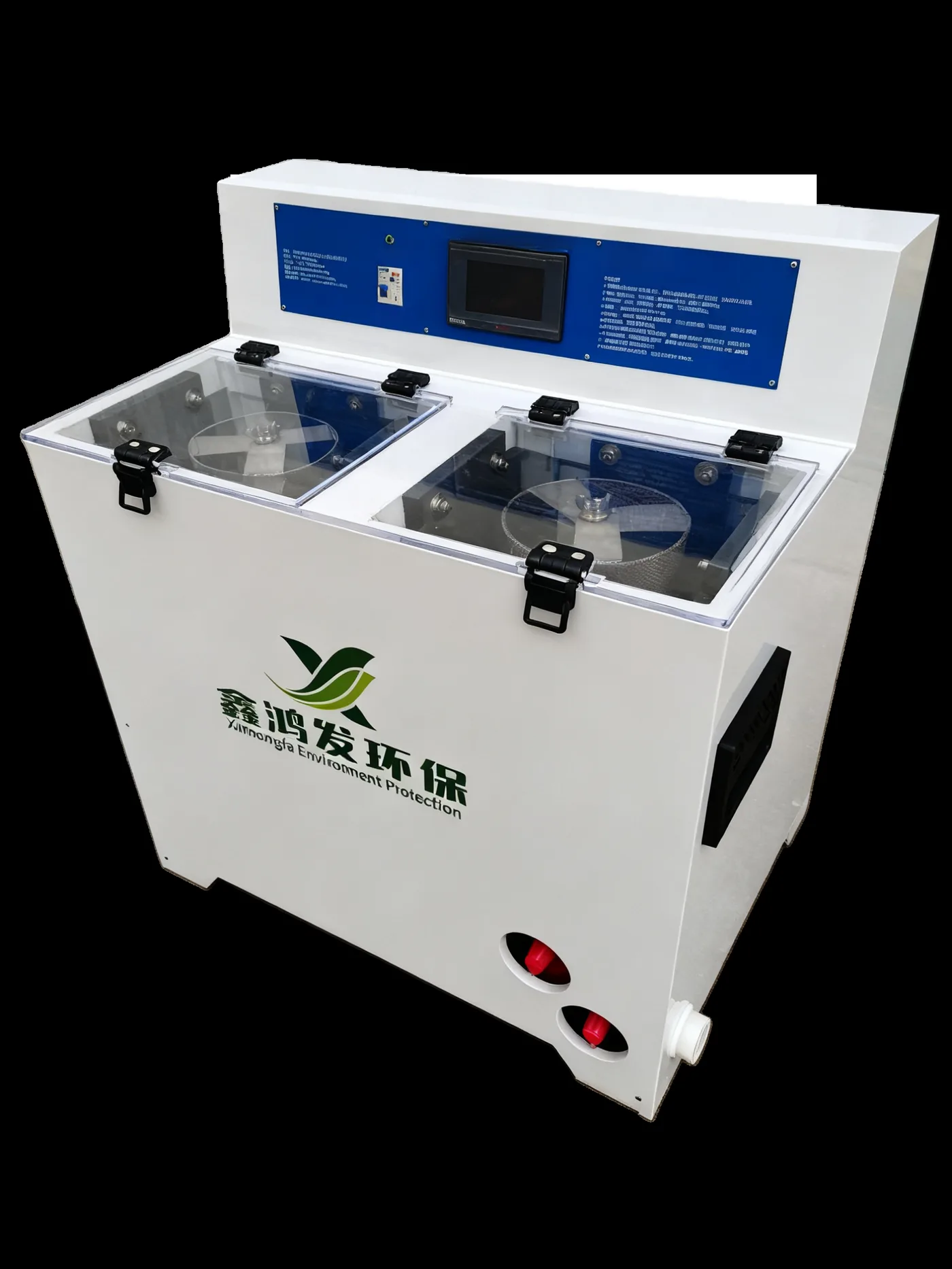

PP tank, replaceable electrodes
Acid and alkali resistant throughout, modular so electrodes can be swapped and the cell cleaned, with a continuous operating life described as over eight years.
Applications
Where It Is Used
- Recovery of gold, silver, rhodium, platinum and palladium from plating solutions and drag-out tanks
- Recovery from plating rinse waters and strip solutions
- Gold and silver from iodine and iodide etching solutions
- Precious metals from e-waste stripping solution and electronic plating waste
- Silver from spent photographic fixer and developing solution
Photographs
Precious Metal Electrolytic Recovery Machine In Detail
Every photograph on this page is of the actual machine as supplied. Nothing here is a render.
Industries
Industries Running This Machine
Electroplating And Surface Finishing
Bath cleanliness, drag-out recovery and de-plating for plants running precious metal baths.
Electronics And E-Waste Recycling
The urban mine: gold, silver, palladium and platinum recovered from boards, connectors and leach liquor.
Photographic And Imaging
Silver pulled out of spent fixer at 98 percent recovery, with residual below 20 mg/L.
Precious Metal Refineries
From mixed feed to a documented purity figure: 9999 silver, cathode copper, aqua regia gold dissolution.
FAQ
Precious Metal Electrolytic Recovery Machine Questions
How pure is the metal it produces?
99.8 percent, per the source description. Recovery rate is 99 percent or better for gold and silver, and 90 percent or better for copper, nickel, platinum and palladium.
What power does it draw?
300, 350, 400 or 500 W depending on configuration, at 220 V or 380 V. Tare weight 50 kg.
Does it work on spent fixer solution?
Yes, and that is one of the best-documented cases. Waste fixer typically runs 3 to 6 grams of silver per litre, so 20 litres of solution yields roughly 80 grams of silver in one operation.
Does it need extra reagents?
On fixer, no. The spent fixer itself is the electrolyte; no additional reagent is added.
