Gold/Silver Potassium Cyanide Making Machine · 12V / 10A
Precious Metal Jewelry Electroplating Equipment
Plating, recovery and cleaning in one enclosed cabinet instead of an open beaker.
Overview
What This Machine Is
A 1380 x 750 x 1650 mm PP plating station with a 12 V / 10 A rectifier, platinum anode net, timed cycle, heating and temperature control, circulating filtration, powered left-right swing with speed control, a fume hood and a waste liquid recovery tank.
The problem it is built for
Traditional precious metal plating is done over a beaker. The solution splashes, it is toxic, the operator stands in it for a shift, and the gold left in the bath is effectively unrecoverable. Every one of those four complaints is answered by a specific device on this machine.
Specification
Precious Metal Jewelry Electroplating Equipment Specification
Transcribed from the published product data. Where a figure is not published it is not listed here, and it has not been estimated.
| Product name | Custom electroplating equipment production machine |
|---|---|
| Brand | XHF |
| Function | Electroplating jewelry |
| Rectifier | 12 V / 10 A |
| Anode | Platinum anode net |
| Size | 1380 x 750 x 1650 mm |
| Weight | 200 kg |
| Voltage | 220 V / 380 V |
| Heating system | 3 kW |
| Power | 120 W |
| Production material | Industrial PP plate |
| Core components | Rectifier, anode and cathode |
| MOQ | 1 set |
| Warranty | 1 year |
Download
Features
What Is Built Into It
Timed plating for repeatable thickness
An automatic time control device sets the plating time exactly, which is what fixes the thickness and the colour of the plated part instead of leaving it to the operator's clock.
Plating, recycling and cleaning in one body
Three operations that normally need three stations. The stated reason is that plated parts otherwise cannot be reached for cleaning after the cycle.
Fume hood over the bath
A suction hood pulls the cyanide waste gas generated during plating, and the structure is designed so the plating solution does not spill in the first place.
Waste liquid recovery tank
Built in specifically to reduce the precious metal left behind in the plating solution, which in the traditional method is simply lost.
Swing device with speed control
Powered left and right swing plus a manual swing device, so agitation can be matched to the piece rather than fixed.
Applications
Where It Is Used
- Gold, platinum, silver, rhodium and palladium plating of jewelry
- Jewelry factories, laboratories and electroplating workshops
- Colour and thickness work where the finish has to match across a batch
- Complete plating lines, which the company also designs and manufactures
Photographs

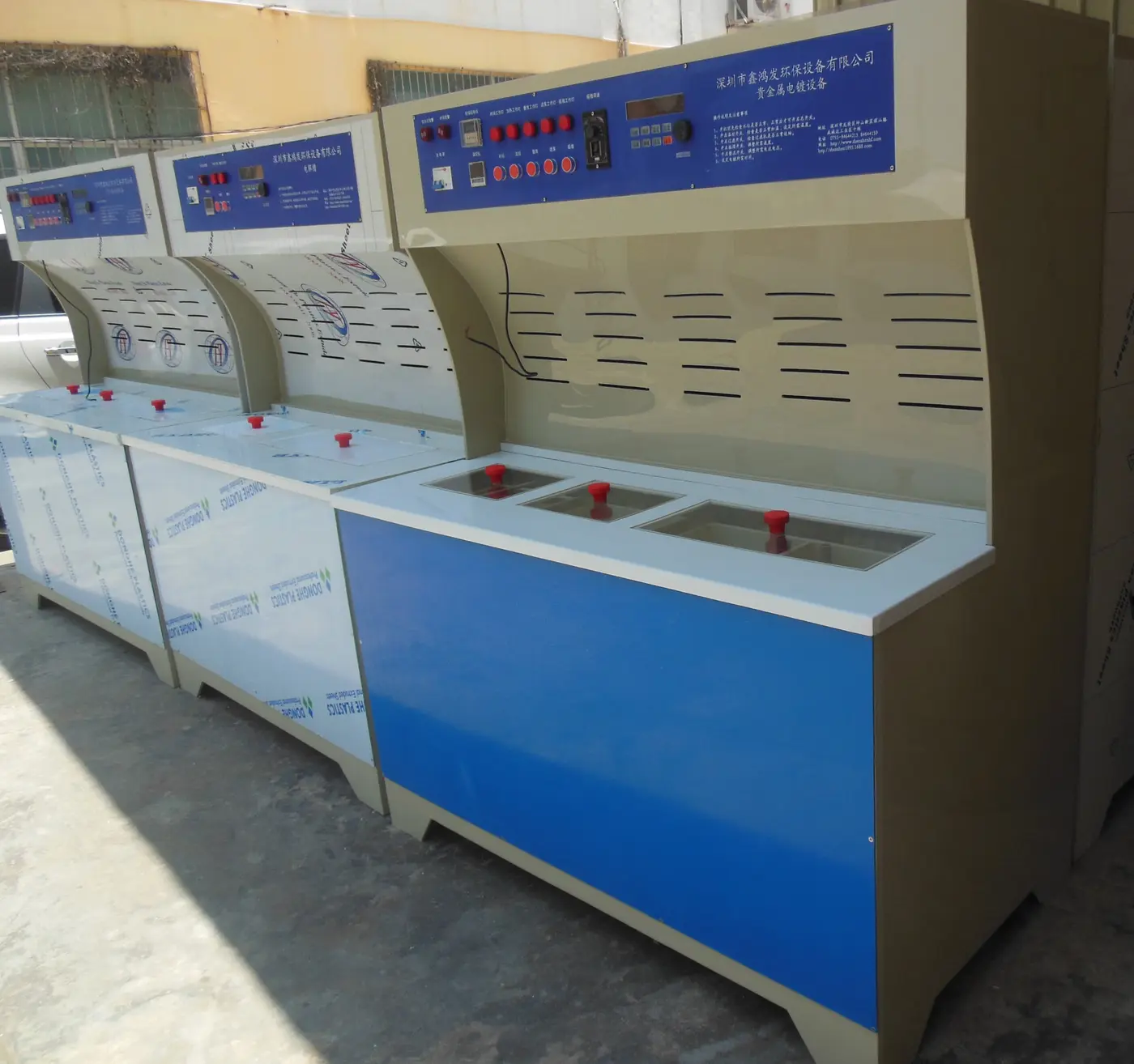

Precious Metal Jewelry Electroplating Equipment In Detail
Every photograph on this page is of the actual machine as supplied. Nothing here is a render.
Industries
Industries Running This Machine
Jewelry Manufacturing
Electroforming, plating, acid finishing and scrap recovery for factories making gold and silver pieces.
Electroplating And Surface Finishing
Bath cleanliness, drag-out recovery and de-plating for plants running precious metal baths.
FAQ
Precious Metal Jewelry Electroplating Equipment Questions
Which metals can it plate?
All kinds of precious metal jewelry, with gold, platinum, silver, rhodium and palladium named specifically.
What is the rectifier rating?
12 V / 10 A, with a platinum anode net, on a 220 V or 380 V supply. Heating is 3 kW.
Can you supply a whole plating line?
Yes. The company states it provides design and manufacture of the entire production line of the plating line, not only the single station.
What stops the solution splashing?
The device structure was redesigned specifically against the spillage problem of open beaker plating, and a suction hood removes the cyanide waste gas generated during the process.
