Gold/Silver Potassium Cyanide Making Machine · 68.3% GPC
Gold Potassium Cyanide Making Machine
Make your own gold salt at 68.3 percent by diaphragm electrolysis, instead of buying it.
Overview
What This Machine Is
A diaphragm electrolysis cell with polymer filter membrane separation that produces gold potassium cyanide at 68.3 percent purity from gold and potassium hydroxide, in 1, 2 or 5 kg batches, with the exhaust gas collected and the gold in it filtered back out.
The problem it is built for
Gold salt bought in carries a conversion margin and an assay you have to trust. Making it on site removes both, and the two places gold normally disappears, a leaking electrolytic tank and the exhaust duct, are the two things this machine is specifically engineered against.
Specification
Gold Potassium Cyanide Making Machine Specification
Transcribed from the published product data. Where a figure is not published it is not listed here, and it has not been estimated.
| Function | Production of gold potassium cyanide at 68.3% purity |
|---|---|
| Machine type | Gold electrolytic machine |
| Principle | Diaphragm electrolysis |
| Capacity | 1 kg / 2 kg / 5 kg per batch (customisable) |
| Main materials | Gold, potassium hydroxide |
| Tank material | PP plate |
| Size | 1320 x 750 x 1830 mm |
| Weight | 130 kg |
| Power supply | 220 VAC 60 Hz / 380 V AC 50 Hz |
| Core components | Rectifier, filter membrane |
| Brand | XHF |
| Warranty | 1 year |
| Supply ability | 300 sets per year |
Download
Features
What Is Built Into It
Electrolysis plus membrane separation
Advanced electrolysis with polymer filter membrane separation layered on top, which is what holds the purity of the produced gold salt at 68.3 percent.
A tank tested not to leak
Welding quality is controlled specifically because the liquid in the cell is dissolved gold. Every tank is water-tested for leaks repeatedly before it is passed.
Gold recovered from the exhaust
A filter cotton at the exhaust gas suction port catches the small amount of gold that leaves with the fume, so loss is attacked from both the process and the ventilation side.
Complete cell configuration

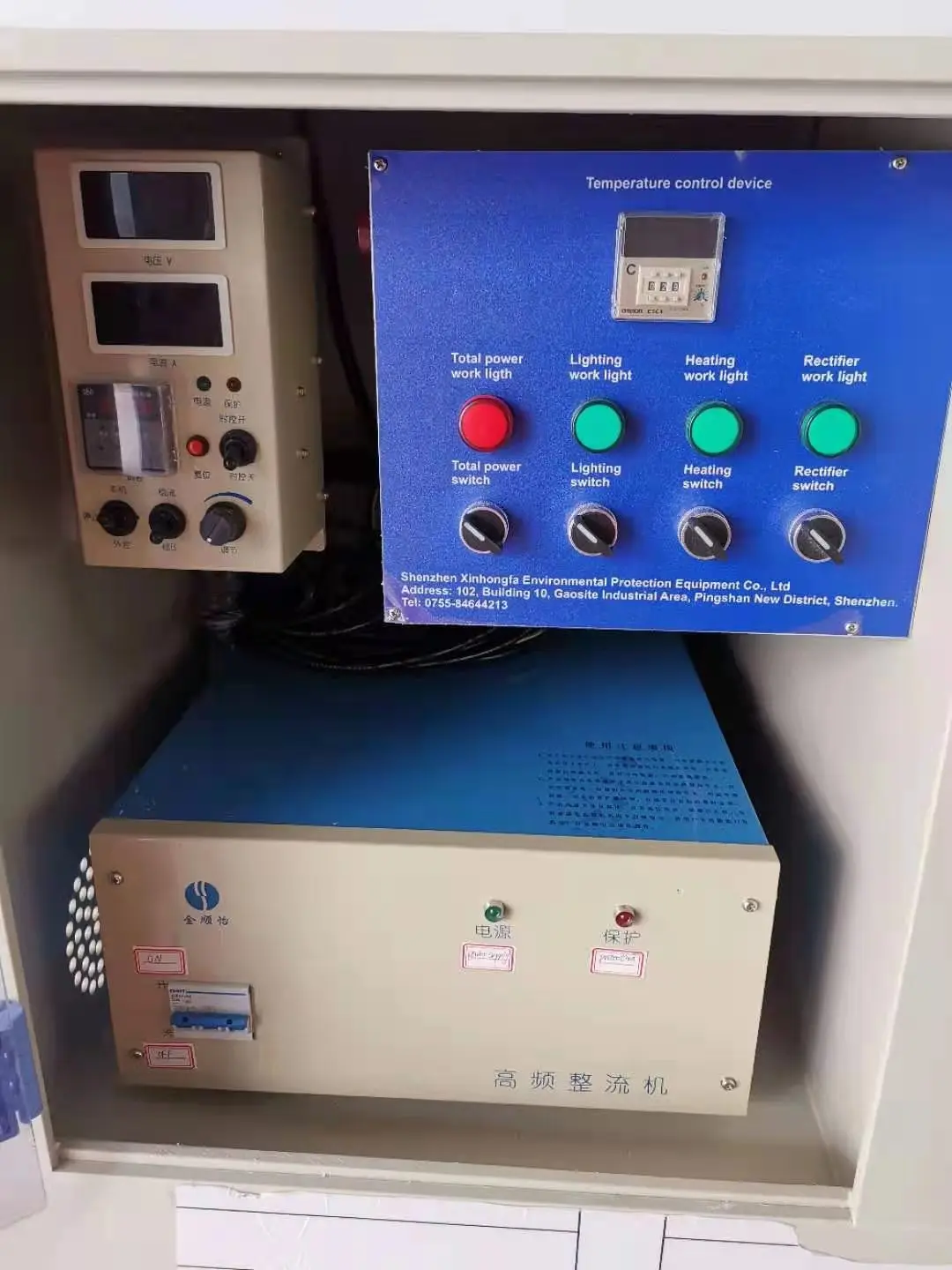

Rectifier, titanium anode and cathode, filter membrane, heating and temperature control, time control and exhaust gas collection system, supplied as one machine.
Sized to your batch
1, 2 or 5 kg per batch as standard, and customised to requirement beyond that.
Applications
Where It Is Used
- Jewelry factories producing their own electroforming and electroplating raw material
- Electroplating workshops running gold baths in volume
- Refining facilities converting recovered gold into salt
Photographs

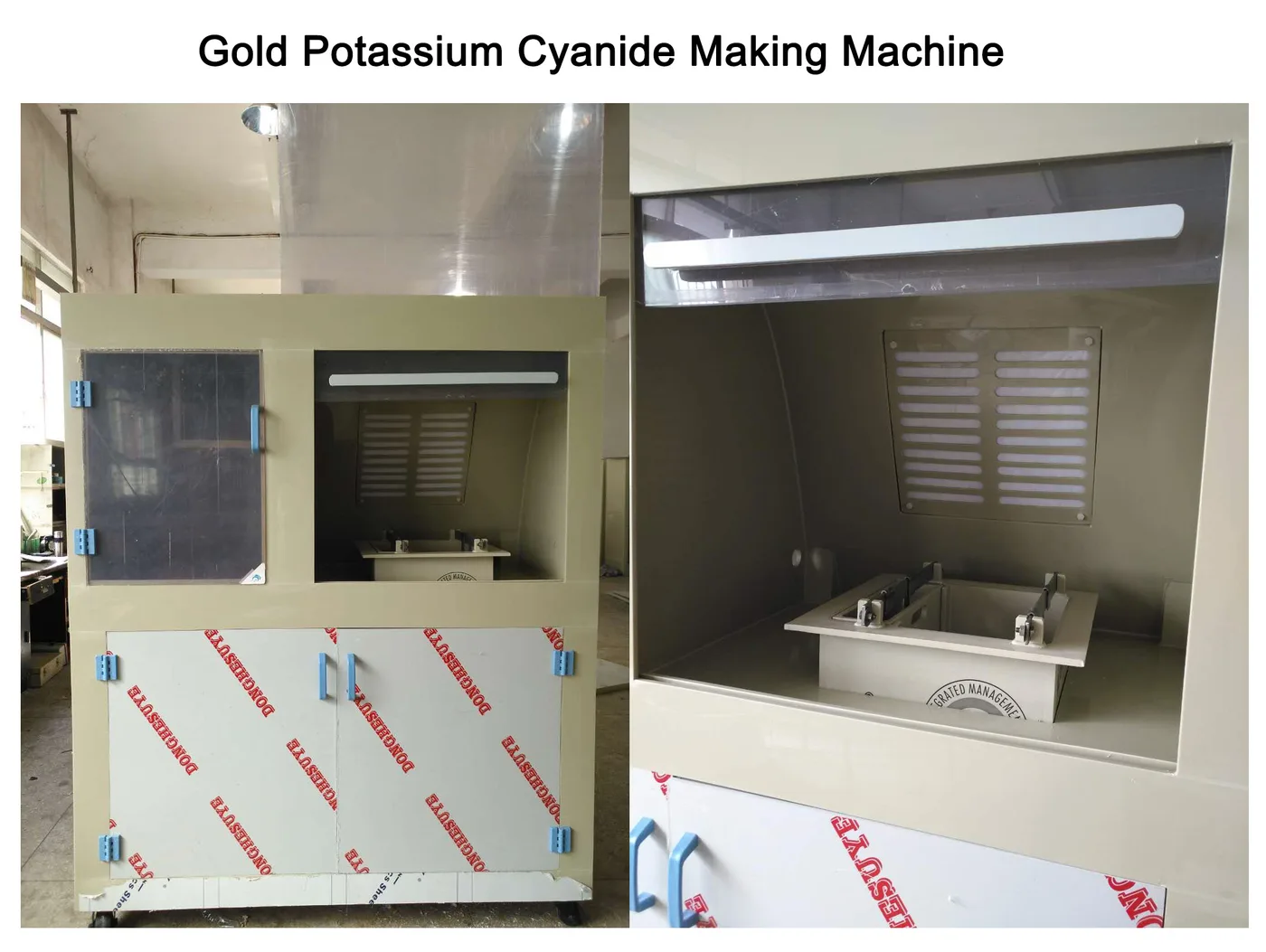

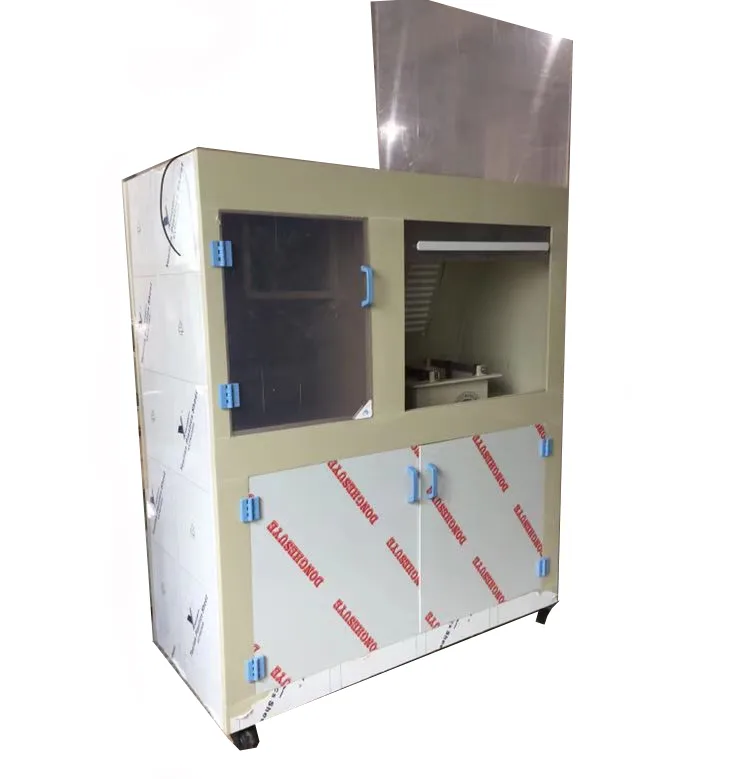

Gold Potassium Cyanide Making Machine In Detail
Every photograph on this page is of the actual machine as supplied. Nothing here is a render.
Industries
Industries Running This Machine
Jewelry Manufacturing
Electroforming, plating, acid finishing and scrap recovery for factories making gold and silver pieces.
Electroplating And Surface Finishing
Bath cleanliness, drag-out recovery and de-plating for plants running precious metal baths.
FAQ
Gold Potassium Cyanide Making Machine Questions
What else do I need to make gold salt end to end?
The source lists the full set: this machine, a toxic gas treatment machine (dia. 1000 x 2400 mm), a gold tablet press to make gold nuggets into thin pieces, a refrigerator for cooling crystallisation, an oven for drying the salt, and an RO water system. The press, refrigerator and oven can be self-purchased or bought from us.
Why does the toxic gas treatment machine matter?
It treats the toxic gas generated by the gold potassium cyanide making process. It is not optional equipment; it is listed as one set alongside the making machine.
What purity of gold salt does it make?
68.3 percent gold potassium cyanide, which is the raw material for electroforming and electroplating.
How big is the machine?
1320 x 750 x 1830 mm, 130 kg, on 220 VAC 60 Hz or 380 V AC 50 Hz.
