Small Silver Stripping Machine
Electrolytic silver de-plating for a workshop bench, 0.5 to 0.8 tonnes of parts a day.
Overview
What This Machine Is
A 2.5 by 1.1 by 0.9 metre PP tank with four stainless baskets and a 6 kW rectifier, built to pull the silver layer off rejected jewelry, plating racks and electronic parts without attacking the base metal underneath.
The problem it is built for
Manual acid stripping in open beakers is where small workshops lose silver: some of it stays on the rack, some goes down the drain with the rinse, and the operator breathes the rest. This machine turns that into a controlled electrolytic step with the silver ending up somewhere you can weigh it.
Specification
Small Silver Stripping Machine Specification
Transcribed from the published product data. Where a figure is not published it is not listed here, and it has not been estimated.
| Model | XHF-DJTYJ |
|---|---|
| Function | Remove silver from metal surfaces |
| Total dimensions | 2.5 x 1.1 x 0.9 m |
| Tank material | PP (polypropylene) |
| Crane material | Iron |
| Basket material | Stainless steel |
| Basket dimensions | 60 x 28 x 60 cm |
| Basket quantity | 4 units |
| Production capacity | 0.5 to 0.8 tons/day |
| Voltage | 380 V |
| Total power | 6 kW |
Download
Features
What Is Built Into It
Electrolytic stripping, not soak-and-hope
The silver layer is driven off electrochemically, so the stripping stops at the interface instead of eating into the substrate. Base parts come out reusable.
Closed filtration
The tank runs with a closed filtration system, which is what keeps the emissions and the contamination inside the machine rather than in the room.
PP tank, iron crane, steel baskets
Three materials chosen for three different jobs: chemical resistance in the bath, load capacity on the frame, and rigidity in the baskets that get lifted in and out all day.

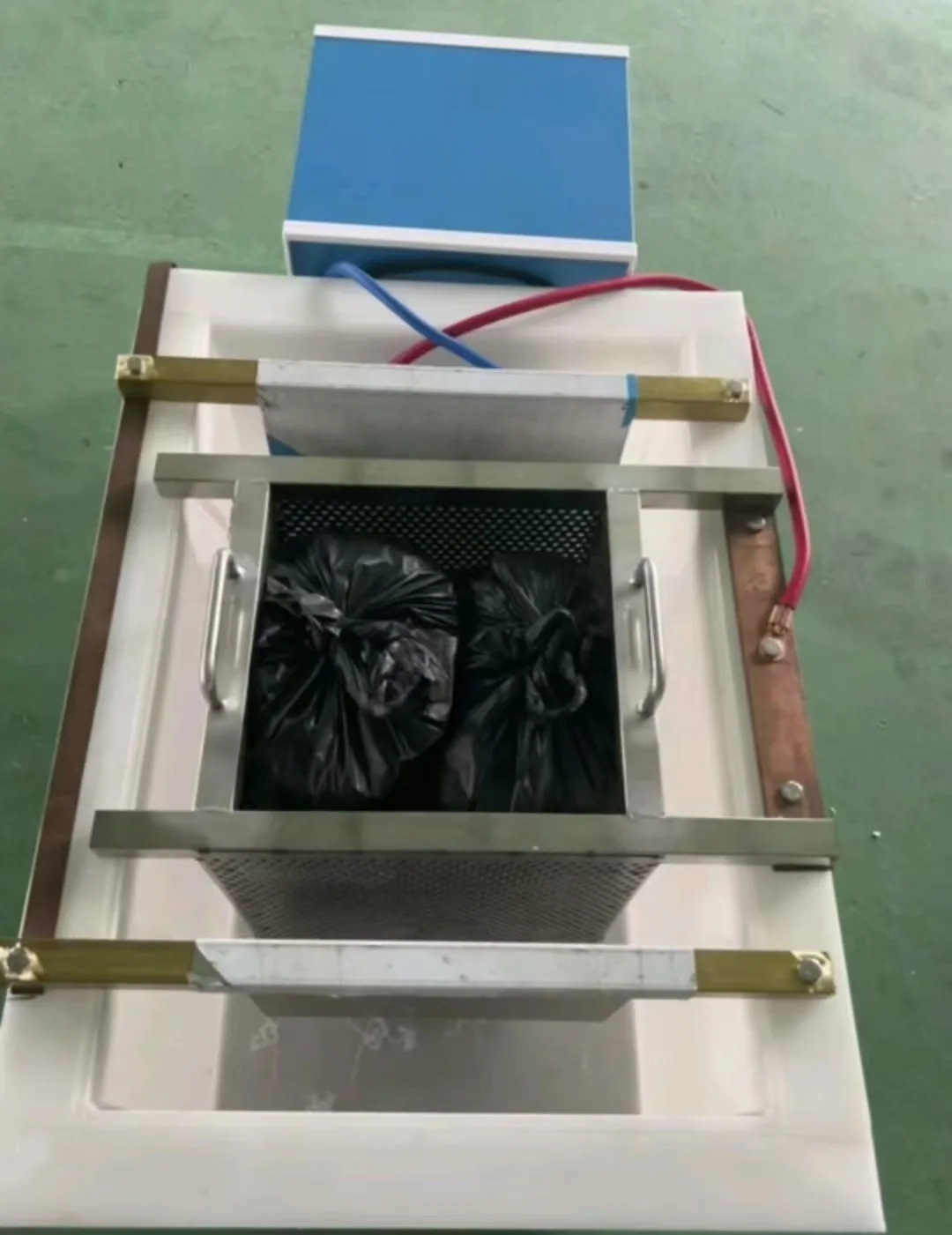

Four baskets on one crane
60 x 28 x 60 cm each, loaded and lifted as a set, which is how the 0.5 to 0.8 tonne daily figure is actually reached in a single-operator shop.
6 kW on a 380 V supply
Low enough to sit on an existing workshop circuit, high enough to keep the current density stable across four full baskets.
Applications
Where It Is Used
- Jewelry manufacturing: silver coatings removed from defective, old or returned pieces before reprocessing
- Electronics: silver layers recovered from printed circuit boards, connectors and components
- Plating workshops: silver residues stripped from racks, tanks and other plating hardware
- Recycling facilities: scrap metal, silver-bearing material and electroplating waste processed for refining
Photographs

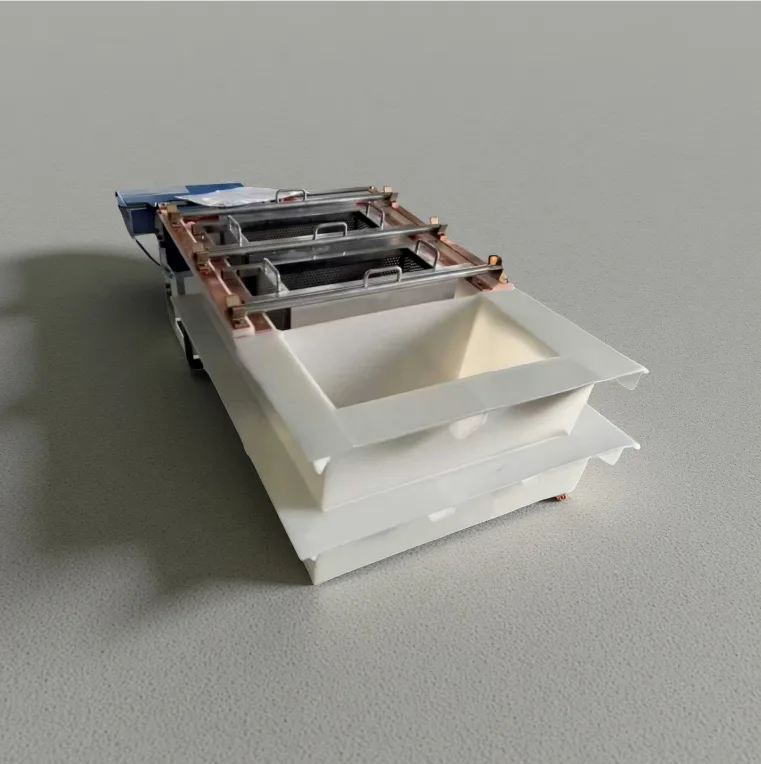

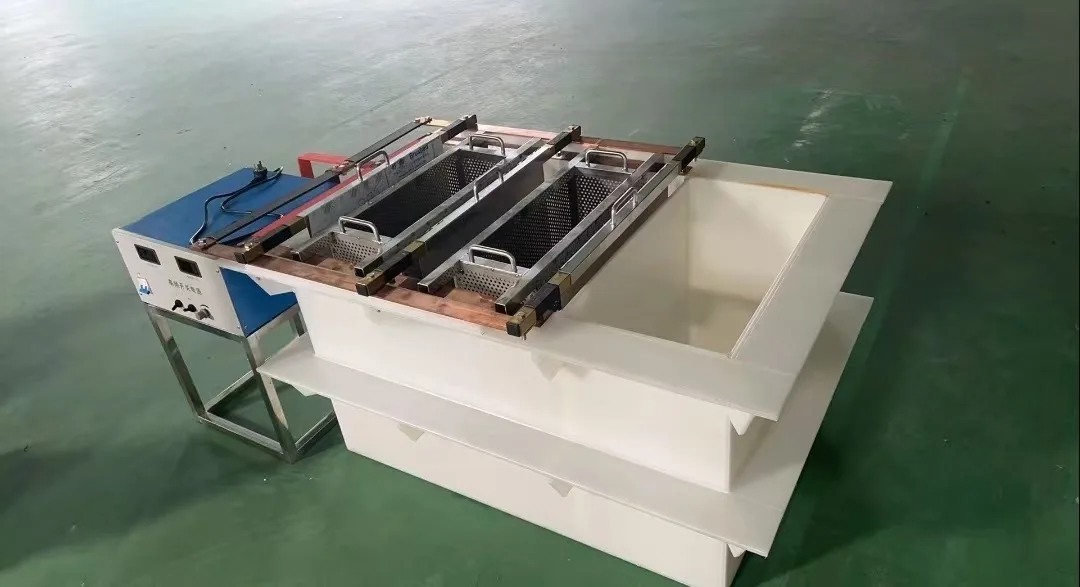

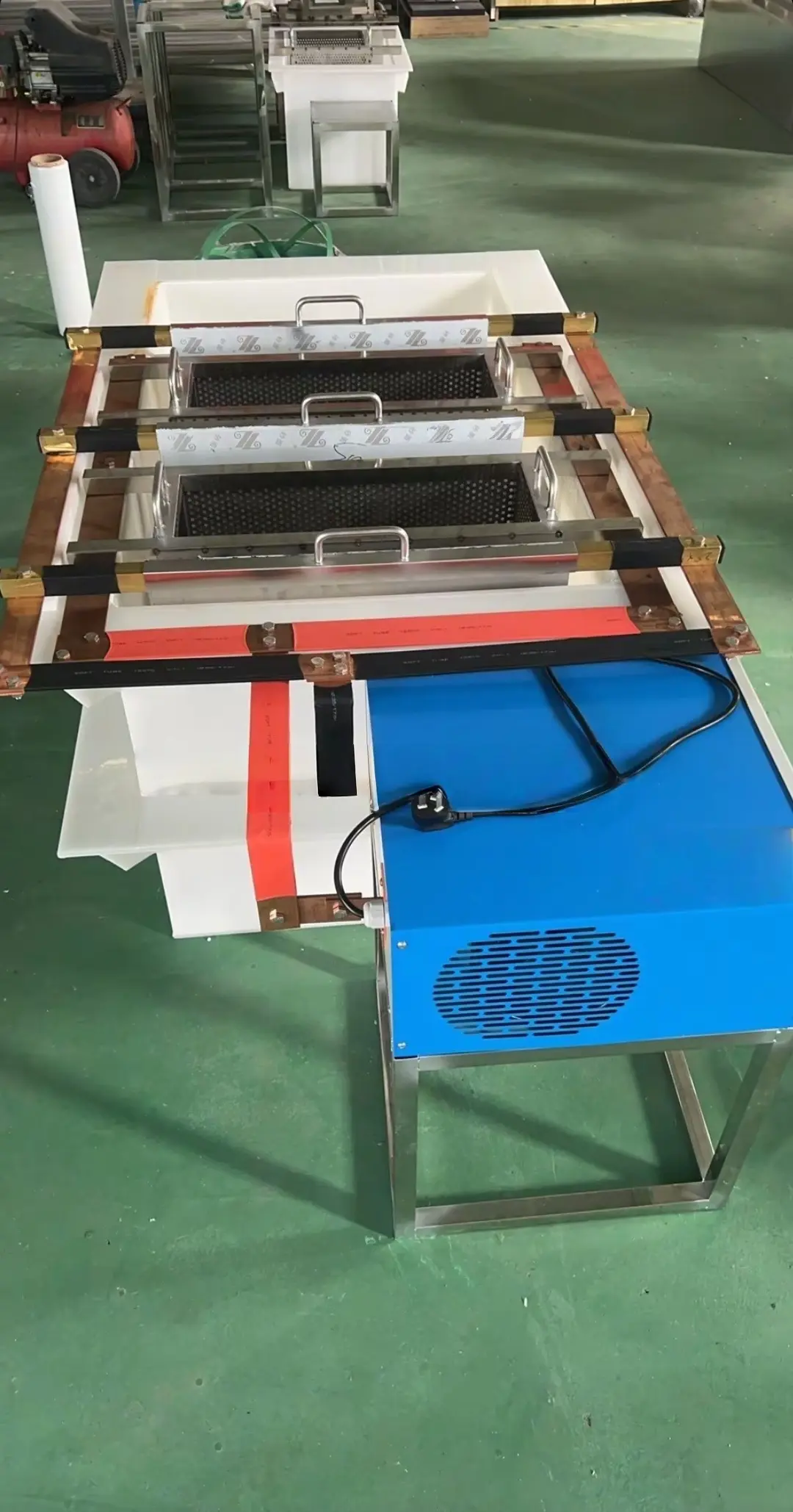

Small Silver Stripping Machine In Detail
Every photograph on this page is of the actual machine as supplied. Nothing here is a render.
Industries
Industries Running This Machine
Jewelry Manufacturing
Electroforming, plating, acid finishing and scrap recovery for factories making gold and silver pieces.
Electronics And E-Waste Recycling
The urban mine: gold, silver, palladium and platinum recovered from boards, connectors and leach liquor.
Electroplating And Surface Finishing
Bath cleanliness, drag-out recovery and de-plating for plants running precious metal baths.
FAQ
Small Silver Stripping Machine Questions
How much can it actually process in a day?
The published figure is 0.5 to 0.8 tons per day, with four stainless baskets of 60 x 28 x 60 cm on the crane frame. The spread is there because throughput depends on how thick the silver layer is and how tightly the baskets are packed.
Will it damage the base metal?
The process is electrolytic rather than a straight acid soak, which is why the source description stresses complete removal of the silver layer with minimal metal loss. Parts are meant to come out reusable.
What supply does it need?
380 V, 6 kW total. Footprint is 2.5 x 1.1 x 0.9 m.
Is it customisable?
Yes. Customisation of size, capacity and functions is offered across the range; send the part geometry and the daily volume you need to clear.
