Precious Metal Jewelry Electroplating Equipment
Plating, recovery and cleaning in one enclosed cabinet instead of an open beaker.
Safe Acid Burning & Color Hanging Cabinet · >98% purify
Automatic Safe Acid Burning and Color Hanging Cabinet
Heated sulfuric and nitric acid work behind a closed door, with 98 percent of the fume treated.
Overview
What This Machine Is
A PP cabinet for acid burning and colour hanging of gold and silver jewelry: heated sulfuric and nitric acid in German quartz beakers annealed at 1200 C, a fully enclosed structure, an acid gas purification system with pH control, fan and water pump, and a purify efficiency of more than 98 percent.
The problem it is built for
Acid bombing removes the copper from the surface of a gold piece and brings the colour up. It is also the single most dangerous half hour in a jewelry factory. Enclosing it, automating the timing and treating the fume is the difference between a controlled process and an incident waiting to happen.
Specification
Automatic Safe Acid Burning and Color Hanging Cabinet Specification
Transcribed from the published product data. Where a figure is not published it is not listed here, and it has not been estimated.
| Product name | Gold jewelry acid bombing / acid polishing cabinet |
|---|---|
| Brand | XHF |
| Function | Heating sulfuric and nitric acid with gold jewelry to remove internal copper and brighten colour |
| Composition | Acid gas purification system + pH control device + fan + water pump |
| Purify efficiency | More than 98% |
| Cabinet material | Industrial-grade PP (polypropylene) |
| Quartz components | Imported German quartz beaker and basket, annealed at 1200 C |
| Weight | 500 kg |
| Core components | Pump, PLC, furnace |
| Certificate | Invention patent verification |
| Warranty | 1 year |
| Supply ability | 100 sets per month |
Download
Features
What Is Built Into It
Fume treated, not just extracted
An acid gas purification system with a pH control device, fan and water pump, rated at more than 98 percent purify efficiency. Extraction alone moves the problem outside; this treats it.
Everything acid-proof
Working tank, exhaust system and frame are all made of acid-proof material, against nitric acid, hydrochloric acid and aqua regia.

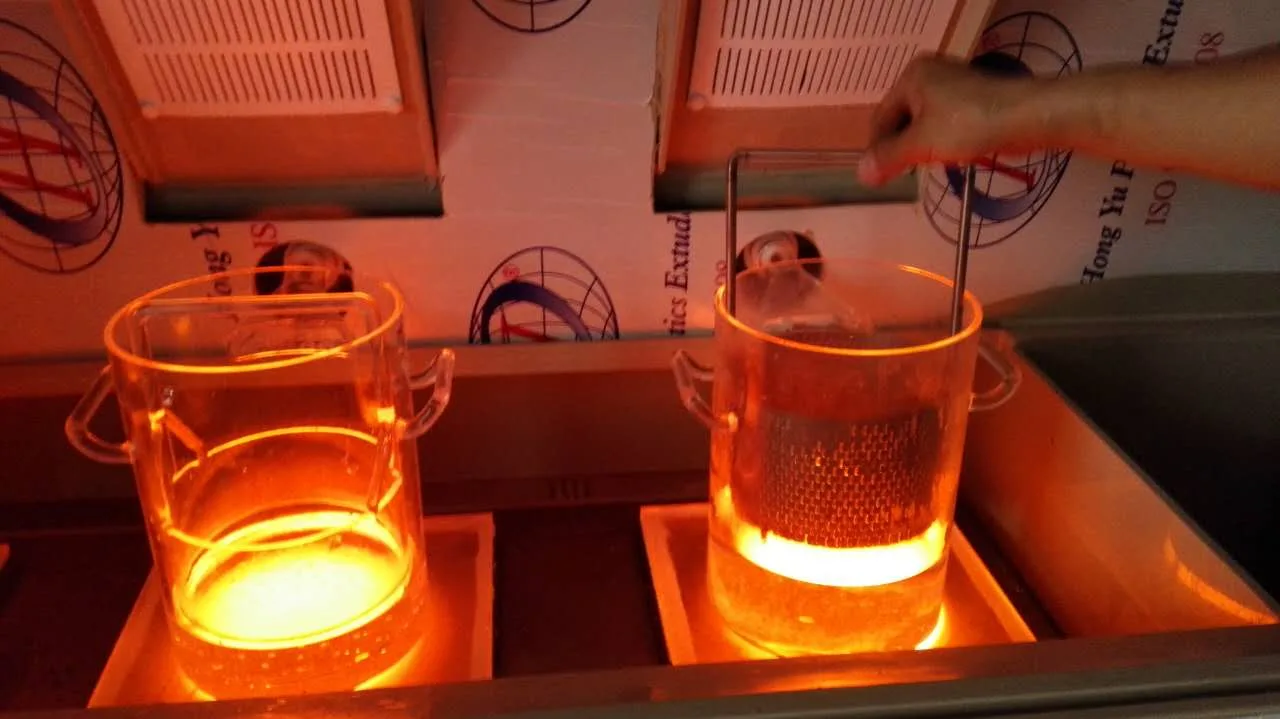

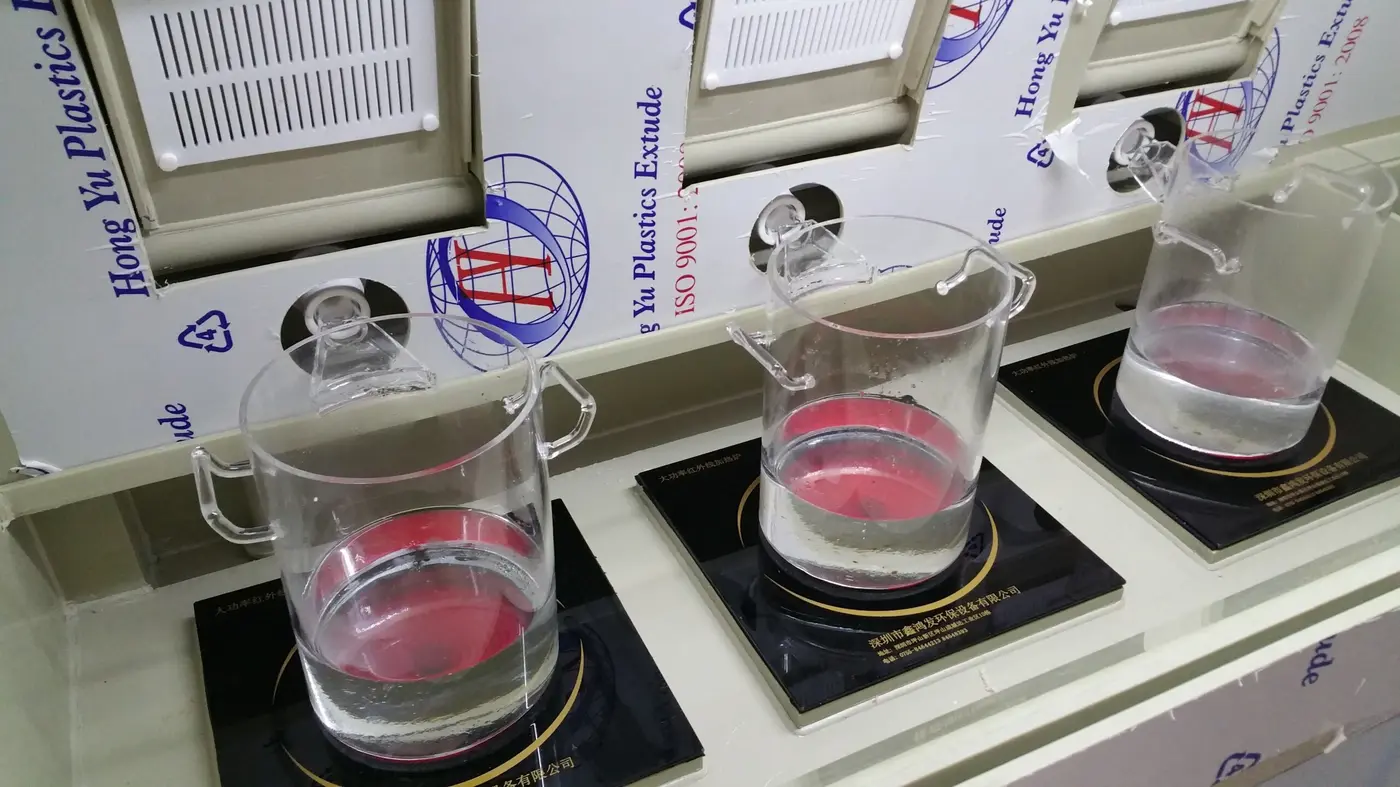

German quartz, annealed at 1200 C
Both beaker and basket. Annealing at 1200 C is what gives them the purity and strength to hold up under strong acid at temperature.
Heat-resistant basket handles
Quartz baskets are fitted with heat-resistant handles so jewelry can be moved safely during acid boiling and rinsing.
PLC and push-button control
Heating, timing and exhaust run from an intuitive control panel, which is what makes the process repeatable across operators rather than dependent on one experienced person.
Applications
Where It Is Used
- Acid treatment and colour hanging of gold and silver jewelry
- Chemical cleaning of metal accessories
- Jewelry factories and electroplating workshops handling heated acid
- Copper removal from the surface layer of gold pieces before final finishing
Photographs

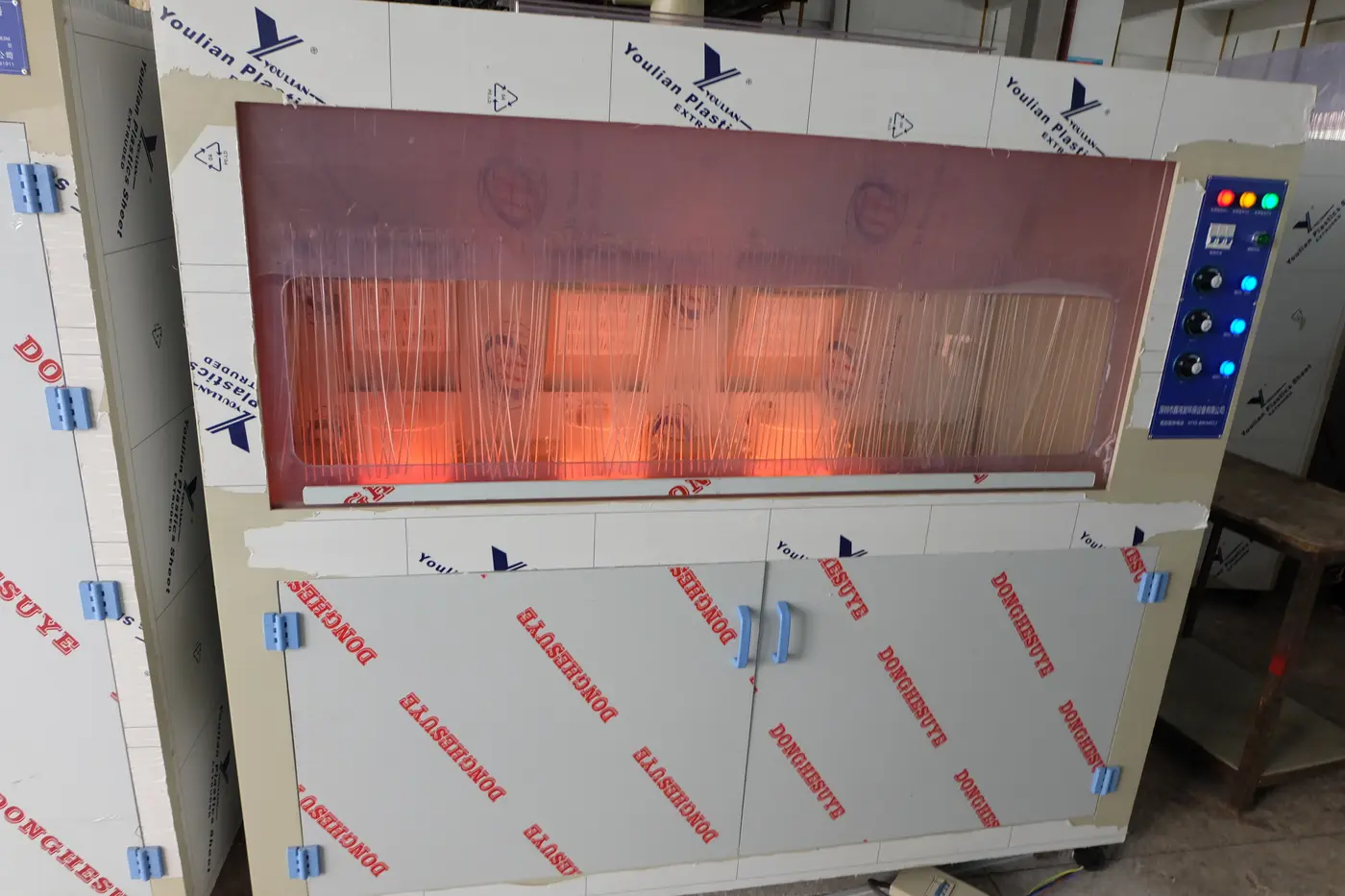

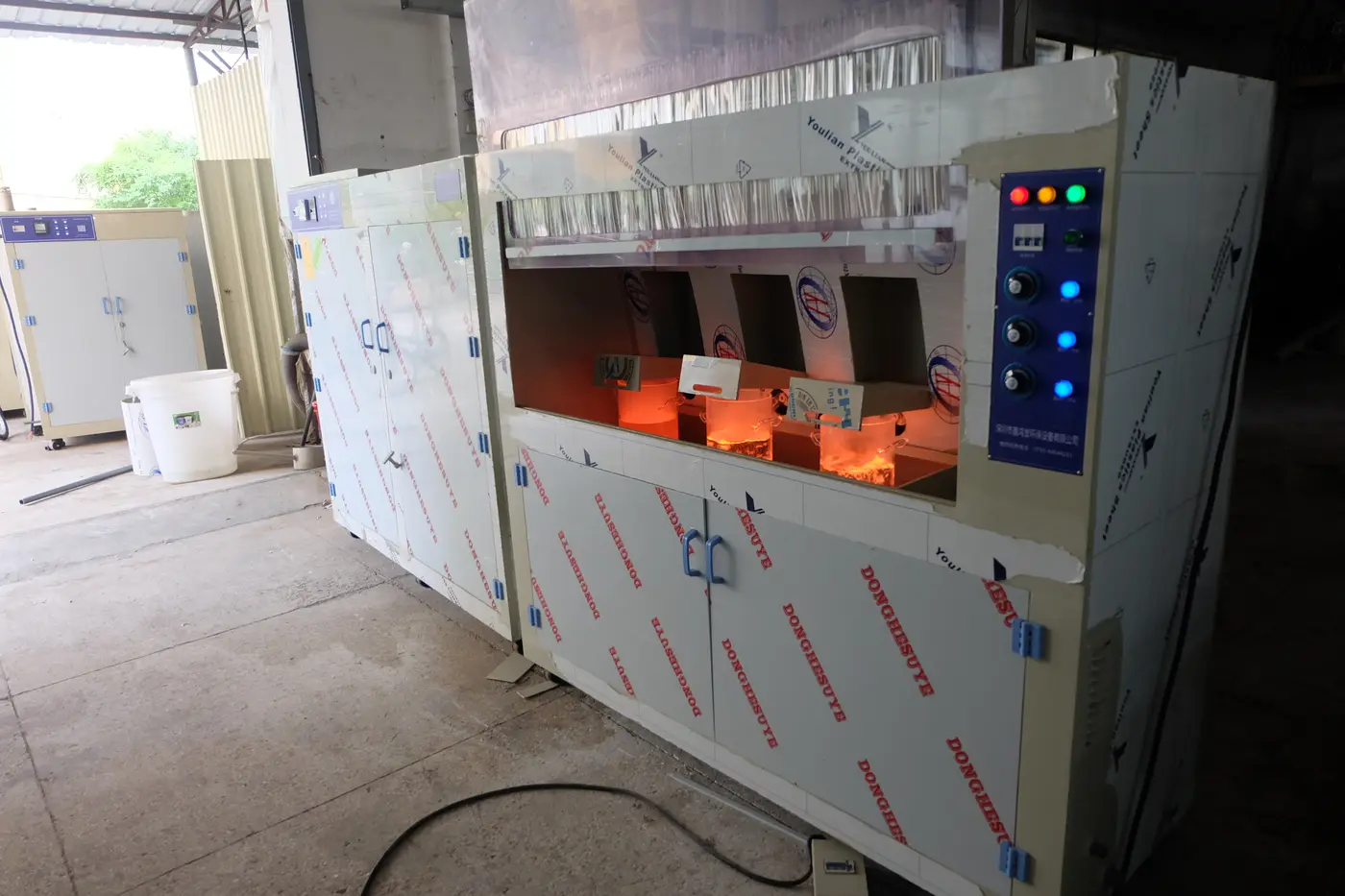

Automatic Safe Acid Burning and Color Hanging Cabinet In Detail
Every photograph on this page is of the actual machine as supplied. Nothing here is a render.
Industries
Industries Running This Machine
Jewelry Manufacturing
Electroforming, plating, acid finishing and scrap recovery for factories making gold and silver pieces.
FAQ
Automatic Safe Acid Burning and Color Hanging Cabinet Questions
What does acid burning actually do to the piece?
Two things, per the source: it removes the copper inside the jewelry, and it makes the colour of the jewelry more shining.
How much of the acid fume is dealt with?
More than 98 percent, through the acid gas purification system with its pH control device, fan and water pump.
Why quartz rather than glass?
The beaker and basket are imported German quartz annealed at 1200 C, which is what lets them resist high temperature and stay stable in strong acid or alkali.
Is there a patent on it?
The product data lists an invention patent verification as its certificate. Xinhongfa holds 2 invention patents and 3 utility model patents in total.
Related
Machines Usually Specified With It
99.9% Ti
Gold Melting Reactor
A sealed 99.9 percent titanium reactor for aqua regia gold dissolution, 10 to 20 kg a charge.
2-5 kg batch
Silver Potassium Cyanide Electrolytic Making Machine
Silver salt production, cyanide gas purification and metal recovery in one cabinet.
Quote The Automatic Safe Acid Burning and Color Hanging Cabinet
Send your daily volume and feed grade and we will confirm the size, capacity and power that fits. Production and delivery normally 7 to 15 working days after order confirmation.
