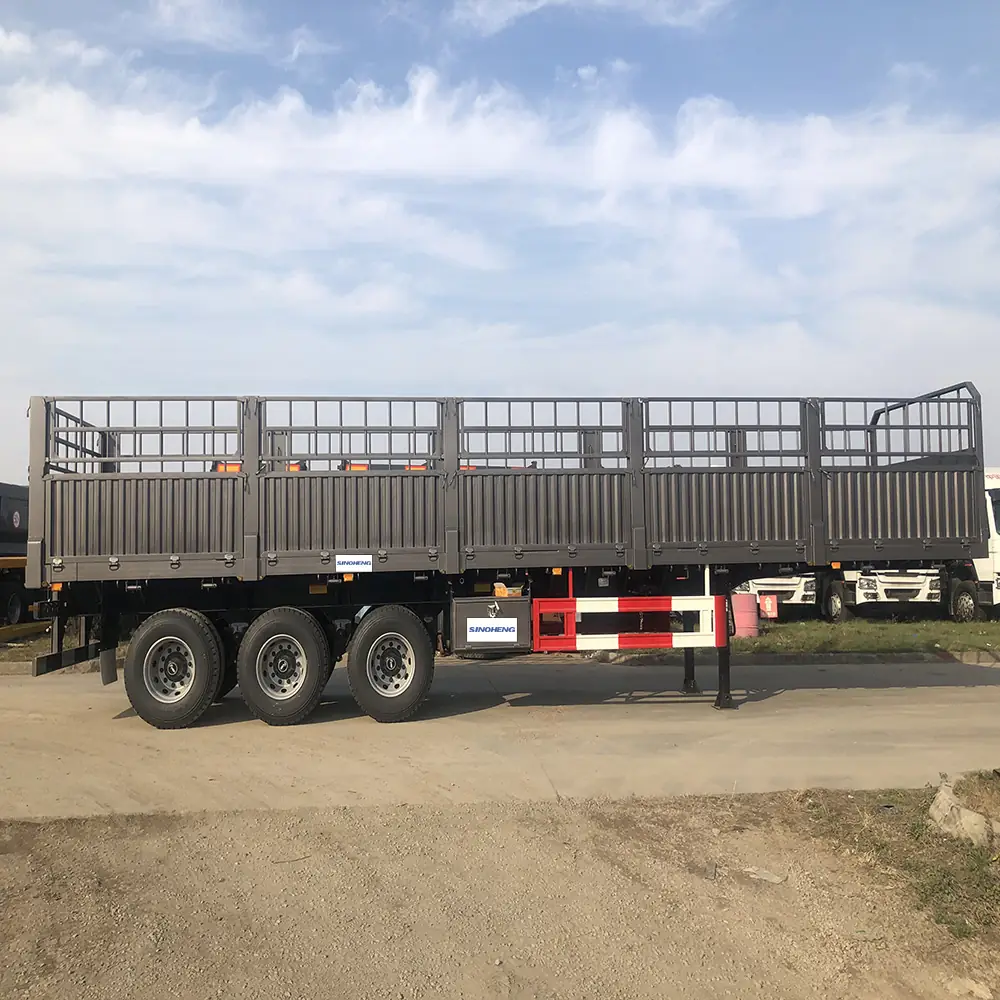

Fence Livestock Semi-Trailer Truck 60t Trailer East China Factory Manufacturer
Storehouse fence trailer with 1600 to 2200mm fence height and 1 to 4 axle configuration.
Overview
What This Trailer Is Built For
A storehouse fence trailer at 13000mm x 2500mm with a fence height selectable at 1600mm, 1800mm, 2000mm or 2200mm, at 7500kg tare. The fence height is the decision that defines this trailer: 1600mm suits general bagged and baled cargo, while 2200mm gives the depth for livestock or bulky low-density freight. Axle count is unusually flexible at 1 to 4 pieces at 13T, so the trailer can be built from a light single-axle unit up to a heavy four-axle configuration. Braking uses WABCO with four sets of T30/30 and two sets of T30 chambers on two 40L tanks, the kingpin is JOST 50# or 90#, landing gear is 28 tonne JOST or FUWA, and ABS is optional.
Key Benefits
What You Get
- Fence height selectable at 1600, 1800, 2000 or 2200mm to suit cargo depth
- Axle count from 1 to 4 pieces at 13T, the widest configuration range in the fence line
- WABCO braking with four T30/30 and two T30 chambers on two 40L tanks
- 13000mm deck carries a full commercial load of bulky freight
- Suspension designed to reduce uneven tire wear on long runs
Problems Solved
What It Fixes
- Standard fence heights are wrong for either livestock or bagged goods
- Fixed axle counts do not match varied route weight limits
- Underspecified braking with a tall, high centre of gravity load is unsafe
- Fence trailers on long runs wear tires unevenly
Who It Is For
Operators Who Buy This Model
- Livestock and agricultural hauliers
- Feed and produce distributors
- Operators carrying bulky low-density freight
- Fleets needing fence trailers at varied axle counts
Application Scenarios
Where It Works
- Livestock transport with high fence sides
- Baled cotton, straw and animal feed haulage
- Bulky low-density freight where volume fills before weight
- Agricultural produce distribution
Technical Features
Build Specification
- Storehouse fence semi-trailer, 13000*2500mm
- Fence height 1600mm, 1800mm, 2000mm or 2200mm
- Tare weight 7500kg plus or minus 5 percent
- Axles 13T, 1 to 4 pieces, mechanical suspension
- Brake system WABCO available, 4 sets T30/30 plus 2 sets T30 chambers, two 40L tanks
- Kingpin JOST brand 50# or 90#, landing gear standard 28 ton JOST or FUWA
- ABS optional, suspension designed to reduce uneven tire wear
Specifications
Manufacturer Data Sheet
| Type | Storehouse semi-trailer Parameter |
|---|---|
| Dimensions L x W x H | 13000*2500 (fence height 1600 / 1800 / 2000 / 2200mm) |
| Tare Weight | (kg) 7,500 kg(±5%) |
| Payload | (kg) 70,000 kg(±5%) |
| Axle | 13T, 1-4 pcs |
| Suspension | Mechanical |
| Landing Gear | Standard 28Ton, JOST or FUWA etc. |
| Kingpin | JOST brand 50#or 90# |
| Brake System | WABCO available. 4 sets T30/30+2 sets T30 chamber; Two 40L tanks |
| ABS | Optional |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Fence post and rail weld inspection at every mounting
- Deck load test before dispatch
- Axle alignment checked to control tire wear
- Brake chamber and WABCO valve function test
Customization
What You Can Change
- Fence height 1600, 1800, 2000 or 2200mm
- Axle count 1 to 4 at 13T
- ABS anti-lock braking fitted on request
- Kingpin 50# or 90#
- Deck length and rail spacing adjusted to your cargo
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| 40ft tri-axle fence trailer | This build offers taller fences up to 2200mm and a wider axle range; the 40ft unit is the standard cargo fence configuration. |
| Cattle transport trailer | The dedicated cattle build has the deck surface and rail spacing set for animals; this storehouse build is more general purpose. |
| Sidewall cargo trailer | Fence grids ventilate and weigh less; solid side walls contain fine material that would escape through the grid. |
Use Guide
Operating This Trailer
- Choose fence height by cargo depth, not by appearance
- Strap tall loads over the fence rather than relying on the fence alone
- Match the axle count to your route weight limits
- Monitor tire wear patterns as an early sign of alignment drift
- Check fence post mountings after heavy loads
Related Products
Related Trailers
High Fence Cattle Transport Three axles Truck Semi-Trailer China Factory
High fence cattle transport trailer, 13000*2490*2860mm, 30T capacity with ventilated stake sides.
View Specification
Rear Tipper Semi Trailer Dump Truck Trailer 4 Axle Semi-Trailer
Four-axle rear tipper with a 55cbm rectangular body and HYVA front-mounted lifting for high-density bulk work.
View Specification
Stainless Aluminum Alloy Oil Semi-Trailer Tanker 3 Axles Carbon Steel Truck China Factory Direct Sale
40-45cbm aluminium alloy fuel tanker on FUWA 13T axles, square gooseneck tank, ECE GCC ISO DOT tire certification.
View SpecificationKnowledge
Related Guides
Why Truck Tires Wear Abnormally and How to Stop It
Suspension design, dynamic tire alignment and S-road testing: the three production-stage measures that determine whether your tires wear evenly.
FAQ
Questions About This Model
What Fence Heights Are Available
1600mm, 1800mm, 2000mm or 2200mm. Choose 1600mm for general bagged and baled cargo, and 2200mm for livestock or bulky low-density freight.
How Many Axles Can I Have
1 to 4 pieces at 13T each, which is the widest configuration range in our fence line.
What Is the Tare Weight
7500kg plus or minus 5 percent, on a 13000 x 2500mm deck.
What Brake System Is Fitted
WABCO braking with four sets of T30/30 and two sets of T30 chambers on two 40L air tanks, with ABS optional.
Is It Suitable for Livestock
With the taller fence heights it can be used for livestock. For dedicated cattle work we supply the high fence cattle transport model, which has the deck surface and rail spacing set for animals.
Will the Tires Wear Evenly
The suspension is designed to keep the axles tracking true, and axle alignment is checked before dispatch. Uneven wear is the main tire cost driver on fence trailers.
What Payload Can It Carry
That depends on the axle count and fence configuration you choose. Send us your cargo type and route and we will confirm the rating for your build.
