Fence Trailer Stake Cargo Semi-trailer High Fence Cargo 40ft Tri-axle Heavy Flatbed Truck Trailer
40ft tri-axle fence trailer, 12500*2500*1200mm, 60T payload on FUWA axles and 11R22.5 tires.
Overview
What This Trailer Is Built For

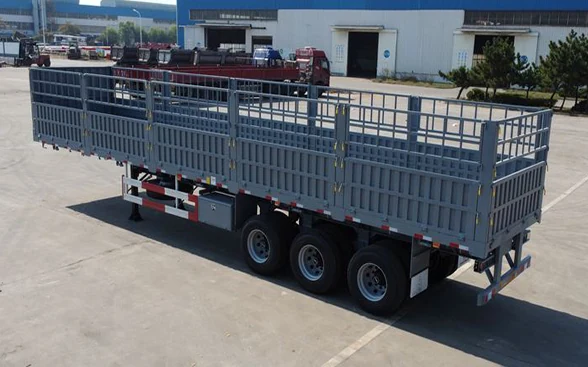

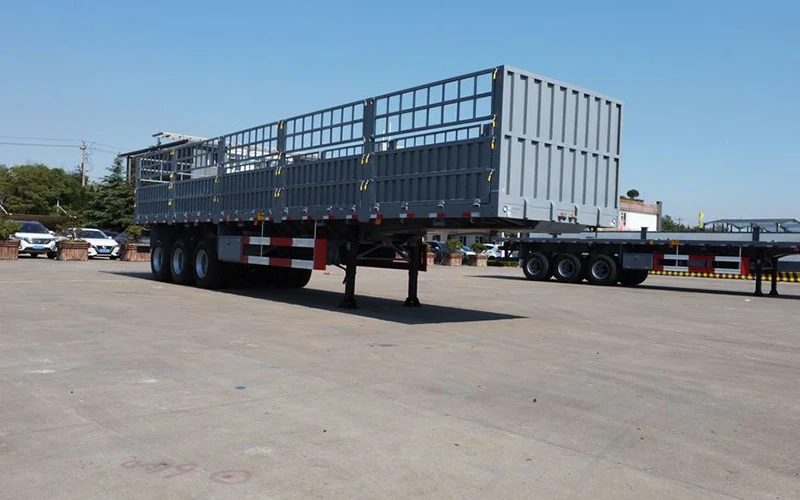

A 40 foot tri-axle fence trailer at 12500*2500*1200mm in steel, rated for a 60 tonne maximum payload on FUWA axles with mechanical suspension and 11R22.5 tires. The stake sides contain bagged, baled and loose cargo that would slide off a flat deck, while still letting air through, which is why fence trailers dominate agricultural produce and livestock feed haulage. The suspension is a new type designed to keep the axles tracking true and avoid the uneven tire wear and wheel scrub that plagues fence trailers on long runs.
Key Benefits
What You Get
- 1200mm stake sides hold bagged and baled cargo that slides off a flat deck
- 60 tonne payload rating covers dense agricultural and building material loads
- Open stake construction ventilates produce and livestock feed in transit
- The suspension design targets uneven tire wear and wheel scrub directly
- FUWA axles and 11R22.5 tires are supported in most export markets
Problems Solved
What It Fixes
- Bagged and baled cargo shifts and falls from a flat deck
- Enclosed bodies trap moisture and spoil produce
- Fence trailers on long runs wear tires unevenly and scrub in turns
- Light-duty fence trailers cannot carry dense building materials
Who It Is For
Operators Who Buy This Model
- Agricultural haulage contractors
- Feed and produce distributors
- Building material suppliers
- Operators running high annual mileage who watch tire cost
Application Scenarios
Where It Works
- Agricultural produce and grain sack transport
- Baled cotton, straw and animal feed haulage
- Building materials such as blocks and bagged cement
- General palletised freight that needs side containment
Technical Features
Build Specification
- 40ft tri-axle fence trailer, stake cargo body
- Size 12500*2500*1200mm
- Maximum payload 60T, material steel
- FUWA axles with mechanical suspension
- 11R22.5 tires
- Suspension designed to reduce uneven tire wear and wheel scrub
Specifications
Manufacturer Data Sheet
| Type | 40ft Tri-axle fence trailer stake cargo semi-trailer S ize 12500*2500*1200mm |
|---|---|
| Max Payload | 60T material Steel |
| Suspension | Mechanical |
| Tire | 11R22.5 |
| Axles | FUWA |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- Stake post and rail weld inspection
- Axle alignment checked to control tire wear
- Deck load test before dispatch
- Brake performance and balance test
Customization
What You Can Change
- Stake height and spacing set to your cargo
- Axle brand and load rating chosen to suit local service
- Tire size changed to local supply
- Deck length and width adjusted at order
- Tarpaulin rails and tie-down points added
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| Flatbed semi-trailer | Stake sides contain loose and bagged cargo; a flat deck is better for containers and oversize items. |
| Box van trailer | The fence body ventilates produce and is lighter; a box is sealed and secure but traps moisture. |
| Sidewall cargo trailer | Fence stakes are open and lighter; solid sidewalls contain fine bulk material that would fall through stakes. |
Use Guide
Operating This Trailer
- Strap high loads over the stakes rather than relying on the stakes alone
- Distribute dense cargo evenly along the deck
- Check stake post mountings after heavy loads
- Monitor tire wear patterns as an early sign of alignment drift
- Use tarpaulins where cargo must be kept dry
Related Products
Related Trailers
Fence Livestock Semi-Trailer Truck 60t Trailer East China Factory Manufacturer
Storehouse fence trailer with 1600 to 2200mm fence height and 1 to 4 axle configuration.
View Specification
Rear Tipper Semi Trailer Dump Truck Trailer 4 Axle Semi-Trailer
Four-axle rear tipper with a 55cbm rectangular body and HYVA front-mounted lifting for high-density bulk work.
View Specification
Stainless Aluminum Alloy Oil Semi-Trailer Tanker 3 Axles Carbon Steel Truck China Factory Direct Sale
40-45cbm aluminium alloy fuel tanker on FUWA 13T axles, square gooseneck tank, ECE GCC ISO DOT tire certification.
View SpecificationKnowledge
Related Guides
Why Truck Tires Wear Abnormally and How to Stop It
Suspension design, dynamic tire alignment and S-road testing: the three production-stage measures that determine whether your tires wear evenly.
FAQ
Questions About This Model
What Payload Can It Carry
60 tonnes maximum payload. Confirm your local axle limits, which may set a lower legal figure.
How High Are the Stake Sides
1200mm on the standard build at 12500*2500mm. Stake height and spacing can both be set to your cargo.
Which Axles Are Fitted
FUWA axles with mechanical suspension and 11R22.5 tires. Other axle brands can be specified to match local service support.
Will the Tires Wear Evenly
The suspension on this model is designed to keep the axles tracking true, which is the main cause of uneven wear and wheel scrub on fence trailers. Axle alignment is checked before dispatch.
Can I Add Tarpaulin Rails
Yes. Tarpaulin rails and additional tie-down points are available as build options.
Is It Suitable for Livestock
For livestock we normally supply the dedicated high fence cattle transport model, which has the stake spacing and deck arrangement for animals.
What Is the Warranty
One year quality guarantee from delivery, with spare parts supply for the full service life.
Get A Price For The Fence Configuration You Need
Send your country of use, cargo, load weight and axle limits. We confirm the configuration and quote FOB or CIF in one to three days.
