Overview
What This Trailer Is Built For

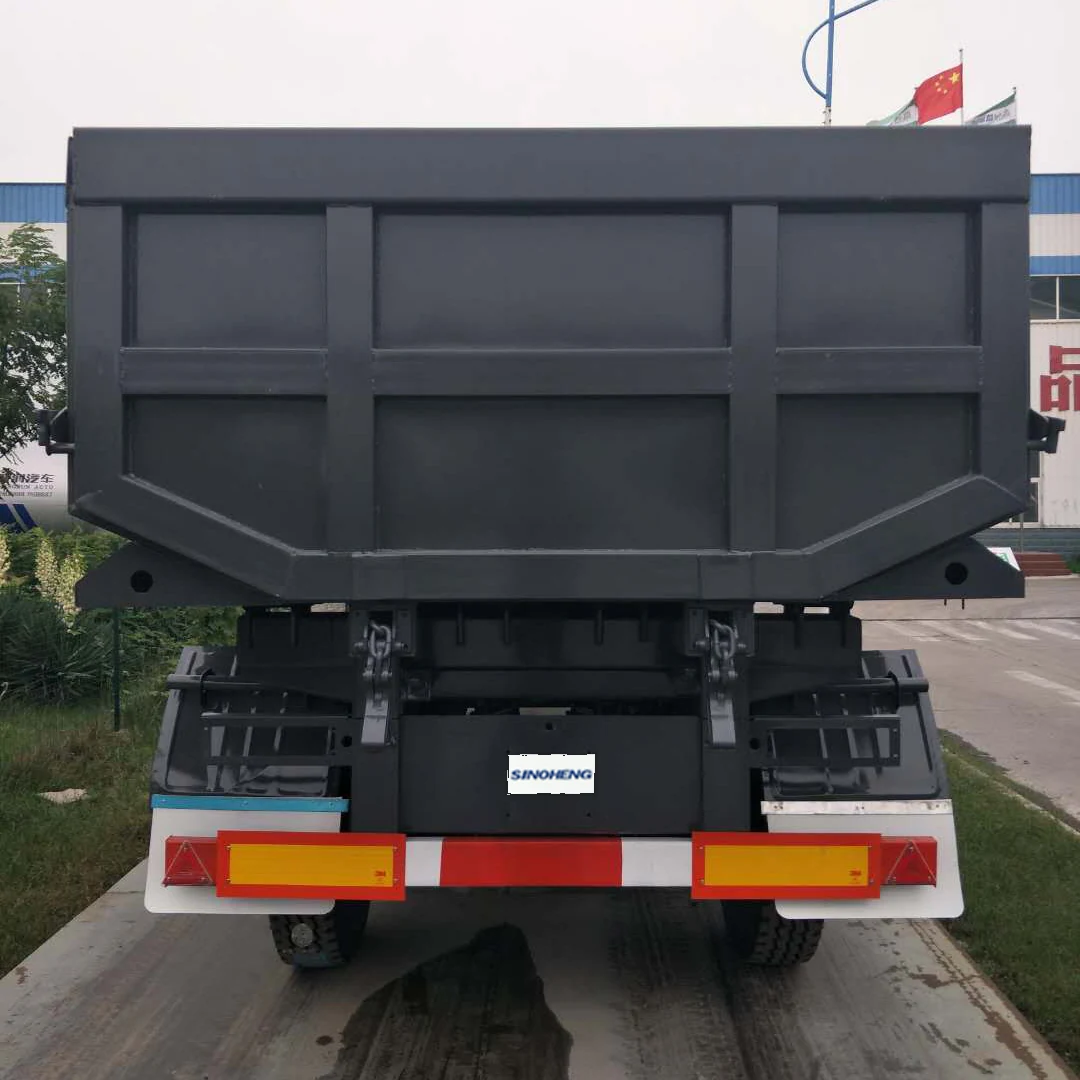

A compact three-axle U-tipper with an 8500*2400*2300mm body, or 7600*2300*2300mm internally, at 8800kg tare and 31200kg payload within a 40000kg gross, all figures plus or minus 5 percent. The short body and U profile are a deliberate pairing: the U floor releases wet and sticky material cleanly, and the compact length keeps the trailer working in confined sites where a 10 metre tipper cannot turn. Axles are three FUWA 13T sets on mechanical suspension with 9.0R22.5 wheel hubs, 90mm x 13mm x 10-piece leaf springs and a JOST 50# or 90# kingpin.
Key Benefits
What You Get
- 8500mm body is short enough to work in confined urban and quarry sites
- U shape floor releases wet sand and sticky material without shaking
- 31200kg payload at 8800kg tare within a 40000kg gross
- 90mm x 13mm x 10-piece leaf springs on FUWA 13T axles
- Front-top tipping arrangement keeps the discharge controlled
Problems Solved
What It Fixes
- Long tippers cannot turn in confined sites
- Square-cornered bodies retain wet sand that has to be dug out
- Shaking a stuck load damages the body and tipping gear
- Heavy tare weight leaves too little payload on a compact trailer
Who It Is For
Operators Who Buy This Model
- Contractors working on confined urban sites
- Quarry operators with tight internal roads
- Hauliers carrying wet and sticky material
- Fleets needing a compact tipper alongside larger units
Application Scenarios
Where It Works
- Urban construction site material supply
- Confined quarry and yard operations
- Wet sand and sticky material haulage
- Short-cycle shuttle work
Technical Features
Build Specification
- Triple axle U-tip truck, front top tipping
- Body dimension 8500*2400*2300mm, internal 7600*2300*2300mm
- Tare weight 8800kg, payload 31200kg, gross weight 40000kg, all plus or minus 5 percent
- Axles FUWA 13T, three sets, mechanical suspension
- Wheel hub 9.0R22.5 x 12
- Leaf spring 90mm x 13mm x 10 pieces
- Kingpin JOST brand 50# or 90#
Specifications
Manufacturer Data Sheet
| Type | Triple axle U-tip truck Parameter |
|---|---|
| Dimensions L x W x H | 8500*2400*2300(7600*2300*2300) |
| Tare Weight | (kg) 8,800 kg(±5%) |
| Payload | (kg) 31,200 kg(±5%) |
| Gross Weight | (kg) 40,000 kg(±5%) Configuration |
| Axle | FUWA 13T, 3 sets |
| Suspension | mechanical |
| Kingpin | JOST Brand 50# or 90# |
Figures are taken from the SINOHENG data sheet for this model. Final dimensions and weights are confirmed on the approved order drawing.
Quality Control
Checks Before Dispatch
- U shape body profile checked against the drawing
- Hydraulic lift cycle tested under load
- Axle alignment and brake balance test
- Weighbridge check of tare weight before dispatch
Customization
What You Can Change
- Body volume and plate thickness set to your material
- Axle rating and brand chosen to local service support
- Kingpin 50# or 90#
- Tire specification changed to local supply
- Tail gate arrangement specified at order
Comparison
How It Compares
| Compared With | How This Model Differs |
|---|---|
| 38cbm U shape tipper | This compact build turns in sites the longer trailer cannot enter; the 38cbm unit carries considerably more per trip. |
| Rectangular body tipper | The U shape releases wet and sticky material cleanly; a rectangular body carries squared and mixed loads better. |
| Two-axle tipper | Three axles carry 31 tonnes legally; two axles are limited on the same route. |
Use Guide
Operating This Trailer
- Tip only on level compacted ground with the tractor in line
- Lower the body fully before moving off
- Keep the load spread evenly toward the front of the body
- Check the floor plate for abrasion after abrasive material work
- Grease hinge pins and inspect cylinder seals at each service
Related Products
Related Trailers
Rear Flip Tipper Semi Trailer 40cubic 3 Axle Heavy Duty for Sale
40 cubic metre rear flip tipper, HYVA or China lifting brand, mechanical or air suspension.
View Specification
Heavy Truck Trailer 3 Axles Dump Semi Side Trailer 80ton Hydraulic Side Tipping Trailer
80 tonne hydraulic side tipping trailer on an Hg60 main beam with 12 twist locks.
View Specification
Heavy Duty Tipping Truck Trailer Dump Semi Trailer China Manufacturer
Gooseneck rear dump trailer, 30m3 body at 9600kg tare with a full HYVA 196 lifting set.
View SpecificationKnowledge
Related Guides
Lightweight Design in 13m Rollover Dump Semi Trailers
How a 13 metre rollover dump semi-trailer reached 4.98 tonnes, and what the same lightweighting principles mean for your payload.
FAQ
Questions About This Model
What Payload Does It Carry
31200kg within a 40000kg gross weight, at 8800kg tare. All figures are plus or minus 5 percent.
How Big Is the Body
8500 x 2400 x 2300mm externally, 7600 x 2300 x 2300mm internally.
Why a U Shape Body
The curved floor has no corners for wet sand or sticky material to pack into, so the load releases cleanly without shaking the trailer.
What Axles Are Fitted
Three FUWA 13T axle sets on mechanical suspension, with 9.0R22.5 wheel hubs and 90mm x 13mm x 10-piece leaf springs.
What Kingpin Is Used
A JOST brand kingpin in 50# or 90#. Confirm which size your tractor fifth wheel takes.
Can the Body Be Made Larger
Yes, body volume and plate thickness are set to the material you carry. The compact size is deliberate for confined sites.
What Is the Warranty
One year quality guarantee from delivery, with spare parts supply for the whole service life of the trailer.
